Blow your bottle, Shape your dream
 |
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE,ISO |
| Model Number: | semi automatic pet blow molding machine |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | Wooden package |
| Delivery Time: | 10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 Set/Sets per Month |
| Bottle Volume(ml): | 5000 Ml | Blow Moulding Type: | Stretch Blow Moulding |
|---|---|---|---|
| Voltage: | 380V, 50HZ, 3PHASE | Dimension(L*W*H): | 1.56*0.7*1.9(m) |
| Weight (KG): | 700 KG | Automation: | Semi-automatic |
| Warranty: | 1 Year, One Year | Name: | Semi Automatic Pet Bottle Blowing Machine |
| High Light: | Semi Automatic Pet Blow Molding Machine,5000ml Pet Bottle Blow Molding Machine,50HZ Bottle Blow Molding Machine |
||

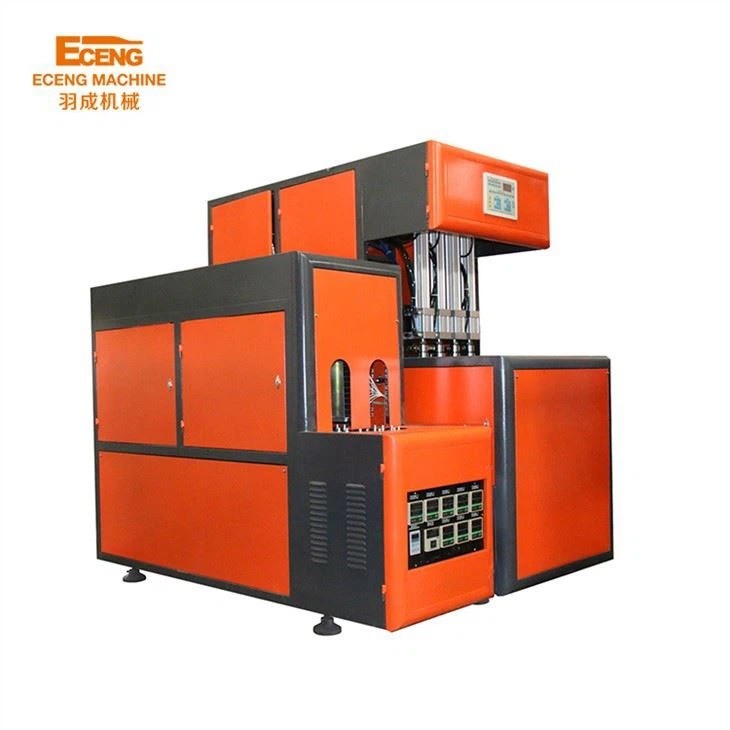

YC series Plastic making Top quality useful semi automatic pet blowing machinery is controlled by microcomputer. The plastic blowing machine can control the technical parameters more accurately.With the upper and lower system,emergency stop system,independent counter device,count the output accurately.With infrared lamp heating device,penetrating power, preform rotation heating, heating evenly and quickly.YC series semi-automatic plastic bottle blowing machine is suitable for blowing plastic PET bottles such as carbonated beverage bottles,mineral water bottles, cosmetic bottles and hot filling bottles etc.
|

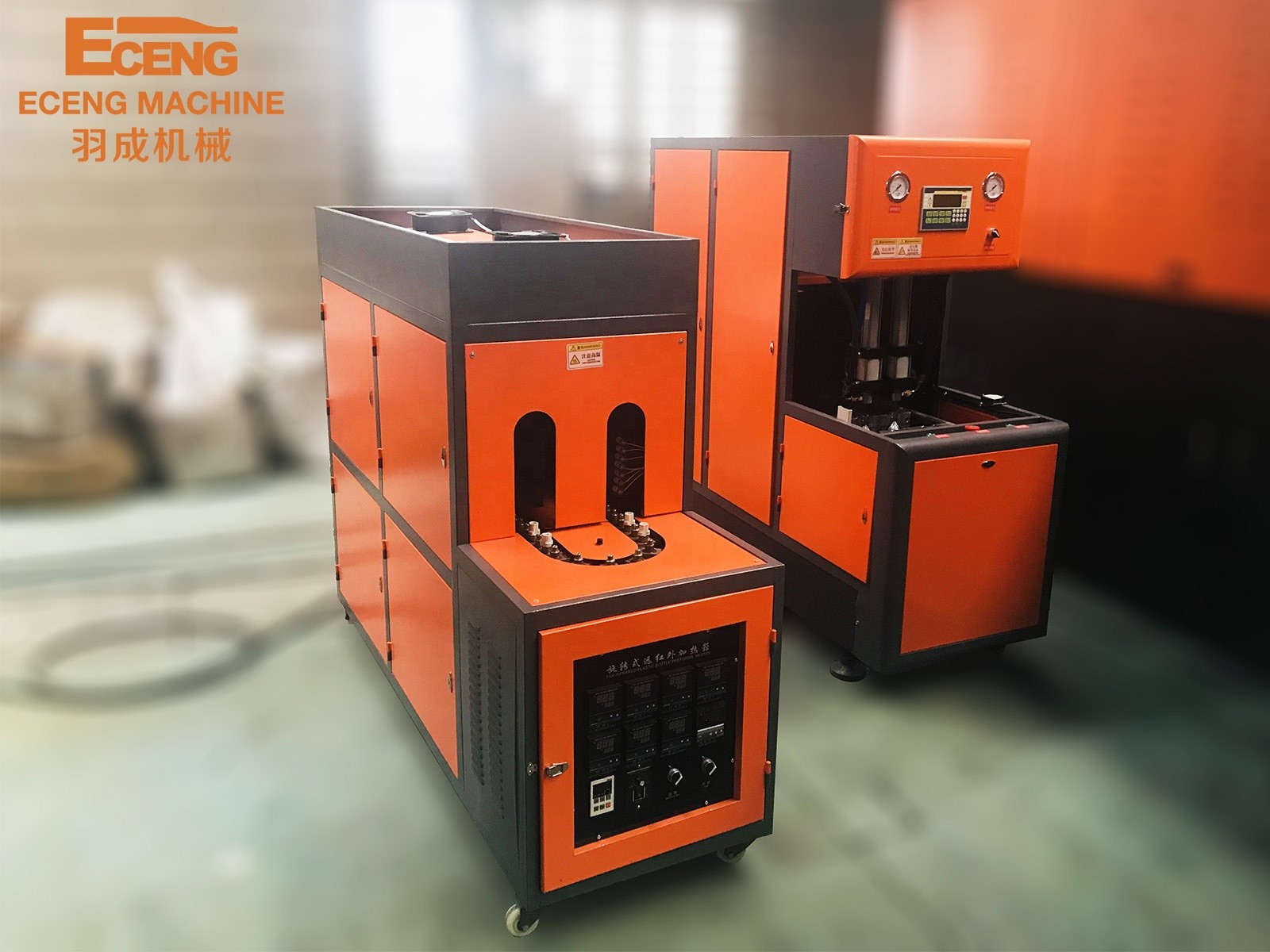

Main machine (blower + oven) |
Item |
YC-5L-2 |
|
Product Spec |
Max. product volume(L/cav) |
5 |
|
Max. preform neck size(mm) |
130 |
|
|
Max. product diameter(mm) |
200 |
|
|
Max. product height (mm) |
400 |
|
|
Cavities |
2 |
|
|
Blow molding part |
Die force (KN) |
150 |
|
Die stroke (mm) |
300 |
|
|
Max. mould size(mm) |
390*530 |
|
|
Mould thickness |
Adjustable |
|
|
Mould spacing(mm) |
Adjustable |
|
|
Max. pulling stroke(mm) |
500 |
|
|
Operation pressure(Mpa) |
0.8-1.0 |
|
|
Operation air pressure consumption (1tr/min) |
350 |
|
|
Blow pressure(Mpa) |
1.2-2.8 |
|
|
Blow air pressure consumption (1tr/min) |
360 |
|
|
Output(pcs/h) |
700(5L bottle) |
|
|
Machine size(LxWxH)(m) |
1.7*0.85*2.1 |
|
|
Machine weight(KG) |
800 |
|
|
Oven |
Temperature grade(rate) |
8 |
|
Heating time(S) |
90-200 |
|
|
Voltage(V) |
220 or as your request |
|
|
Frequency(HZ) |
50/60 |
|
|
Total power(KW) |
16 |
|
|
Oven Size (LxWxH) |
1.45*0.65*1.15 |
|
|
Oven weight (KG) |
330 |

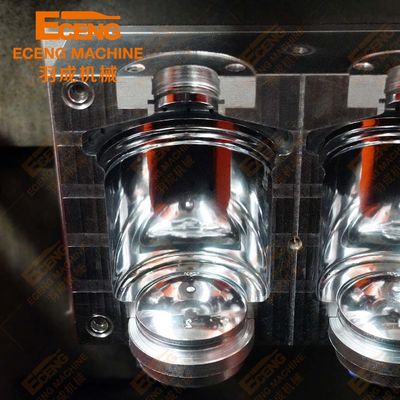

Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid response, long working hours , stable performance,ensure stable operation.
YC linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
