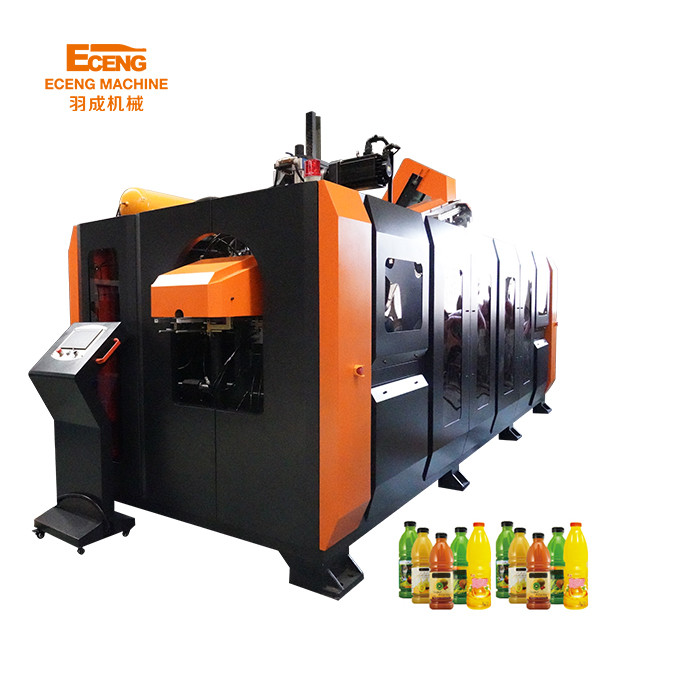

Fully Electric Stretch Blow Molding Machine Eceng K6 Output 12000BPH 2000 Ml

Eceng K-series popular star products, featuring latest linear designed electric stretch blow molding machine adopts synchronized heating system and high-speed clamping design.
With K series bottle blow molding machine, user can manufacture bottles up to 2500 per bottle per chamber.
With Eceng K6 pet blow molding machine, user can manufacture bottles up to 12000 bottles per hour.As compared to traditional machine and rotary blow molding machine, bottle production cost is much less.
Electric stretch blow molding machine has large touch screen graphics interface for the control of heating and blowing processes.
Variable pitch system is driven by a servo motor reduces preform transfer times. Electric stretch blow molding machine can handle different size bottles due to the wider preform distance after changing pitch.This will ultimately reduce bottle production cost.

Model K6
Bottle type specification	Cavity	6
	Max.volume	2L
	Bottle mouth maximum overall diameter	28-30mm
	Bottle biggest diameter	100mm
	Bottle maximum height	330mm
Capacity specification	Theory output	9000~12000BPH
	Bottle type volume	500ML
	Bottle type weight	17g
	Bottle type	Round
Power specification	Light tube quantity	32pcs
	Light tube power	1.25KW
	Maximum heating power	40KW
	All electric machine installation	49KW
	Actual consumption	30%--60%
Air pressure specification	Work pressure	5-6kg/cm2
	Blow bottle pressure	25-45kg/cm2
	Higher -pressure gas consumption	8000Ltr/min
Air pressure specification	Work pressure	5-6 kg/cm2
	Temperature range	10℃
	Consumption	8000kcal/hr
	Forzen water flow	120L/min
Machine specification	Machine size	5.5x1.8x1.9
	Machine weight	6.1ton



Product Description

K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

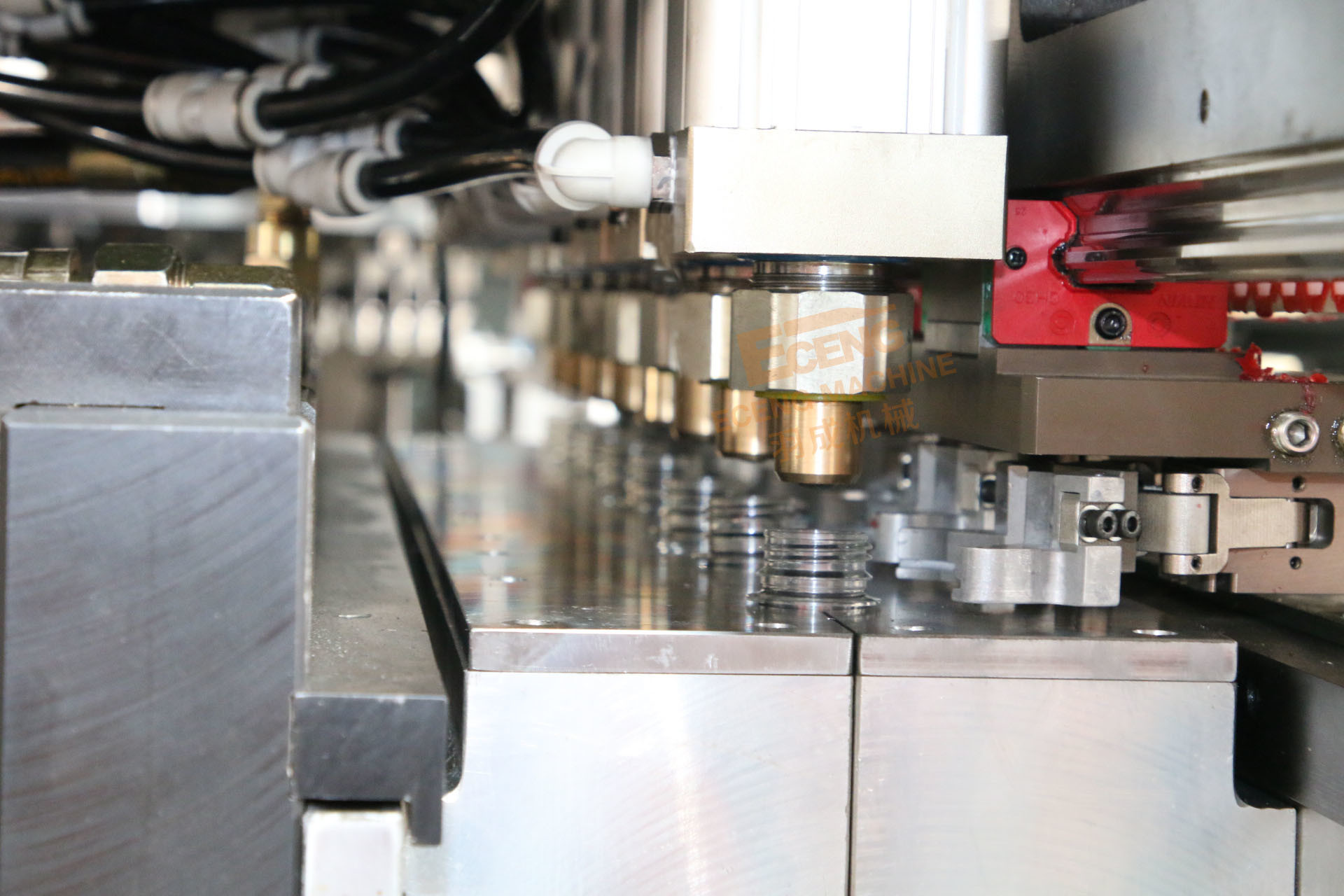

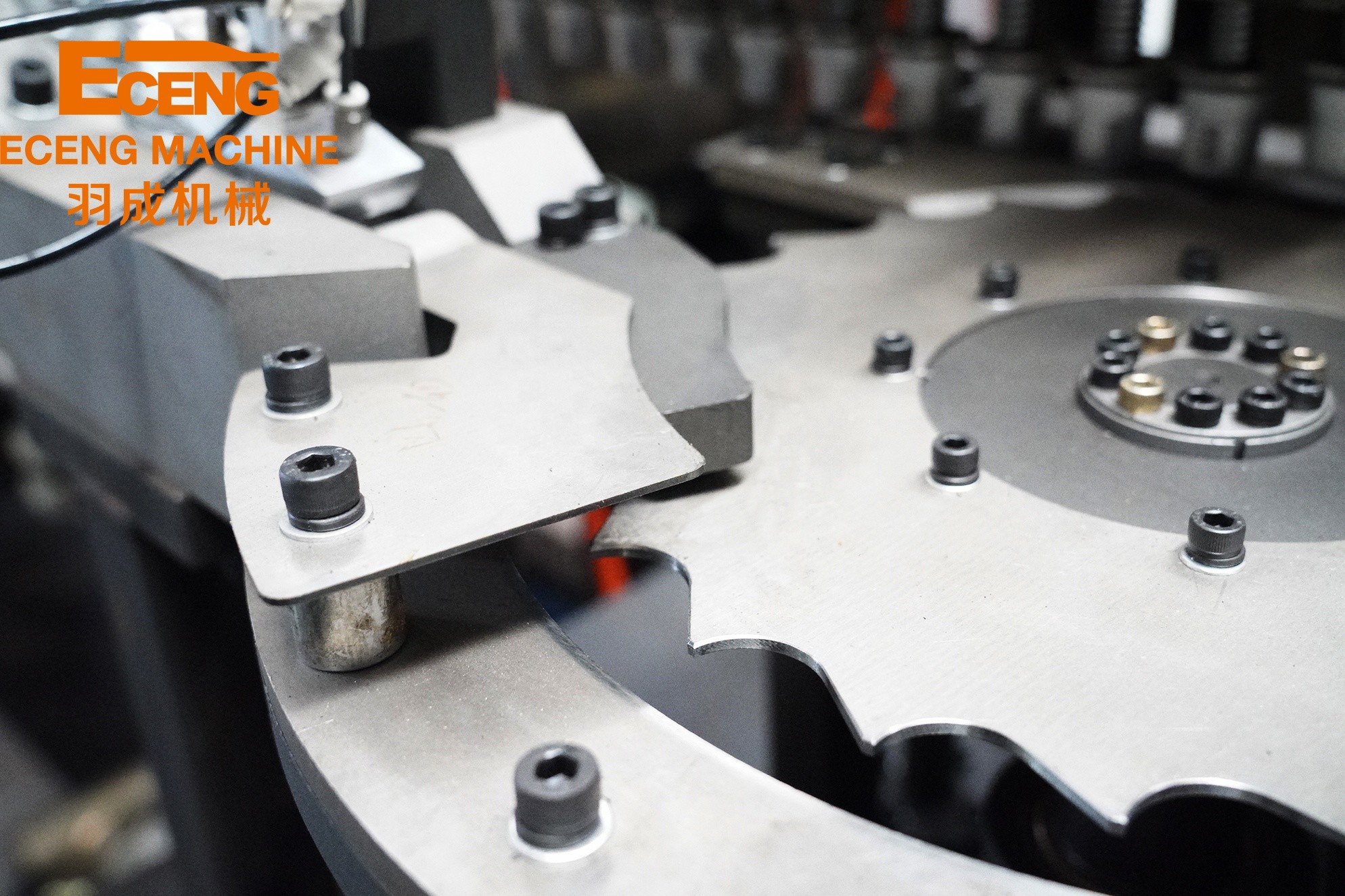

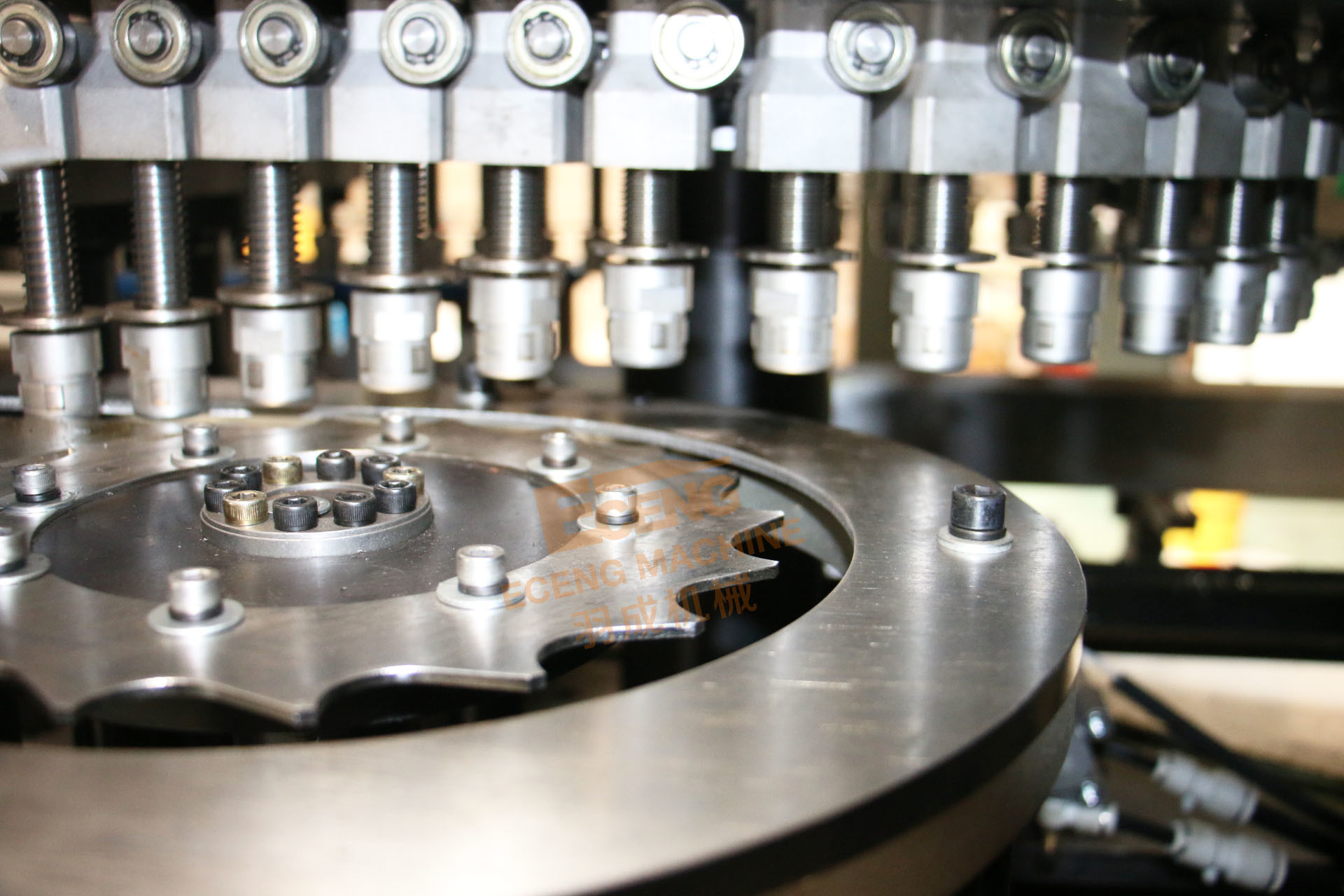

Detailed Images

our advantage

1. Resonable price

2. Good after service

3. experienced skilled workers and professional engineers

4. Good quality ,excellent service ,long life mould

5. on time delivery time

6.our engineers can be online for 24 hours to serve you
