Eceng Q6000 Stretch Water Bottle Blow Moulding Machine 4 Cavity 330 Mm

Eceng Q6000 Stretch Water Bottle Blow Moulding Machine 4 Cavity 330 Mm

  • Eceng Q6000 Stretch Water Bottle Blow Moulding Machine 4 Cavity 330 Mm
  • Eceng Q6000 Stretch Water Bottle Blow Moulding Machine 4 Cavity 330 Mm
  • Eceng Q6000 Stretch Water Bottle Blow Moulding Machine 4 Cavity 330 Mm
  • Eceng Q6000 Stretch Water Bottle Blow Moulding Machine 4 Cavity 330 Mm
  • Eceng Q6000 Stretch Water Bottle Blow Moulding Machine 4 Cavity 330 Mm
  • Eceng Q6000 Stretch Water Bottle Blow Moulding Machine 4 Cavity 330 Mm

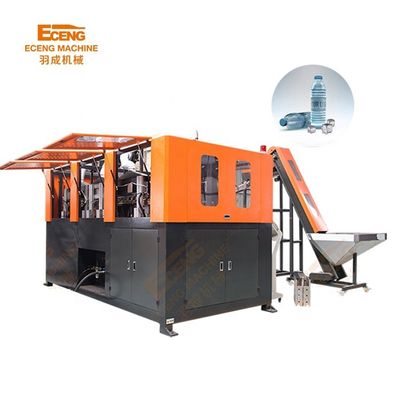

Eceng Q6000 Stretch Water Bottle Blow Moulding Machine 4 Cavity 330 Mm
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE SGS ISO
Model Number: Q6000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $26,800.00/Sets 1-1 Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Max.Bottle Height(mm): 330 Mm
Neck Diameter(mm): 28 Mm Max.Bottle Diameter(mm): 105 Mm
Bottle Volume(ml): 2000 Ml Condition: New
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
High Light:

Stretch Water Bottle Blow Moulding Machine

,

Eceng Q6000 Stretch Blow Moulding Machine

,

4 Cavity Stretch Blow Moulding Machine

Eceng Q6000 4 cavity stretch blow molding moulding machine for sale



Model Q6000

Bottle type specification



Cavity 4
Max.volume 2L
Bottle mouth maximum overall diameter 28-38mm
Bottle biggest diameter 105mm
Bottle maximum height 330mm
Production specification Theoretical output 6000BPH
Bottle type capacity 500ML
Bottle type weight 17g
Bottle type circular
Power specification Light tube quantity 32pcs
Light tube power 1.5KW
Maximum heating power 48KW
All electric machine installation 52KW
Actual consumption 40%--70%

Air pressure specification



Work pressure 7-9kg/cm2
Low-pressure gas consumption 1000L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 3000Ltr/min

Air pressure specification



Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 8000kcal/hr
Forzen water flow 138L/min

Machine specification



Machine size 4.2x1.6x1.9
Machine weight 4.5ton

Product Description

Eceng Q6000 is a stable two-step blow-down stretch automatic blow molding machine.It have 4 cavities,with a speed of 1000 bottles per hour per cavities.
Eceng Q6000 6000 bottles/hour.Apply to water bottle,suitable for blowing 100ml to 2000ml plastic bottle,Apply to water bottle,fruit juice bottle,carbonated drinks bottle,etc.

Eceng Q6000 Stretch Water Bottle Blow Moulding Machine 4 Cavity 330 Mm 0

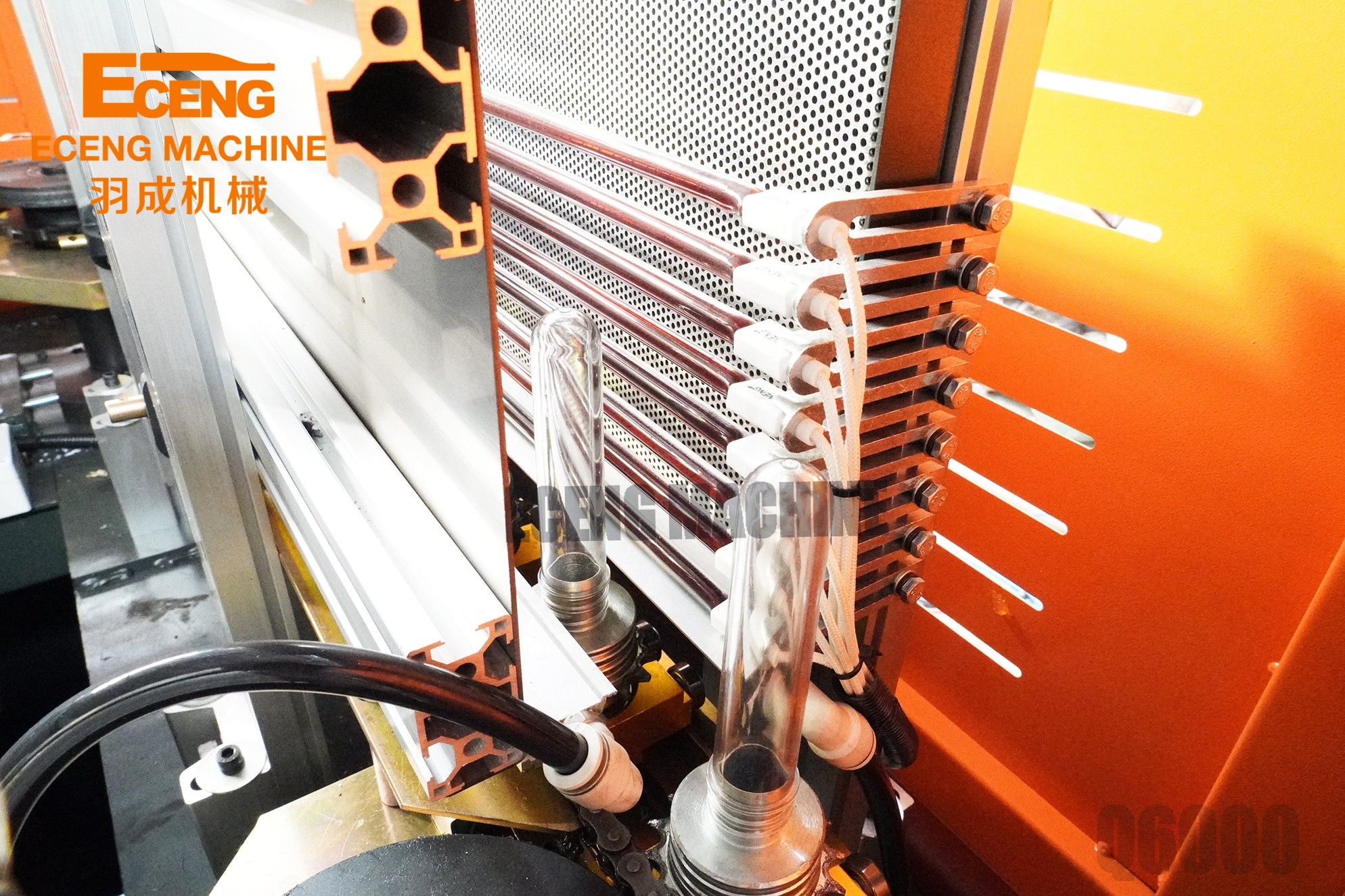

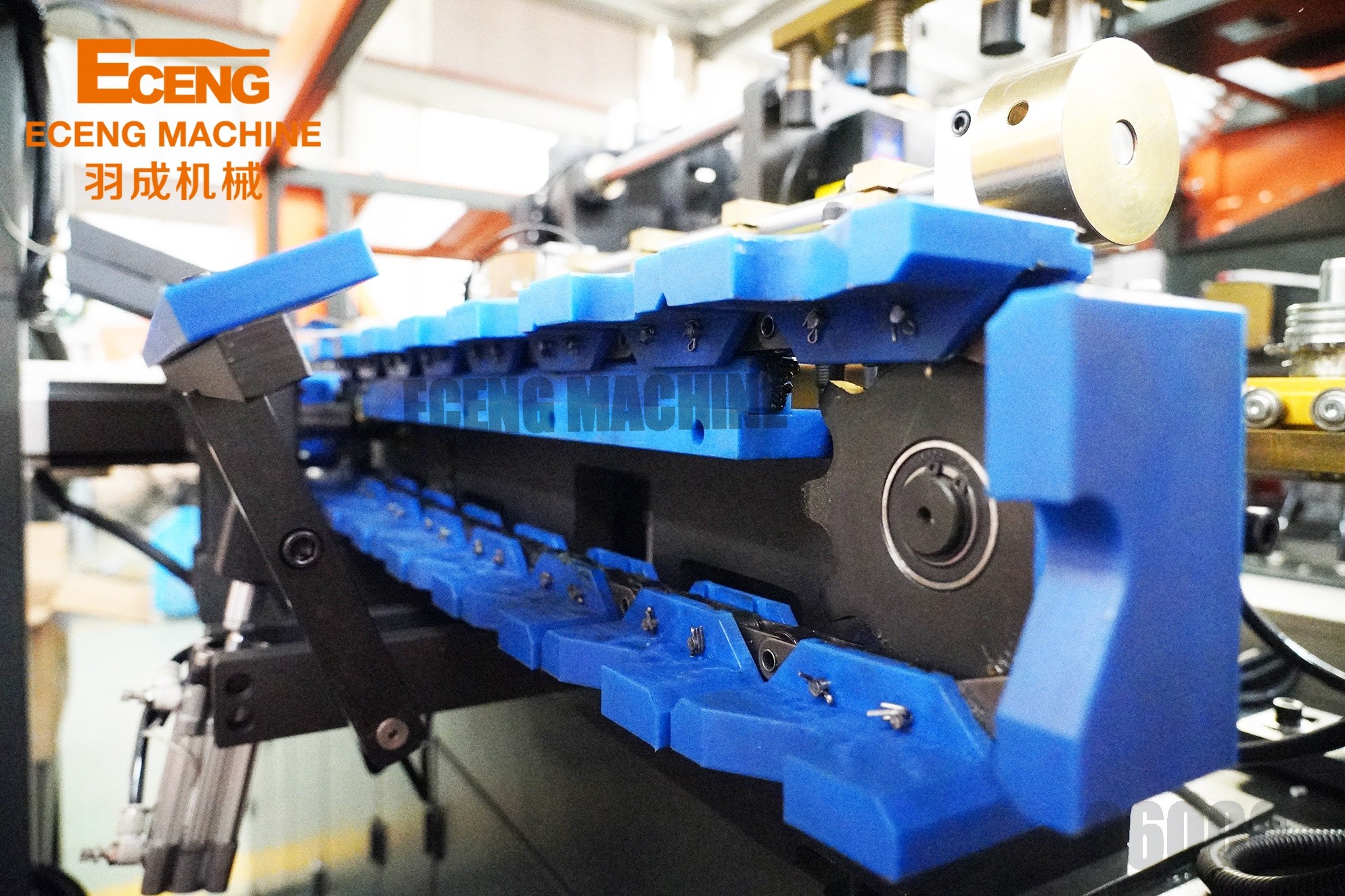

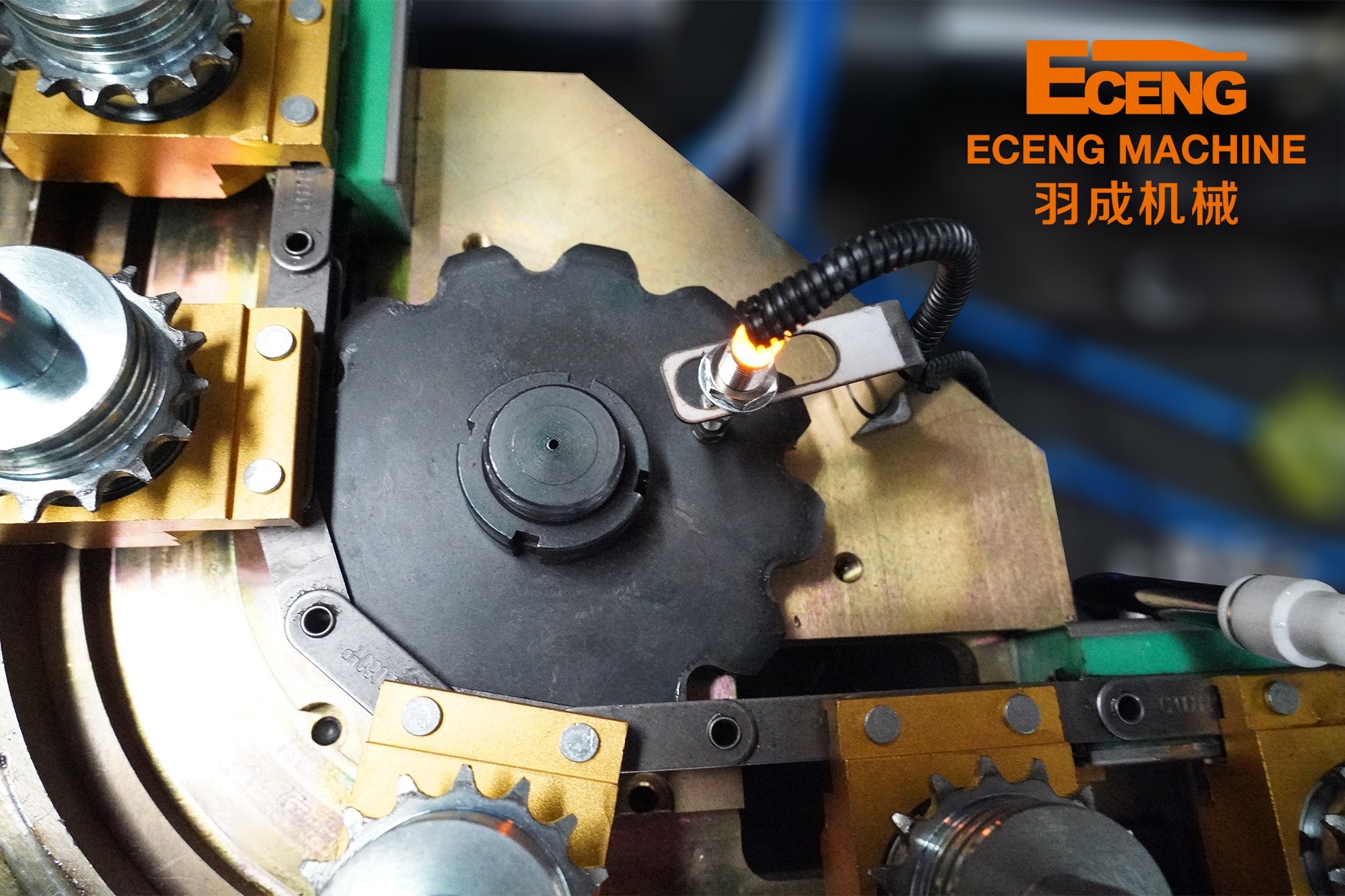

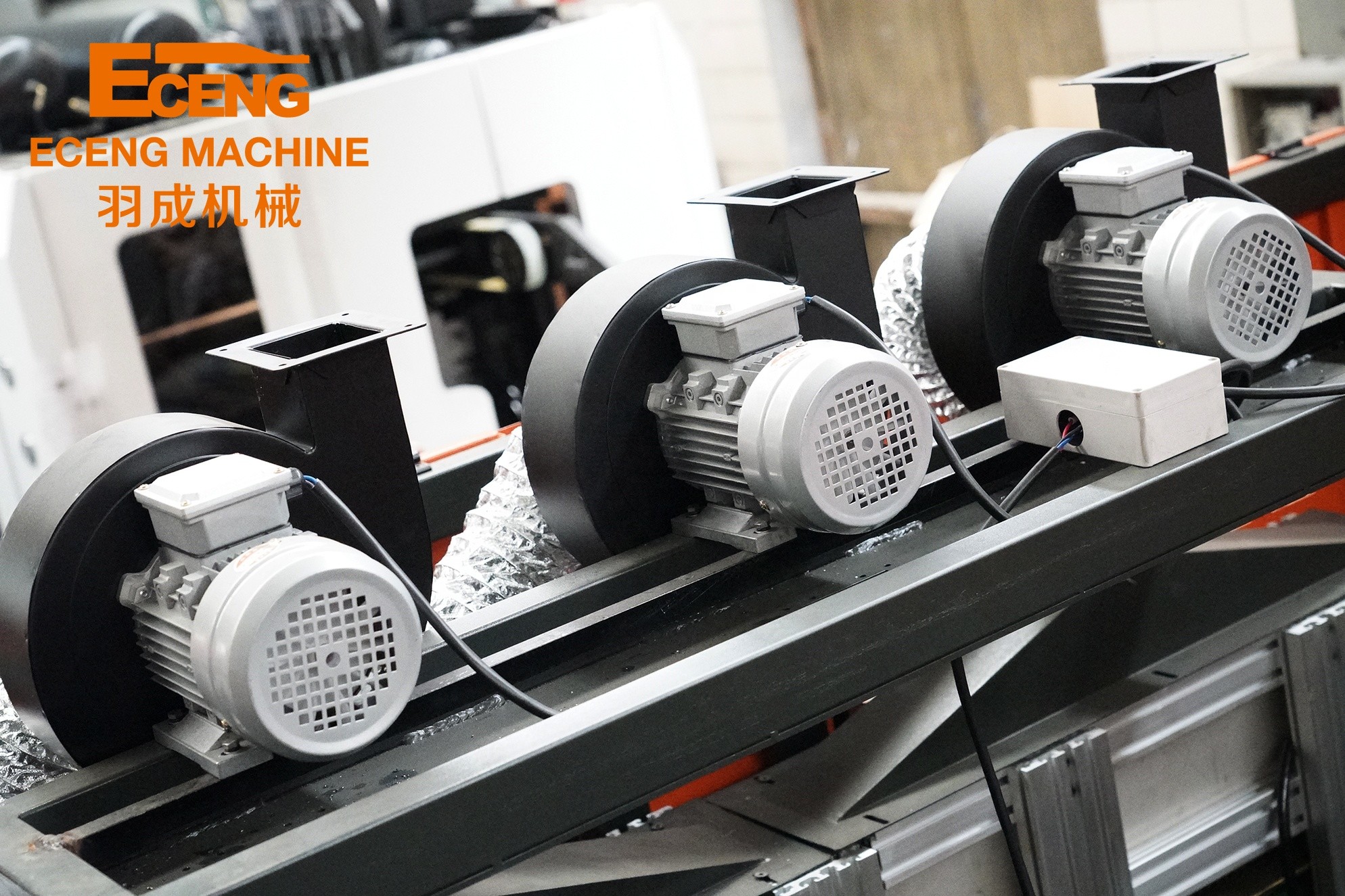

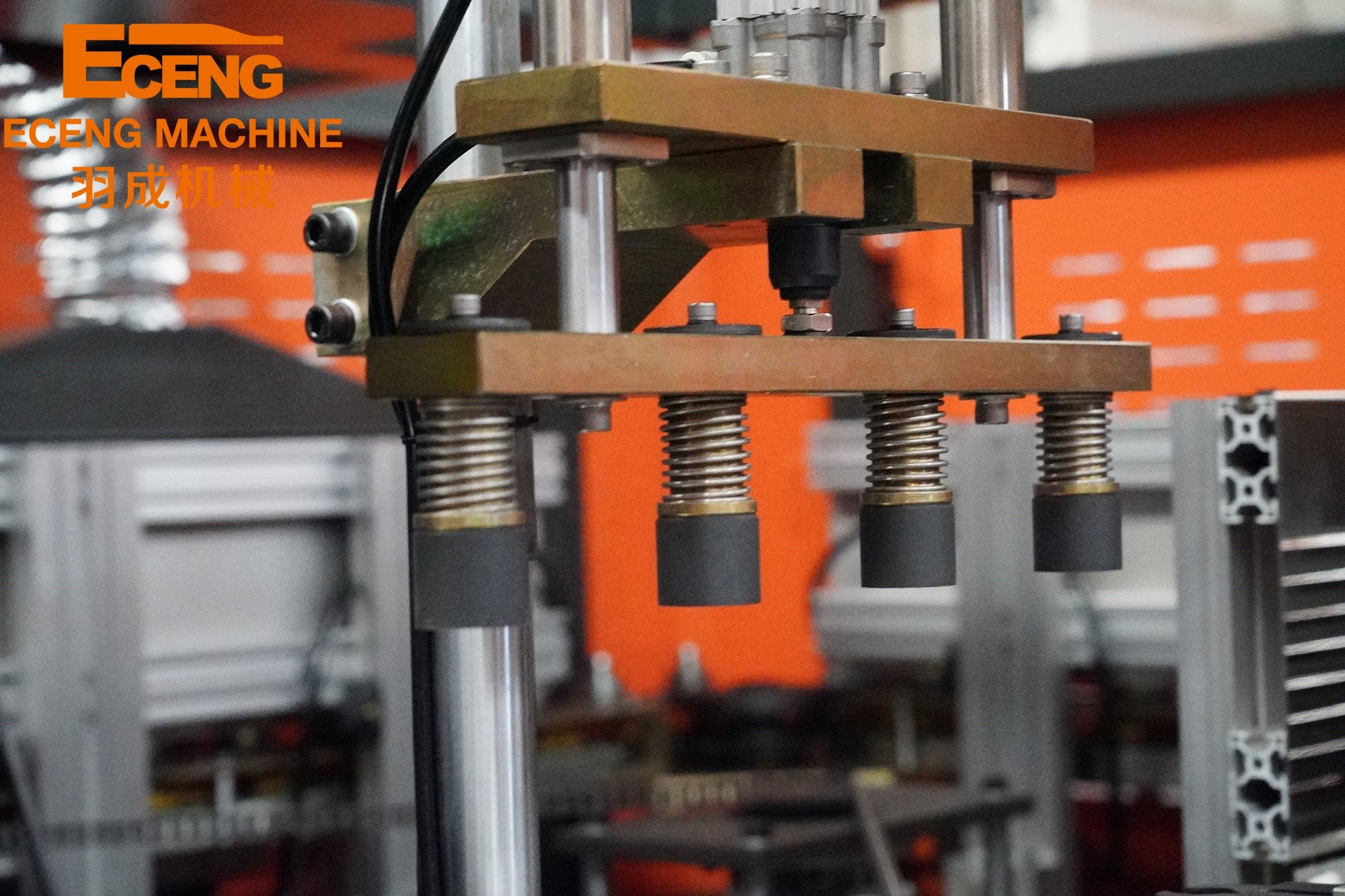

Detailed Images


Eceng Q6000 Stretch Water Bottle Blow Moulding Machine 4 Cavity 330 Mm 3Eceng Q6000 Stretch Water Bottle Blow Moulding Machine 4 Cavity 330 Mm 4
Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
Eceng Q6000 Stretch Water Bottle Blow Moulding Machine 4 Cavity 330 Mm 6
our advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you
