Automatic Water Bottle PET Blowing Machine 5L YCQ-5L-2 1500BPH

Automatic Water Bottle PET Blowing Machine 5L YCQ-5L-2 1500BPH

Automatic Water Bottle PET Blowing Machine  5L YCQ-5L-2 1500BPH
Automatic Water Bottle PET Blowing Machine  5L YCQ-5L-2 1500BPH
Automatic Water Bottle PET Blowing Machine  5L YCQ-5L-2 1500BPH
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE&ISO
Model Number: YCQ-5L-2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $40,000.00/Sets 1-1 Sets
Packaging Details: Wooden package
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Plastic Processed: PET Hollow Part Volume: 5L
Automation: Automatic Warranty: 1 Year
Key Selling Points: Automatic Warranty Of Core Components: 1 Year
Cavity: 2 Output: 1500BPH
High Light:

Water Bottle Automatic PET Blowing Machine

,

5L Water Bottle PET Blowing Machine

,

1500BPH Bottle PET Blowing Machine

Eceng Professional Manufacture Water Bottle Blowing Machine YCQ-5L-2

technical parametre-- 5L pet bottle machine



Item

YCQ-5L-2E

Bottle type specification

Cavity

2

Theory output

1500

Max.volume

5L

Bottle mouth maximum overall DIdiameter

150mm

Bottle biggest diameter

180mm

Bottle maximum height

400mm

Power specifications

Light tube quantity

32pcs

Light tube power

1.5KW

Maximum heating power

48KW

All electric machine installation

51KW

Actual consumption

35.7KW

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

3400Ltr/min

Forzen water specification

Work pressure

5-6 kg/cm2

Temperature range

10℃

Consumption

6000kcal/hr

Forzen water flow

50L/min

Machine specification

Size of the machine

4.7x1.6x1.9

Weight of the machine

3ton



YCQ-5L-2,2 cavity 5-liter automatic bottle blowing machine is a machine used for automatically producing 5-liter pure water barrels and wide bottles. This model can produce up to 5 liters of bottles. This model has the characteristics of high automation and intelligence, stable and reliable machine performance, simple structure, high production efficiency, low energy consumption, and no intermediate pollution in the product. It is widely used in the production of food oil, bottled water, and wide mouth food containers.

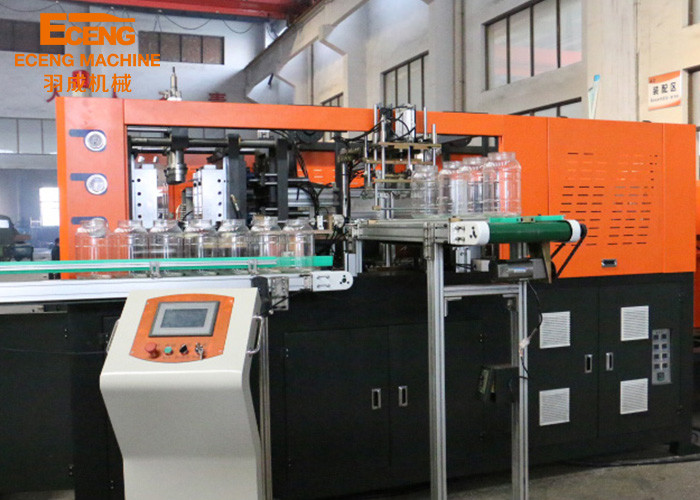

Automatic Water Bottle PET Blowing Machine  5L YCQ-5L-2 1500BPH 1

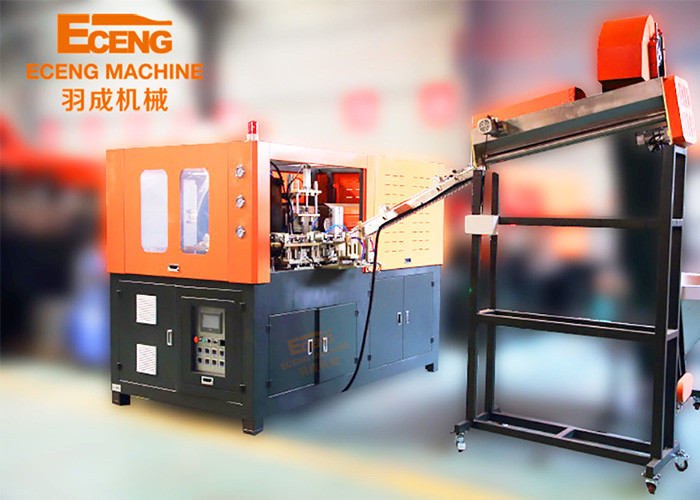

Automatic Water Bottle PET Blowing Machine  5L YCQ-5L-2 1500BPH 2



photo show--  5L pet bottla machine

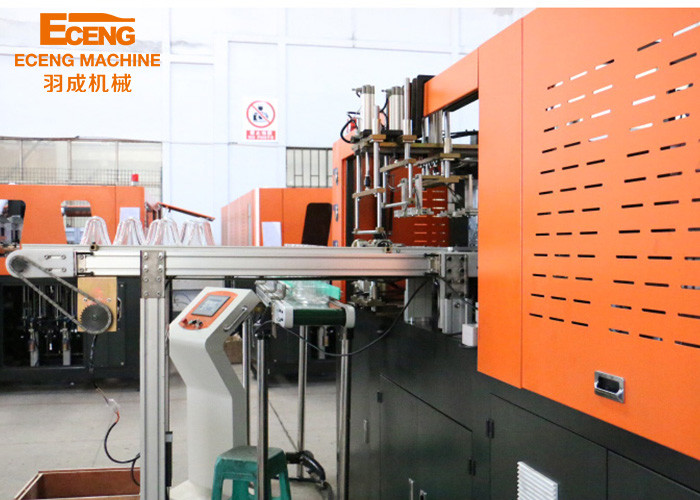

Automatic Water Bottle PET Blowing Machine  5L YCQ-5L-2 1500BPH 3

company introduction

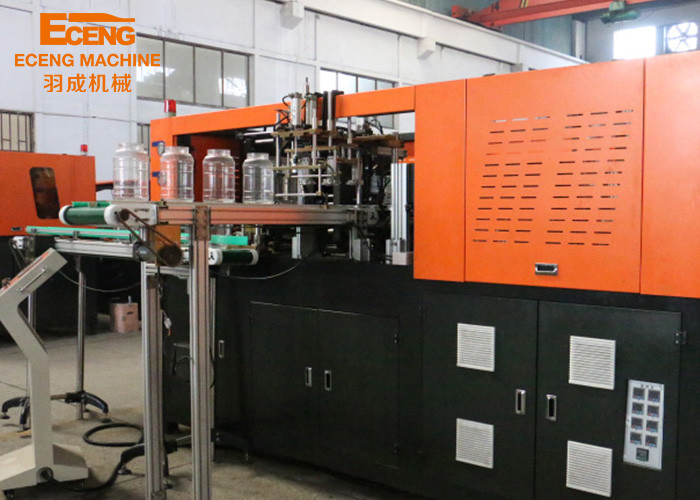

Automatic Water Bottle PET Blowing Machine  5L YCQ-5L-2 1500BPH 5

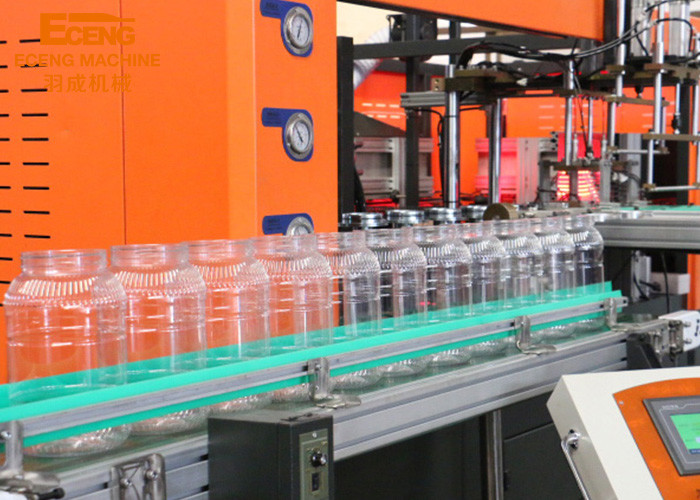

Automatic Water Bottle PET Blowing Machine  5L YCQ-5L-2 1500BPH 6
