6000BPH Water Bottle Eceng Blowing Machine 4 Cavity With 2L Max. Volume

1set
MOQ
6000BPH Water Bottle Eceng Blowing Machine 4 Cavity With 2L Max. Volume
Features Gallery Product Description Request A Quote
Features
Specifications
Plastic Processed: PET
Max.Bottle Height(mm): 330 Mm
Neck Diameter(mm): 28 Mm
Max.Bottle Diameter(mm): 105 Mm
Bottle Volume(ml): 2000 Ml
Condition: New
Application: Bottle
Blow Moulding Type: Stretch Blow Moulding
Highlight:

Water Bottle Eceng Blowing Machine

,

6000BPH Bottle Blowing Machine

,

Bottle Blowing Machine 2L

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE SGS ISO
Model Number: Q6000
Payment & Shipping Terms
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Product Description

Eceng 6000BPH 4 Cavity Water Bottle Blowing Machine with 2L Max. Volume



Model Q6000

Bottle type specification



Cavity 4
Max.volume 2L
Bottle mouth maximum overall diameter 28-38mm
Bottle biggest diameter 105mm
Bottle maximum height 330mm
Production specification Theoretical output 6000BPH
Bottle type capacity 500ML
Bottle type weight 17g
Bottle type circular
Power specification Light tube quantity 32pcs
Light tube power 1.5KW
Maximum heating power 48KW
All electric machine installation 52KW
Actual consumption 40%--70%

Air pressure specification



Work pressure 7-9kg/cm2
Low-pressure gas consumption 1000L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 3000Ltr/min

Air pressure specification



Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 8000kcal/hr
Forzen water flow 138L/min

Machine specification



Machine size 4.2x1.6x1.9
Machine weight 4.5ton

Product Description

Eceng Q6000 have 4 cavities,with a speed of 1000 bottles per hour per cavities.Eceng Q6000 6000 bottles/hour.Apply to water bottle,suitable for blowing 100ml to 2000ml plastic bottle,Apply to water bottle,fruit juice bottle,carbonated drinks bottle,etc.

6000BPH Water Bottle Eceng Blowing Machine 4 Cavity With 2L Max. Volume 0

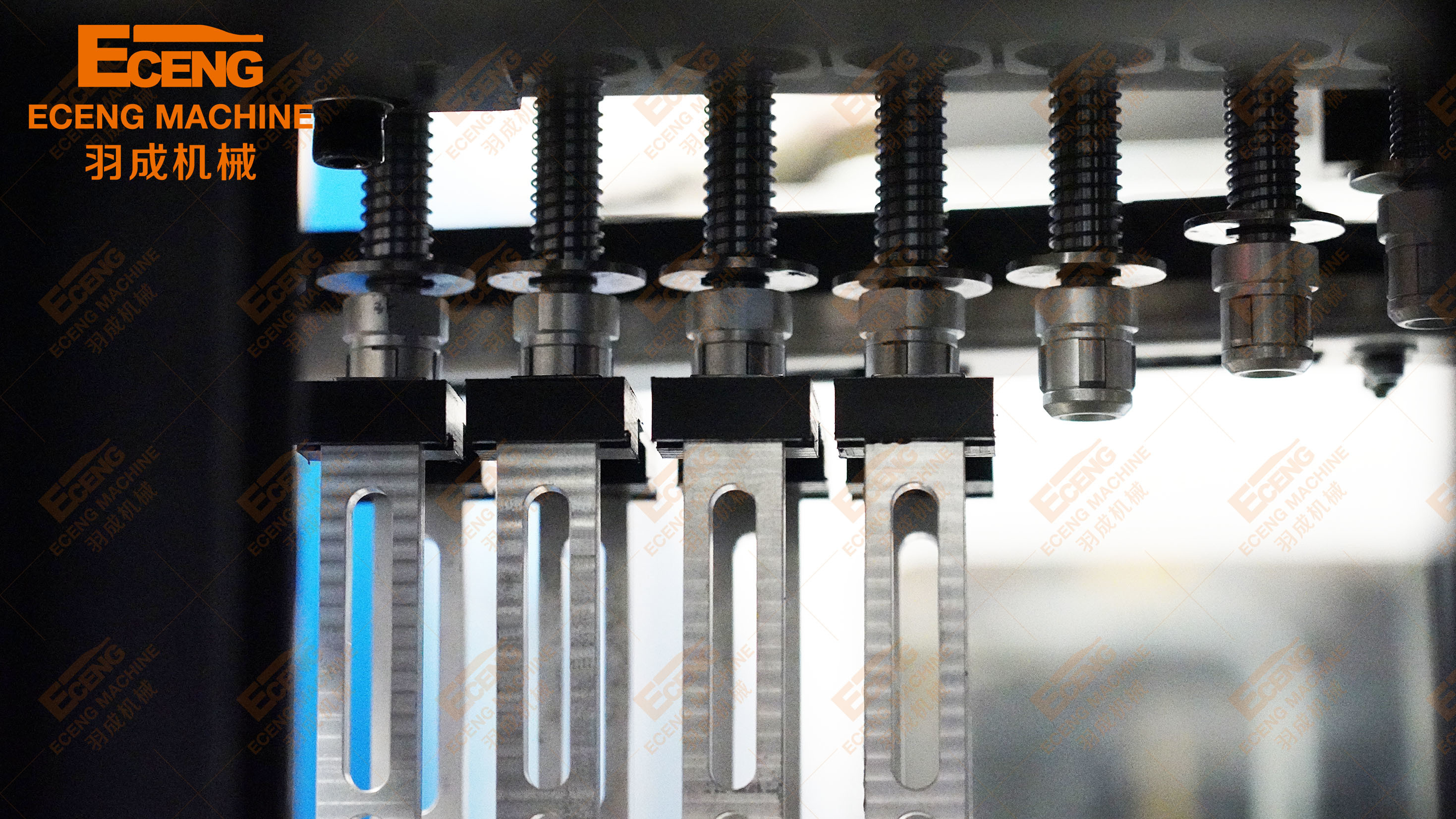

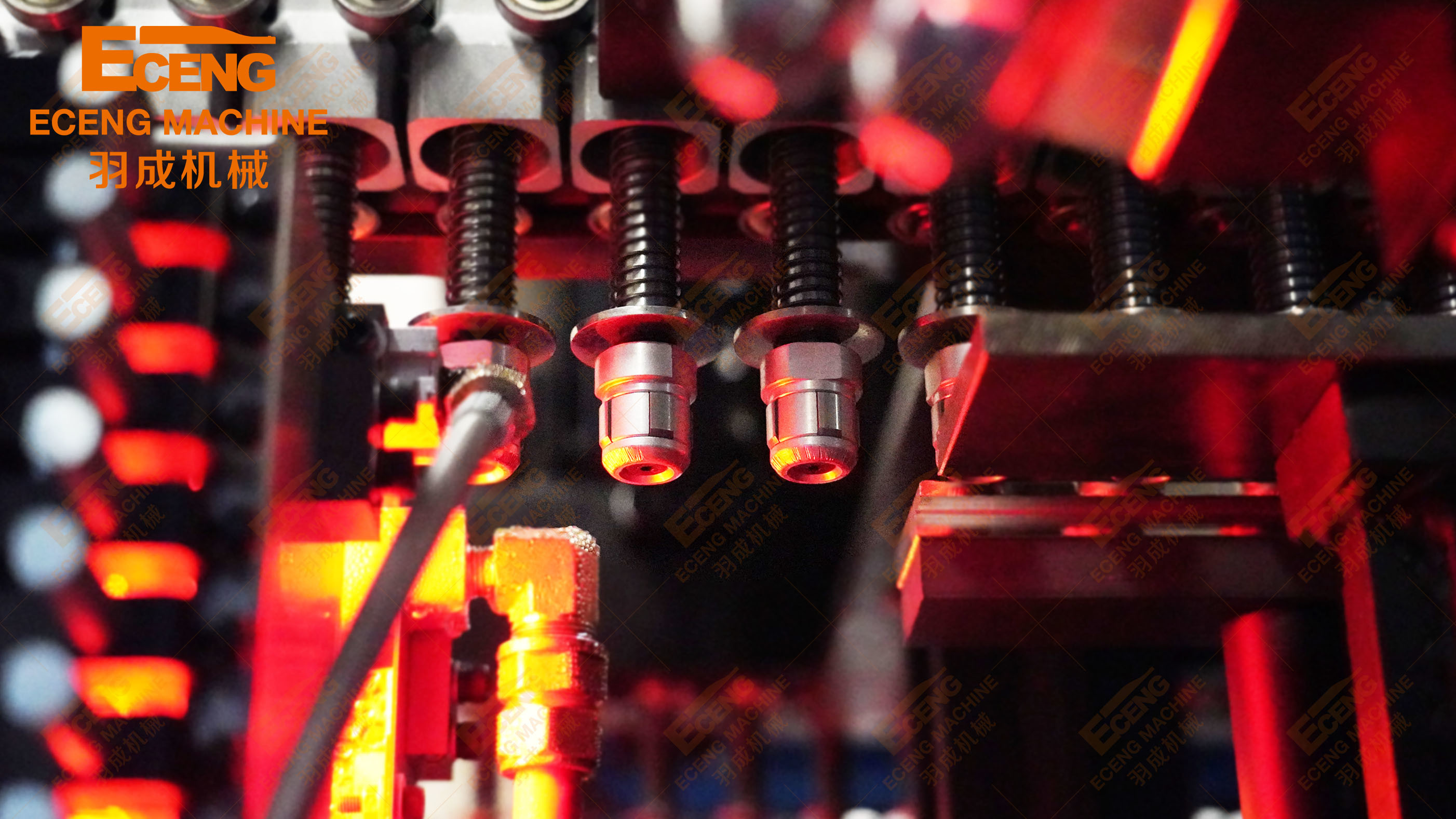

Detailed Images


6000BPH Water Bottle Eceng Blowing Machine 4 Cavity With 2L Max. Volume 36000BPH Water Bottle Eceng Blowing Machine 4 Cavity With 2L Max. Volume 4
Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
6000BPH Water Bottle Eceng Blowing Machine 4 Cavity With 2L Max. Volume 6
6000BPH Water Bottle Eceng Blowing Machine 4 Cavity With 2L Max. Volume 8
Packing&Shipping
6000BPH Water Bottle Eceng Blowing Machine 4 Cavity With 2L Max. Volume 10
Eceng machinery 17 years focus on bottle blow molding machine industry.Automatic plastic bottle making machine owned cost-effective,high speed; high energy saving and so on many advantages.Multiple patented technologies on high speed bottle blowing machine.Our products are sold to South America/North America/Mid-east etc and have powerfull export experience.
6000BPH Water Bottle Eceng Blowing Machine 4 Cavity With 2L Max. Volume 12

6000BPH Water Bottle Eceng Blowing Machine 4 Cavity With 2L Max. Volume 15
6000BPH Water Bottle Eceng Blowing Machine 4 Cavity With 2L Max. Volume 17
