Home ProductsSemi Auto PET Bottle Blowing Machine

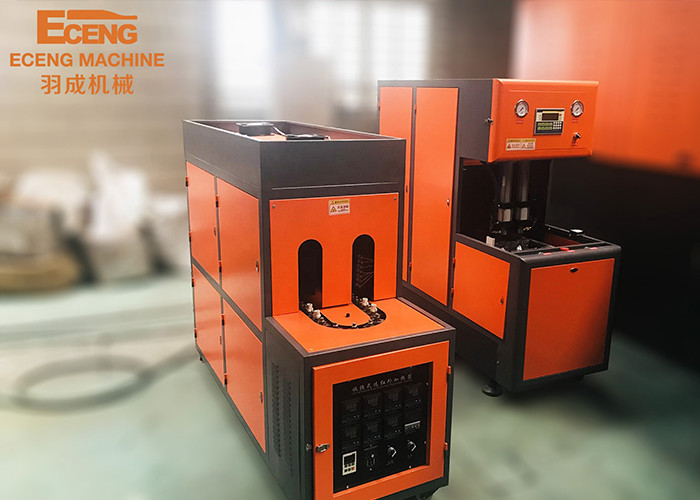

Semi Auto PET Bottle Blowing Machine YC 2L-2 With 2 Cavitie 380V

Semi Auto PET Bottle Blowing Machine YC 2L-2 With 2 Cavitie 380V

Semi Auto PET Bottle Blowing Machine YC 2L-2 With 2 Cavitie 380V
Semi Auto PET Bottle Blowing Machine YC 2L-2 With 2 Cavitie 380V
Semi Auto PET Bottle Blowing Machine YC 2L-2 With 2 Cavitie 380V
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE,ISO
Model Number: YC-2L-2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $3,000.00 - $4,000.00/Sets
Packaging Details: Wooden package
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set/Sets per Month
Contact Now
Detailed Product Description
Pet Making Machine: Semi Auto Pet Bottle Blowing Machine Bottle Volume(ml): 2000 Ml
Blow Moulding Type: Stretch Blow Moulding Voltage: 380V, 50HZ, 3PHASE
Dimension(L*W*H): 1.46*0.58*1.8(m) Hollow Part Volume: 2l
Automation: Semi-automatic Warranty: 1 Year, One Year
High Light:

Semi Auto PET Bottle Blowing Machine

,

2 Cavitie PET Bottle Blowing Machine

,

380V Bottle Blowing Machine

 Price Good Semi Auto PET Bottle Blowing Machine YC 2L-2 with 2 Cavitie Suitable For Small Business

Semi Auto PET Bottle Blowing Machine YC 2L-2 With 2 Cavitie 380V 0



Main machine (blower + oven)

Item YC-2L-2
Product Spec Max. product volume(L/cav) 2L
Max. preform neck size(mm) 100
Max. product diameter(mm) 180
Max. product height (mm) 300
Cavities 2
Blow molding part Die force (KN) 100
Die stroke (mm) 270
Max. mould size(mm) 390*345
Mould thickness Adjustable
Mould spacing(mm) Adjustable
Max. pulling stroke(mm) 400
Operation pressure(Mpa) 0.8-1.0

Operation air pressure consumption

(1tr/min)

200
Blow pressure(Mpa) 1.2-2.8
Blow air pressure consumption (1tr/min) 300
Output(pcs/h) 800
Machine size(LxWxH)(m) 1.46*0.58*1.8
Machine weight(KG) 650
Oven Temperature grade(rate) 8
Heating time(S) 90-200
Voltage(V) 220 or as your request
Frequency(HZ) 50/60
Total power(KW) 16
Oven Size (LxWxH) 1.35*0.55*1.15
Oven weight (KG)

300



Eceng machinery fulfills the market need in all aspects including large production rate, low energy consumption, small PET bottles, large volume PET bottles and wide mouth PET containers by offering wide range of automatic blow molding machines and semi-automatic blow molding machines.
Semi-automatic bottle blowing machine yc -2 l -2, only one person to operate, easy to operate, higher security, is the ideal blow molding mineral water bottles, soft drinks bottles, hot bottles and cosmetics bottles of economic bottle blowing machine. The model has a low price, suitable for small business. At the same time, small size, compact structure, no waste of space. The YC -2 L -2 has two chambers and a capacity of 800 bottles each. The new model features double crank die-locking, cross-fastening and high pressure air blowing system. Can produce a variety of plastic bottles within 2L, can fully meet customer requirements.

Semi Auto PET Bottle Blowing Machine YC 2L-2 With 2 Cavitie 380V 1

Semi Auto PET Bottle Blowing Machine YC 2L-2 With 2 Cavitie 380V 2Semi Auto PET Bottle Blowing Machine YC 2L-2 With 2 Cavitie 380V 4



YC series semi-automatic bottle blowing machine is controlled by microcomputer,control the technical parameters more accurately.PET bottle blowing machine is simple and safe to operate.It only requires one person and does not require special training.YC series PET blow molding machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is suitable for the production of small beverage companies and daily chemical product companies.



Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

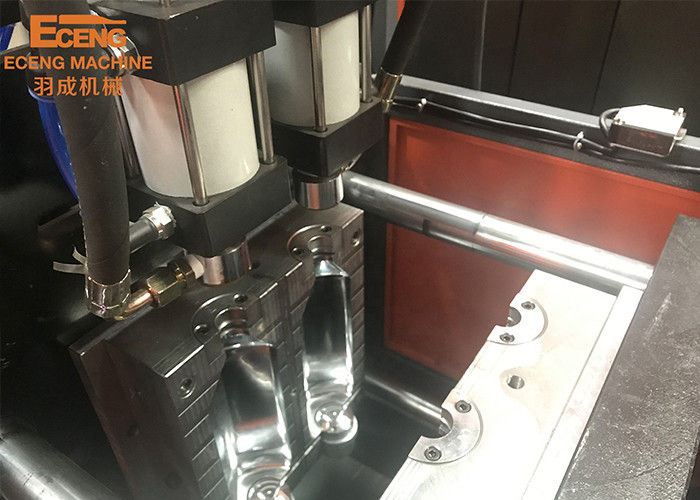

Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid response, long working hours , stable performance,ensure stable operation.



YC linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.



Semi Auto PET Bottle Blowing Machine YC 2L-2 With 2 Cavitie 380V 6



Semi Auto PET Bottle Blowing Machine YC 2L-2 With 2 Cavitie 380V 8Semi Auto PET Bottle Blowing Machine YC 2L-2 With 2 Cavitie 380V 10

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
