Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE&ISO |
| Model Number: | Q5L-2 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $35,000.00/Sets 1-1 Sets |
| Packaging Details: | Wooden package |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 Set/Sets per Month |
| Bottle Making Machine: | Water Bottle Blowing Machine | Hollow Part Volume: | 5L |
|---|---|---|---|
| Power (kW): | 48 | Weight (KG): | 3000 KG |
| Automation: | Automatic | Warranty: | 1 Year |
| Cavity: | 2 | Output: | 1500BPH |
| High Light: | Q5L2 Automatic Blow Molding Machine,Eceng Automatic Blow Molding Machine,48 KW Eceng Blow Molding Machine |
||
2 Cavity 5L Eceng Q5L2 Automatic Blow Molding Machine, 48KW Max. Power, Factory Price.
technical parametre-- 5L pet bottle machine
| Item | Q5L-2 | |
| Bottle type specification | Cavity | 2 |
| Theory output | 1500 | |
| Max.volume | 5L | |
| Bottle mouth maximum overall DIdiameter | 150mm | |
| Bottle biggest diameter | 180mm | |
| Bottle maximum height | 360mm | |
| Power specifications | Light tube quantity | 40pcs |
| Light tube power | 2.5KW | |
| Maximum heating power | 48KW | |
| All electric machine installation | 51KW | |
| Actual consumption | 35.7KW | |
| Air pressure specification | Work pressure | 7-9kg/cm2 |
| Low-pressure gas consumption | 1600L/min | |
| Blow bottle pressure | 25-35kg/cm2 | |
| Higher -pressure gas consumption | 1600Ltr/min | |
| Forzen water specification | Work pressure | 25-35 kg/cm2 |
| Temperature range | 10℃ | |
| Consumption | 6000kcal/hr | |
| Forzen water flow | 50L/min | |
| Machine specification | Size of the machine | 4.12x1.8x2.25 |
| Weight of the machine | 3ton | |
2 cavity fully Automatic eatable oil pet plastic bottle making machine factory price 5 liter
pet blowing machine for 5 liter Q5L2 linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.
Eceng Machinery's Q linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.

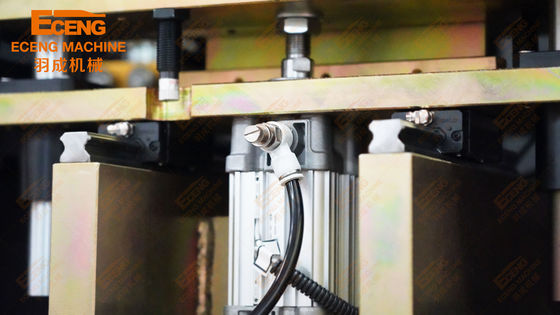

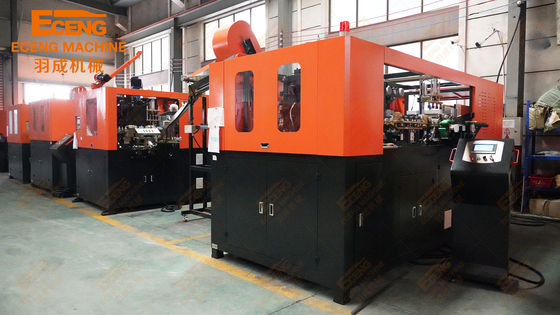

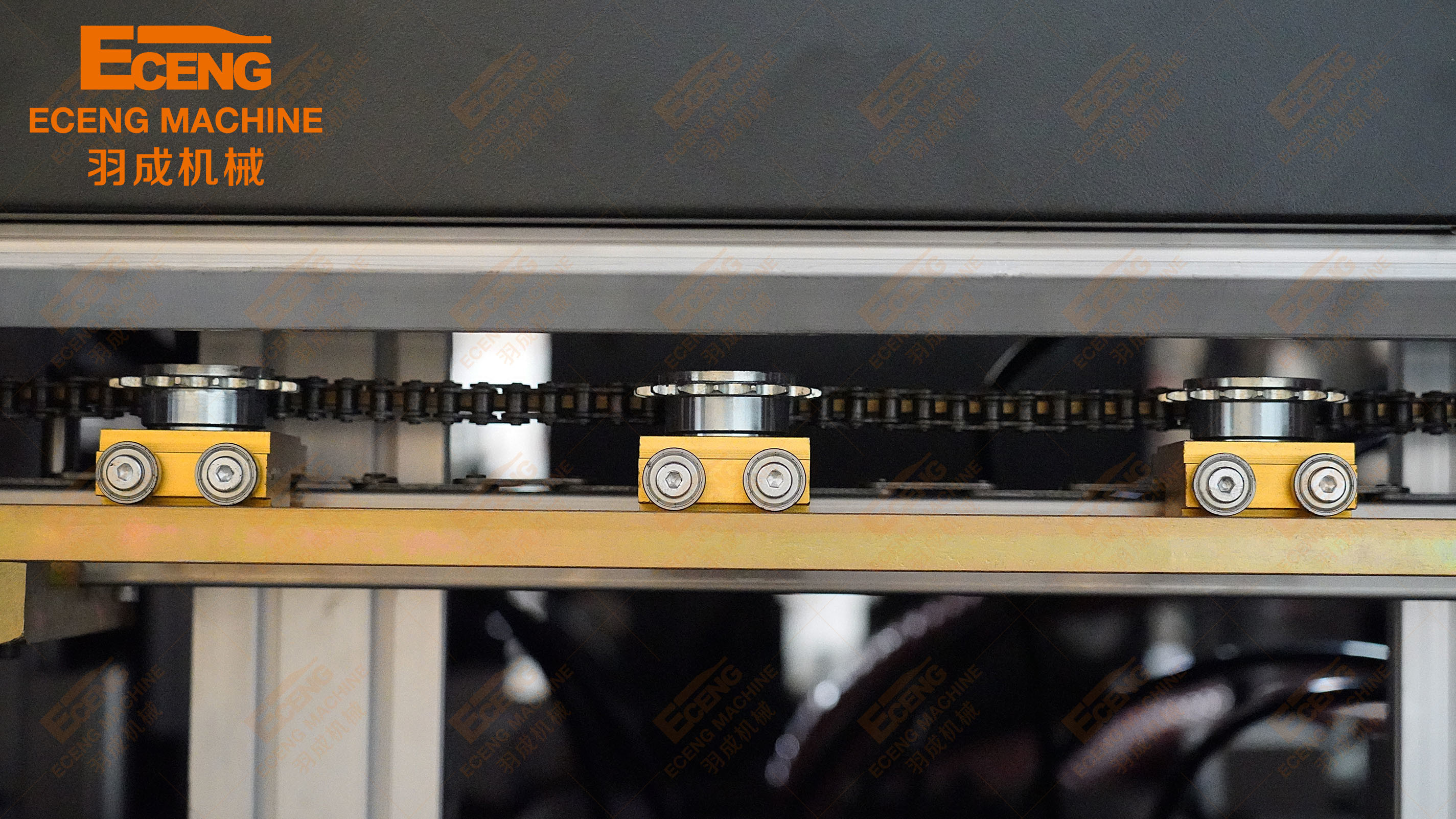

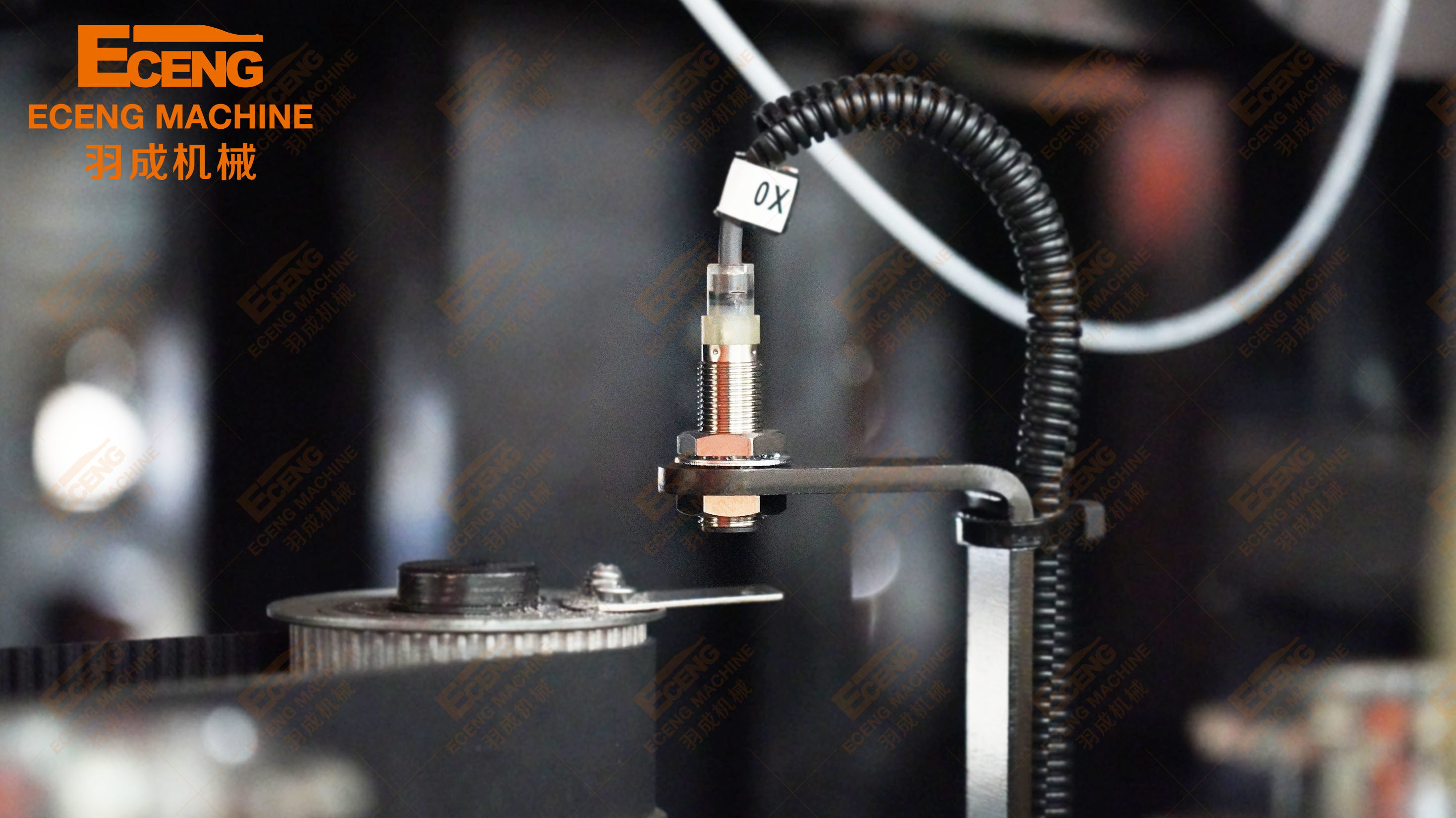

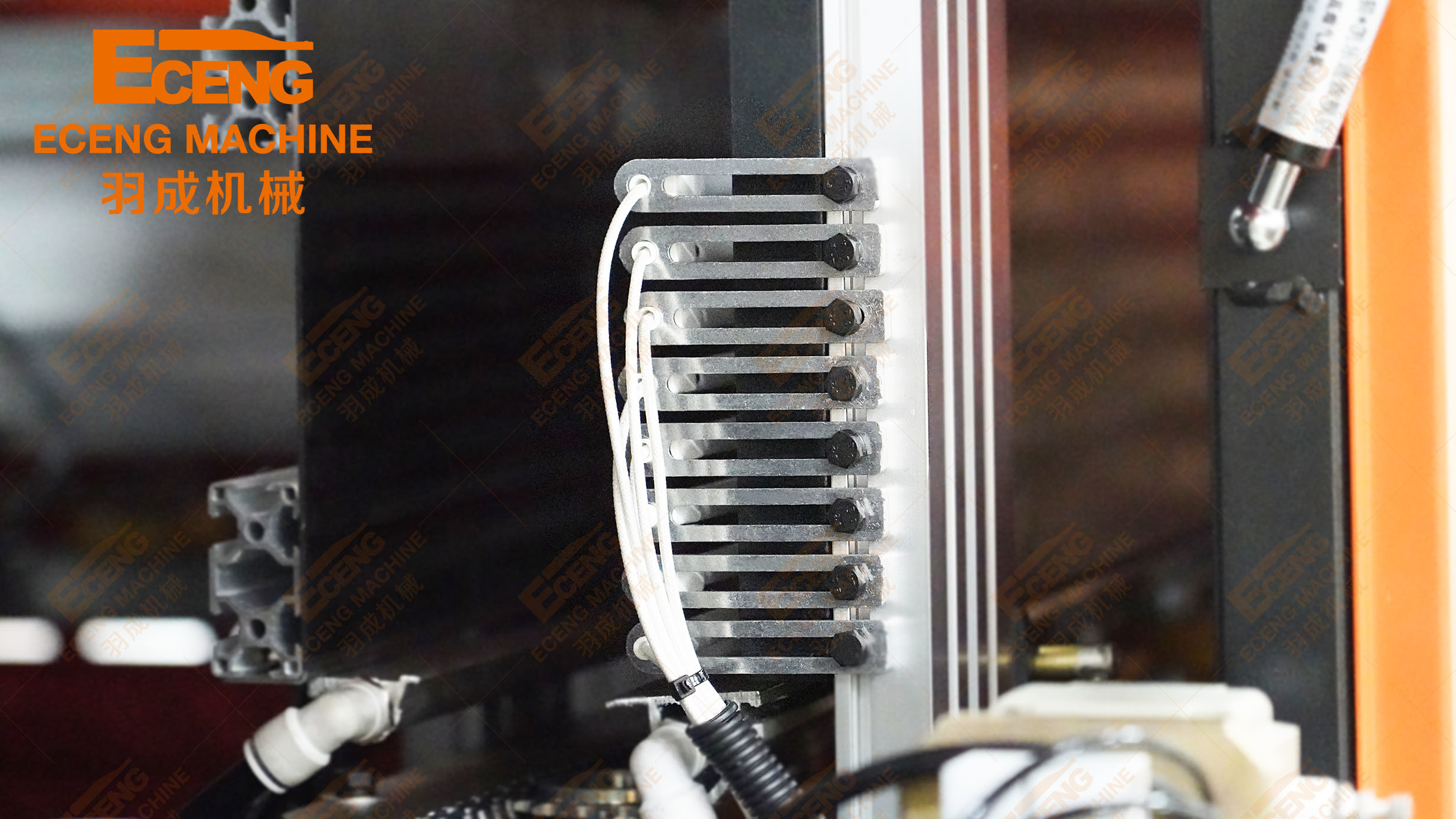

photo show-- 5L pet bottla machine
