Eceng K12 Water Bottle Automatic Blowing Machine 22000 - 26000BPH

Eceng K12 Water Bottle Automatic Blowing Machine 22000 - 26000BPH

Eceng K12 Water Bottle Automatic Blowing Machine 22000 - 26000BPH
Eceng K12 Water Bottle Automatic Blowing Machine 22000 - 26000BPH
Eceng K12 Water Bottle Automatic Blowing Machine 22000 - 26000BPH
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: K12
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Application: Bottle
Blow Moulding Type: Stretch Blow Moulding Automation: Automatic
Key Selling Points: Automatic Blow Molding Machine Warranty Of Core Components: 1 Year
Applicable Industries: Manufacturing Plant Model Number: K12
High Light:

Water Bottle Automatic PET Blowing Machine

,

26000BPH PET Blowing Machine

,

Eceng K12 Bottle Blowing Machine

Eceng K12 Automatic Water Bottle Blowing Machine, 22000-26000BPH

Product Parameters

Model K12

Bottle type specification



Cavity12
Max.volume200ml-750ml
Bottle mouth maximum overall diameter25-29mm NECK
Bottle biggest diameter75mm
Bottle maximum height180mm

Capacity specification



Theory output22000~26000BPH
Bottle type volume600ML
Bottle type weight13.5g
Bottle typeRound
Power specificationLight tube quantity32pcs
Light tube power1.75KW
Maximum heating power56KW
All electric machine installation71KW
Actual consumption30%--60%

Air pressure specification



Work pressure5-6kg/cm2
Blow bottle pressure25-45kg/cm2
Higher -pressure gas consumption24000Ltr/min
Forzen water specificationWork pressure5-6 kg/cm2
Temperature range10℃
Consumption12000kcal/hr
Temperature range10℃
Forzen water flow180L/min
Machine specificationMachine size9.0x2.0x2.3
Machine weight10.0ton

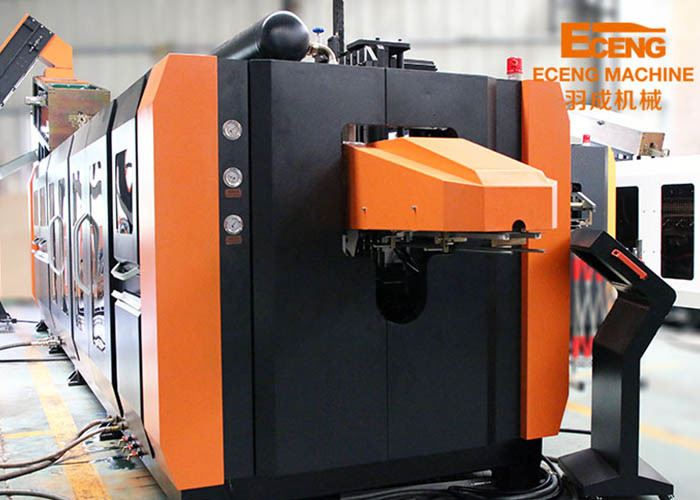

Eceng K12 Water Bottle Automatic Blowing Machine 22000 - 26000BPH 0
The 12 Cavity fully automatic high-speed bottle blowing machine is a state-of-the-art machine designed to cater to the needs of the modern-day bottling industry. With a production capacity of 22,000-26,000 bottles per hour, this machine is capable of meeting even the most demanding production requirements.
Equipped with advanced automation technology, the machine can produce high-quality bottles with superior finish and accuracy. It has a user-friendly interface that allows operators to easily adjust settings and monitor production in real-time.
The 12-cavity design of the machine enables it to work at high-speed, producing bottles quickly and efficiently. The machine is capable of handling different types of plastic materials, including PET, PP, and HDPE, making it a versatile solution for bottling companies.
With its high-speed production capabilities, the 12-chamber fully automatic high-speed bottle blowing machine is an ideal solution for companies looking to increase their production output, improve efficiency, and reduce costs.

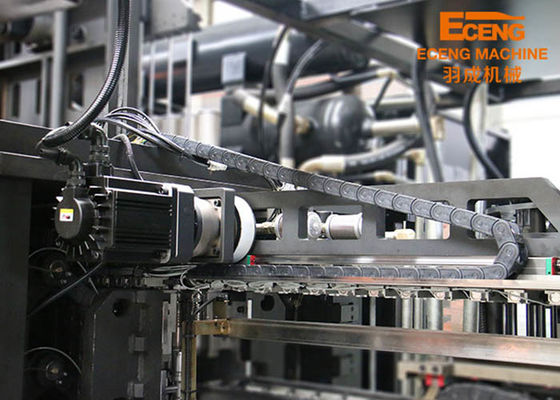

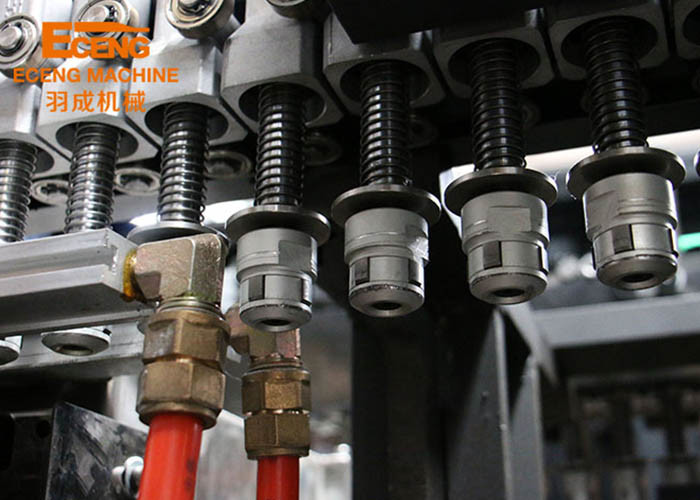

Eceng K12 Water Bottle Automatic Blowing Machine 22000 - 26000BPH 1Eceng K12 Water Bottle Automatic Blowing Machine 22000 - 26000BPH 2
      Want to know more message , contact us with out hesitate ! Send us now !

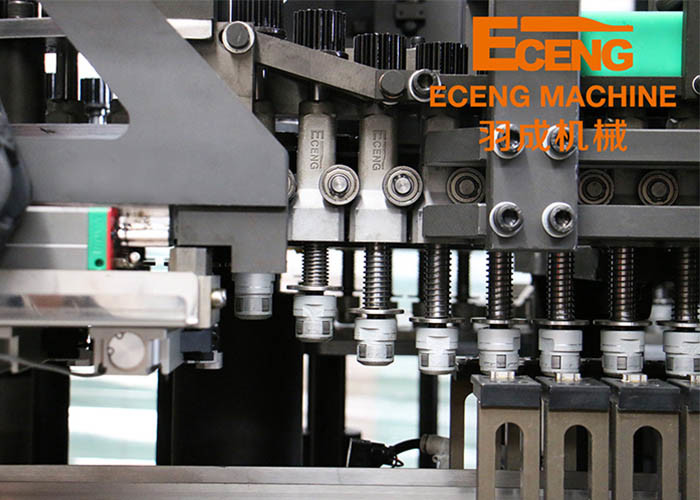

Eceng K12 Water Bottle Automatic Blowing Machine 22000 - 26000BPH 3

Company Information

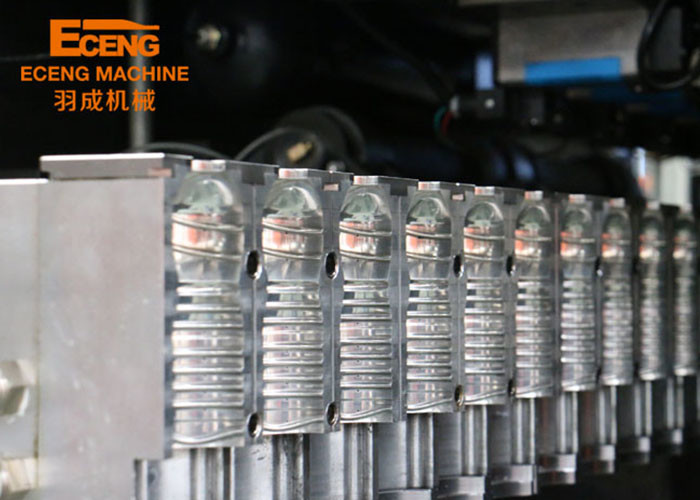

Eceng K12 Water Bottle Automatic Blowing Machine 22000 - 26000BPH 5

Our Services

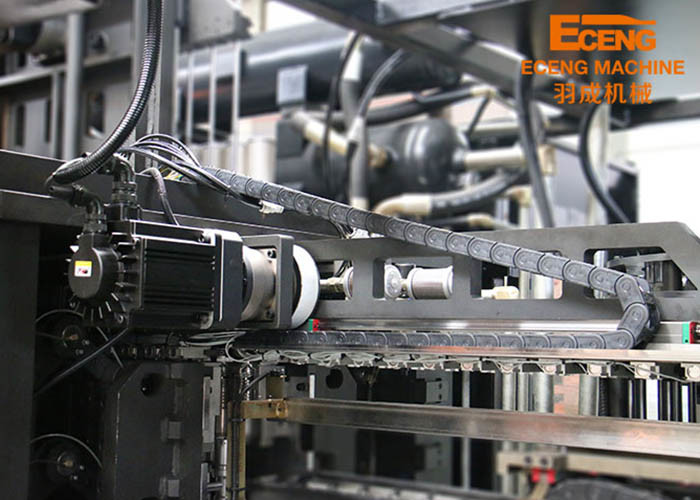

Eceng K12 Water Bottle Automatic Blowing Machine 22000 - 26000BPH 7

Packaging & Shipping

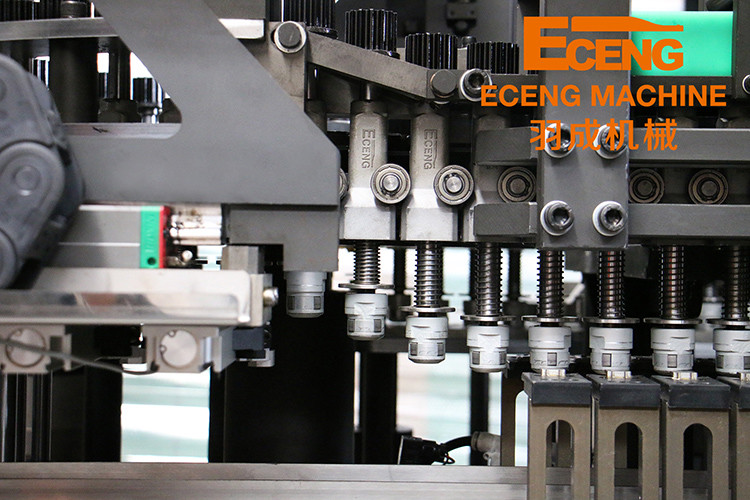

Eceng K12 Water Bottle Automatic Blowing Machine 22000 - 26000BPH 9

——Transport&Payment——

Eceng K12 Water Bottle Automatic Blowing Machine 22000 - 26000BPH 11

FAQ

Eceng K12 Water Bottle Automatic Blowing Machine 22000 - 26000BPH 13
