Blow your bottle, Shape your dream

|
| Place of Origin: | CHINA |
| Brand Name: | ECENG |
| Certification: | CE SGS ISO |
| Minimum Order Quantity: | One |
|---|---|
| Packaging Details: | film/wooden |
| Delivery Time: | 45days |
| Payment Terms: | TT LC western Union |
| Supply Ability: | 10sets Per month |
| Model Number: | J Series | Color: | Orange |
|---|---|---|---|
| Output: | 3000bph | Weight: | 2.5ton |
| High Light: | Pet Bottle Jar Blowing Molding Machine,2.5ton Pet Bottle Blowing Molding Machine,3000bph Pet Blowing Molding Machine |
||
Jar PET blow molding machine adopts unique sealing system that is suitable for different sized wide neck finished without changing preform adopters. PET Jar Blowing Machine of multiple types and specifications for small-scale and large-scale applications. Full automatic, semi-automatic blowing machines, automatic machines for wide neck bottles, and 20ltr PET blowing machines for large volume jars
Product Parameters
| Item | J1 | J2 | J4 | |
| Bottle type specification | Cavity | 1 | 2 | 4 |
| Theory output | 700-800BPH | 1200-1300BPH | 2400-2600BPH | |
| Max.volume | 5L | 5L | 2L | |
| Bottle mouth maximum overall diameter | 150mm | 150mm | 28-80mm | |
| Bottle biggest diameter | 180mm | 180mm | 100mm | |
| Bottle maximun height | 400mm | 400mm | 330mm | |
| Power specification | Light tube quantity | 32pcs | 32pcs | 32pcs |
| Light tube power | 1KW | 1.5KW | 1KW | |
| Maximum heating pwoer | 32KW | 48KW | 32KW | |
| All electric machine installtion | 36KW | 51KW | 42KW | |
| Actual consumption | 30%-60% | 30%-60% | 30%--60% | |
| Air pressure specification | Work pressure | 7-9kg/cm² | 7-9kg/cm² | 7-9kg/cm² |
| Low-pressure gas consumption | 1200L/min | 1600L/min | 1600L/min | |
| Blow bottle pressure | 25-35kg/cm² | 25-35kg/cm² | 25-35kg/cm² | |
| Higher-pressure ges consumption | 2200Ltr/min | 3400Ltr/min | 3000Ltr/min | |
| Forzen water specification | Work pressure | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² |
| Temperature range | 10℃ | 10℃ | 10℃ | |
| Consumption | 4000kcal/hr | 6000kcal/hr | 8000kcal/hr | |
| Forzen water flow | 50L/min | 50L/min | 138L/min | |
| Machine specification | Size of the machine | 2.4x1.5x1.7 | 4.7x1.6x1.9 | 4.1x1.6x1.9 |
| Weight of the machine | 2ton | 3ton | 3.9ton | |

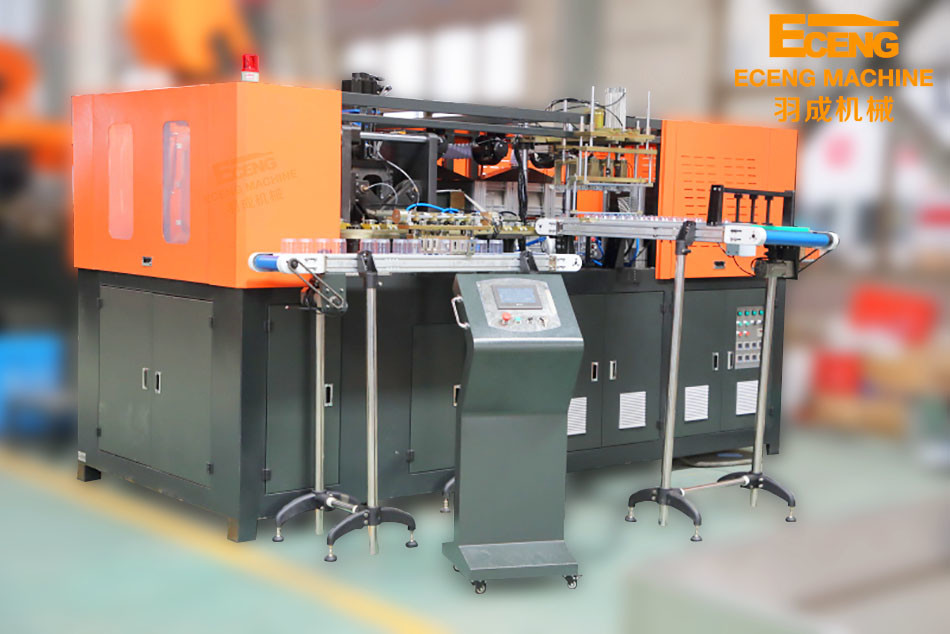

Wide mouth Jar stretch molding machine
J series blow moulding machine is a specialized equipment designed for large-diameterPET bottles, with features of high automation, wide versatility, and easy operation. lt isespecially suitable for the production and processing of large-diameter 50-180mm. Jseries bottle making machine is precisely positioned and adopts advancedmicrocomputer PLC control system, which can be more stable. Strong versatility,suitable for preform loading of jar bottle, automatically unloading the bottle.One worker can control two to three machines, high output, can be equipped withall-electric stretching and mould clamping
