Automatic 2 Cavity Jars Can Plastic Machines For Wide Neck Bottle Blowing

Automatic 2 Cavity Jars Can Plastic Machines For Wide Neck Bottle Blowing

Automatic 2 Cavity Jars Can Plastic Machines For Wide Neck Bottle Blowing
Automatic 2 Cavity Jars Can Plastic Machines For Wide Neck Bottle Blowing
Automatic 2 Cavity Jars Can Plastic Machines For Wide Neck Bottle Blowing
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE SGS ISO
Model Number: J2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Bottle Volume(ml): 2000 Ml
Condition: New Blow Moulding Type: Stretch Blow Moulding
Dimension(L*W*H): 2.25*1.6*1.7m Automation: Automatic
Warranty: 1 Year Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel
High Light:

2Cavity Jars Can Plastic Machines

,

2000ml Wide Neck Bottle Blowing Machines

,

2.25*1.6*1.7m Bottle Blowing Machines

Automatic 2 Cavity Jars Can plastic making machines for wide neck bottle blowing machine.



specification
Item
J2




Bottle type specification
Cavity
2
Theory output
3000
Max.volume
2L
Bottle mouth maximum overall diameter
80mm
Bottle biggest diameter
100mm
Bottle maximum height
330mm



Power specification
Light tube quantity
32pcs
Light tube power
0.75KW
Maximum heating power
24KW
All electric machine installation
27KW
Actual consumption
19KW


Air pressure specification
Work pressure
7-9kg/cm2
Low-pressure gas consumption
1000L/min
Blow bottle pressure
25-35kg/cm2
Higher -pressure gas consumption
1500Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2
Temperature range
10℃
Consumption
5000kcal/hr
Frozen water flow
30L/min

Machine specification
Machine size
2.25x1.6x1.7
Machine weight
2.5ton



Automatic 2 Cavity Jars Can Plastic Machines For Wide Neck Bottle Blowing 0

Automatic 2 Cavity Jars Can Plastic Machines For Wide Neck Bottle Blowing 2
Automatic 2 Cavity Jars Can Plastic Machines For Wide Neck Bottle Blowing 4

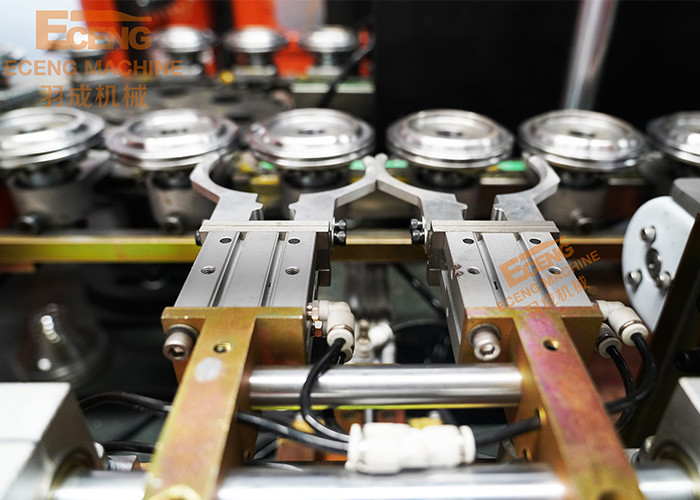

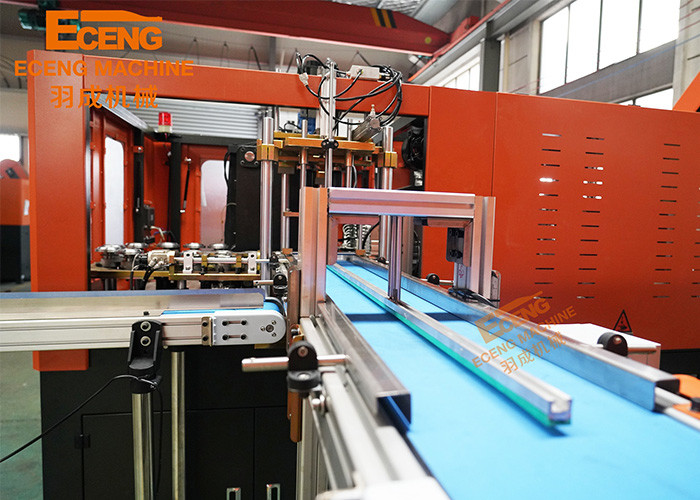

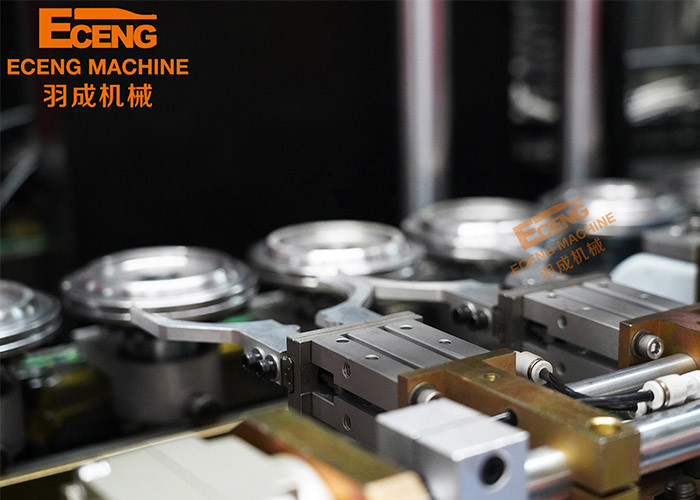

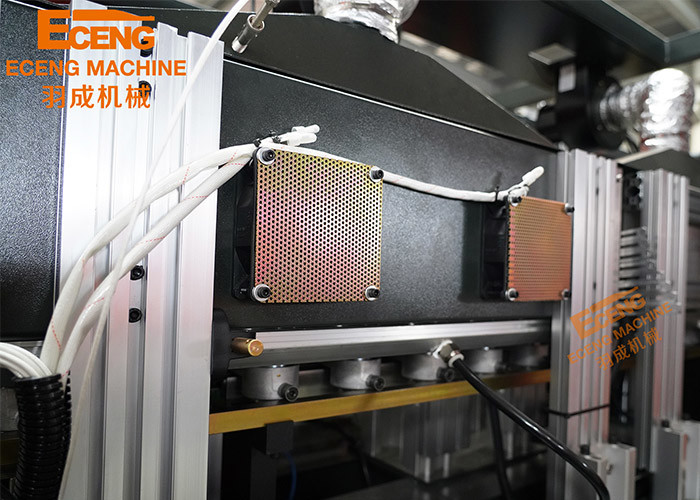

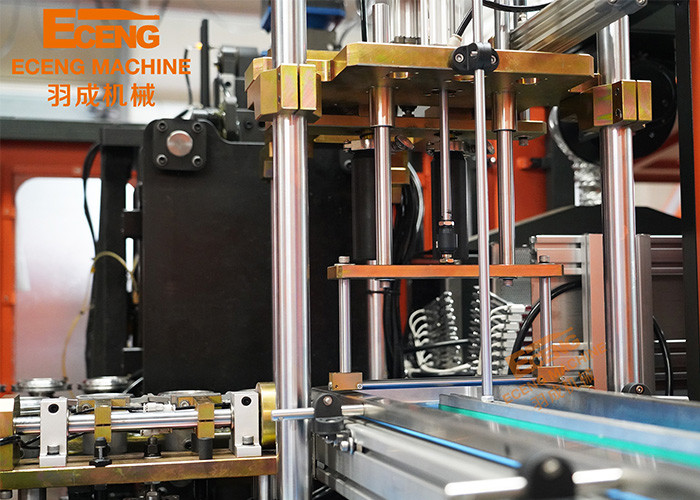

Detailed Images

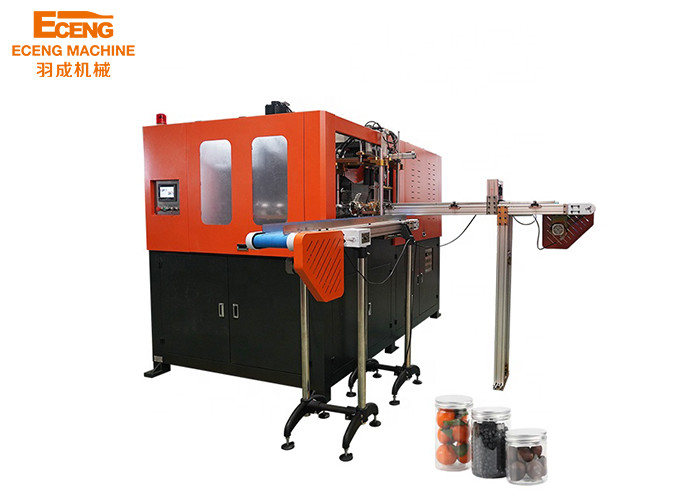

Automatic China PET jar blowing machine J2 is specialized euipment designed for wide neck PET jars.It is high automatically,wide
versatility and easy operation.It is especially suitable for the production of neck 50-180mm.J series bottle making machine is
precisely positioned and adopts advanced microcomputer PLC control system,which is more stable.
One worker can control two or three machines.Labor cost saved.
1.Strong versatility,suitable for 50-180mm diameter,high automatic degree,suitable for preform loading of jar bottle,automatically
unloading the bottle.
2.One worker can control two to three machines,high output,can be equipped with all-electric stretching and mould clamping.
3.High heat penetration and preform rotation by itself,making preform subject to even heat during preheating process.
4.Safe, reliable and unique valve position design makes blowing process easier to control
5.Safety locking device in every mechanical action to protect operator's safety.
6.Advanced automatic process flow with low cost,high efficiency,easy operation and easy maintenance.
7.With both automatic and manual operation method.
8.Use different air pressure for blowing and machine operation, energy saving and environmental protection.
9.Easy to install and start, low scrap rate.
Automatic 2 Cavity Jars Can Plastic Machines For Wide Neck Bottle Blowing 6
Automatic 2 Cavity Jars Can Plastic Machines For Wide Neck Bottle Blowing 8
Automatic 2 Cavity Jars Can Plastic Machines For Wide Neck Bottle Blowing 10
1,Edible oil PET bottle blowing machine is a two-step automatic blowing equipment specially developed for blowing 5 liters of
edible oil bottles, which can meet customers' demands for large-capacity, high-speed, fully automated production.
2,Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of
moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger
of high-altitude feeding, reduce labor intensity and increase production efficiency.
3,Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable;
heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic
temperature-removal device to ensure the constant temperature of oven.
4,J linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
