Eceng J5L2 5L Neck Pet Bottle Blow Molding Machine / Cans Jars Stretch

Eceng J5L2 5L Neck Pet Bottle Blow Molding Machine / Cans Jars Stretch

Eceng J5L2 5L Neck Pet Bottle Blow Molding Machine / Cans Jars Stretch
Eceng J5L2 5L Neck Pet Bottle Blow Molding Machine / Cans Jars Stretch
Eceng J5L2 5L Neck Pet Bottle Blow Molding Machine / Cans Jars Stretch
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE SGS ISO
Model Number: J2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Bottle Volume(ml): 2000 Ml
Condition: New Blow Moulding Type: Stretch Blow Moulding
Dimension(L*W*H): 2.25*1.6*1.7m Automation: Automatic
Warranty: 1 Year Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel
Highlight:

Neck Pet Bottle Blow Molding Machine

,

Pet J5L2 Bottle Blow Molding Machine

,

Cans Jars Stretch Blow Molding Machine

Eceng J5L2 5L wide neck pet bottle blow molding machine / cans jars stretch blow molding machines.

specification
Item

QJ5L2




Bottle type specification

Cavity

2

Theory output

1200-1300

Max.volume

5L

Bottle mouth maximum overall DIdiameter

150mm

Bottle biggest diameter

180mm

Bottle maximum height

400mm



Power specifications

Light tube quantity

32pcs

Light tube power

1.5KW

Maximum heating power

48KW

All electric machine installation

51KW

Actual consumption

35.7KW



Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

3400Ltr/min



Forzen water specification

Work pressure

5-6 kg/cm2

Temperature range

10℃

Consumption

6000kcal/hr

Forzen water flow

50L/min

Machine specification

Size of the machine

4.7x1.6x1.9

Weight of the machine

3ton


Product Description

Eceng J5L2 5L Neck Pet Bottle Blow Molding Machine / Cans Jars Stretch 0
Automatic China PET jar blowing machine J2 is specialized euipment designed for wide neck PET jars.It is high automatically,wide versatility and easy operation.It is especially suitable for the production of neck 50-180mm.J series bottle making machine is precisely positioned and adopts advanced microcomputer PLC control system,which is more stable.
Detailed Images

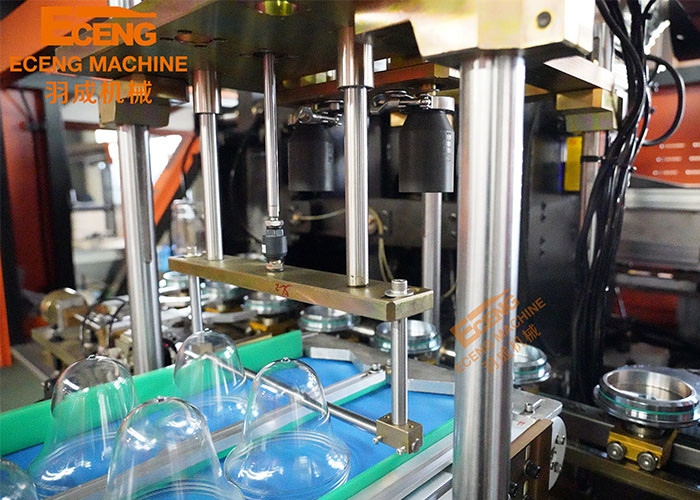

Eceng J5L2 5L Neck Pet Bottle Blow Molding Machine / Cans Jars Stretch 1

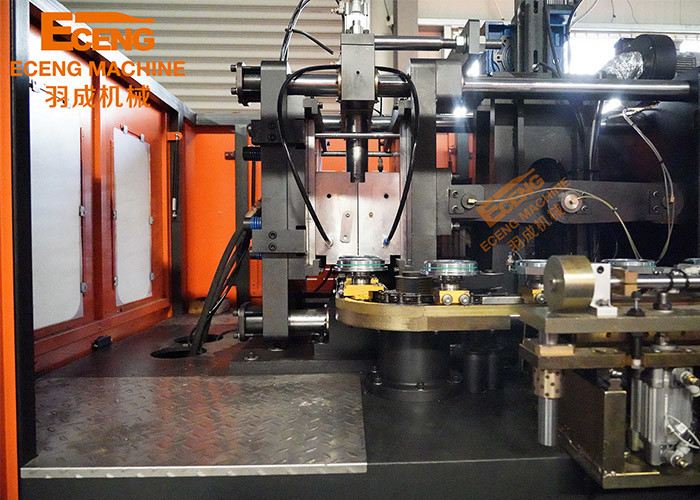

Eceng J5L2 5L Neck Pet Bottle Blow Molding Machine / Cans Jars Stretch 2

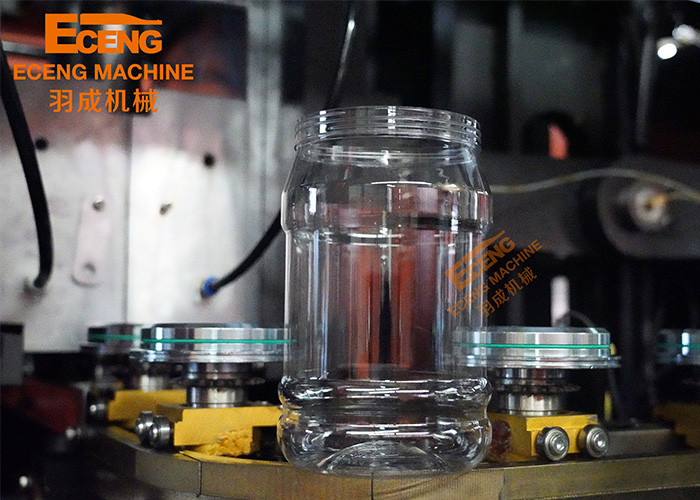

Eceng J5L2 5L Neck Pet Bottle Blow Molding Machine / Cans Jars Stretch 3
J linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. J series linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle.
Company Introduction


Eceng J5L2 5L Neck Pet Bottle Blow Molding Machine / Cans Jars Stretch 4
Packing&Shipping
Eceng J5L2 5L Neck Pet Bottle Blow Molding Machine / Cans Jars Stretch 5
Eceng J5L2 5L Neck Pet Bottle Blow Molding Machine / Cans Jars Stretch 6

Eceng J5L2 5L Neck Pet Bottle Blow Molding Machine / Cans Jars Stretch 7

Eceng J5L2 5L Neck Pet Bottle Blow Molding Machine / Cans Jars Stretch 8

Eceng J5L2 5L Neck Pet Bottle Blow Molding Machine / Cans Jars Stretch 9
Exhibition


Eceng J5L2 5L Neck Pet Bottle Blow Molding Machine / Cans Jars Stretch 10
Eceng J5L2 5L Neck Pet Bottle Blow Molding Machine / Cans Jars Stretch 12
