Features

Specifications

Plastic Processed: PET

Bottle Volume(ml): 2000 Ml

Condition: New

Blow Moulding Type: Stretch Blow Moulding

Dimension(L*W*H): 2.25*1.6*1.7m

Automation: Automatic

Warranty: 1 Year

Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel

Highlight:

Bottle Stretch Molding Machine

Bottle Stretch Molding Machine 2000 ml

Bottle PET Stretch Molding Machine

Basic Infomation

Place of Origin: Jiangsu, China

Brand Name: Eceng

Certification: CE SGS ISO

Model Number: J2

Payment & Shipping Terms

Packaging Details: standard export wooden case or according to your requirements

Delivery Time: 45days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Set/Sets per Year

Gallery

Plastic Bottle Stretch Molding Machine Wide Neck Single Cavity J5L1 2000 Ml

Product Description

China Manufacturer Making Plastic Wide Neck Single Cavity Bottle Stretch Molding Machine J5L1

specification

Item		J5L1
Bottle type specification	Cavity	1
	Theory output	700-800
	Max.volume	5L
	Bottle mouth maximum overall diameter	150mm
	Bottle biggest diameter	180mm
	Bottle maximum height	400mm
Power specification	Light tube quantity	32pcs
	Light tube power	1KW
	Maximum heating power	32KW
	All electric machine installation	27KW
	Actual consumption	19KW
Air pressure specification	Work pressure	7-9kg/cm2
	Low-pressure gas consumption	1000L/min
	Blow bottle pressure	25-35kg/cm2
	Higher -pressure gas consumption	1500Ltr/min
Air pressure specification	Work pressure	7-9 kg/cm2
	Temperature range	10℃
	Consumption	2000-2500Ltr/min
	Frozen water flow	30L/min
Machine specification	Machine size	2.4x1.5x1.7
Machine specification	Machine weight	2ton

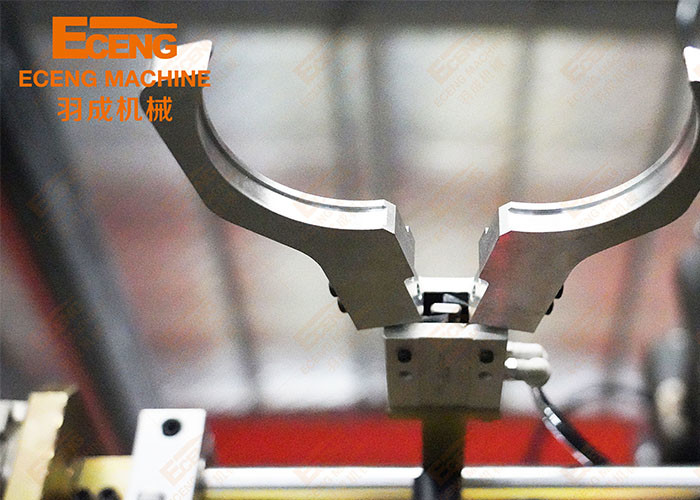

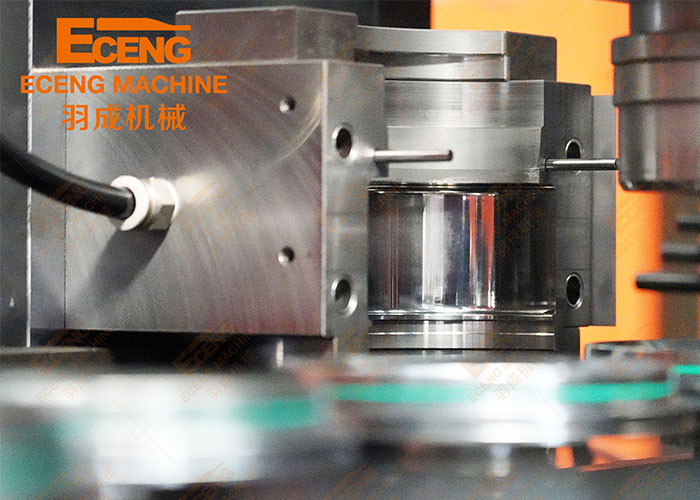

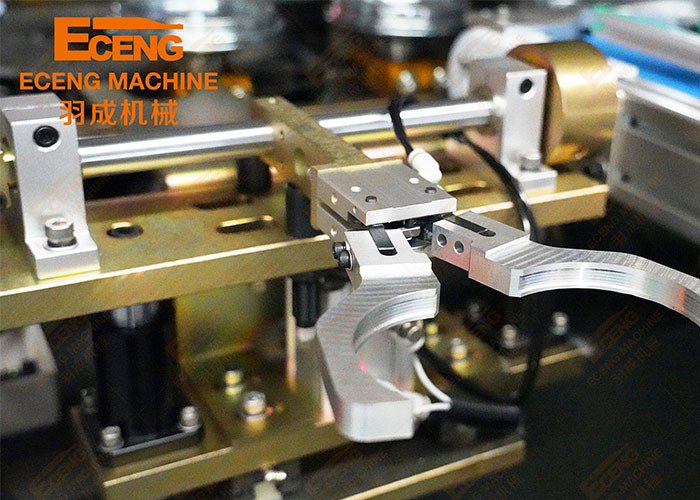

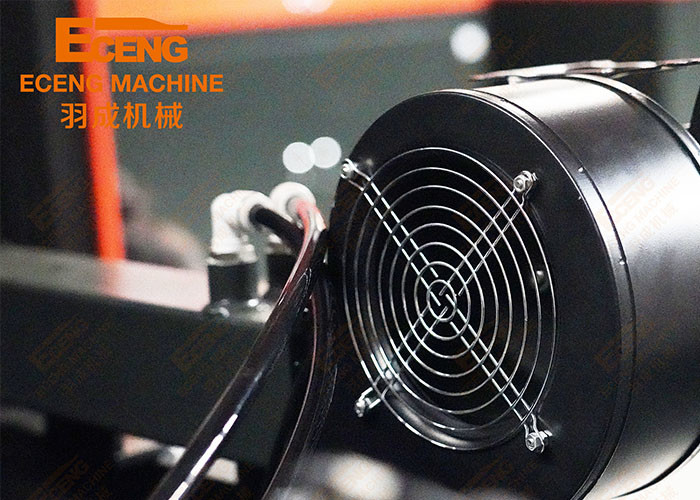

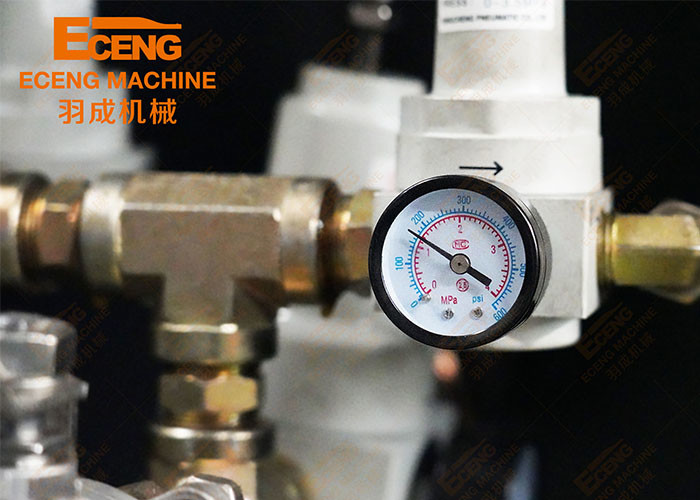

Detailed Images

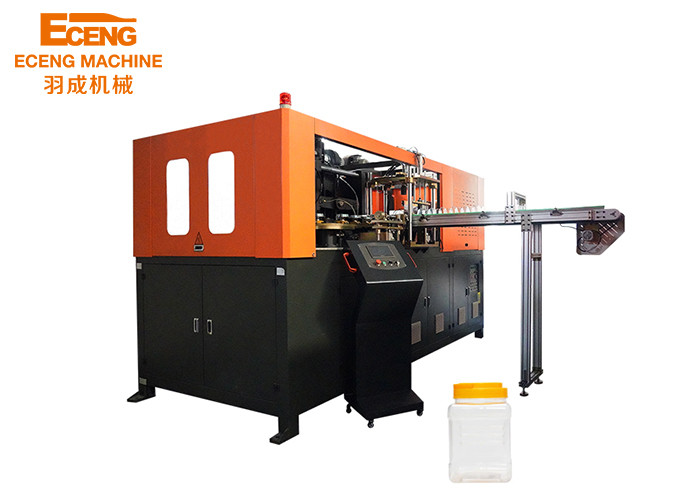

Automatic China PET jar blowing machine J5L1 is specialized euipment designed for wide neck PET jars.It is high automatically,wide

versatility and easy operation.

1.Blowing 0.5-5L PET Jar bottle.

2.Durable PLC micro computer controlling system controls time can be accurate to 0.01 seconds.
3.Special recycling installation for high pressure air reduces the energy consumption.
4.The far-infrared heater uses a way of conversion self-rotating heating and the rail revolution makes the heating even,quick and reliable.
5.Every heating lamp has independent temperature control device to get ideal preform heating effect .
6.Particular pre-heater design makes preform close while heating.Change space shorten heating tunnel and reduce energy consumption according to the bottle size while blowing .
7.Simple installation and starting.
