Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE SGS ISO |
| Model Number: | J2 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $26,800.00/Sets 1-1 Sets |
| Packaging Details: | standard export wooden case or according to your requirements |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Set/Sets per Year |
| Plastic Processed: | PET | Bottle Volume(ml): | 2000 Ml |
|---|---|---|---|
| Condition: | New | Blow Moulding Type: | Stretch Blow Moulding |
| Dimension(L*W*H): | 2.25*1.6*1.7m | Automation: | Automatic |
| Warranty: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel |
| High Light: | Single Cavity Jar Blow Molding Machine,5L Jar Blow Molding Machine,2.25*1.6*1.7m Blow Molding Machine |
||

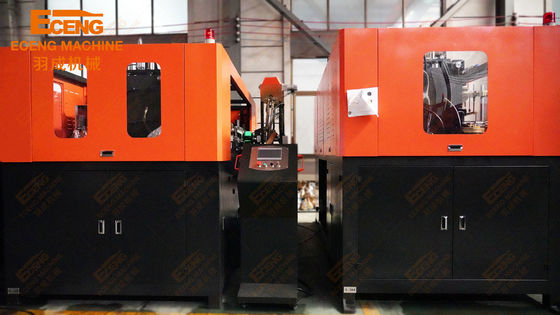

Single Cavity Jar Blow Molding Machine Eceng J5L1
|
Item
|
J5L1
|
|
|
Bottle type specification
|
Cavity
|
1
|
|
Theory output
|
700-800
|
|
|
Max.volume
|
5L
|
|
|
Bottle mouth maximum overall diameter
|
150mm
|
|
|
Bottle biggest diameter
|
180mm
|
|
|
Bottle maximum height
|
400mm
|
|
|
Power specification
|
Light tube quantity
|
32pcs
|
|
Light tube power
|
1KW
|
|
|
Maximum heating power
|
32KW
|
|
|
All electric machine installation
|
27KW
|
|
|
Actual consumption
|
19KW
|
|
|
Air pressure specification
|
Work pressure
|
7-9kg/cm2
|
|
Low-pressure gas consumption
|
1000L/min
|
|
|
Blow bottle pressure
|
25-35kg/cm2
|
|
|
Higher -pressure gas consumption
|
1500Ltr/min
|
|
|
Air pressure specification
|
Work pressure
|
7-9 kg/cm2
|
|
Temperature range
|
10℃
|
|
|
Consumption
|
2000-2500Ltr/min
|
|
|
Frozen water flow
|
30L/min
|
|
|
Machine specification
|
Machine size
|
2.4x1.5x1.7
|
|
Machine weight
|
2ton
|
|

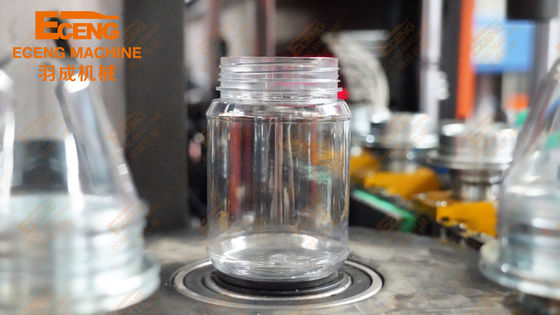

The Jar Blow Molding Machine is a reliable and efficient solution for producing high-quality jars with a maximum capacity of 5 liters. With its single-cavity design, this machine is perfect for small to medium-sized manufacturers.
Our Jar Blow Molding Machine is designed for easy operation and maintenance, ensuring maximum productivity and minimum downtime. It uses advanced technology to ensure consistent and precise production of jars of various sizes and shapes.
When you choose our Jar Blow Molding Machine, you’ll benefit from its flexible design that allows easy customization for various production requirements. You can adjust its parameters to achieve the desired thickness, weight, and shape of your jars.
With its sturdy construction and superior materials, the Jar Blow Molding Machine guarantees long-term durability and low production costs. It’s ideal for producing jars for a wide range of industries, including food and beverage, cosmetics, and household products.
If you’re looking for a cost-effective and reliable solution for producing high-quality jars, then our Jar Blow Molding Machine is an excellent choice. Its user-friendly interface, high production efficiency, and low maintenance make it the ideal investment for growing your business.
