Blow your bottle, Shape your dream

|
| Place of Origin: | CHINA |
| Brand Name: | ECENG |
| Certification: | CE SGS ISO |
| Model Number: | Q3000 |
| Minimum Order Quantity: | One |
|---|---|
| Packaging Details: | film/wooden |
| Delivery Time: | 45days |
| Payment Terms: | TT LC western Union |
| Supply Ability: | 10sets Per month |
| Model Number: | Q3000 | Color: | Orange |
|---|---|---|---|
| Output: | 3000bph | Weight: | 2.5ton |
| BLOW MOULDING TYPE: | Stretch Blow Moulding | VOLTAGE: | 380V, 50HZ, 3PHASE |
| AUTOMATION: | Automatic | VOLUME: | 2l |
| Highlight: | Automatic Plastic Water Bottle Blowing Machine,2cavity Water Bottle Blowing Machine,3000BPH Plastic Bottle Blowing Machine |
||

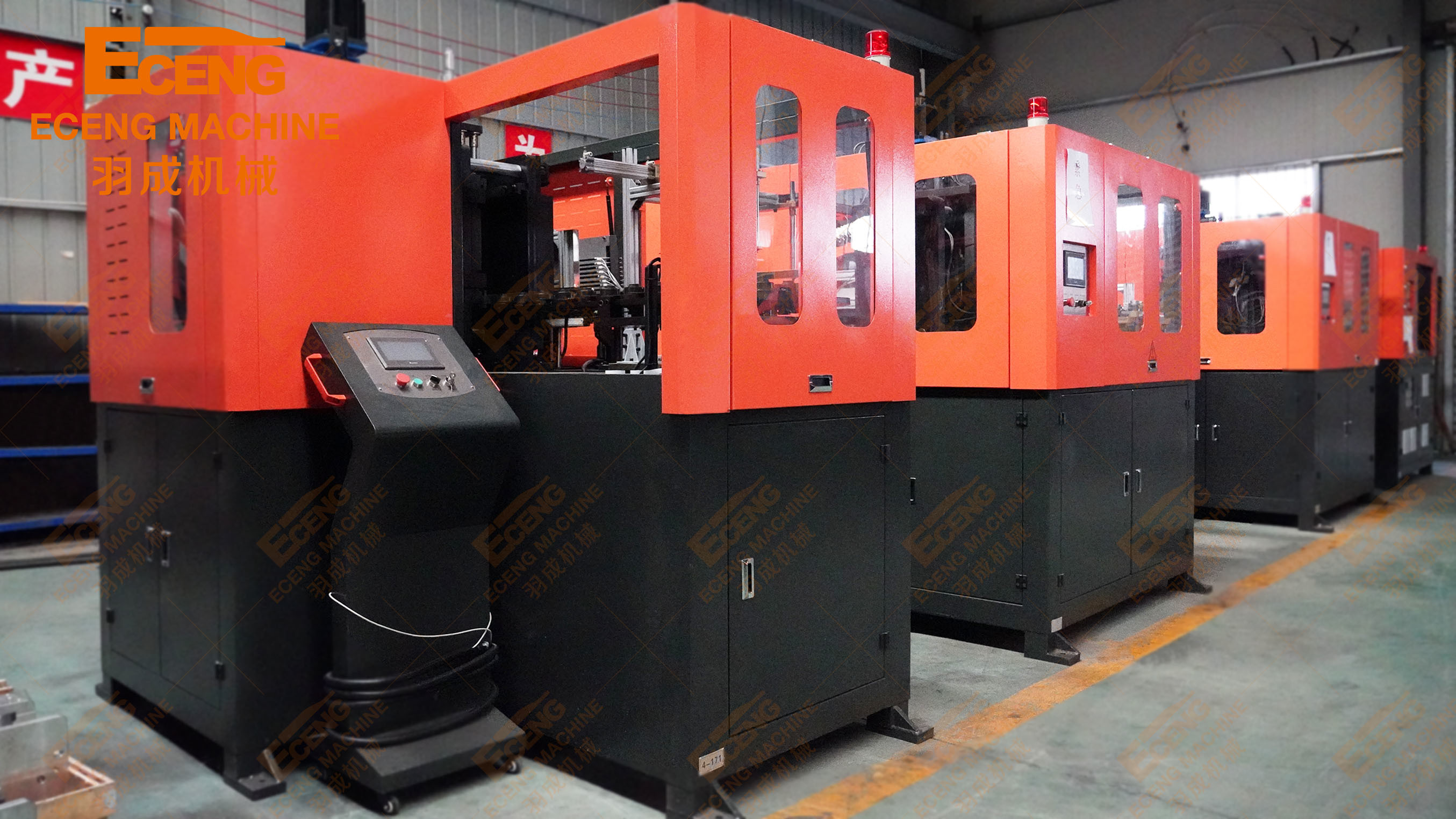

Eceng Q3000 2cavity Automatic Water Bottle Blowing Machine, 3000BPH, 2000ml Plastic Juice Bottles
| model | Q3000 | |
| Bottle type specification | Cavity | 2 |
| Theory output | 3000 | |
| Max.volume | 2L | |
| Bottle mouth maximum overall diameter | 28-80mm | |
| Bottle biggest diameter | 100mm | |
| Bottle maximum height | 330mm | |
| Power specifications | Light tube quantity | 32pcs |
| Maximum heating power | 24KW | |
| All electric machine installation | 27KW | |
| Actual consumption | 19KW | |
| Air pressure specification | Work pressure | 7-9kg/cm2 |
| Low-pressure gas consumption | 1000L/min | |
| Blow bottle pressure | 25-35kg/cm2 | |
| Higher -pressure gas consumption | 1500Ltr/min | |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10°C | |
| Consumption | 5000kcal/hr | |
| Forzen water flow | 30L/min | |
| Machine specification | Size of the machine | 2.25x1.6x1.7 |
| Weight of the machine | 2.5ton | |
Q series fully automatic PET stretch blowing machine is developed by advanced bottle blowing technology.
1. Fully automatic operation: The Full Automatic Bet Bottle Blow Moulding Machine enables efficient and effortless production of high-quality bottles, as it is equipped with advanced automation technology.
2. High production capacity: With a production capacity of 3000 bottles per hour and 2cavity capability, this machine ensures that a large quantity of bottles can be produced in a short span of time, thereby enhancing productivity.
3. Perfect bottle shape and size: The Full Automatic Bet Bottle Blow Moulding Machine produces bottles of the desired shape and size with high precision, ensuring that your packaging needs are met to perfection.
4. Energy efficiency: This machine is designed to conserve energy, thereby helping you save on your energy bills and lowering your carbon footprint.
5. Low maintenance: With its durable design and advanced technology, this machine requires minimal maintenance, making it a cost-effective solution for your bottle production needs.
