Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4

Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4

Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4
Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4
Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4
Product Details:
Place of Origin: CHINA
Brand Name: ECENG
Certification: CE SGS ISO
Model Number: jar blowing machine
Payment & Shipping Terms:
Minimum Order Quantity: One
Price: Negotiable
Packaging Details: film/wooden
Delivery Time: 45days
Payment Terms: TT LC western Union
Supply Ability: 10sets Per month
Contact Now
Detailed Product Description
Model Number: J Series Weight: 2.5ton
Capacity: High Color: Customized
Control System: PLC Material: Plastic
Molding Method: Blow Molding
High Light:

Jar Can PET Blow Molding Machine

,

4 Cavities PET Blow Molding Machine

,

2.5ton Blow Molding Machine

J4 jar PET blow molding machine wide neck bottles with 2200-2400BPH Output.                                                      Specification


Model

J4

Bottle type specification

Cavity

4

Theory output bph

2200-2400

Max.volum

2L

Bottle mouth maximum overall diameter

80mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm

Power specification

Light tube quantity

32pcs

Light tube power

1KW

Maximum heating power

32KW

All electric machine installation

42KW

Actual consumption

30%--60%

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

3000Ltr/min

Frozen water specification

Work pressure

7-9 kg/cm2

Temperature range

10℃

Consumption

8000kcal/hr

Forzen water flow

138L/min

Machine specification

Machine size

4.1x1.6x1.9

Machine weight

3.9ton

The J4 Jar PET Blow Molding Machine is the perfect solution for producing high-quality wide neck bottles at fast production speeds of 2200 - 2400 bottles per hour. This machine is designed to create beautiful containers that can hold a variety of products such as food, cosmetics, and household chemicals.
The machine is designed with an efficient heating system that uses infrared lamps to heat the preforms to the required temperature level before blowing. This heating system ensures that the bottles produced have the required strength, durability, and clarity.
The J4 Jar PET Blow Molding Machine is easy to operate and maintain, making it the ideal choice for companies that require maximum productivity with minimal downtime. Its modular design allows for easy replacements and upgrades of parts, ensuring that it remains efficient and reliable even after years of use.
It also features a user-friendly touch screen interface that makes it easy to set and adjust machine settings, including bottle size, production speed, and other critical parameters.
In conclusion, the J4 Jar PET Blow Molding Machine is a top-of-the-line solution for producing wide-neck bottles at fast production speeds without sacrificing quality. Its advanced technology, versatility, and ease of use make it the perfect choice for companies looking to maximize productivity and profitability while maintaining the highest standards of quality.

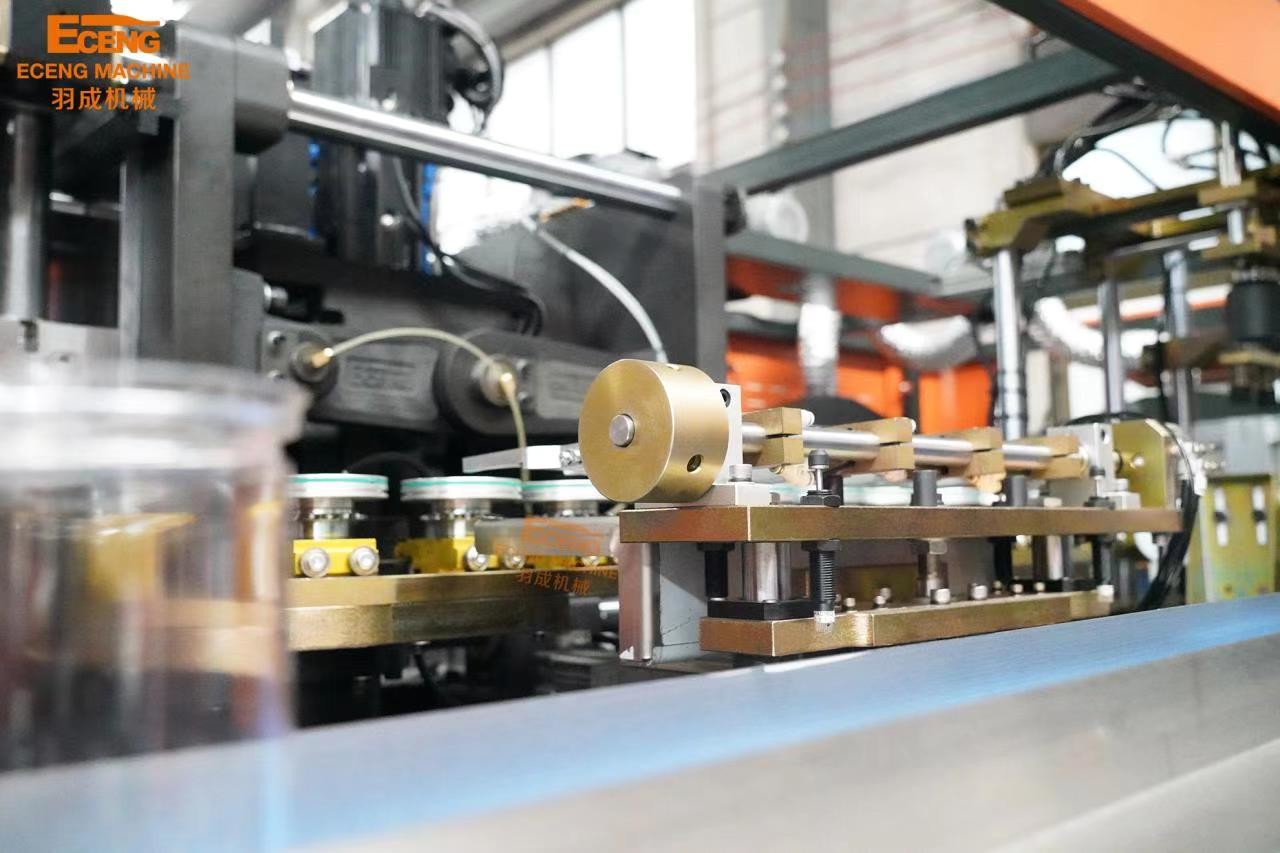

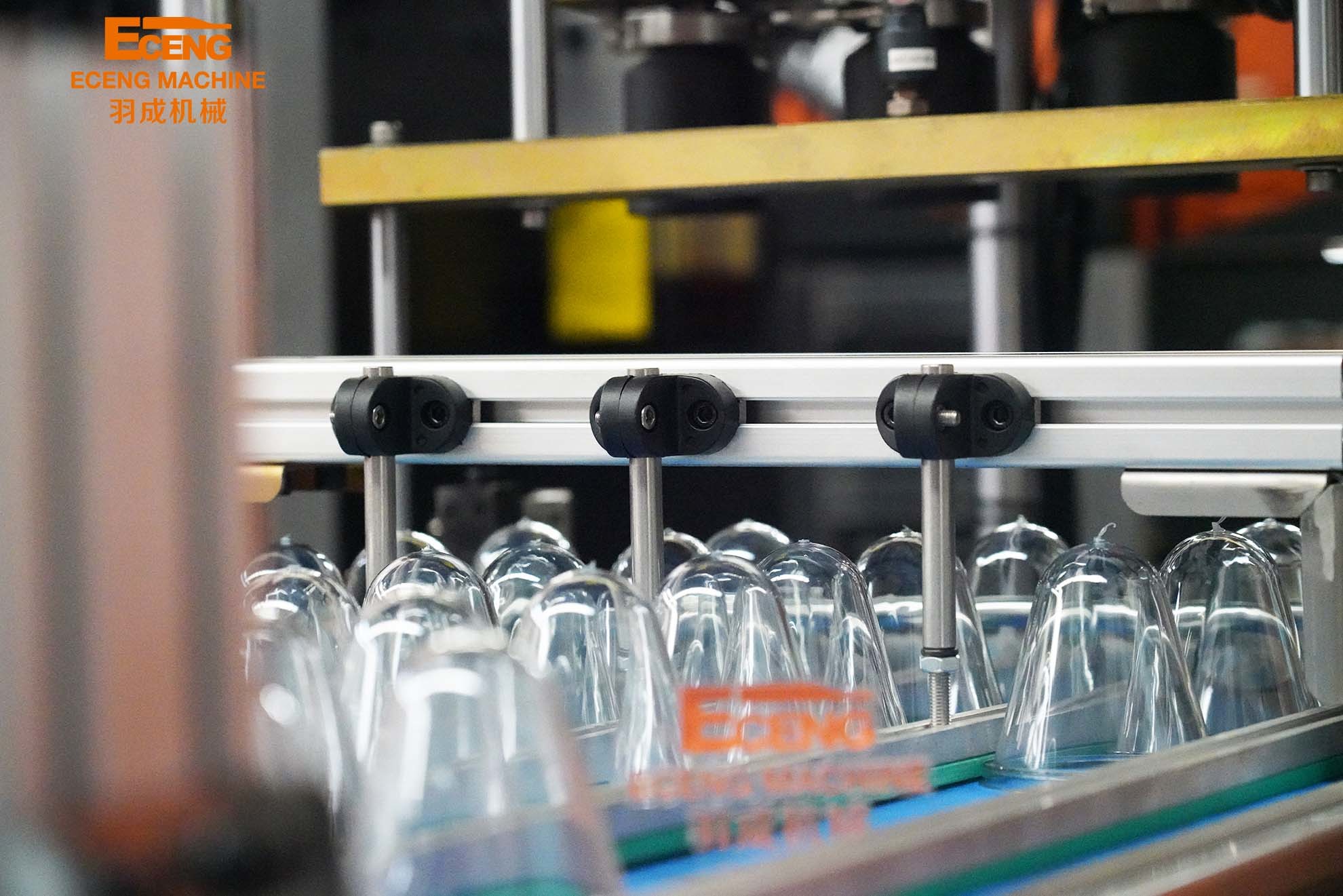

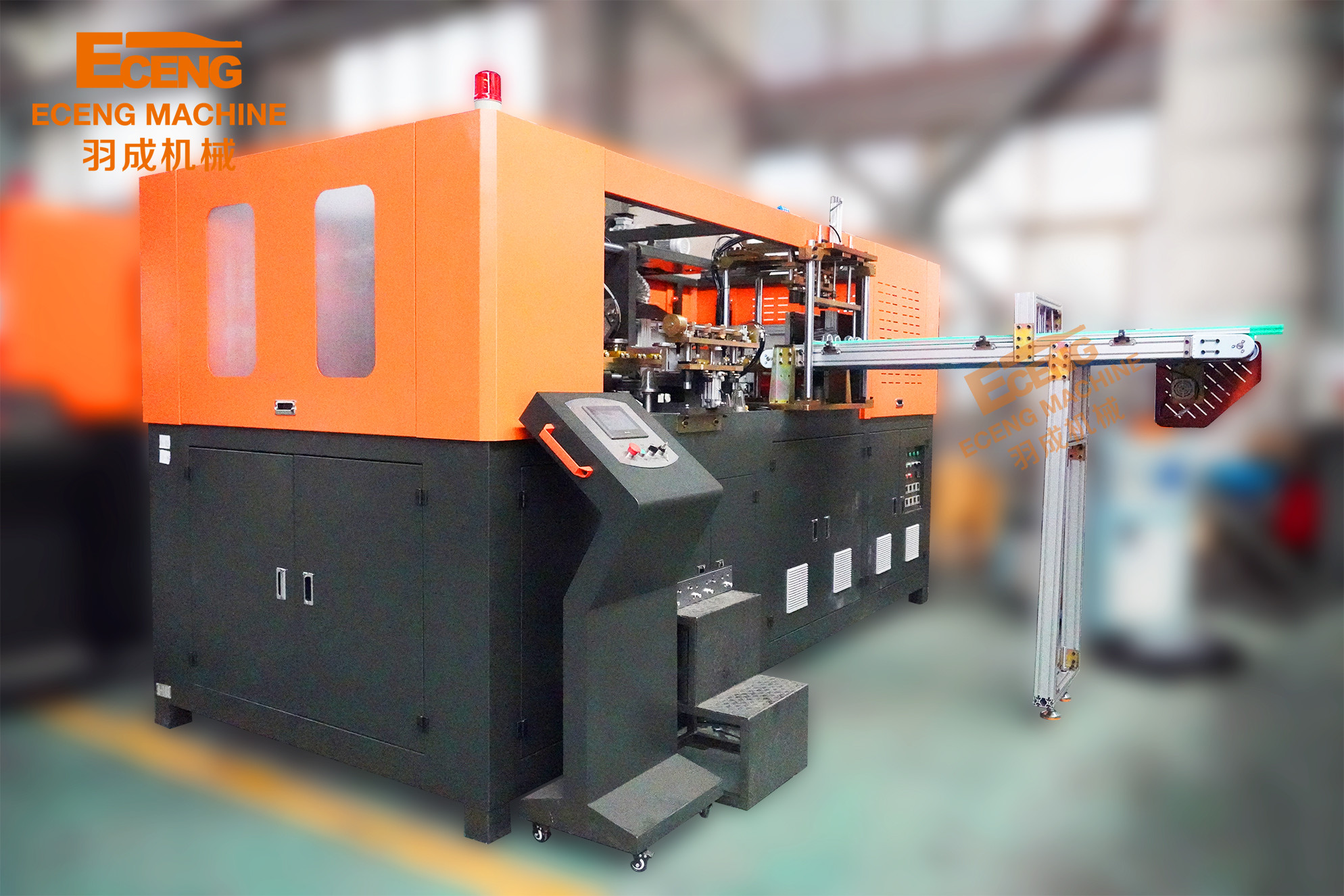

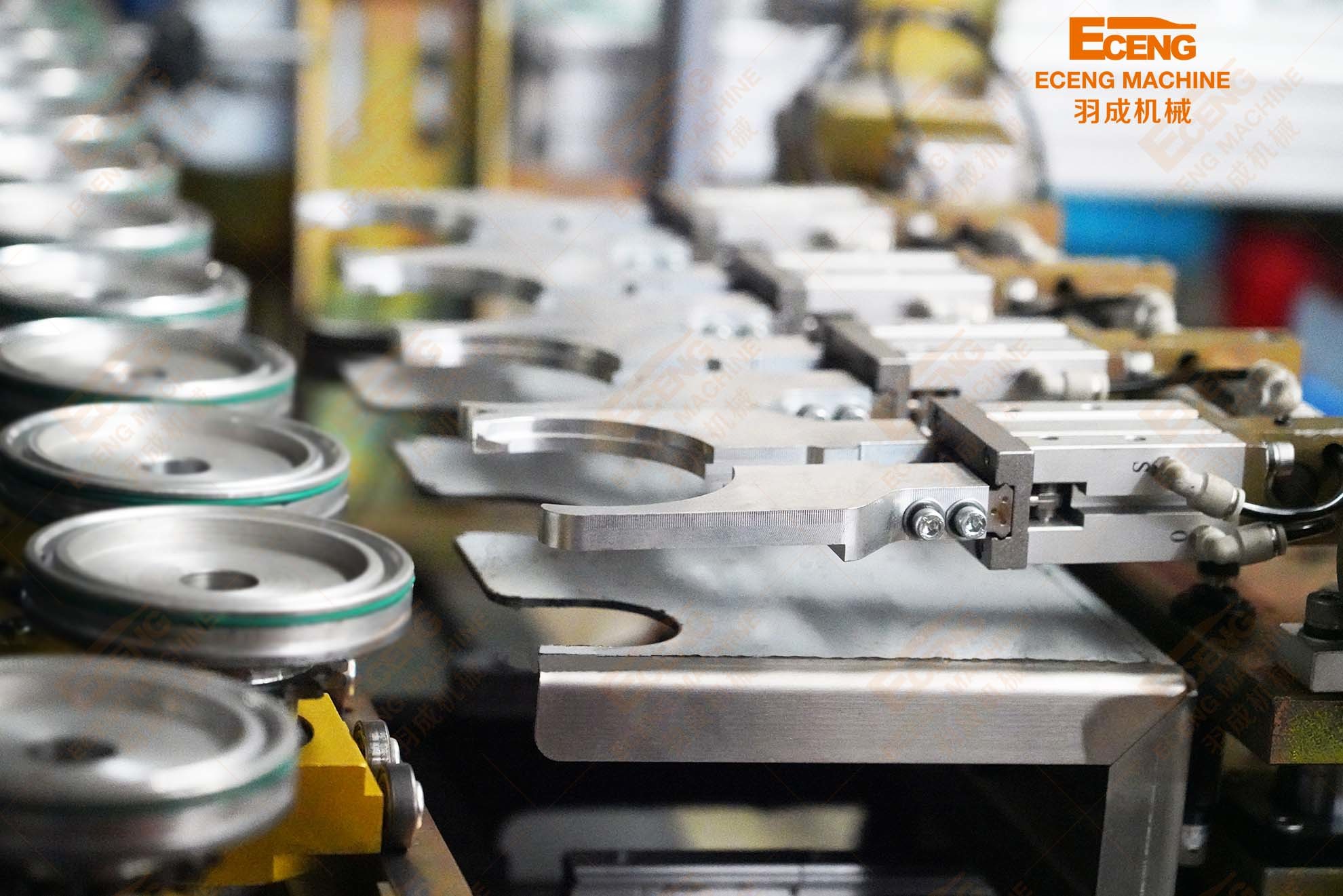

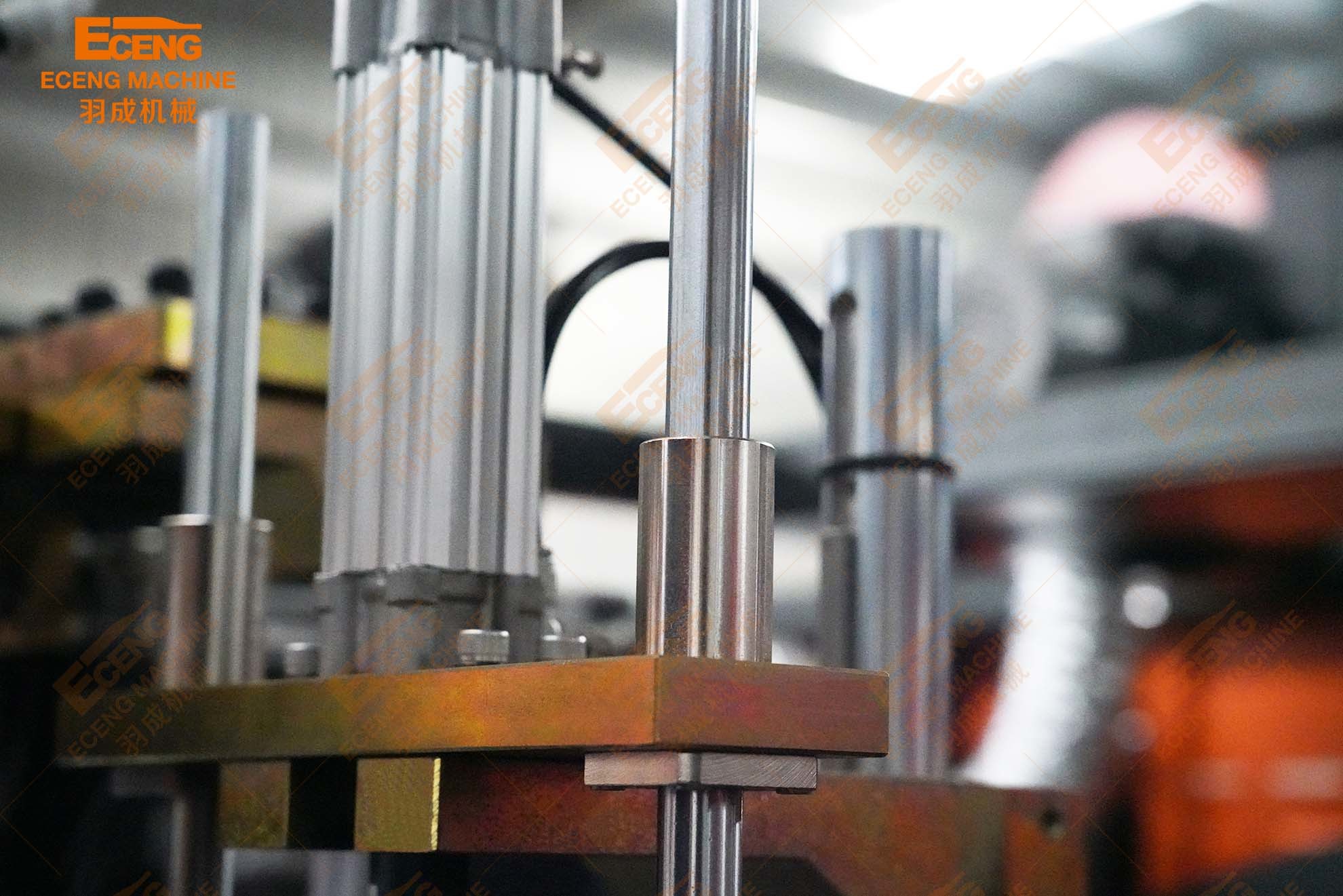

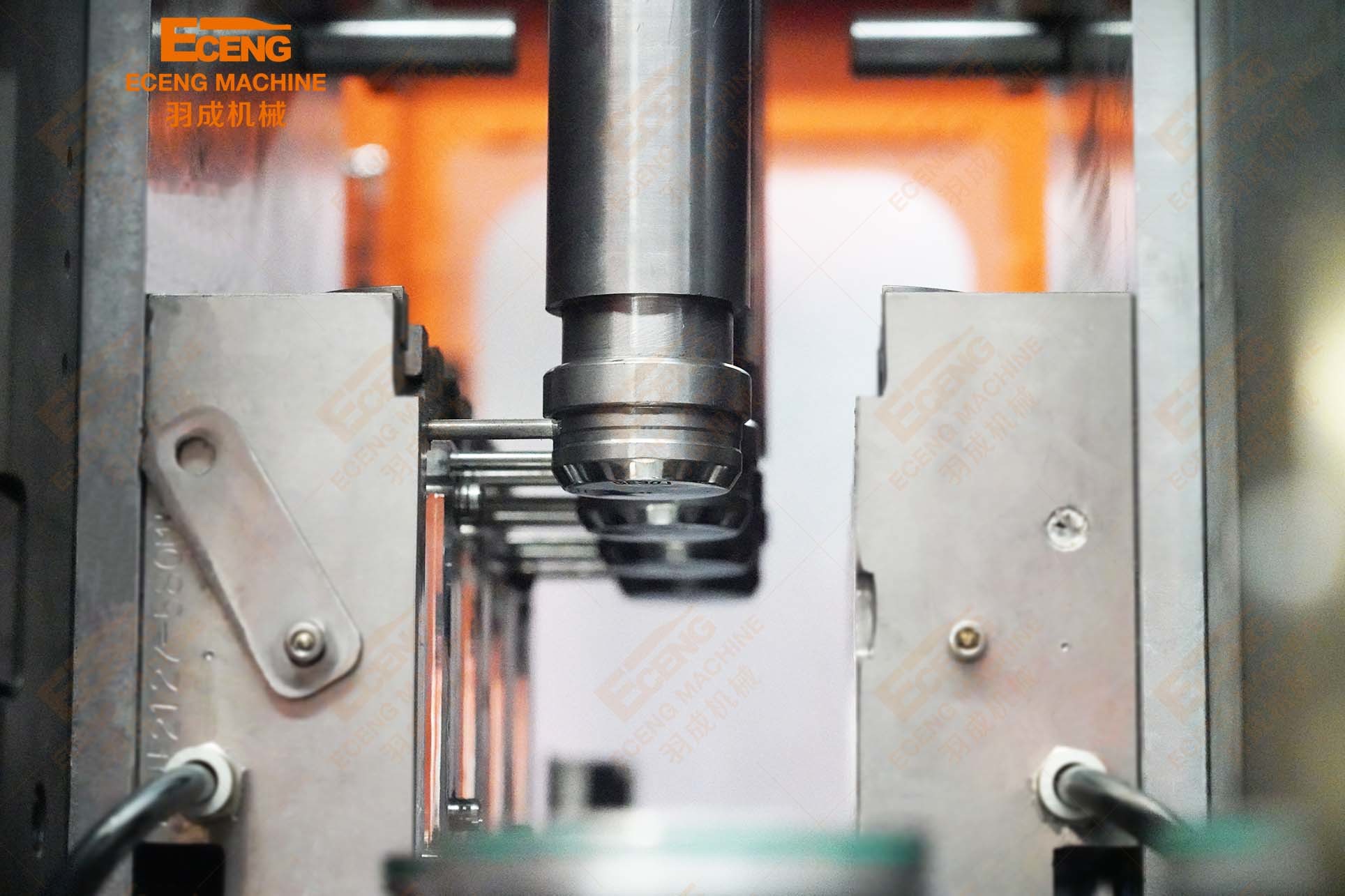

Product Photo

Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 0


Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 1

Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 2

Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 3

Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 4

Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 5
Working Process:


Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 6

Sketch Map:


Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 7


Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 8

Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 9

Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 10


Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 11

Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 12

Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 13


Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 14

Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 15

Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 16
Exhibition


Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 17

About Us


Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 18

Product packaging


Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 19
Packing
Conventional packaging: inside is wrapped with PE film outside is wooden box

Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 20
Delivery Conventional packaging: inside is wrapped with PE film outside is wooden box



Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 21

Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 22
Jar Can PET Bottle Blow Molding Machine Automatic 4 Cavities Wide Mouth J4 23
