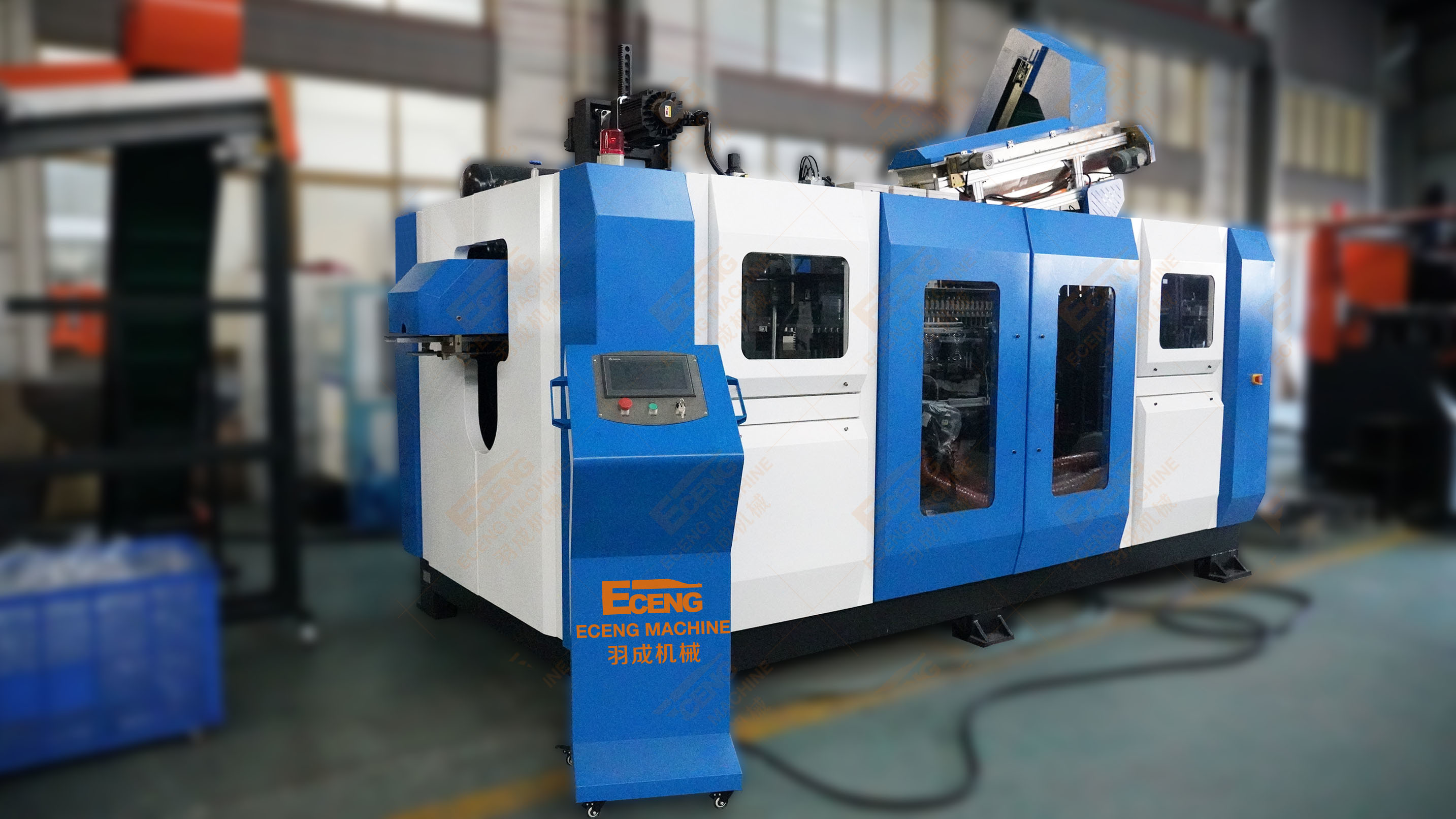

K4 PET Blow Molder Machine Full Automatic For Bottle Manufacturing

K4 PET Blow Molder Machine Full Automatic For Bottle Manufacturing

  • K4 PET Blow Molder Machine Full Automatic For Bottle Manufacturing
  • K4 PET Blow Molder Machine Full Automatic For Bottle Manufacturing
  • K4 PET Blow Molder Machine Full Automatic For Bottle Manufacturing
  • K4 PET Blow Molder Machine Full Automatic For Bottle Manufacturing
  • K4 PET Blow Molder Machine Full Automatic For Bottle Manufacturing
  • K4 PET Blow Molder Machine Full Automatic For Bottle Manufacturing
K4 PET Blow Molder Machine Full Automatic For Bottle Manufacturing
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: K4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $35,800.00/Sets 1-1 Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Blow Moulding Type: Stretch Blow Moulding Voltage: 380V,50HZ
Dimension(L*W*H): 3.3*1.6*1.9m Hollow Part Volume: 2L
PLC Brand: DELTA Weight (KG): 3400 KG
Applicable Industries: Manufacturing Plant Size Of The Machine: 3.3*1.6*1.9
High Light:

PET Blow Molder Machine

,

K4 Water Bottle Blow Molder Machine

,

380V Bottle Blow Molder Machine

Full automatic K4 PET blow molder machine- A must have for Professional bottle manufacturing

specification
             Model                                                                    K4






Bottle type specification
Cavity
4

Max.volume
2L

Bottle mouth maximum overall diameter
25-29mm

Bottle biggest diameter
100mm

Bottle maximum height
330mm


Capacity specification
Theory output
6000BPH

Bottle type volume
600ML

Bottle type weight
13.5g

Bottle type
Round



Power specification
Light tube quantity
16pcs

Light tube power
1.25KW

Maximum heating power
20KW

All electric machine installation
29KW

Actual consumption
30%--60%


Air pressure specification
Work pressure
5-6kg/cm2

Blow bottle pressure
25-45kg/cm2

Higher -pressure gas consumption
6000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
6000kcal/hr

Forzen water flow
120L/min

Machine specification
Machine size
3.6x1.6x1.9

Machine weight
4.3ton
K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 2500 bottles per hour ,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles.

Eceng K4 auto energy juice oil beverage PET plastic Snack food the oval bottle blow moulding molding machine equipment line

​1. Full Automatic: The Full automatic PET blow molding machine K4 is fully automated, making it easy to operate and incredibly efficient.
2. High Production Capacity: This machine has a production capacity of 10000BPH, making it perfect for large-scale production of PET bottles.
3. Large Bottle Capacity: The Full automatic PET blow molding machine K4 is capable of making bottles with a maximum capacity of 2 liters, making it perfect for a wide variety of applications.
4. Precision Engineering: The machine has been precision-engineered using the latest technology, ensuring that it produces high-quality PET bottles every time.
5. Low Maintenance: The machine requires minimal maintenance, thanks to its robust design and top-quality materials. It is built to last and will provide reliable performance for years to come.

K4 PET Blow Molder Machine Full Automatic For Bottle Manufacturing 0

K4 PET Blow Molder Machine Full Automatic For Bottle Manufacturing 1
blowing mould
K4 PET Blow Molder Machine Full Automatic For Bottle Manufacturing 3
K4 PET Blow Molder Machine Full Automatic For Bottle Manufacturing 5
Company Introduction
K4 PET Blow Molder Machine Full Automatic For Bottle Manufacturing 7
K4 PET Blow Molder Machine Full Automatic For Bottle Manufacturing 9
K4 PET Blow Molder Machine Full Automatic For Bottle Manufacturing 11
K4 PET Blow Molder Machine Full Automatic For Bottle Manufacturing 13
Packing&Shipping
K4 PET Blow Molder Machine Full Automatic For Bottle Manufacturing 14
K4 PET Blow Molder Machine Full Automatic For Bottle Manufacturing 16
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
