Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE ISO |
| Model Number: | K12 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | standard export wooden case or according to your requirements |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Set/Sets per Year |
| Plastic Processed: | PET | Application: | Bottle |
|---|---|---|---|
| Blow Moulding Type: | Stretch Blow Moulding | Automation: | Automatic |
| Key Selling Points: | Automatic Blow Molding Machine | Warranty Of Core Components: | 1 Year |
| Applicable Industries: | Manufacturing Plant | Model Number: | K12 |
| Highlight: | 12 Cavity Blow Moulding Machine,Fully Automatic PET Blow Moulding Machine,26000BPH PET Blow Moulding Machine |
||

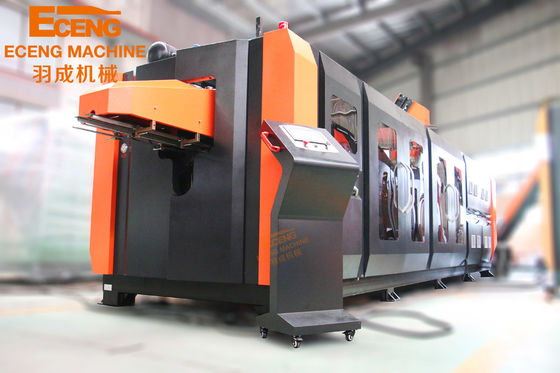

K12 Fully Automatic 12 Cavity Blow Moulding Machine with 22000-26000BPH Output for PET Bottles
Product Parameters
| Model K12 | ||
|
Bottle type specification
|
Cavity | 12 |
| Max.volume | 200ml-750ml | |
| Bottle mouth maximum overall diameter | 25-29mm NECK | |
| Bottle biggest diameter | 75mm | |
| Bottle maximum height | 180mm | |
|
Capacity specification
|
Theory output | 22000~26000BPH |
| Bottle type volume | 600ML | |
| Bottle type weight | 13.5g | |
| Bottle type | Round | |
| Power specification | Light tube quantity | 32pcs |
| Light tube power | 1.75KW | |
| Maximum heating power | 56KW | |
| All electric machine installation | 71KW | |
| Actual consumption | 30%--60% | |
|
Air pressure specification
|
Work pressure | 5-6kg/cm2 |
| Blow bottle pressure | 25-45kg/cm2 | |
| Higher -pressure gas consumption | 24000Ltr/min | |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10℃ | |
| Consumption | 12000kcal/hr | |
| Temperature range | 10℃ | |
| Forzen water flow | 180L/min | |
| Machine specification | Machine size | 9.0x2.0x2.3 |
| Machine weight | 10.0ton | |
1. Our K12 12 cavity bottle making machine is the perfect solution for high-speed production of PET bottles. With an impressive output of 22000 - 26000BPH, this machine is ideal for large-scale manufacturing operations.
2. The K12 12 cavity bottle making machine is designed for efficiency and precision. Its advanced technology ensures consistent quality and reliability, making it perfect for use in the beverage, pharmaceutical and cosmetics industries.
3. Whether you need to produce water bottles, juice bottles or any other type of PET bottle, the K12 12 cavity bottle making machine is the perfect choice. Its high-speed production capabilities can help you meet even the most demanding production requirements.
4. Our K12 12 cavity bottle making machine is also incredibly easy to operate, with user-friendly controls and a simple, intuitive interface. This means that you can get up and running quickly, with minimal downtime and minimal training requirements.
5. If you're looking for a high-speed, reliable and efficient bottle making machine, the K12 12 cavity model is the perfect option. Its impressive output, precision engineering and easy operation make it a valuable addition to any manufacturing facility.
The 12 Cavity fully automatic high-speed bottle blowing machine is a state-of-the-art machine designed to cater to the needs of the modern-day bottling industry. With a production capacity of 22,000-26,000 bottles per hour, this machine is capable of meeting even the most demanding production requirements.
Equipped with advanced automation technology, the machine can produce high-quality bottles with superior finish and accuracy. It has a user-friendly interface that allows operators to easily adjust settings and monitor production in real-time.
The 12-cavity design of the machine enables it to work at high-speed, producing bottles quickly and efficiently. The machine is capable of handling different types of plastic materials, including PET, PP, and HDPE, making it a versatile solution for bottling companies.
With its high-speed production capabilities, the 12-chamber fully automatic high-speed bottle blowing machine is an ideal solution for companies looking to increase their production output, improve efficiency, and reduce costs.
