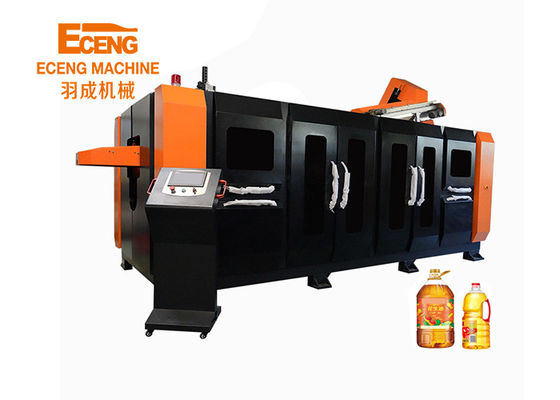

Fully Automatic Pet Bottle Blowing Machine For 5L Oil Bottles With 6 Servo Motors Driven

Fully Automatic Pet Bottle Blowing Machine For 5L Oil Bottles With 6 Servo Motors Driven

Fully Automatic Pet Bottle Blowing Machine For 5L Oil Bottles With 6 Servo Motors Driven
Fully Automatic Pet Bottle Blowing Machine For 5L Oil Bottles With 6 Servo Motors Driven
Fully Automatic Pet Bottle Blowing Machine For 5L Oil Bottles With 6 Servo Motors Driven
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: K5L4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $35,800.00/Sets 1-1 Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Bottle Volume(ml): 2000 Ml
Condition: New Blow Moulding Type: Stretch Blow Moulding
Voltage: 380V,50HZ Dimension(L*W*H): 7.8*1.95*2.54m
Hollow Part Volume: 5L Output: 3000-4000
High Light:

Fully Automatic Pet Bottle Blow Machine

,

2000ml Pet Bottle Blowing Moulding Machine

,

50HZ Bottle Blowing Moulding Machine

Pet Bottle Blowing Machine Fully Automatic for 5L Oil Bottles With 6 servo motors driven
Fully Automatic Pet Bottle Blowing Machine For 5L Oil Bottles With 6 Servo Motors Driven 0
Fully Automatic Pet Bottle Blowing Machine For 5L Oil Bottles With 6 Servo Motors Driven 2
specification
             Model                                                                    K5L4






Bottle type specification
Cavity
4

Max.volume
5L

Bottle mouth maximum overall diameter
38-63mm

Bottle biggest diameter
185mm

Bottle maximum height
360mm


Capacity specification
Theory output
3000-4000BPH

Bottle type volume
5000ML

Bottle type weight
220g

Bottle type
Round



Power specification
Light tube quantity
32pcs

Light tube power
2KW

Maximum heating power
64KW

All electric machine installation
75KW

Actual consumption
40%--60%


Air pressure specification
Work pressure
5-6kg/cm2

Blow bottle pressure
25-45kg/cm2

Higher -pressure gas consumption
8000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
18000kcal/hr

Forzen water flow
120L/min

Machine specification
Machine size
7.8x1.95x2.54

Machine weight
10.6ton
Eceng Plastic bottle stretch blowing machines making machine for 5L oil bottles automatic 6 servo motors driven

K5L4 is a stable two-step blow-down stretch automatic blowing machine.It can be used to blow max volume 5000ml plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

Fully Automatic Pet Bottle Blowing Machine For 5L Oil Bottles With 6 Servo Motors Driven 4
Fully Automatic Pet Bottle Blowing Machine For 5L Oil Bottles With 6 Servo Motors Driven 6
Kseries linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
blowing mould
Fully Automatic Pet Bottle Blowing Machine For 5L Oil Bottles With 6 Servo Motors Driven 8
Fully Automatic Pet Bottle Blowing Machine For 5L Oil Bottles With 6 Servo Motors Driven 10
Company Introduction
Fully Automatic Pet Bottle Blowing Machine For 5L Oil Bottles With 6 Servo Motors Driven 12
Fully Automatic Pet Bottle Blowing Machine For 5L Oil Bottles With 6 Servo Motors Driven 14
Fully Automatic Pet Bottle Blowing Machine For 5L Oil Bottles With 6 Servo Motors Driven 16
Fully Automatic Pet Bottle Blowing Machine For 5L Oil Bottles With 6 Servo Motors Driven 18

Packing&Shipping
Fully Automatic Pet Bottle Blowing Machine For 5L Oil Bottles With 6 Servo Motors Driven 19
Fully Automatic Pet Bottle Blowing Machine For 5L Oil Bottles With 6 Servo Motors Driven 21
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
After Sales Service
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could  master the operation and maintenance, could adjust the process and treat different failures.
3. the sample service
1' We can send you the video of the running machine.
2' You are welcome to come to visit our factory,and see the machine running.
4. We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5. well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7. Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.
Fully Automatic Pet Bottle Blowing Machine For 5L Oil Bottles With 6 Servo Motors Driven 23
Fully Automatic Pet Bottle Blowing Machine For 5L Oil Bottles With 6 Servo Motors Driven 25
Fully Automatic Pet Bottle Blowing Machine For 5L Oil Bottles With 6 Servo Motors Driven 27
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
