Blow your bottle, Shape your dream

|
| Place of Origin: | CHINA |
| Brand Name: | ECENG |
| Certification: | CE SGS ISO |
| Model Number: | Q3000 |
| Minimum Order Quantity: | One |
|---|---|
| Packaging Details: | film/wooden |
| Delivery Time: | 45days |
| Payment Terms: | TT LC western Union |
| Supply Ability: | 10sets Per month |
| Model Number: | Q3000 | Color: | Orange |
|---|---|---|---|
| Output: | 3000bph | Weight: | 2.5ton |
| BLOW MOULDING TYPE: | Stretch Blow Moulding | VOLTAGE: | 380V, 50HZ, 3PHASE |
| AUTOMATION: | Automatic | VOLUME: | 2l |
| Highlight: | Eceng Automatic Water Bottle Blowing Machine,2cavity Water Plastic Bottle Blowing Machine,3000bph Automatic Plastic Bottle Blowing Machine |
||
This series of models adopts international brand servo motors, reducers, electrical components, and control systems to create stable, reliable, efficient, durable, energy-saving and convenient machinery products. It is suitable for blowing PET/PETG cosmetic bottles with various appearances and calibers, especially good at blowing difficult and demanding special-shaped bottles.
| model | Q3000 | |
| Bottle type specification | Cavity | 2 |
| Theory output | 3000 | |
| Max.volume | 2L | |
| Bottle mouth maximum overall diameter | 28-80mm | |
| Bottle biggest diameter | 100mm | |
| Bottle maximum height | 330mm | |
| Power specifications | Light tube quantity | 32pcs |
| Maximum heating power | 24KW | |
| All electric machine installation | 27KW | |
| Actual consumption | 19KW | |
| Air pressure specification | Work pressure | 7-9kg/cm2 |
| Low-pressure gas consumption | 1000L/min | |
| Blow bottle pressure | 25-35kg/cm2 | |
| Higher -pressure gas consumption | 1500Ltr/min | |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10°C | |
| Consumption | 5000kcal/hr | |
| Forzen water flow | 30L/min | |
| Machine specification | Size of the machine | 2.25x1.6x1.7 |
| Weight of the machine | 2.5ton | |

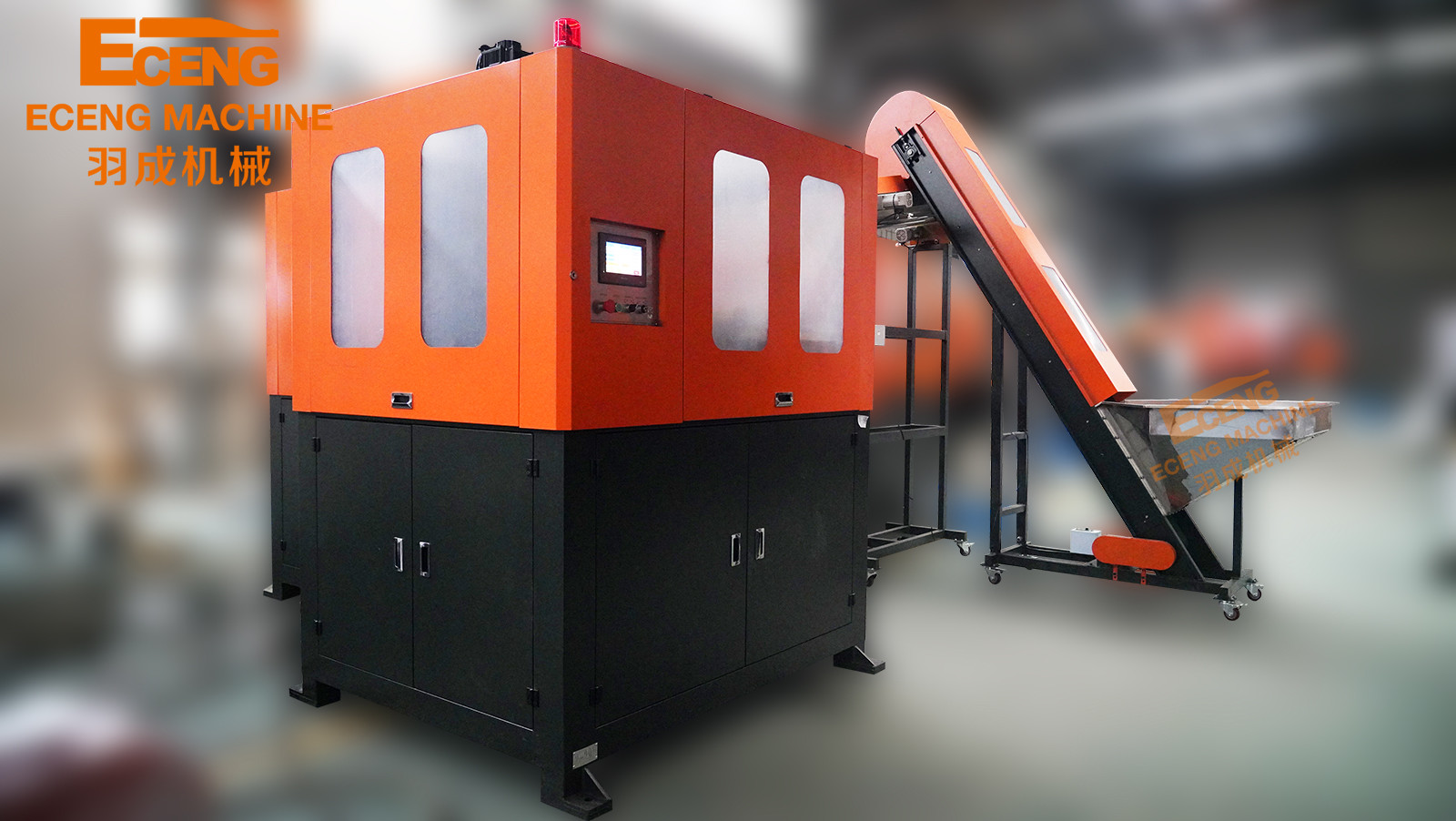

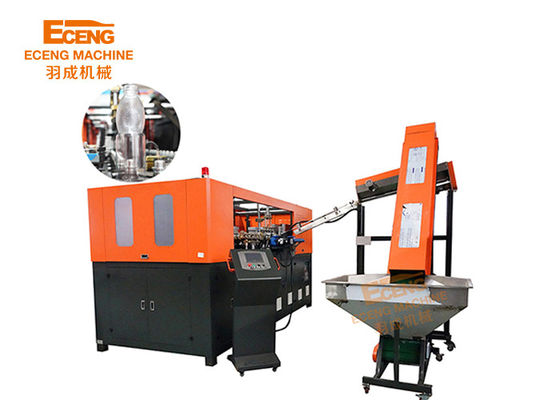

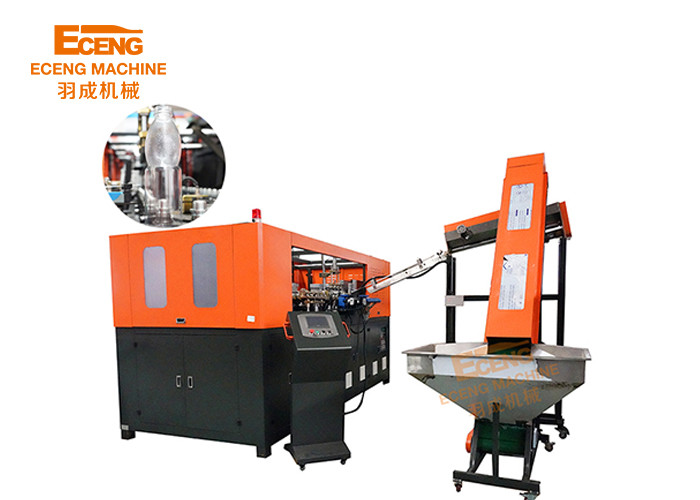

Q series fully automatic PET stretch blowing machine
1. Full automatic operation: The Eceng Q3000 Pet Bottle Blow Moulding Machine operates in a fully automated manner, making it efficient and easy to use.
2. High production capacity: With a production capacity of 3000 bottles per hour and a 2cavity design, this machine is ideal for meeting the production demands of small and medium-sized businesses.
3. Precision moulding: The machine ensures precision moulding of PET bottles, with a flawless finish that meets high-quality standards.
4. Low energy consumption: The machine is designed for low energy consumption, making it cost-effective and environmentally friendly.
5. Easy maintenance: The Eceng Q3000 is easy to maintain, with minimal downtime and simple repair procedures, reducing the cost of ownership and ensuring maximum uptime.
