Automatic PET Blowing Bottle Machine 1500BPH 2cavity For 3L And 5L

Automatic PET Blowing Bottle Machine 1500BPH 2cavity For 3L And 5L

Automatic PET Blowing Bottle Machine 1500BPH 2cavity For 3L And 5L
Automatic PET Blowing Bottle Machine 1500BPH 2cavity For 3L And 5L
Automatic PET Blowing Bottle Machine 1500BPH 2cavity For 3L And 5L
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE&ISO
Model Number: Q5L-2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Wooden package
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Bottle Making Machine: Water Bottle Blowing Machine Hollow Part Volume: 5L
Power (kW): 48 Weight (KG): 3000 KG
Automation: Automatic Warranty: 1 Year
Cavity: 2 Output: 1500BPH
High Light:

Automatic PET Blowing Bottle Machine

,

PET Blowing Bottle Machine 1500BPH

,

2cavity PET Blowing Water Bottle Machine

1500BPH 2cavity Automatic PET Blowing Bottle Machine for 3L and 5L Bottles

technical parametre-- 5L pet bottle machine



Item Q5L-2
Bottle type specification Cavity 2
Theory output 1500
Max.volume 5L
Bottle mouth maximum overall DIdiameter 150mm
Bottle biggest diameter 180mm
Bottle maximum height 360mm
Power specifications Light tube quantity 40pcs
Light tube power 2.5KW
Maximum heating power 48KW
All electric machine installation 51KW
Actual consumption 35.7KW
Air pressure specification Work pressure 7-9kg/cm2
Low-pressure gas consumption 1600L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 1600Ltr/min
Forzen water specification Work pressure 25-35 kg/cm2
Temperature range 10℃
Consumption 6000kcal/hr
Forzen water flow 50L/min
Machine specification Size of the machine 4.12x1.8x2.25
Weight of the machine 3ton



1. High production capacity: Q5L2 1500BPH 2cavity automatic pet blowing bottle machine boasts a production capacity of 1500 bottles per hour, making it ideal for small to medium-sized enterprises looking to ramp up their production output.
2. Efficient operation: This automatic pet blowing bottle machine is designed to operate with a minimal amount of human intervention, helping businesses cut down on labor costs while increasing efficiency.
3. Versatile bottle sizes: With the ability to produce both 3L and 5L bottles, the Q5L2 automatic pet blowing bottle machine is perfect for businesses that need to produce a variety of bottle sizes to meet their customers' demands.
4. Consistent quality: The machine uses advanced technology to produce high-quality bottles that meet strict industry standards, ensuring that your customers receive a product that meets or exceeds their expectations every time.
5. Easy to use: The Q5L2 automatic pet blowing bottle machine is designed to be user-friendly and easy to operate, with controls that are intuitive and simple to use. This makes it an ideal choice for businesses that are looking for a machine that is easy to learn and operate.

Automatic PET Blowing Bottle Machine 1500BPH 2cavity For 3L And 5L 0

 Automatic PET Blowing Bottle Machine 1500BPH 2cavity For 3L And 5L 2

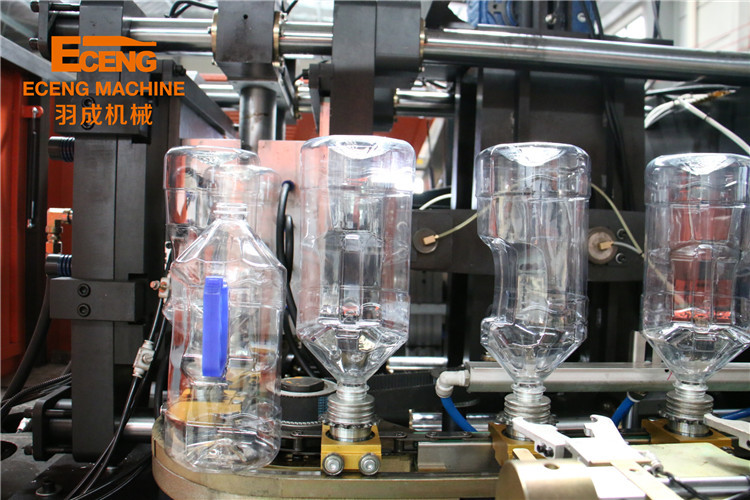

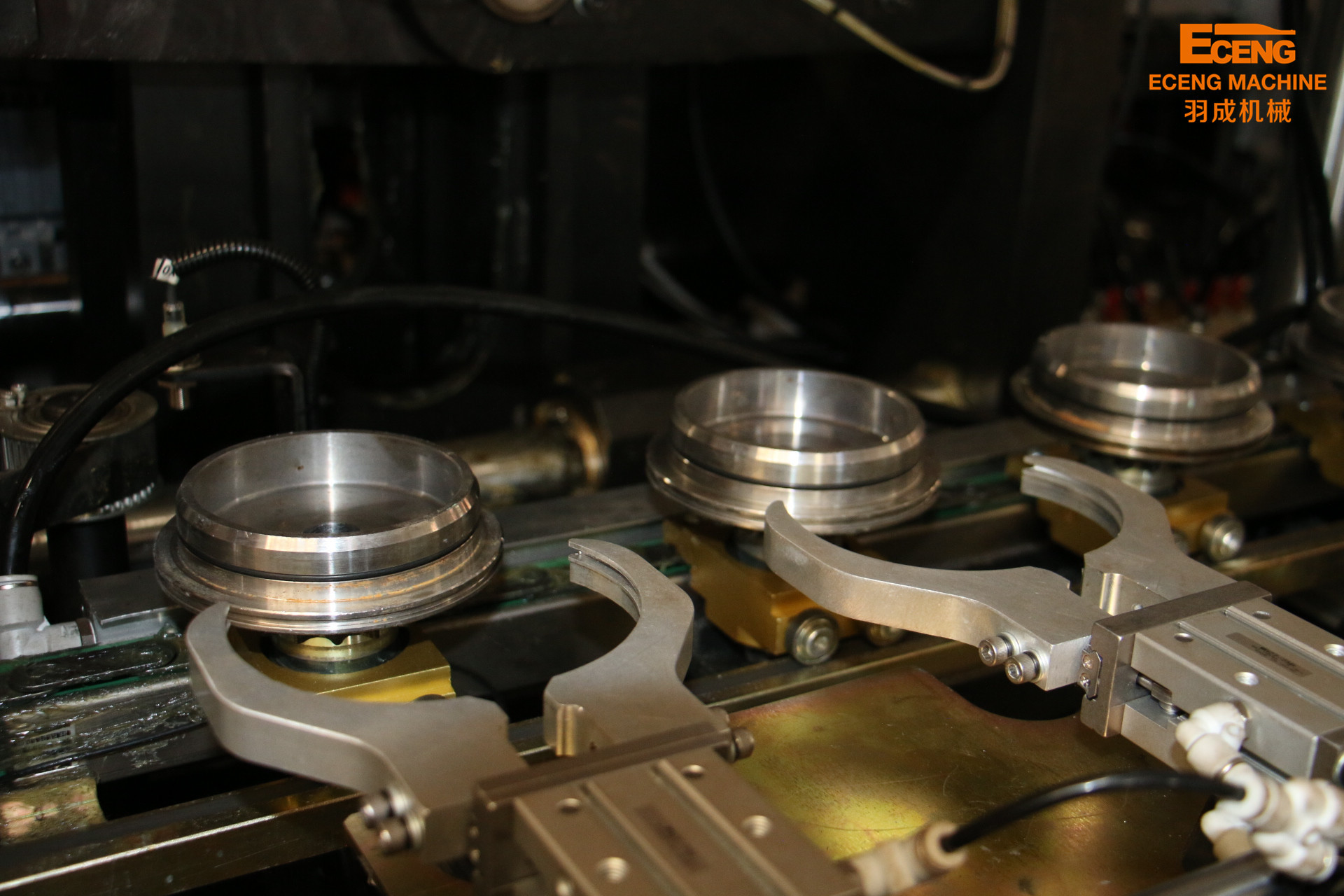

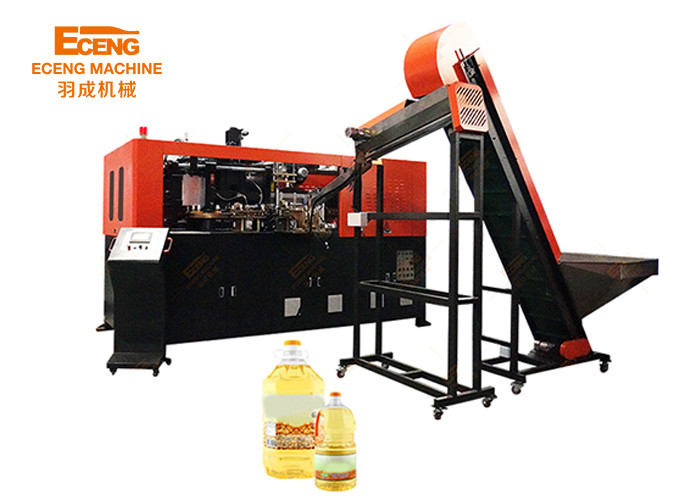

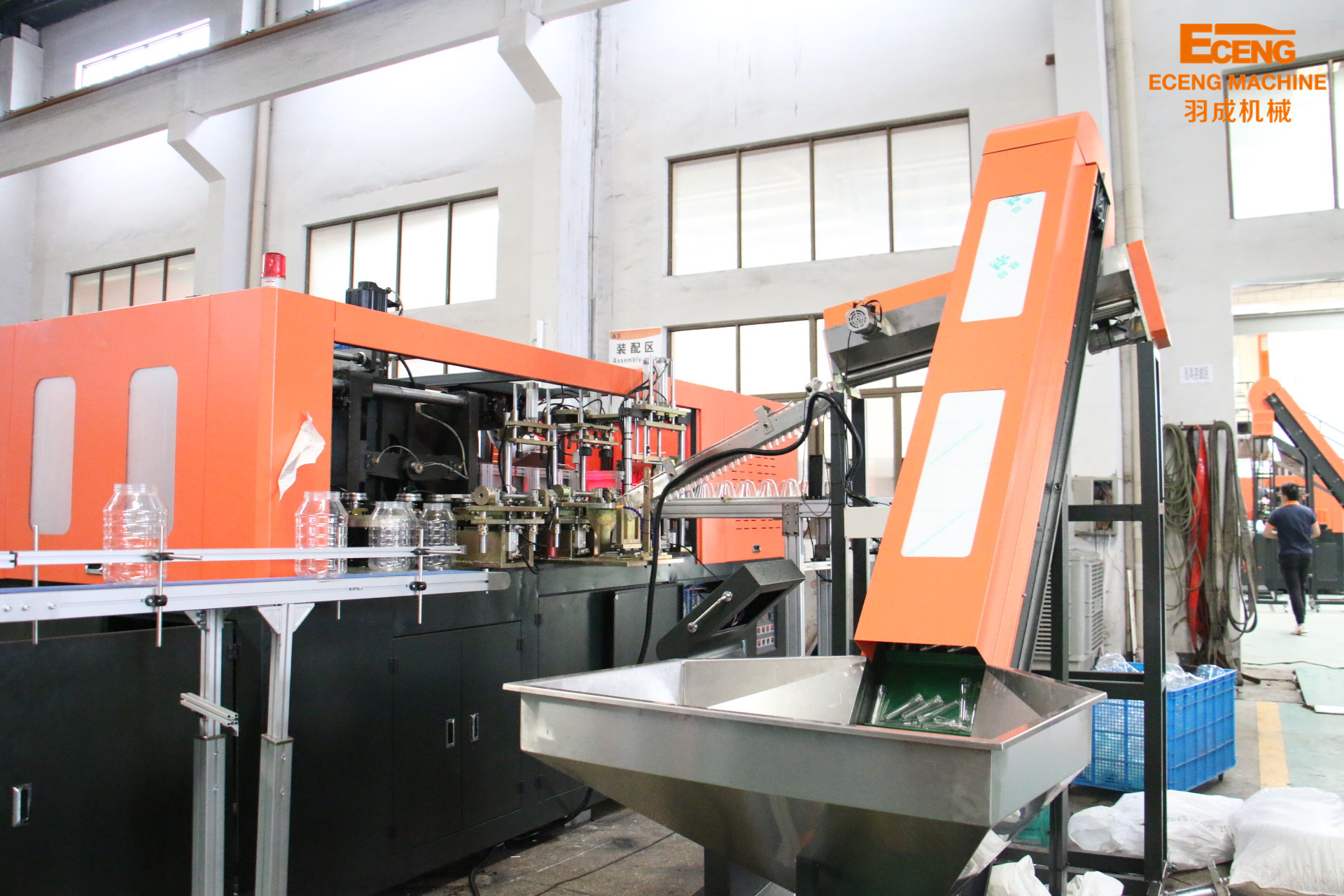

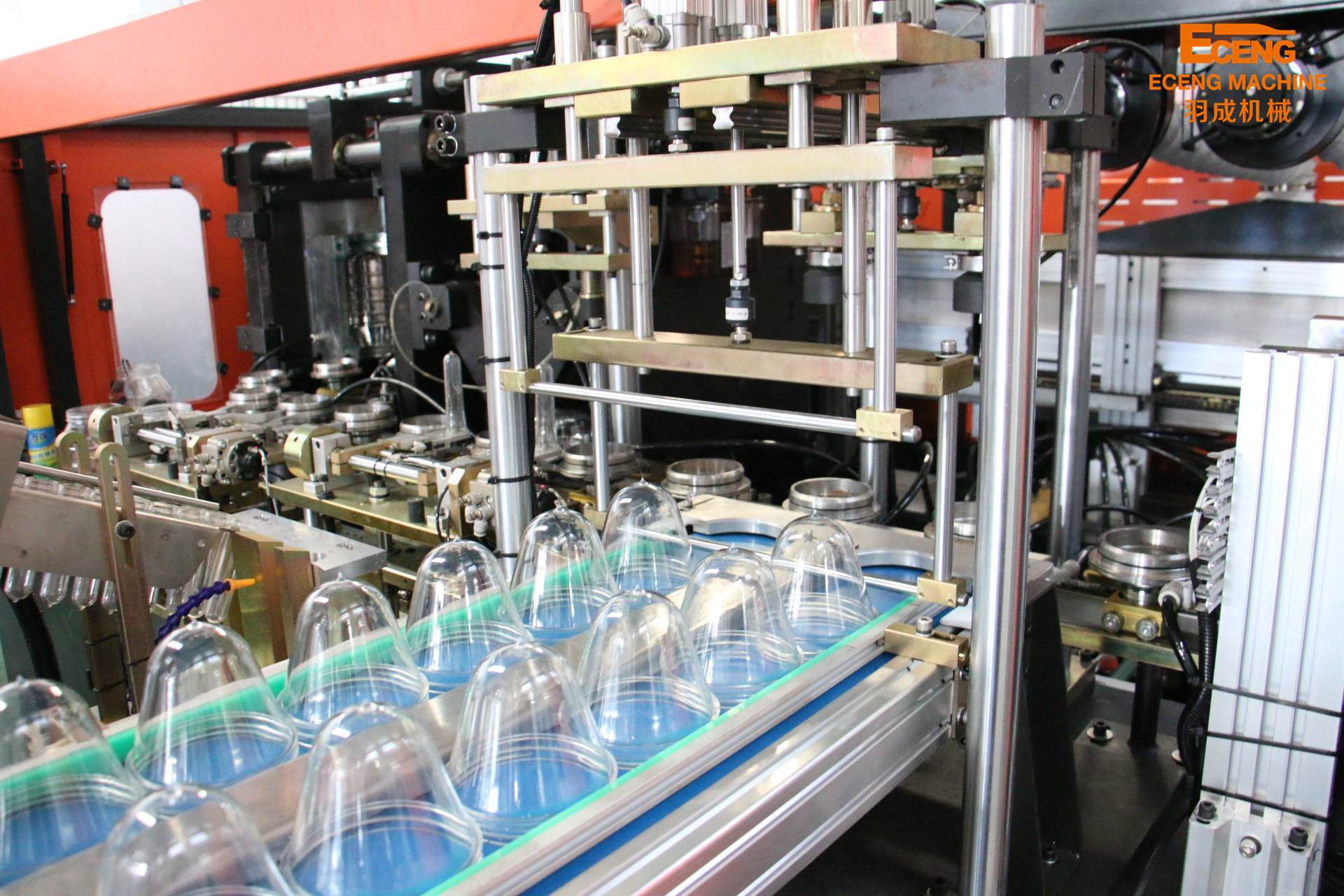

photo show--  5L pet bottla machine

Automatic PET Blowing Bottle Machine 1500BPH 2cavity For 3L And 5L 4

Automatic PET Blowing Bottle Machine 1500BPH 2cavity For 3L And 5L 6
