2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars

2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars

2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars
2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars
2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars
Product Details:
Place of Origin: CHINA
Brand Name: ECENG
Certification: CE SGS ISO
Payment & Shipping Terms:
Minimum Order Quantity: One
Packaging Details: film/wooden
Delivery Time: 45days
Payment Terms: TT LC western Union
Supply Ability: 10sets Per month
Contact Now
Detailed Product Description
Model Number: J Series Weight: 2.5ton
Capacity: High Color: Customized
Control System: PLC Material: Plastic
Molding Method: Blow Molding
High Light:

Stretch Blow Molding Machine For Jars

,

4cavity Stretch Blow Molding Machine

,

J4 Stretch Jars Blow Molding Machine

J4 4cavity Stretch Blow Molding Machine for Food Jars.                                                      Specification


Model

J4

Bottle type specification

Cavity

4

Theory output bph

2200-2400

Max.volum

2L

Bottle mouth maximum overall diameter

80mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm

Power specification

Light tube quantity

32pcs

Light tube power

1KW

Maximum heating power

32KW

All electric machine installation

42KW

Actual consumption

30%--60%

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

3000Ltr/min

Frozen water specification

Work pressure

7-9 kg/cm2

Temperature range

10℃

Consumption

8000kcal/hr

Forzen water flow

138L/min

Machine specification

Machine size

4.1x1.6x1.9

Machine weight

3.9ton

1. J4 4cavity stretch blow molding machine is the perfect solution for making plastic containers and food jars. With this machine, you can produce high-quality products efficiently and with ease.
2. This stretch blow molding machine is designed to handle a variety of plastic materials. It features four cavities, allowing you to produce multiple products at once.
3. Whether you're looking to create small food jars or larger plastic containers, the J4 4cavity stretch blow molding machine has you covered. It's easy to operate and has a user-friendly interface that makes it easy to adjust settings and production rates.
4. With its advanced technology and precision engineering, the J4 4cavity stretch blow molding machine delivers consistent results every time. It's the perfect machine for businesses looking to produce high-quality plastic products at a competitive price.
5. So if you're in the market for a reliable, high-performance stretch blow molding machine, look no further than the J4 4cavity. With its versatility, efficiency, and robust construction, this machine is sure to deliver outstanding results for years to come.

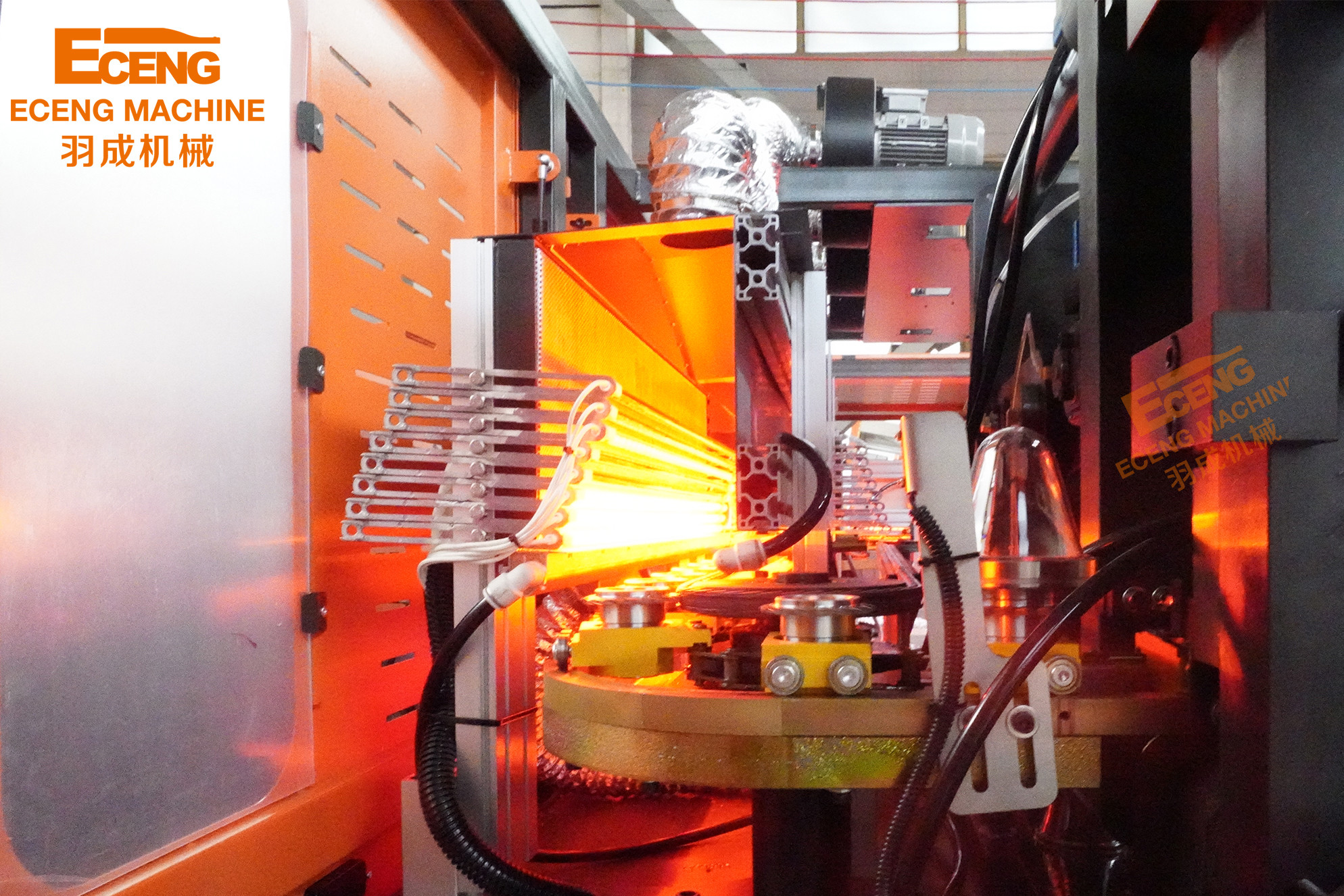

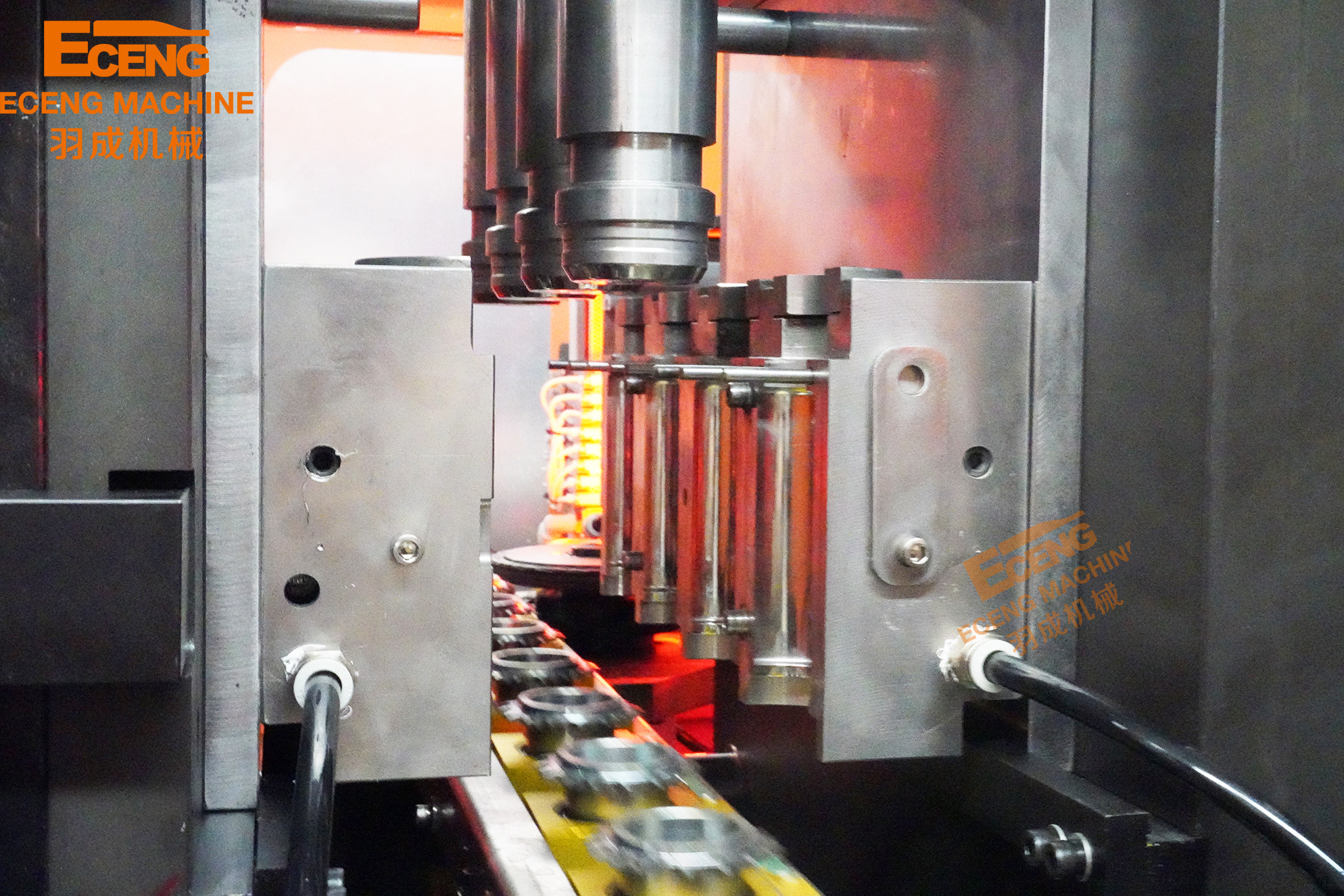

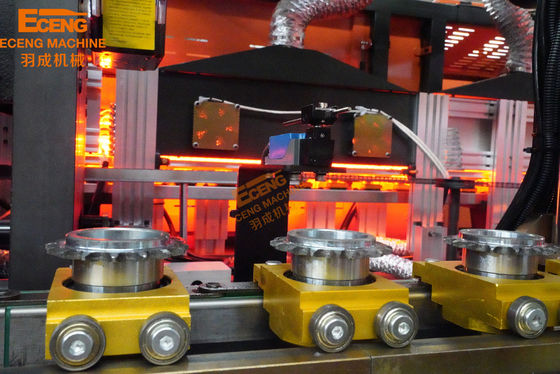

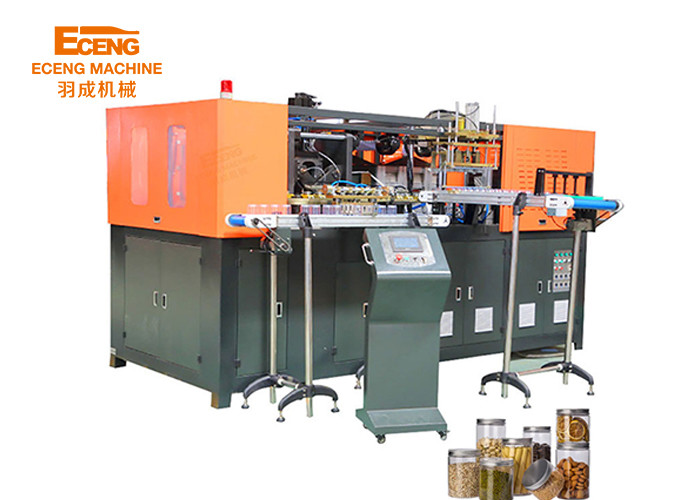

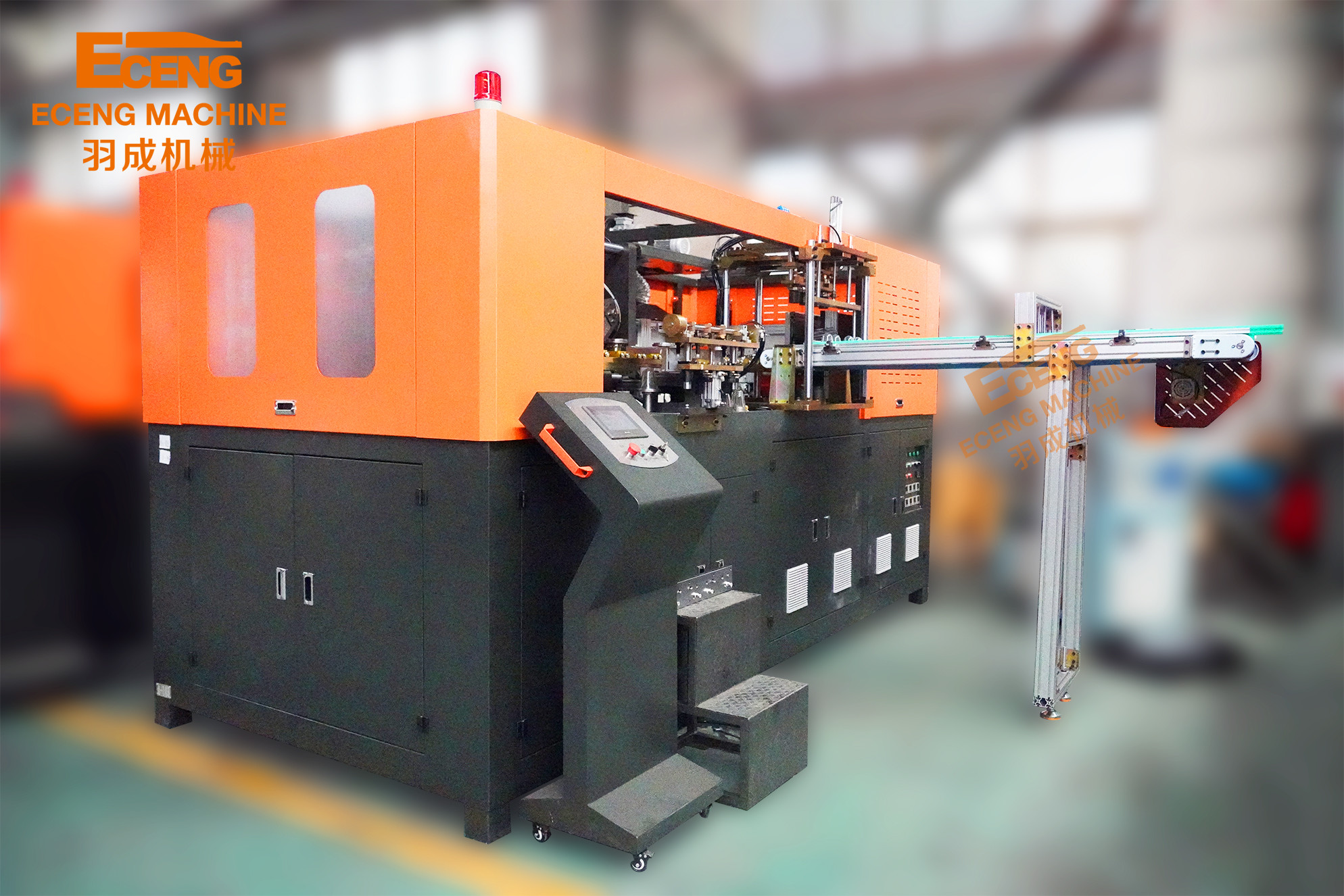

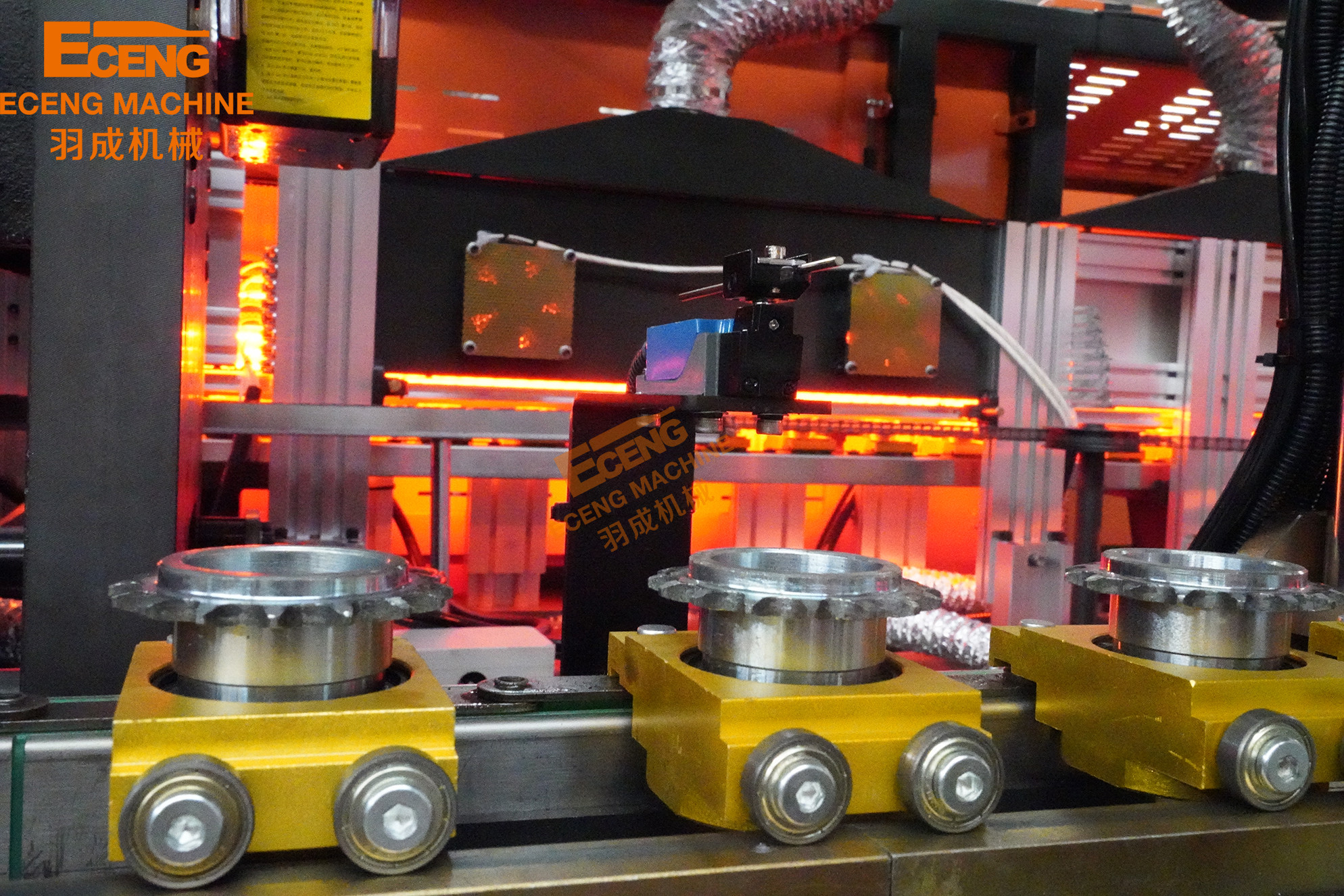

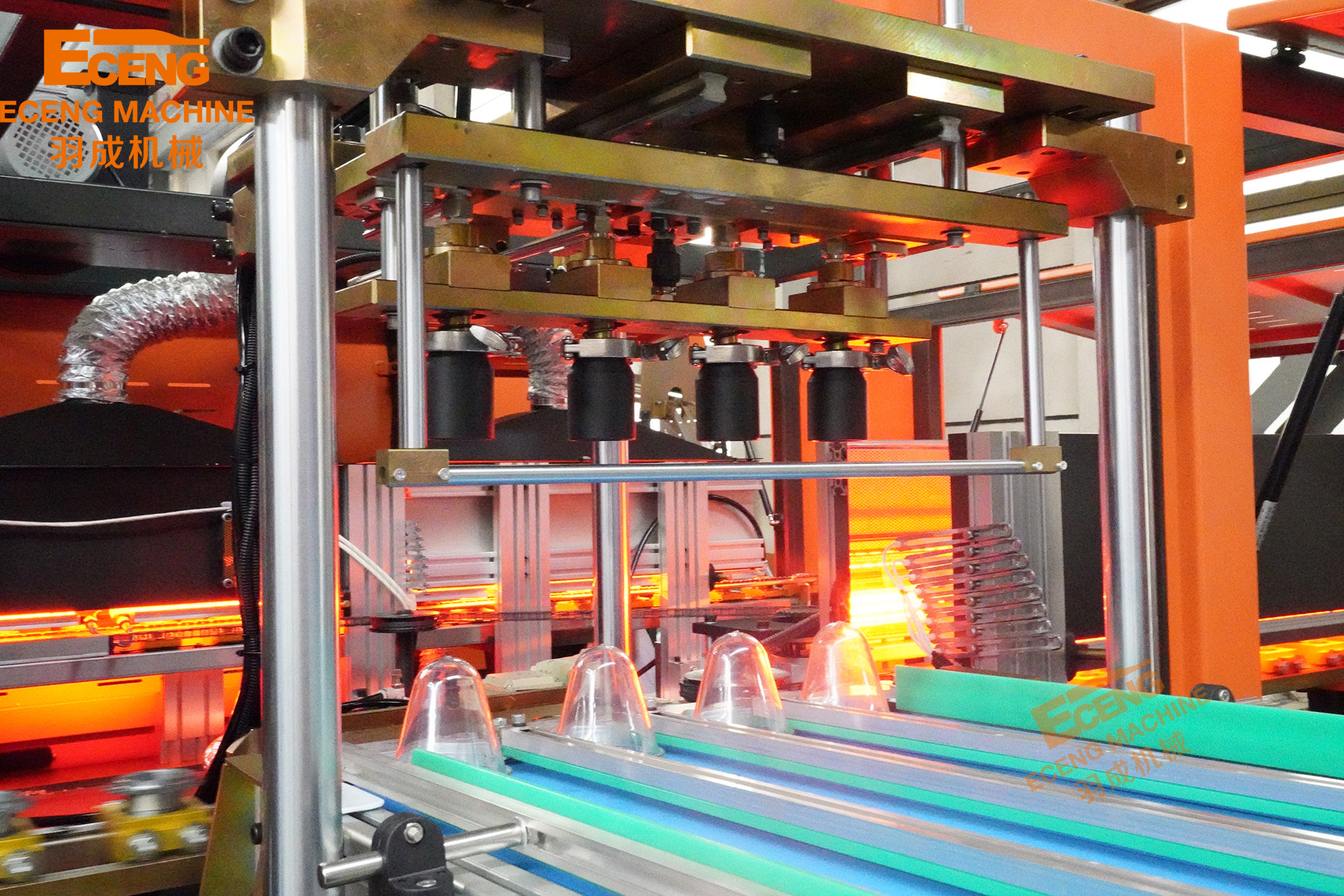

Product Photo

2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 0


2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 1

2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 2


2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 3

2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 4

2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 5

Working Process:


2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 6

Sketch Map:


2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 7


2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 8

2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 9

2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 10


2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 11

2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 12

2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 13


2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 14

2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 15

2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 16
Exhibition


2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 17

About Us


2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 18

Product packaging


2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 19
Packing
Conventional packaging: inside is wrapped with PE film outside is wooden box

2.5ton J4 Stretch Blow Molding Machine 4cavity For Food Jars 20
Delivery Conventional packaging: inside is wrapped with PE film outside is wooden box

After sale service

1.Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line. 2.Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures. 3.the sample service ⅠWe can send you the video of the running machine. ⅡYou are welcome to come to visit our factory,and see the machine running. 4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years. 5. Well-trained & experienced staff are to answer all your inquiries in English and Chinese 6. 12 Months guarantee and life-long technical support. 7. Your business relationship with us will be confidential to any third party. 8. Good after-sale service offered, please get back to us if you got any questions.
