4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton

4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton

4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton
Product Details:
Place of Origin: CHINA
Brand Name: ECENG
Certification: CE SGS ISO
Model Number: jar blowing machine
Payment & Shipping Terms:
Minimum Order Quantity: One
Packaging Details: film/wooden
Delivery Time: 45days
Payment Terms: TT LC western Union
Supply Ability: 10sets Per month
Contact Now
Detailed Product Description
Model Number: J Series Weight: 2.5ton
Capacity: High Color: Customized
Control System: PLC Material: Plastic
Molding Method: Blow Molding
High Light:

4 Cavity jar blowing machine

,

PET cans blow molding plant

,

2.5ton Jar Blowing molding Machine

4 Cavity jar blowing machine PET cans blow molding plant.                                                      Specification


Model

J4

Bottle type specification

Cavity

4

Theory output bph

2200-2400

Max.volum

2L

Bottle mouth maximum overall diameter

80mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm

Power specification

Light tube quantity

32pcs

Light tube power

1KW

Maximum heating power

32KW

All electric machine installation

42KW

Actual consumption

30%--60%

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

3000Ltr/min

Frozen water specification

Work pressure

7-9 kg/cm2

Temperature range

10℃

Consumption

8000kcal/hr

Forzen water flow

138L/min

Machine specification

Machine size

4.1x1.6x1.9

Machine weight

3.9ton

In today's fast-paced world, the demand for packaging solutions is growing rapidly. The industry is constantly pushing boundaries to create better and more efficient ways to meet the needs of consumers. One solution that has gained popularity in recent years is PET can blow molding. This technology allows for the creation of plastic wide mouth containers that are sturdy, lightweight, and cost-effective.
One of the most widely used machines in the PET can blow molding industry is the 4 cavity jar blowing machine. This machine has four molds that can be used simultaneously to produce four containers at a time. This makes the process of creating plastic jars and bottles quick and efficient, making it an ideal choice for manufacturers who need to produce high volumes of containers.
The technology allows for the creation of sturdy, lightweight, and customizable containers that are ideal for a wide range of applications. With a 4 cavity jar blowing machine and state-of-the-art equipment, PET can blow molding plants are able to meet the demands of today's fast-paced world. Additionally, its environmentally friendly features make it a preferred solution for manufacturers who are looking to reduce their carbon footprint.

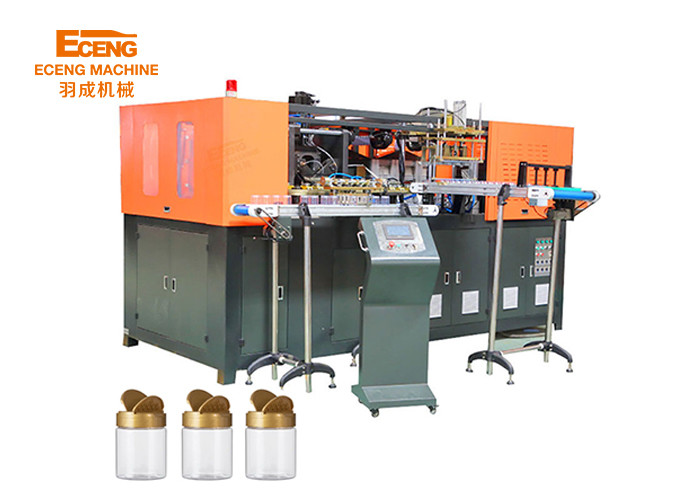

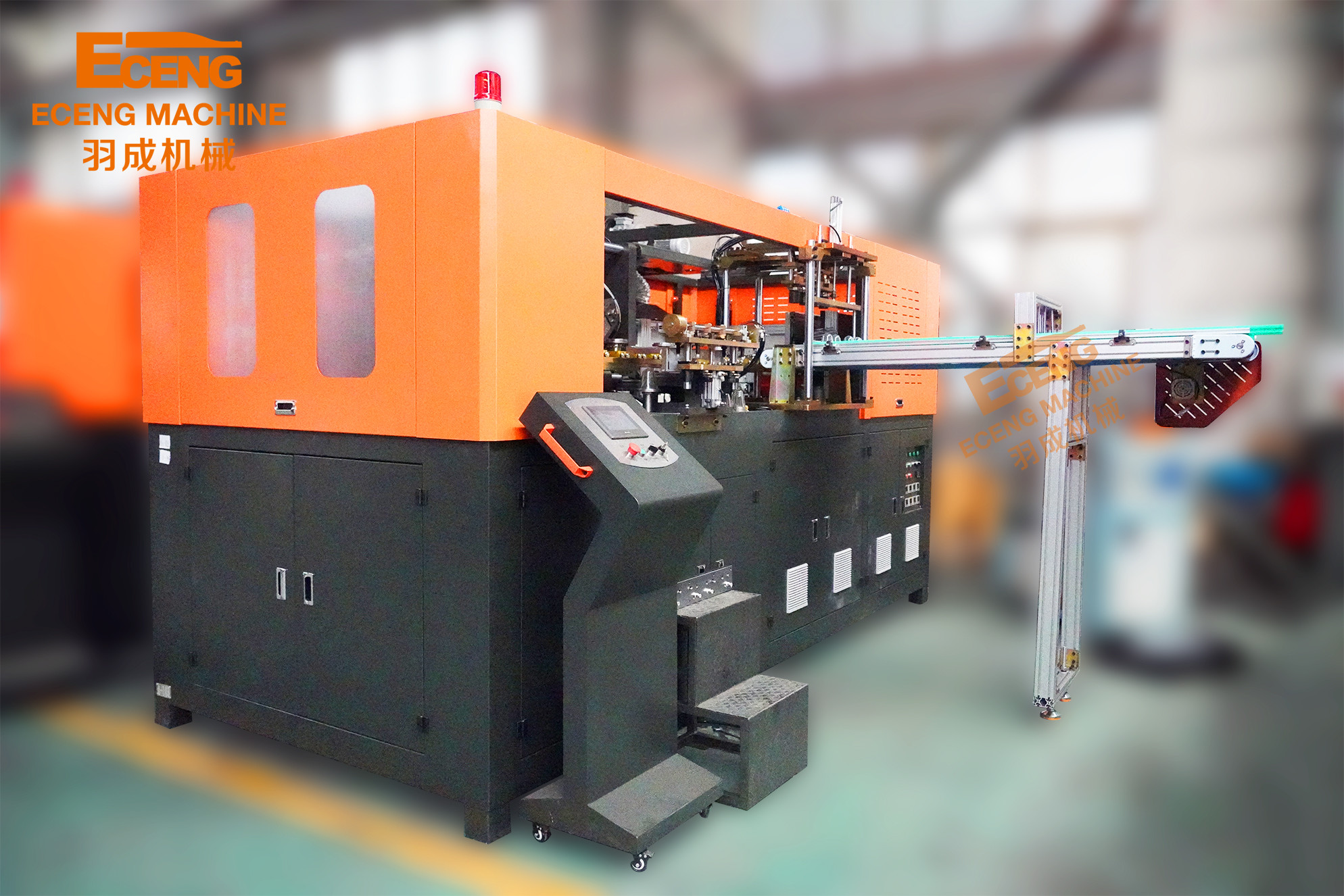

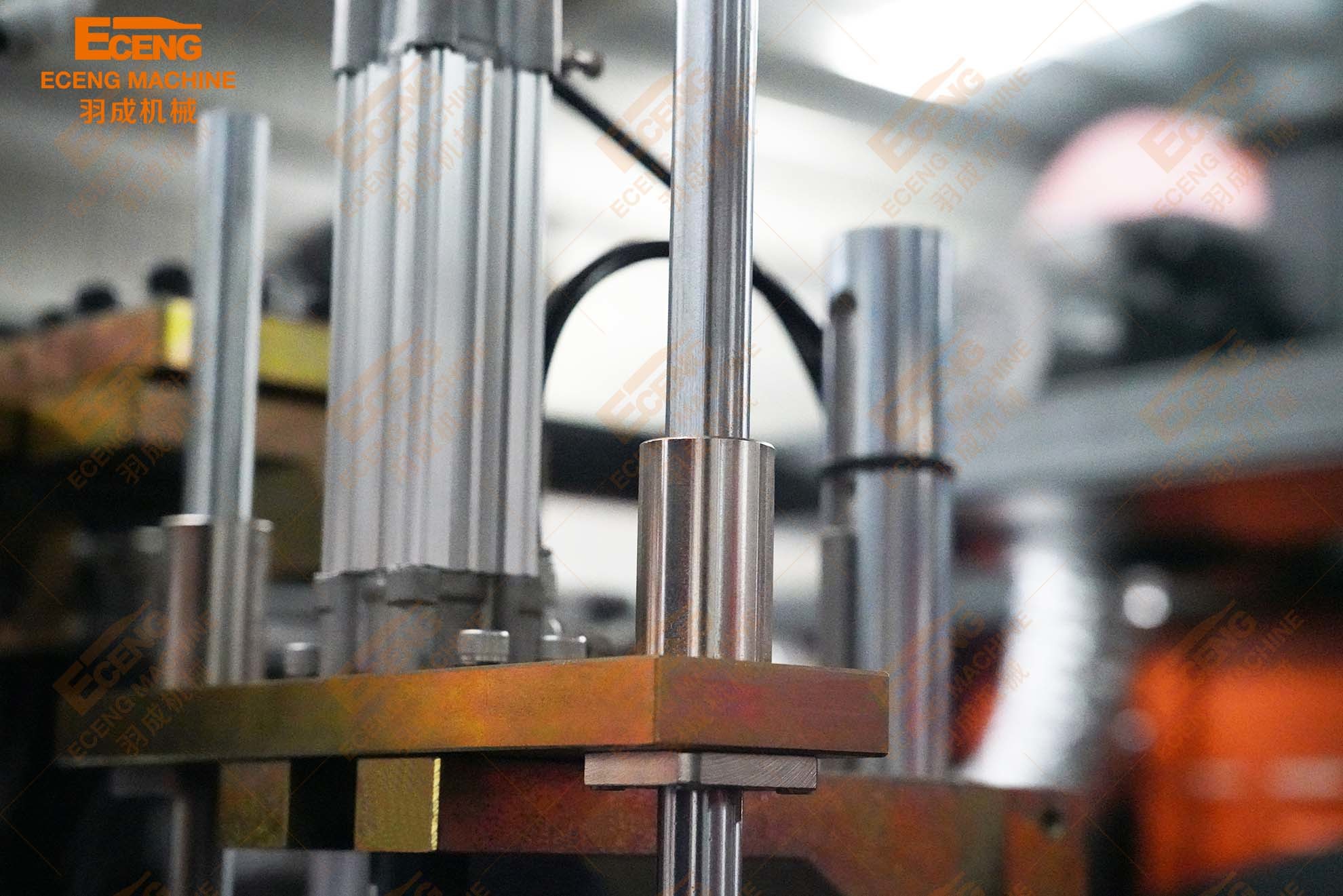

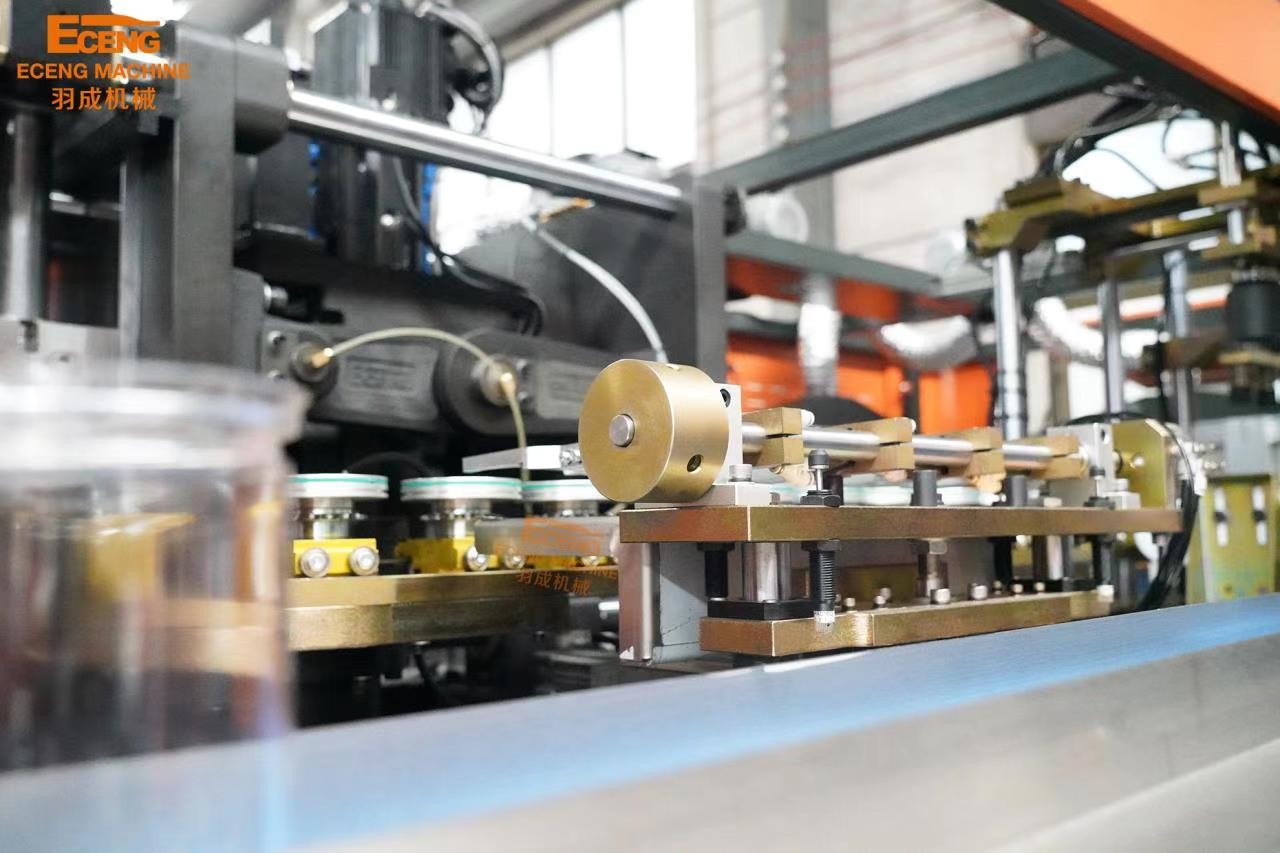

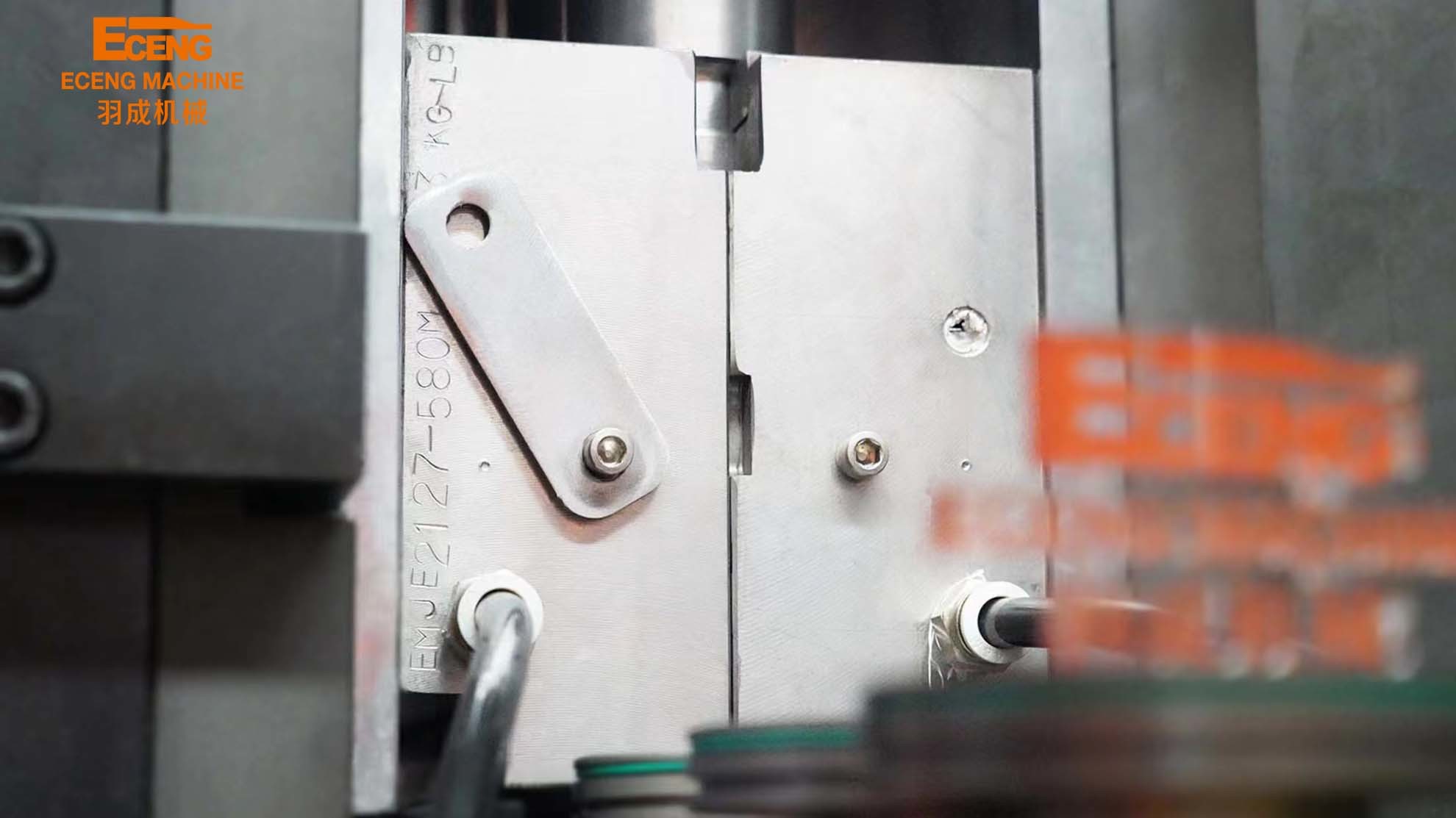

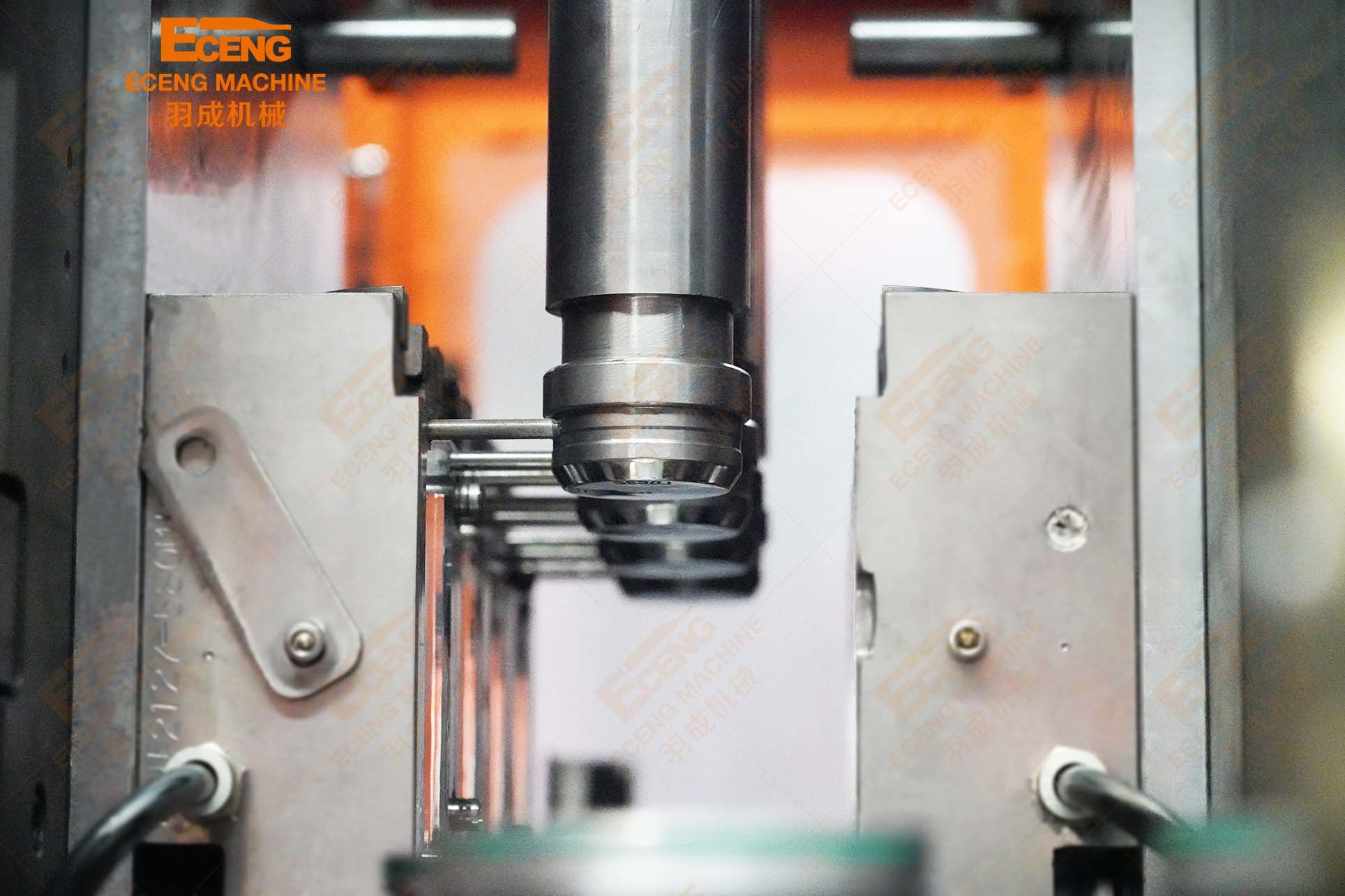

Product Photo

4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 0


4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 1

4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 2


4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 3

4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 4

4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 5

Working Process:


4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 6

Sketch Map:


4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 7


4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 8

4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 9

4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 10


4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 11

4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 12

4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 13


4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 14

4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 15

4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 16
Exhibition


4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 17

About Us


4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 18

Product packaging


4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 19
Packing
Conventional packaging: inside is wrapped with PE film outside is wooden box

4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 20
Delivery Conventional packaging: inside is wrapped with PE film outside is wooden box

4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 21

4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 22
4 Cavity Jar Blowing Machine PET Cans Blow Molding Plant 2.5ton 23
