Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE SGS ISO |
| Model Number: | J2 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | standard export wooden case or according to your requirements |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Set/Sets per Year |
| Plastic Processed: | PET | Bottle Volume(ml): | 2000 Ml |
|---|---|---|---|
| Condition: | New | Blow Moulding Type: | Stretch Blow Moulding |
| Dimension(L*W*H): | 2.25*1.6*1.7m | Automation: | Automatic |
| Warranty: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel |
| High Light: | Wide Neck PET Bottle Blowing Machine,800BPH PET Bottle Blowing Machine,Single Cavity 5L PET Blowing Machine |
||

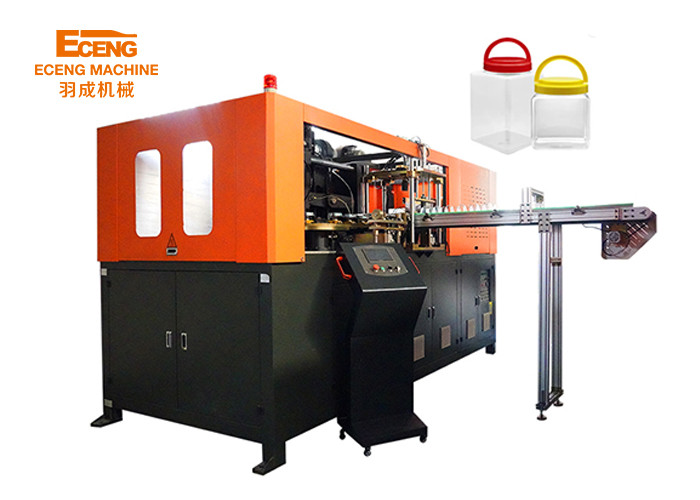

Single Cavity Jar Blow Molding Machine Eceng J5L1
|
Item
|
J5L1
|
|
|
Bottle type specification
|
Cavity
|
1
|
|
Theory output
|
700-800
|
|
|
Max.volume
|
5L
|
|
|
Bottle mouth maximum overall diameter
|
150mm
|
|
|
Bottle biggest diameter
|
180mm
|
|
|
Bottle maximum height
|
400mm
|
|
|
Power specification
|
Light tube quantity
|
32pcs
|
|
Light tube power
|
1KW
|
|
|
Maximum heating power
|
32KW
|
|
|
All electric machine installation
|
27KW
|
|
|
Actual consumption
|
19KW
|
|
|
Air pressure specification
|
Work pressure
|
7-9kg/cm2
|
|
Low-pressure gas consumption
|
1000L/min
|
|
|
Blow bottle pressure
|
25-35kg/cm2
|
|
|
Higher -pressure gas consumption
|
1500Ltr/min
|
|
|
Air pressure specification
|
Work pressure
|
7-9 kg/cm2
|
|
Temperature range
|
10℃
|
|
|
Consumption
|
2000-2500Ltr/min
|
|
|
Frozen water flow
|
30L/min
|
|
|
Machine specification
|
Machine size
|
2.4x1.5x1.7
|
|
Machine weight
|
2ton
|
|
1. Our 5L wide neck PET bottle blowing machine is designed to meet the demands of high volume production, with a single cavity capable of producing 700-800 bottles per hour.
2. This efficient and reliable machine is perfect for manufacturing large-sized PET bottles with a wide neck, making it the ideal choice for a variety of industries, including food and beverage, pharmaceuticals, and household products.
3. The machine features a user-friendly interface and advanced technology to ensure consistent and uniform production of high-quality bottles. It also has easy maintenance and cleaning procedures, making it a cost-effective investment for your business.
4. Made with high-quality materials and precision engineering, our 5L wide neck PET bottle blowing machine offers exceptional durability and long-lasting performance, ensuring maximum efficiency and productivity for your production line.
5. Whether you are looking to increase your production capacity or upgrade your existing equipment, our 5L wide neck PET bottle blowing machine is the perfect solution for your needs. Contact us today to learn more about this innovative and versatile machine.
