Home ProductsJar Blow Molding Machine

Automatic Jar Making Blow Molding Machine J5L2 2 Cavity 5L Big

Automatic Jar Making Blow Molding Machine J5L2 2 Cavity 5L Big

Automatic Jar Making Blow Molding Machine J5L2 2 Cavity 5L Big
Automatic Jar Making Blow Molding Machine J5L2 2 Cavity 5L Big
Automatic Jar Making Blow Molding Machine J5L2 2 Cavity 5L Big
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE SGS ISO
Model Number: J2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Bottle Volume(ml): 2000 Ml
Condition: New Blow Moulding Type: Stretch Blow Moulding
Dimension(L*W*H): 2.25*1.6*1.7m Automation: Automatic
Warranty: 1 Year Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel
High Light:

Automatic Jar Making Blow Molding Machine

,

2 Cavity Jar Blow Molding Machine

,

2000 ml Jar Blow Molding Machine

J5L2 2 cavity 5L big jar making machine automatic blowing machines

specification
Item

QJ5L2




Bottle type specification

Cavity

2

Theory output

1200-1300

Max.volume

5L

Bottle mouth maximum overall DIdiameter

150mm

Bottle biggest diameter

180mm

Bottle maximum height

400mm



Power specifications

Light tube quantity

32pcs

Light tube power

1.5KW

Maximum heating power

48KW

All electric machine installation

51KW

Actual consumption

35.7KW



Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

3400Ltr/min



Forzen water specification

Work pressure

5-6 kg/cm2

Temperature range

10℃

Consumption

6000kcal/hr

Forzen water flow

50L/min

Machine specification

Size of the machine

4.7x1.6x1.9

Weight of the machine

3ton


Product Description

Automatic Jar Making Blow Molding Machine J5L2 2 Cavity 5L Big 0
1. Wide Mouth: Our automatic blowing machine produces wide-mouth 2 cavity 5L candy bottle cans with a wide opening, making it easy to fill and access the contents of the bottle.
2. High Capacity: With a production speed of 1300BPH, our big jar making machines are ideal for high-volume manufacturing operations.
3. Versatile: This candy bottle cans blowing machine can be adjusted to manufacture bottles of different sizes and shapes, making it a versatile solution for your packaging needs.
4. Fully Automatic: Our machine operates fully automatically, reducing labor costs associated with manual bottle shaping and ensuring consistent quality of the finished product.
5. High-Quality Output: Our machines are designed for precision and accuracy, producing high-quality bottles that meet industry standards and customer expectations.
Detailed Images

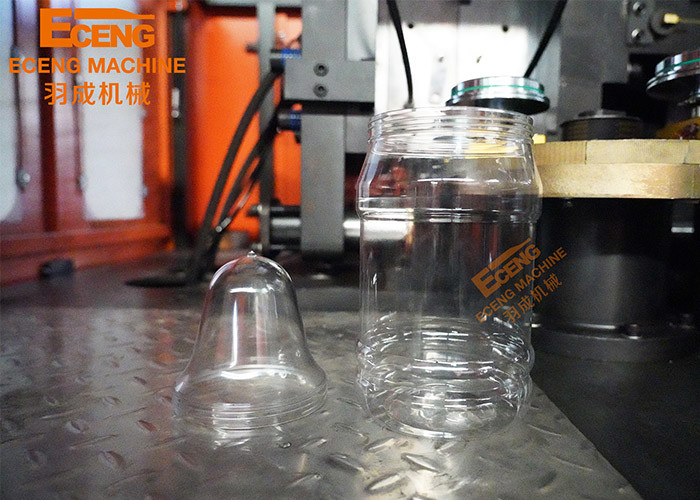

Automatic Jar Making Blow Molding Machine J5L2 2 Cavity 5L Big 1

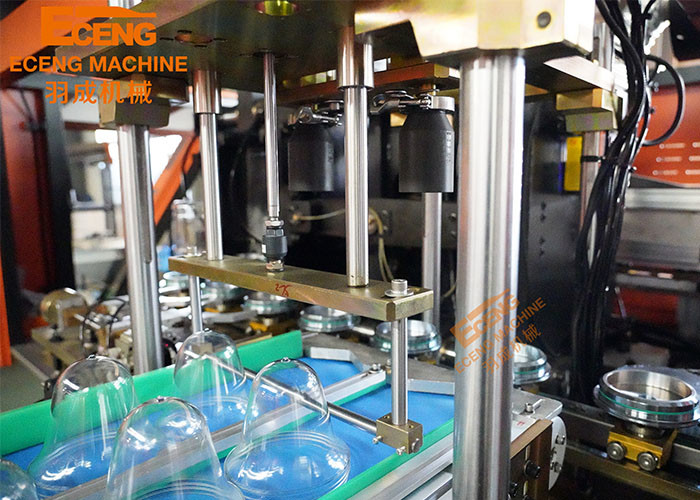

Automatic Jar Making Blow Molding Machine J5L2 2 Cavity 5L Big 2

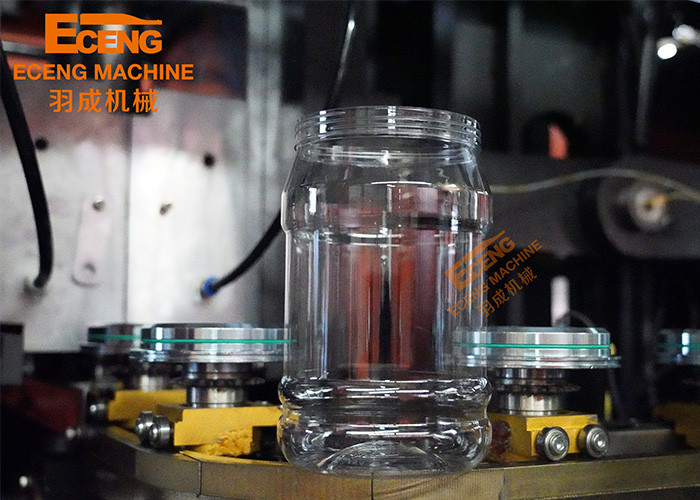

Automatic Jar Making Blow Molding Machine J5L2 2 Cavity 5L Big 3
J linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. J series linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle.
Company Introduction

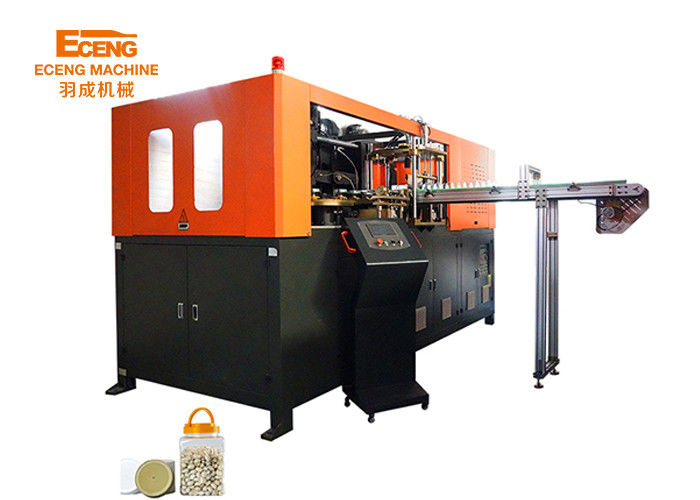

Automatic Jar Making Blow Molding Machine J5L2 2 Cavity 5L Big 4
Packing&Shipping

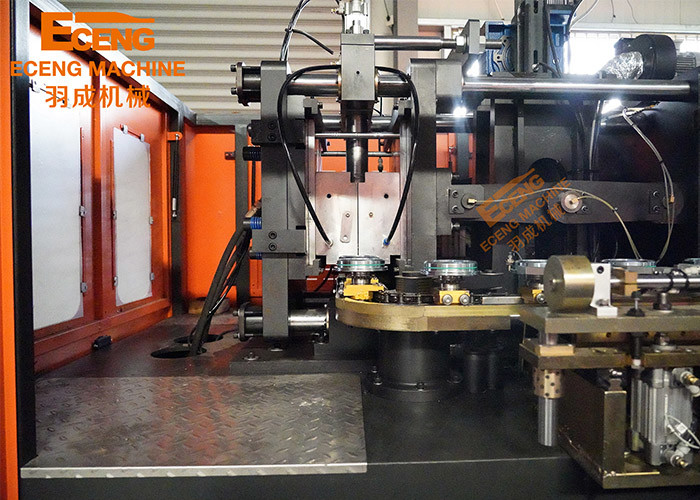

Automatic Jar Making Blow Molding Machine J5L2 2 Cavity 5L Big 5

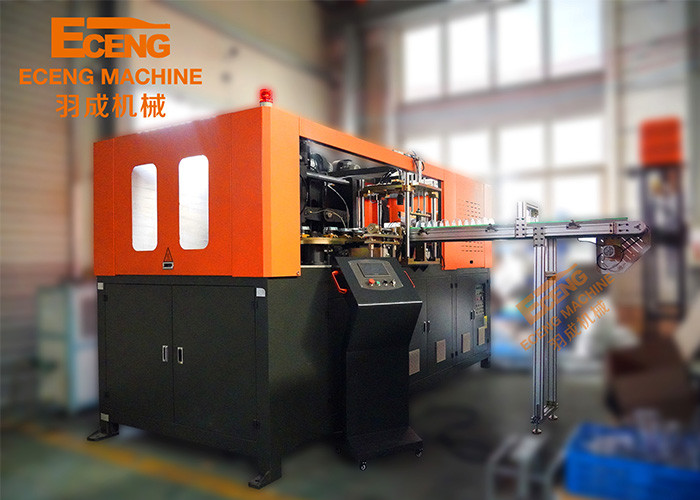

Automatic Jar Making Blow Molding Machine J5L2 2 Cavity 5L Big 6

Automatic Jar Making Blow Molding Machine J5L2 2 Cavity 5L Big 7

Automatic Jar Making Blow Molding Machine J5L2 2 Cavity 5L Big 8

Automatic Jar Making Blow Molding Machine J5L2 2 Cavity 5L Big 9
Exhibition


Automatic Jar Making Blow Molding Machine J5L2 2 Cavity 5L Big 10
Automatic Jar Making Blow Molding Machine J5L2 2 Cavity 5L Big 12
