Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE |
| Model Number: | Q-5L-1 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | packing with wooden pallet or film package suits for high quality 1L-5L automatic blowing molding machine made in zhangjiagang |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 Set/Sets per Month 10 |
| Plastic Processed: | PET | Blow Moulding Type: | Stretch Blow Moulding |
|---|---|---|---|
| Hollow Part Volume: | 5L | Automation: | Automatic |
| Warranty: | 1 Year | Applicable Industries: | Manufacturing Plant |
| Model Type: | Bottle Blow Molding Machine | Cavity: | 1 |
| Highlight: | Automatic Bottle Blow Molding Machine,Q5L1 Bottle Blow Molding Machine,Automatic 5L Bottle Molding Blow Machine |
||
Q5L1 1Cavity 900BPH Stretch Bottle Blowing Machine for 5L Oil Bottles

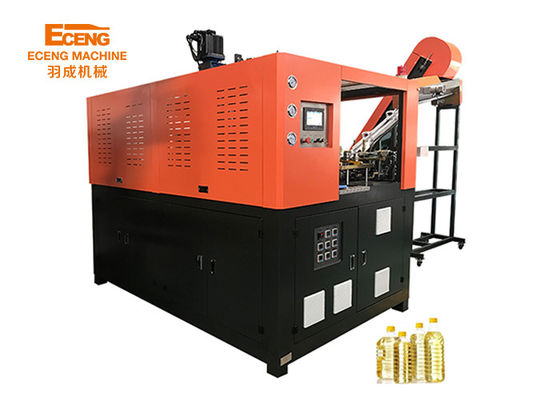

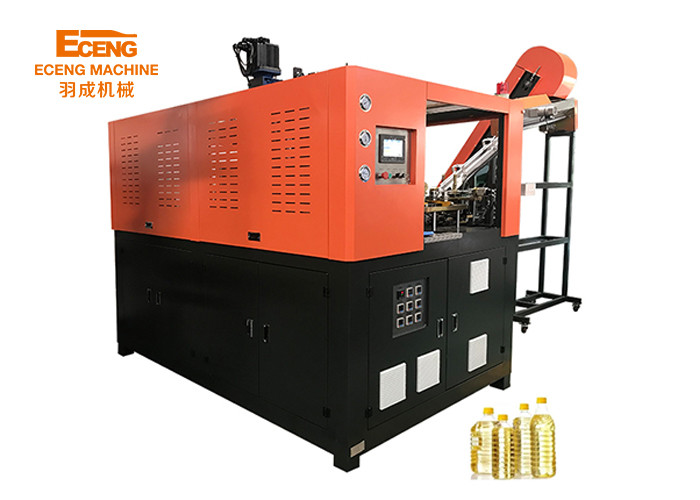

Product Photo
Main Features
1. This stretch blow molding machine, the Q5L1, is the perfect solution for automating the production of 5-liter edible oil bottles.
2. With a production capacity of 700-800 bottles per hour, it's perfect for medium to high-volume production lines.
3. The Q5L1 is an automatic machine that eliminates the need for manual labor and reduces production costs.
4. It allows for precision and consistency in bottle production, ensuring that each bottle meets the same high-quality standards.
5. Choose the Q5L1 for a reliable and efficient solution to your 5-liter edible oil bottle production needs.
Product Parameters
|
Item |
Q-5L-1 |
|
|
Bottle type specification |
Cavity |
1 |
|
Theory output |
700-900 |
|
|
Max.volume |
5L |
|
|
Bottle mouth maximum overall DIdiameter |
150mm |
|
|
Bottle biggest diameter |
180mm |
|
|
Bottle maximum height |
400mm |
|
|
Power specifications |
Light tube quantity |
32pcs |
|
Light tube power |
1.5KW |
|
|
Maximum heating power |
48KW |
|
|
All electric machine installation |
51KW |
|
|
Actual consumption |
35.7KW |
|
|
Air pressure specification |
Work pressure |
7-9kg/cm2 |
|
Low-pressure gas consumption |
1600L/min |
|
|
Blow bottle pressure |
25-35kg/cm2 |
|
|
Higher -pressure gas consumption |
3400Ltr/min |
|
|
Forzen water specification |
Work pressure |
5-6 kg/cm2 |
|
Temperature range |
10℃ |
|
|
Consumption |
6000kcal/hr |
|
|
Forzen water flow |
50L/min |
|
|
Machine specification |
Size of the machine |
2.5x1.6x1.7 |
|
Weight of the machine |
2.5ton |
|
Product Details
1,Fully automatic,low investment,high efficiency,easy operation, simple maintenance and safety.
2,Servo transmission system,high positioning accuracy, fast speed and stability, good reliability.Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement;Adopt high pressure and double crank arm link locking,strong clamping force.
3,Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

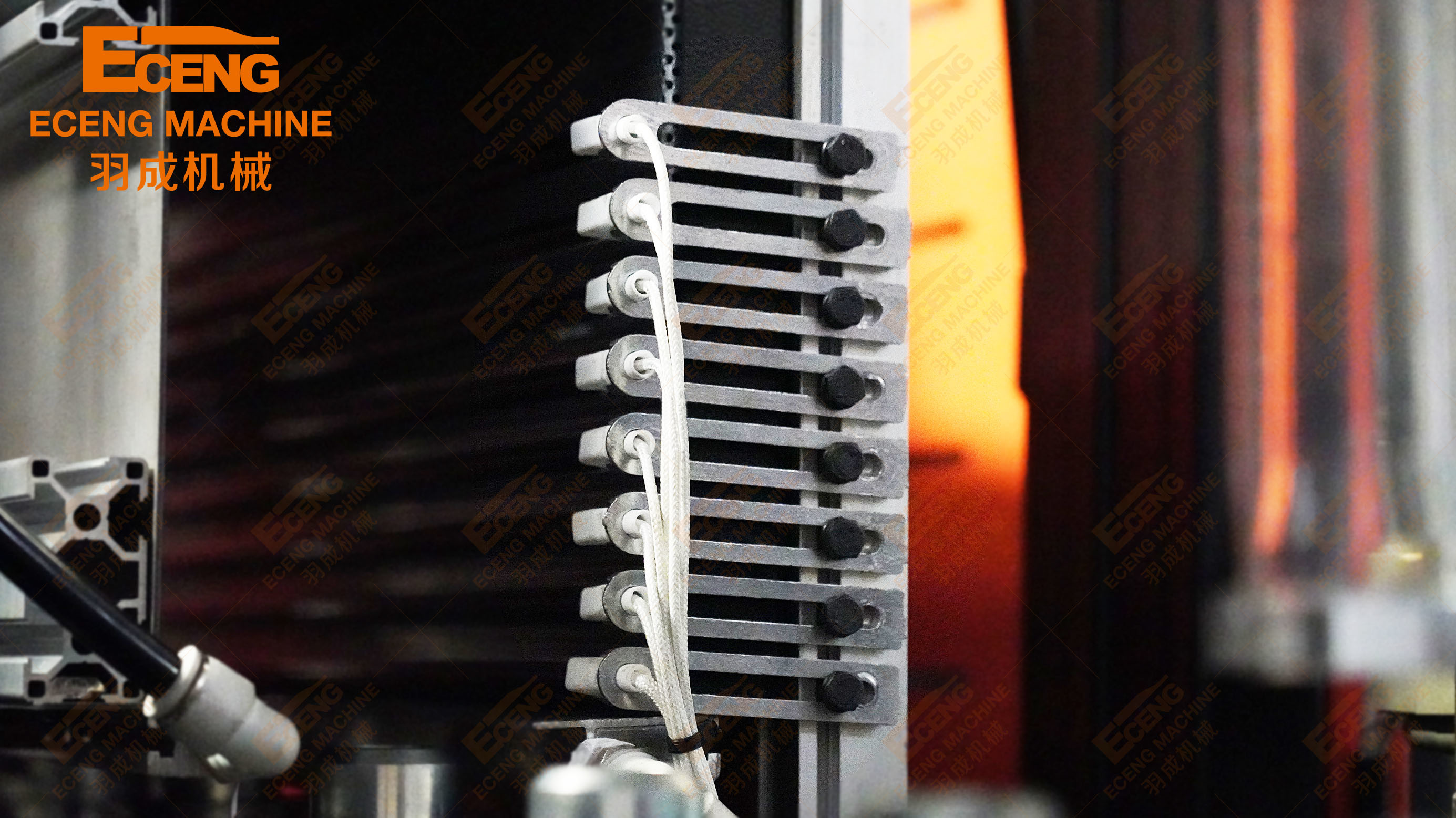

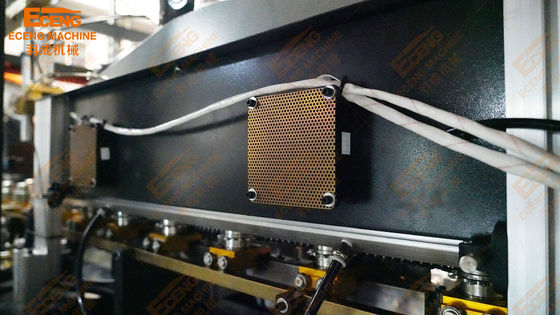

4,Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.
