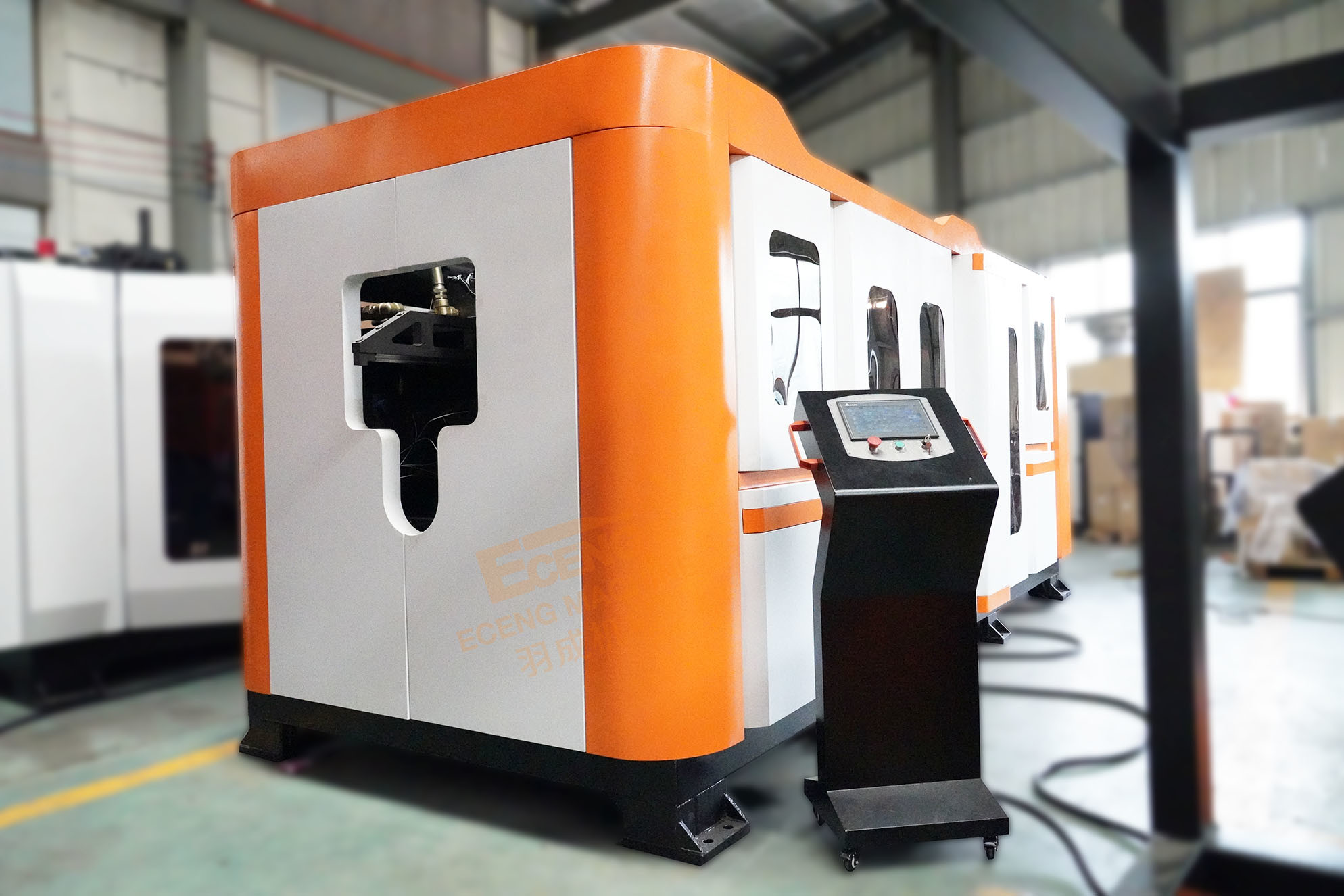

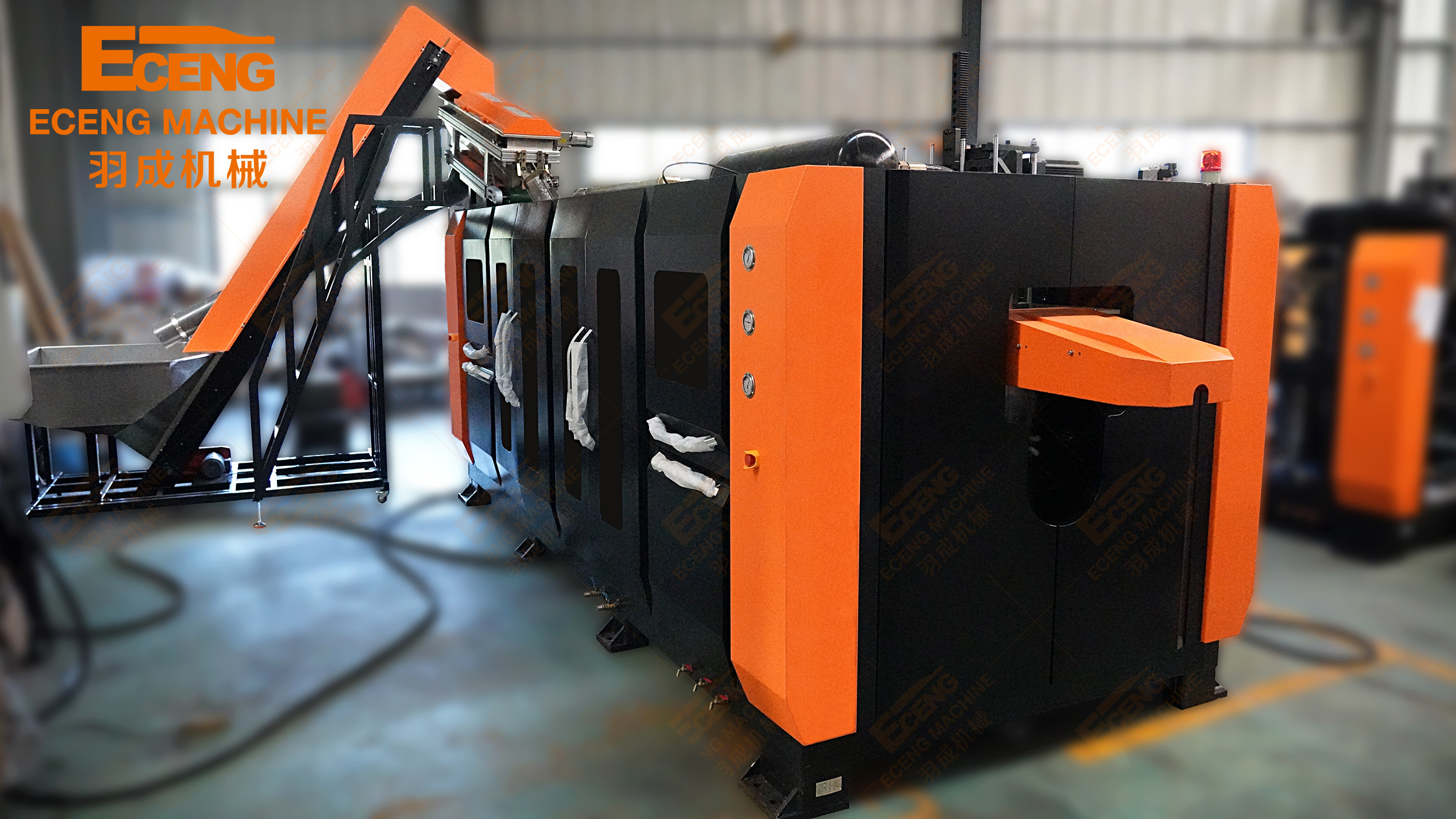

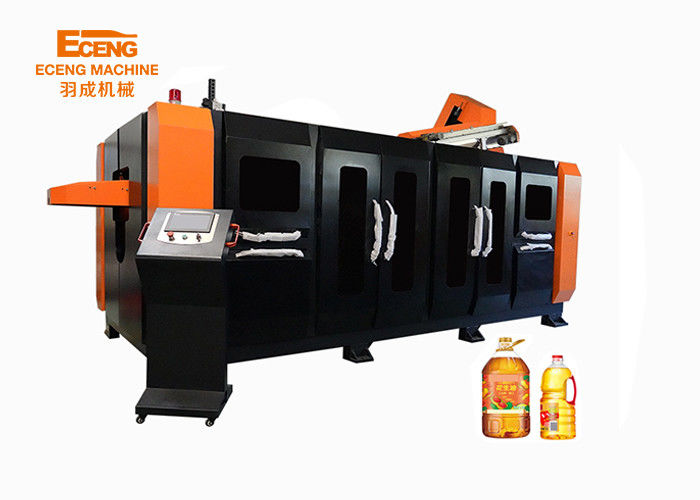

K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml

K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml

K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml
K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml
K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: K5L4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $35,800.00/Sets 1-1 Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Bottle Volume(ml): 2000 Ml
Condition: New Blow Moulding Type: Stretch Blow Moulding
Voltage: 380V,50HZ Dimension(L*W*H): 7.8*1.95*2.54m
Hollow Part Volume: 5L Output: 3000-4000
High Light:

K5L4 stretch automatic blowing machine

,

3000BPH stretch automatic blowing machine

,

5000ml stretch blowing machine

K5L4 PET stretch automatic blowing machine 3000-4000BPH max volume 5000ml
K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml 0
K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml 2
specification
             Model                                                                    K5L4






Bottle type specification
Cavity
4

Max.volume
5L

Bottle mouth maximum overall diameter
38-63mm

Bottle biggest diameter
185mm

Bottle maximum height
360mm


Capacity specification
Theory output
3000-4000BPH

Bottle type volume
5000ML

Bottle type weight
220g

Bottle type
Round



Power specification
Light tube quantity
32pcs

Light tube power
2KW

Maximum heating power
64KW

All electric machine installation
75KW

Actual consumption
40%--60%


Air pressure specification
Work pressure
5-6kg/cm2

Blow bottle pressure
25-45kg/cm2

Higher -pressure gas consumption
8000Ltr/min


Air pressure specification
Work pressure
5-6 kg/cm2

Temperature range
10℃

Consumption
18000kcal/hr

Forzen water flow
120L/min

Machine specification
Machine size
7.8x1.95x2.54

Machine weight
10.6ton
Eceng K5L4 stretch automatic blowing machine for 4cavity 3000-4000BPH and Max Volume of 5000ml Plastic Bottle.
The demand for plastic bottles has been on a constant rise and the Stretch Automatic Blowing Machine has made it possible for manufacturers to meet the demand with ease. This machine is designed to produce bottles with a maximum volume of 5000ml, making it ideal for various industries such as beverage, pharmaceutical, cosmetics, and household products among others. The 4Cavity configuration of the machine allows for a production rate of 3000-4000 bottles per hour, which is considerably high.
One of the outstanding features of the Stretch Automatic Blowing Machine is its ability to produce high-quality bottles with consistency, efficiency, and precision. The machine is fully automated, meaning that you will not require many operators as it makes use of advanced control systems for superior performance. This goes a long way in reducing the cost of production and enhancing the overall production process.
This machine employs the process of stretch blow molding, which involves heating a preform and stretching it to a desired shape in the mold. The preform is first placed in the machine where it is heated up, then stretched, and eventually blown into the desired shape through the mould. This method is highly efficient and easy to control, making the Stretch Automatic Blowing Machine a reliable investment for your business.
The Stretch Automatic Blowing Machine is easy to operate and maintain, thanks to its user-friendly interface and well-designed components. It is also energy-efficient, hence you can be sure of low operating costs and an overall reduction in your carbon footprint.
K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml 4
K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml 6
Kseries linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
blowing mould
K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml 8
K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml 10
Company Introduction
K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml 12
K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml 14
K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml 16
K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml 18

Packing&Shipping
K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml 19
K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml 21
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml 23
K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml 24
K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml 26
K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml 28
FAQ
K5L4 Stretch Automatic Blowing Machine 3000-4000BPH Max Volume 5000ml 30
