Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE&ISO |
| Model Number: | YCQ-5L-2 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $40,000.00/Sets 1-1 Sets |
| Packaging Details: | Wooden package |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 Set/Sets per Month |
| Plastic Processed: | PET | Hollow Part Volume: | 5L |
|---|---|---|---|
| Automation: | Automatic | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Warranty Of Core Components: | 1 Year |
| Cavity: | 2 | Output: | 1500BPH |
| High Light: | Eceng 5L Bottle Blower,Eceng Bottle Molding Blowing Machine,2 Cavities Bottle Molding Blowing Machine |
||
Eceng Professional Manufacture suppliers 5L Bottle Blower with 2 Cavities
technical parametre-- 5L pet bottle machine
|
Item |
YCQ-5L-2E |
|
|
Bottle type specification |
Cavity |
2 |
|
Theory output |
1500 |
|
|
Max.volume |
5L |
|
|
Bottle mouth maximum overall DIdiameter |
150mm |
|
|
Bottle biggest diameter |
180mm |
|
|
Bottle maximum height |
400mm |
|
|
Power specifications |
Light tube quantity |
32pcs |
|
Light tube power |
1.5KW |
|
|
Maximum heating power |
48KW |
|
|
All electric machine installation |
51KW |
|
|
Actual consumption |
35.7KW |
|
|
Air pressure specification |
Work pressure |
7-9kg/cm2 |
|
Low-pressure gas consumption |
1600L/min |
|
|
Blow bottle pressure |
25-35kg/cm2 |
|
|
Higher -pressure gas consumption |
3400Ltr/min |
|
|
Forzen water specification |
Work pressure |
5-6 kg/cm2 |
|
Temperature range |
10℃ |
|
|
Consumption |
6000kcal/hr |
|
|
Forzen water flow |
50L/min |
|
|
Machine specification |
Size of the machine |
4.7x1.6x1.9 |
|
Weight of the machine |
3ton |
|
As the demand for PET bottles continues to increase globally, the market for bottle blowing machines has grown at a rapid pace. One such machine is the 2 cavity 5-liter automatic bottle blowing machine, capable of producing up to 1500 bottles per hour.
This state-of-the-art machine boasts a range of features that make it ideal for small to medium-scale production of PET bottles. It has a compact design and is easy to operate, with a touch screen interface that allows for precise control of the blowing process.
The 2 cavity system ensures high efficiency, and the advanced heating system ensures that the preform is heated evenly, resulting in consistent bottle quality. The machine is also equipped with a preform auto-loader, which helps to reduce labor costs and improve production efficiency.
With a production capacity of up to 1500 bottles per hour, this machine is ideal for those looking to start a small to medium-sized bottling plant. Its low maintenance and running costs make it a cost-effective solution, while its compact design means it can be easily installed in limited space.
The 2 cavity 5-liter automatic bottle blowing machine is perfect for producing a range of PET bottles, including mineral water bottles, juice bottles, carbonated drink bottles, and more. The machine is also customizable, allowing for the production of bottles in different sizes and shapes.
In summary, the 2 cavity 5-liter automatic bottle blowing machine is an excellent choice for anyone in the market for a reliable, high-performance bottle blowing machine. With its advanced features and customizable options, it is well-suited to small to medium-scale bottle manufacturing businesses. Its ease of use and low running costs make it an ideal choice for entrepreneurs looking to start a bottling plant with a limited budget.

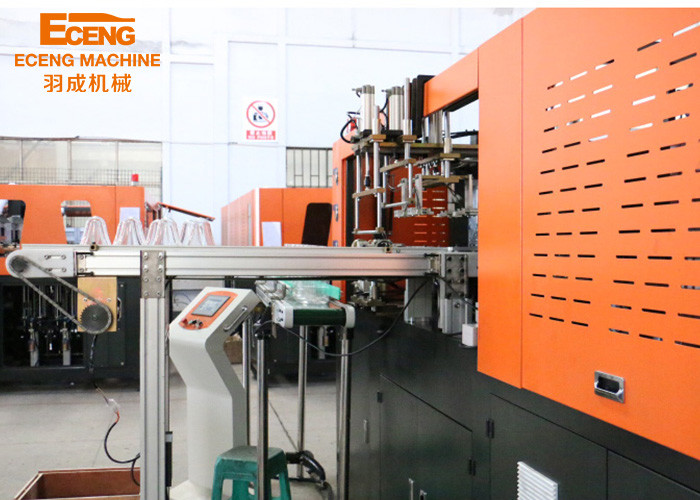

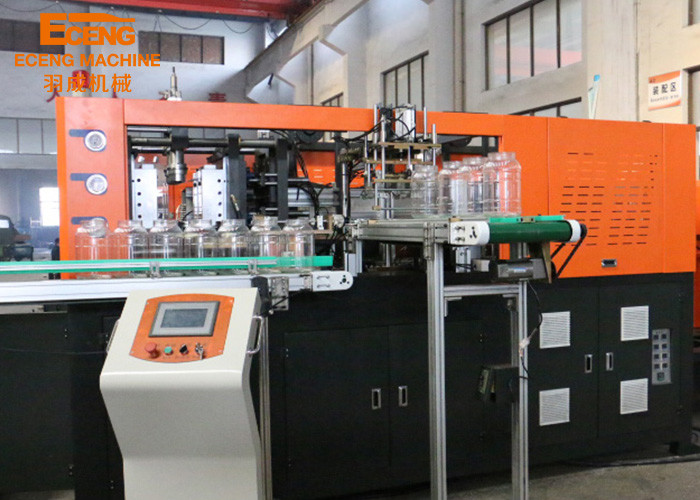

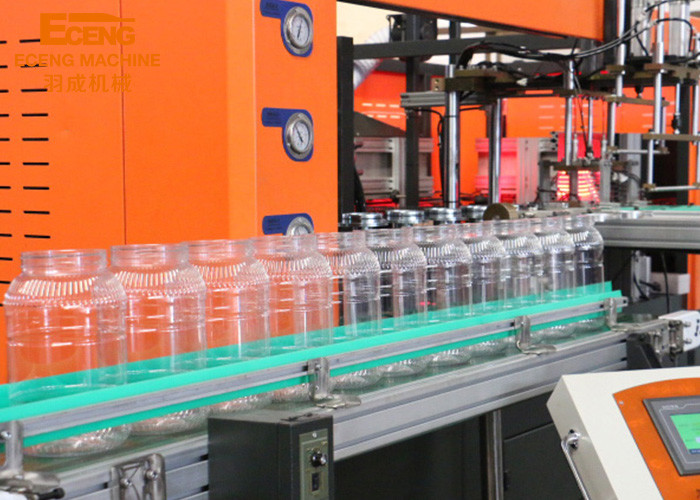

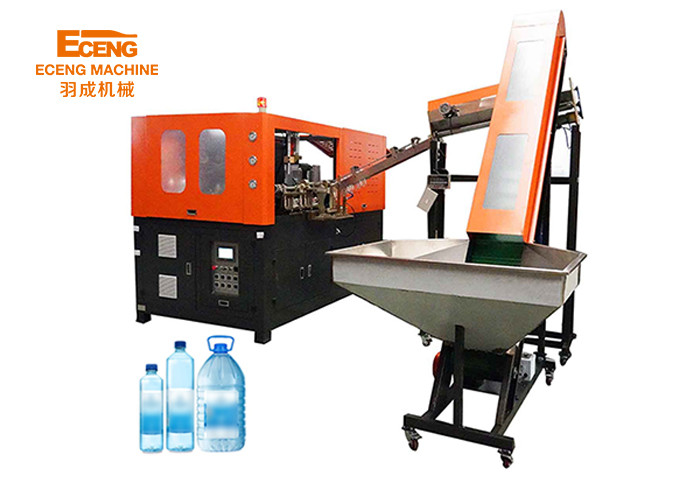

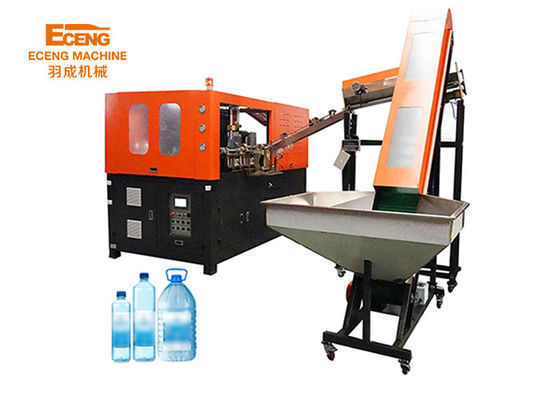

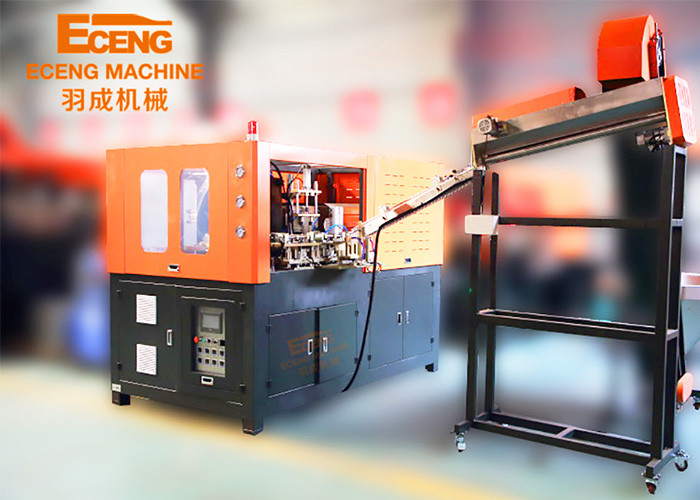

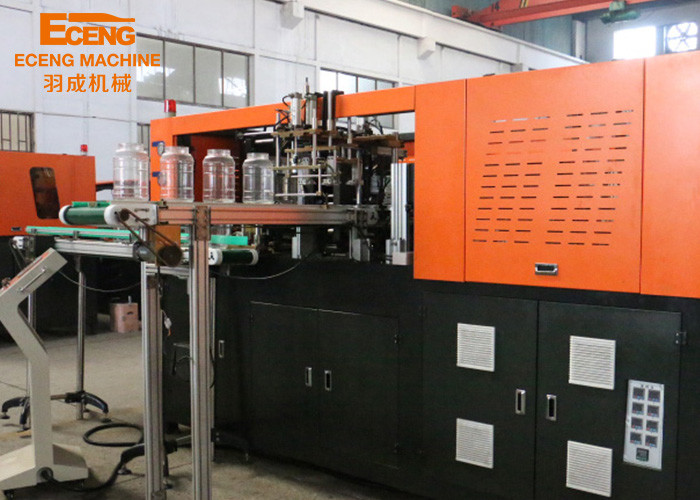

photo show-- 5L pet bottla machine
