Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE ISO |
| Model Number: | K12 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | standard export wooden case or according to your requirements |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Set/Sets per Year |
| Plastic Processed: | PET | Application: | Bottle |
|---|---|---|---|
| Blow Moulding Type: | Stretch Blow Moulding | Automation: | Automatic |
| Key Selling Points: | Automatic Blow Molding Machine | Warranty Of Core Components: | 1 Year |
| Applicable Industries: | Manufacturing Plant | Model Number: | K12 |
| Highlight: | Automatic Water Beverages Bottle Blowing Machine,Beverages Bottle Blowing Machine 12 Cavity,26000BPH Water Bottle Blowing Machine |
||

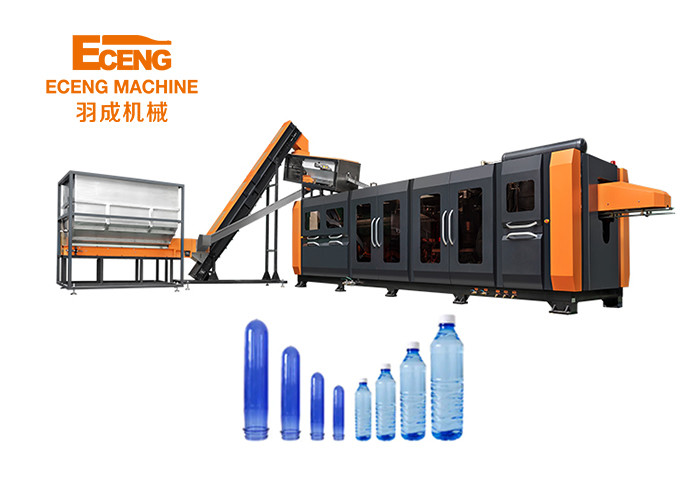

12 Cavity Automatic Water Beverages Bottle Blowing Machine, 22000-26000BPH
Product Parameters
| Model K12 | ||
|
Bottle type specification
|
Cavity | 12 |
| Max.volume | 200ml-750ml | |
| Bottle mouth maximum overall diameter | 25-29mm NECK | |
| Bottle biggest diameter | 75mm | |
| Bottle maximum height | 180mm | |
|
Capacity specification
|
Theory output | 22000~26000BPH |
| Bottle type volume | 600ML | |
| Bottle type weight | 13.5g | |
| Bottle type | Round | |
| Power specification | Light tube quantity | 32pcs |
| Light tube power | 1.75KW | |
| Maximum heating power | 56KW | |
| All electric machine installation | 71KW | |
| Actual consumption | 30%--60% | |
|
Air pressure specification
|
Work pressure | 5-6kg/cm2 |
| Blow bottle pressure | 25-45kg/cm2 | |
| Higher -pressure gas consumption | 24000Ltr/min | |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10℃ | |
| Consumption | 12000kcal/hr | |
| Temperature range | 10℃ | |
| Forzen water flow | 180L/min | |
| Machine specification | Machine size | 9.0x2.0x2.3 |
| Machine weight | 10.0ton | |
Our PET Blower is the perfect solution for high-volume bottle production. With its 12 Cavity design, it can produce up to 26000BPH, while ensuring consistent and uniform bottle quality,and ensuring efficient and continuous bottle production.Eceng k12 is designed for high-volume production.making it an ideal choice for large-scale operations.
Want to know more message , contact us with out hesitate ! Send us now !
