Home ProductsSemi Auto PET Bottle Blowing Machine

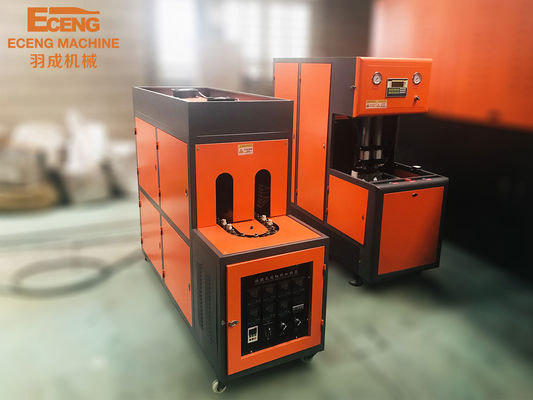

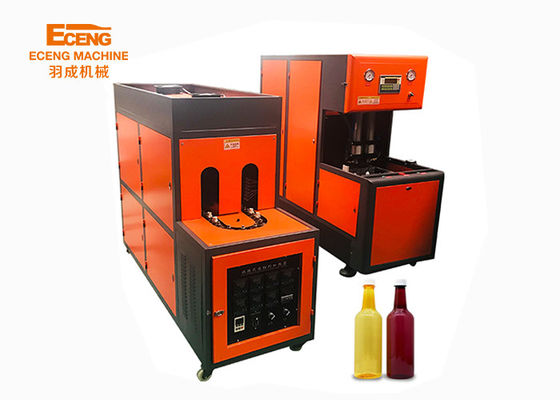

YC-2L-2 2000 Ml Semi Auto Blowing Machine 3PHASE For PET Plastic Bottles 380V

YC-2L-2 2000 Ml Semi Auto Blowing Machine 3PHASE For PET Plastic Bottles 380V

YC-2L-2 2000 Ml Semi Auto Blowing Machine 3PHASE For PET Plastic Bottles 380V
YC-2L-2 2000 Ml Semi Auto Blowing Machine 3PHASE For PET Plastic Bottles 380V
YC-2L-2 2000 Ml Semi Auto Blowing Machine 3PHASE For PET Plastic Bottles 380V
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE,ISO
Model Number: YC-2L-2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $3,000.00 - $4,000.00/Sets
Packaging Details: Wooden package
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set/Sets per Month
Contact Now
Detailed Product Description
Pet Making Machine: Semi Auto Pet Bottle Blowing Machine Bottle Volume(ml): 2000 Ml
Blow Moulding Type: Stretch Blow Moulding Voltage: 380V, 50HZ, 3PHASE
Dimension(L*W*H): 1.46*0.58*1.8(m) Hollow Part Volume: 2l
Automation: Semi-automatic Warranty: 1 Year, One Year
High Light:

380V Semi Auto Blowing Machine

,

Semi Auto Blowing Machine for PET

,

3PHASE Semi Auto Bottles Blowing Machine

Semi Auto Blowing Machine YC-2L-2 for PET Plastic Bottles 800 Per Hour
Product Description

Water bottle making machines have been a great addition to the manufacturing industry. These machines have made it easier to produce high-quality water bottles efficiently and effectively. There are two types of water bottle making machines: manual and semi-automatic.

Eceng YC-2L-2 manual water bottle making machine produces 800 bottles per hour. This machine is ideal for small-scale manufacturers who require a low-volume output. Despite being a manual machine, it is still very efficient and produces high-quality water bottles. The machine is easy to use, and with proper training, anyone can operate it.

YC-2L-2 2000 Ml Semi Auto Blowing Machine 3PHASE For PET Plastic Bottles 380V 0



Main machine (blower + oven)

Item YC-2L-2
Product Spec Max. product volume(L/cav) 2L
Max. preform neck size(mm) 100
Max. product diameter(mm) 180
Max. product height (mm) 300
Cavities 2
Blow molding part Die force (KN) 100
Die stroke (mm) 270
Max. mould size(mm) 390*345
Mould thickness Adjustable
Mould spacing(mm) Adjustable
Max. pulling stroke(mm) 400
Operation pressure(Mpa) 0.8-1.0

Operation air pressure consumption

(1tr/min)

200
Blow pressure(Mpa) 1.2-2.8
Blow air pressure consumption (1tr/min) 300
Output(pcs/h) 800
Machine size(LxWxH)(m) 1.46*0.58*1.8
Machine weight(KG) 650
Oven Temperature grade(rate) 8
Heating time(S) 90-200
Voltage(V) 220 or as your request
Frequency(HZ) 50/60
Total power(KW) 16
Oven Size (LxWxH) 1.35*0.55*1.15
Oven weight (KG)

300






YC series Plastic making Top quality useful semi automatic pet blowing machinery is controlled by microcomputer. The plastic blowing machine can control the technical parameters more accurately.With the upper and lower system,emergency stop system,independent counter device,count the output accurately.With infrared lamp heating device,penetrating power, preform rotation heating, heating evenly and quickly.YC series semi-automatic plastic bottle blowing machine is suitable for blowing plastic PET bottles such as carbonated beverage bottles,mineral water bottles, cosmetic bottles and hot filling bottles etc.

YC-2L-2 2000 Ml Semi Auto Blowing Machine 3PHASE For PET Plastic Bottles 380V 2

YC-2L-2 2000 Ml Semi Auto Blowing Machine 3PHASE For PET Plastic Bottles 380V 3YC-2L-2 2000 Ml Semi Auto Blowing Machine 3PHASE For PET Plastic Bottles 380V 5

YC-2L-2 2000 Ml Semi Auto Blowing Machine 3PHASE For PET Plastic Bottles 380V 7



YC-2L-2 2000 Ml Semi Auto Blowing Machine 3PHASE For PET Plastic Bottles 380V 9

YC-2L-2 2000 Ml Semi Auto Blowing Machine 3PHASE For PET Plastic Bottles 380V 11
