YC Series Semi Automatic Pet Blowing Machine 5L Microcomputer Controlled 350BPH

YC Series Semi Automatic Pet Blowing Machine 5L Microcomputer Controlled 350BPH

  • YC Series Semi Automatic Pet Blowing Machine  5L Microcomputer Controlled 350BPH
  • YC Series Semi Automatic Pet Blowing Machine  5L Microcomputer Controlled 350BPH
  • YC Series Semi Automatic Pet Blowing Machine  5L Microcomputer Controlled 350BPH
  • YC Series Semi Automatic Pet Blowing Machine  5L Microcomputer Controlled 350BPH
  • YC Series Semi Automatic Pet Blowing Machine  5L Microcomputer Controlled 350BPH
  • YC Series Semi Automatic Pet Blowing Machine  5L Microcomputer Controlled 350BPH
YC Series Semi Automatic Pet Blowing Machine  5L Microcomputer Controlled 350BPH
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE,ISO
Model Number: YC-5L-1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $6,000.00 - $8,000.00/Sets
Packaging Details: Wooden package
Delivery Time: 10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set/Sets per Month
Contact Now
Detailed Product Description
Bottle Volume(ml): 5000 Ml Blow Moulding Type: Stretch Blow Moulding
Voltage: 380V, 50HZ, 3PHASE Dimension(L*W*H): 1.56*0.7*1.9(m)
Weight (KG): 700 KG Automation: Semi-automatic
Warranty: 1 Year, One Year Name: Semi Automatic Pet Bottle Blowing Machine
High Light:

Semi Automatic Pet Blowing moulding Machine

,

5L Pet Blowing moulding Machine

,

Semi Auto Bottle Blowing Machine 350BPH

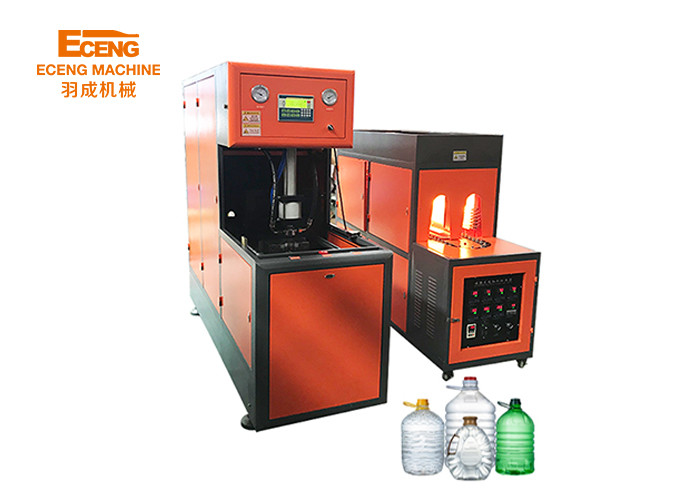

YC Series 5L Microcomputer Controlled Semi-Automatic Pet Blowing Machine 350BPH

YC Series Semi Automatic Pet Blowing Machine  5L Microcomputer Controlled 350BPH 0

The single cavity 350 BPH pet mold semi automatic stretch blow molding machine is an excellent machine for producing 5L bottles. This machine is designed to be highly productive, efficient, and reliable, allowing you to produce high-quality bottles quickly and easily.

One of the key features of this machine is its single cavity design. This means that the machine can produce one bottle at a time, ensuring that each bottle is produced to the highest standards possible. This design also allows for quick and easy maintenance, making it an ideal choice for companies looking to streamline their production processes.

Another great feature of the single cavity 350 BPH pet mold semi automatic stretch blow molding machine is its semi-automatic operation. This means that you don't need a large team of operators to run the machine – instead, just a few skilled operators can easily manage the entire production process.

Despite this machine's semi-automatic operation, it is incredibly efficient and capable of producing up to 350 bottles per hour. This is thanks to its advanced technology and precision engineering, which ensure that each bottle is produced quickly and accurately.

Overall, if you're looking for a high-quality and reliable machine for producing 5L bottles, the single cavity 350 BPH pet mold semi automatic stretch blow molding machine is an excellent choice. Its advanced technology, efficient operation, and ease of maintenance make it the perfect option for any company looking to increase its production capacity and optimize its operations.

YC Series Semi Automatic Pet Blowing Machine  5L Microcomputer Controlled 350BPH 1





Main machine (blower + oven)

Item YC-5L-1
Product Spec Max. product volume(L/cav) 5L
Max. preform neck size(mm) 150
Max. product diameter(mm) 200
Max. product height (mm) 400
Cavities 1
Blow molding part Die force (KN) 120
Die stroke (mm) 320
Max. mould size(mm) 390*350
Mould thickness Adjustable
Mould spacing(mm) Adjustable
Max. pulling stroke(mm) 500
Operation pressure(Mpa) 0.8-1.0

Operation air pressure consumption

(1tr/min)

350
Blow pressure(Mpa) 1.2-2.8
Blow air pressure consumption (1tr/min) 300
Output(pcs/h) 350(5L bottle)
Machine size(LxWxH)(m) 1.56*0.7*1.9
Machine weight(KG) 700
Oven Temperature grade(rate) 8
Heating time(S) 90-200
Voltage(V) 220 or as your request
Frequency(HZ) 50/60
Total power(KW) 16
Oven Size (LxWxH) 1.45*0.65*1.15
Oven weight (KG) 330

YC Series Semi Automatic Pet Blowing Machine  5L Microcomputer Controlled 350BPH 2

YC series semi-automatic bottle blowing machine is controlled by microcomputer,control the technical parameters more accurately.PET bottle blowing machine is simple and safe to operate.It only requires one person and does not require special training.YC series PET blow molding machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is suitable for the production of small beverage companies and daily chemical product companies.

YC Series Semi Automatic Pet Blowing Machine  5L Microcomputer Controlled 350BPH 3

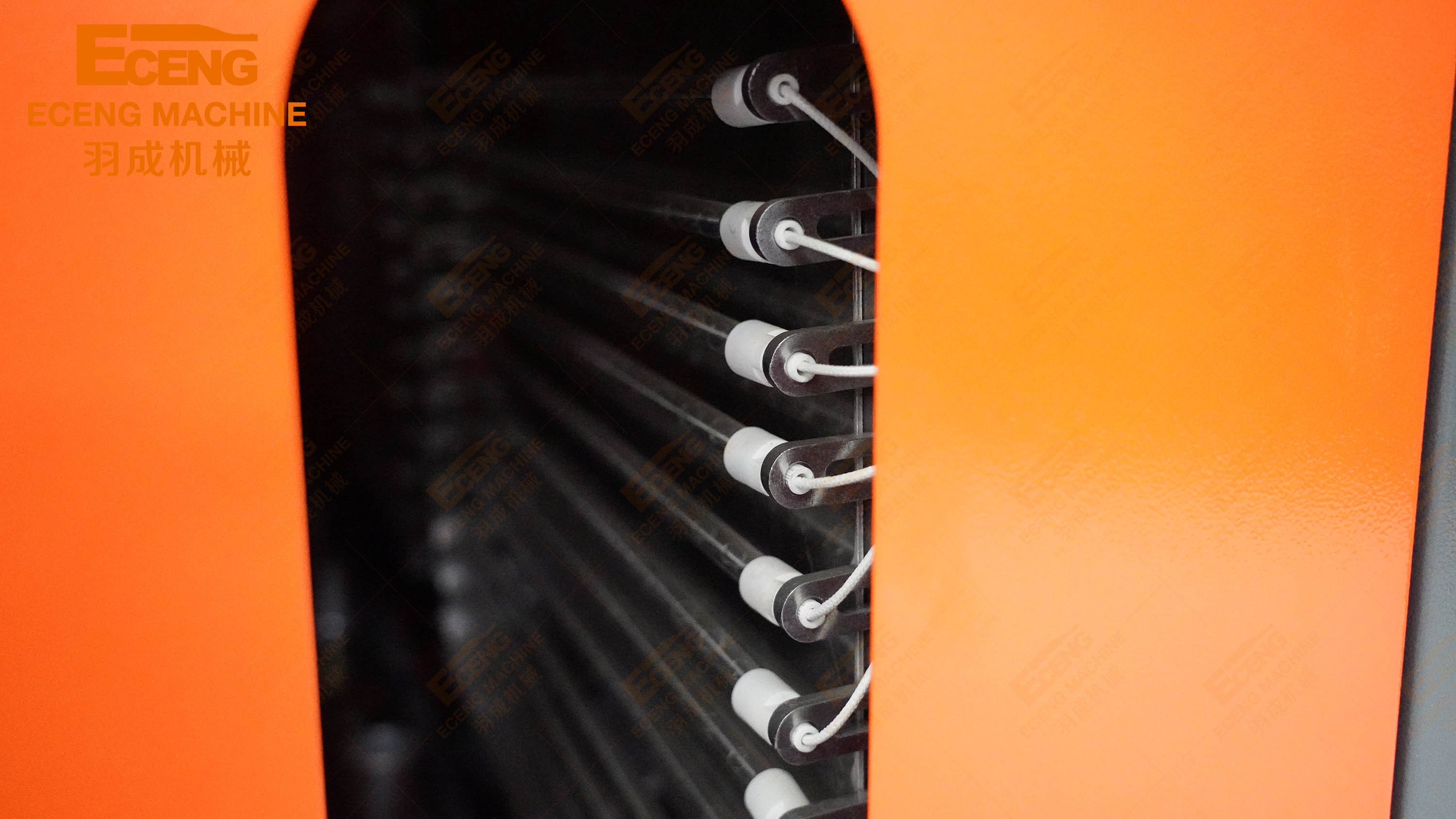

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

YC Series Semi Automatic Pet Blowing Machine  5L Microcomputer Controlled 350BPH 4

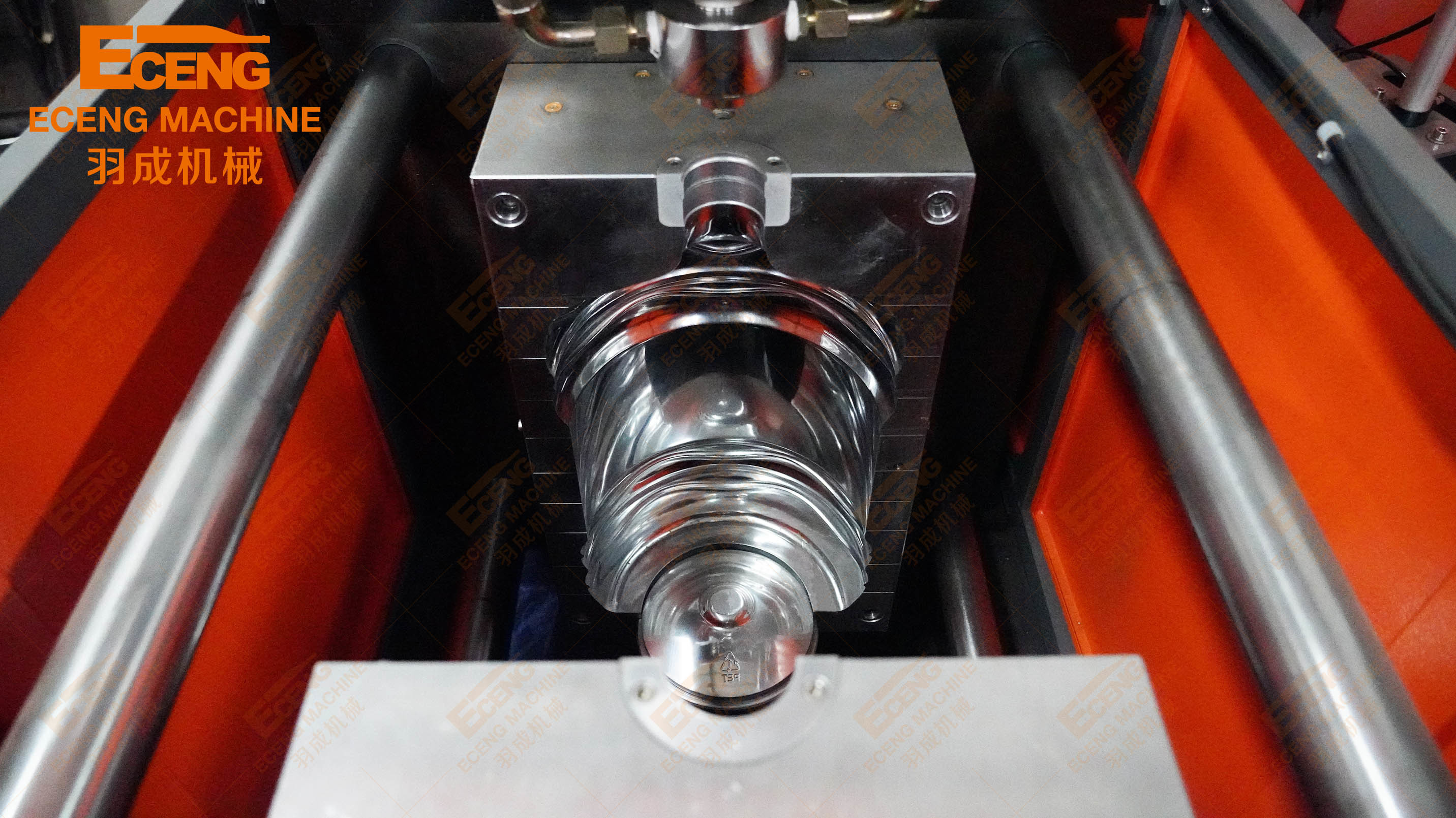

Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid response, long working hours , stable performance,ensure stable operation.

YC Series Semi Automatic Pet Blowing Machine  5L Microcomputer Controlled 350BPH 5

YC linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.



 YC Series Semi Automatic Pet Blowing Machine  5L Microcomputer Controlled 350BPH 6YC Series Semi Automatic Pet Blowing Machine  5L Microcomputer Controlled 350BPH 8YC Series Semi Automatic Pet Blowing Machine  5L Microcomputer Controlled 350BPH 10



YC Series Semi Automatic Pet Blowing Machine  5L Microcomputer Controlled 350BPH 12



YC Series Semi Automatic Pet Blowing Machine  5L Microcomputer Controlled 350BPH 14YC Series Semi Automatic Pet Blowing Machine  5L Microcomputer Controlled 350BPH 16

YC Series Semi Automatic Pet Blowing Machine  5L Microcomputer Controlled 350BPH 18
