Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V

Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V

  • Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V
  • Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V
  • Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V
  • Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V
  • Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V
  • Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V
Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: K4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $35,800.00/Sets 1-1 Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Blow Moulding Type: Stretch Blow Moulding Voltage: 380V,50HZ
Dimension(L*W*H): 3.3*1.6*1.9m Hollow Part Volume: 2L
PLC Brand: DELTA Weight (KG): 3400 KG
Applicable Industries: Manufacturing Plant Size Of The Machine: 3.3*1.6*1.9
High Light:

Soft drinks bottle blowing molding machine

,

k4 Soft drinks bottle blowing machine

,

10000BPH drinks bottle blowing machine

Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V

Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V 0



Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V 1

Model Eceng K4

Bottle type specification



Cavity 4
Max.volume 200ml-2000ml
Bottle mouth maximum overall diameter 25-29mm NECK
Bottle biggest diameter 100mm
Bottle maximum height 330mm

Capacity specification



Theory output 8000-10000BPH
Bottle type volume 600ML
Bottle type weight 13.5g
Bottle type Round
Power specification Light tube quantity 16pcs
Light tube power 1.25KW
Maximum heating power 20KW
All electric machine installation 29KW
Actual consumption 30%--60%

Air pressure specification



Work pressure 5-6kg/cm2
Blow bottle pressure 25-45kg/cm2
Higher -pressure gas consumption 6000Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 8000kcal/hr
Forzen water flow 120L/min
Machine specification Machine size 3.6*1.6*1.9
Machine weight 4.3ton

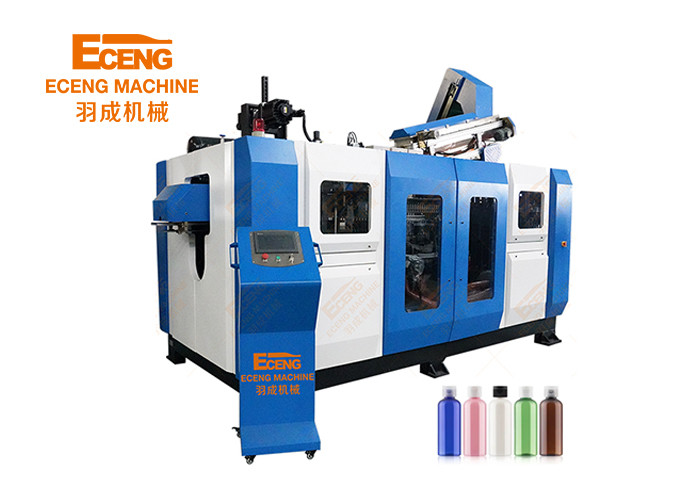

Soft drinks are a global favorite, and the packaging is crucial. Our k4 high-speed PET blower blow molding machine is the latest advancement in producing high-quality bottles with precision and speed. With cutting-edge technology and materials, it offers numerous advantages over traditional machines. Its versatility allows for various bottle sizes and shapes, from 50ml to 2 liters, reaching speeds of 10,000 bottles per hour. The automatic PLC control system ensures consistent quality, reducing human error. The touch screen display enhances operator efficiency and minimizes mistakes. Suitable for carbonated and non-carbonated drinks, water, and fruit juice bottles, the k4 is highly adaptable. In today's competitive market, the k4 is the ideal choice for efficient, high-quality bottle production. Invest in the k4 to meet demand without compromising quality.



Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V 2

Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V 3

Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V 4

Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V 5

Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V 6

Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V 7

Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.



Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V 8
Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V 9

Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V 10
Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V 11

Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V 12

Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.

Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V 13

Soft Drinks Bottle Blowing Machine K4 Molding 10000BPH 380V 14

FAQ

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
