Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE ISO |
| Model Number: | K12 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | standard export wooden case or according to your requirements |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Set/Sets per Year |
| Plastic Processed: | PET | Application: | Bottle |
|---|---|---|---|
| Blow Moulding Type: | Stretch Blow Moulding | Automation: | Automatic |
| Key Selling Points: | Automatic Blow Molding Machine | Warranty Of Core Components: | 1 Year |
| Applicable Industries: | Manufacturing Plant | Model Number: | K12 |
| Highlight: | K12 Water Bottle Blowing Machine,200ml Water Bottle Blowing Machine,Automatic Water Bottle Blowing Moulding Machine |
||

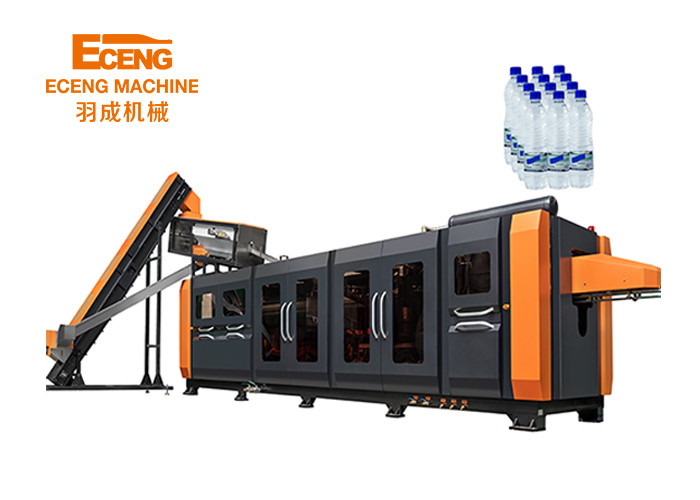

K12 Water Bottle Blowing Machine, 200ml-750ml, 25-29mm NECK, 22000-26000BPH
Product Parameters
| Model K12 | ||
|
Bottle type specification
|
Cavity | 12 |
| Max.volume | 200ml-750ml | |
| Bottle mouth maximum overall diameter | 25-29mm NECK | |
| Bottle biggest diameter | 75mm | |
| Bottle maximum height | 180mm | |
|
Capacity specification
|
Theory output | 22000~26000BPH |
| Bottle type volume | 600ML | |
| Bottle type weight | 13.5g | |
| Bottle type | Round | |
| Power specification | Light tube quantity | 32pcs |
| Light tube power | 1.75KW | |
| Maximum heating power | 56KW | |
| All electric machine installation | 71KW | |
| Actual consumption | 30%--60% | |
|
Air pressure specification
|
Work pressure | 5-6kg/cm2 |
| Blow bottle pressure | 25-45kg/cm2 | |
| Higher -pressure gas consumption | 24000Ltr/min | |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10℃ | |
| Consumption | 12000kcal/hr | |
| Temperature range | 10℃ | |
| Forzen water flow | 180L/min | |
| Machine specification | Machine size | 9.0x2.0x2.3 |
| Machine weight | 10.0ton | |
When producing high-quality water bottles,the machine you choose plays a crucial role. K12 Water Bottle Blowing Machine comes in – a tool designed to produce bottles of exceptional quality and durability, with capacities ranging from 200ml to 750ml.
This machine can accommodate neck sizes of 25-29mm, allowing you to produce bottles that fit perfectly with your specific requirements. With a production capacity of 22000-26000 bottles per hour (BPH), the K12 Water Bottle Blowing Machine is one of the most efficient devices on the market today.
The process of blowing plastic bottles using this machine is simple and straightforward.
The machine then uses air pressure to blow the plastic tube into a bottle shape, before finally cooling it down so that it sets into its new form. The process is incredibly fast and efficient, able to produce up to 26,000 bottles per hour, making it an ideal choice for large-scale production.
One of the strengths of the K12 Water Bottle Blowing Machine is its versatility. The machine is not only suitable for producing water bottles, but it is also possible to adjust the molds to produce other bottle shapes and sizes, such as juice bottles, sports drinks bottles, and more.
Another advantage of this machine is its ability to produce bottles that are highly resistant to impact and extreme temperatures, thanks to the high-quality plastic and strict quality control measures employed during production.
In summary, if you're looking to produce water bottles or similar products for the K12 industry, the K12 Water Bottle Blowing Machine is undoubtedly an excellent choice. With its high production capacity, durability, and flexibility, it is sure to meet your needs while also delivering quality products to your customers.
Want to know more message , contact us with out hesitate ! Send us now !
