Q9000 Water Bottle Blowing Machine 6 Cavity 8000-9000 PCS/HR Output 2000ML

Q9000 Water Bottle Blowing Machine 6 Cavity 8000-9000 PCS/HR Output 2000ML

Q9000 Water Bottle Blowing Machine 6 Cavity 8000-9000 PCS/HR Output 2000ML
Q9000 Water Bottle Blowing Machine 6 Cavity 8000-9000 PCS/HR Output 2000ML
Q9000 Water Bottle Blowing Machine 6 Cavity 8000-9000 PCS/HR Output 2000ML
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: Q9000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5,000.00 - $25,000.00/Pieces
Packaging Details: packed in wooden cases or package design according to the requirement of customers
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Condition: New
Voltage: 380V,50HZ Dimension(L*W*H): 5.4*1.6*1.7
Hollow Part Volume: 2000ML Automation: Automatic
Warranty: One Year For Free, One Year For Free Port: SHANGHAI
High Light:

Q9000 Bottle Blowing Machine

,

6Cavity Bottle Blowing Machine

,

2000ML Bottle Blowing moulding Machine

Q9000 Water Bottle Blowing Machine: Popular Model, 6 Cavity, 8000-9000 PCS/HR Output



     What is technical parameter of our gallon blow molding machine?







item

Q9000



Bottle type specification









cavity

6

theory output (PCS/HR)

8000-9000

Max. volume (L)

2L

Bottle mouth maximum overall diameter (mm)

28-38mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm



Power specifications





Light tube quantity

32pcs

Light tube power

1.25kw

Maximum heating power

40kw

All electric machine installation

43kw



Air pressure specification





Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600Ltr/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

4000 Ltr/min



Frozen water specification





Work pressure

5-6 kg/cm2

Temperature range

10°C

Consumption

8000kcal/hr

Frozen water flow

88Ltr/min

Machine specification



Size of the machine

6.5x1.5x1.9 (m)

Weight of the machine

4ton



As one of the most popular models of water bottle blowing machines, the Q9000 is capable of producing up to 8000-9000 bottles per hour with its 6-cavity design. This impressive output, combined with its affordability and reliability, has made it a favorite among manufacturers in the beverage industry.

With its advanced technology and precision engineering, the Q9000 offers fast and efficient bottle production without sacrificing quality. Each bottle is perfectly formed with consistent thickness and clarity, ensuring a professional and polished finished product.

But what sets the Q9000 apart from other machines on the market is its ease of use and low maintenance requirements. Its intuitive control panel and simple interface make it accessible to operators of all skill levels, while its sturdy construction ensures long-term durability and minimal downtime.

Whether you are a small startup or a large-scale manufacturer, the Q9000 is a versatile and cost-effective solution for your bottle production needs. Its compact size and minimal footprint make it easy to integrate into your existing production line, while its low energy consumption and minimal waste make it an eco-friendly choice.

     What is the feature for our gallon blow molding machine?



A. Stable performance with advanced PLC.

B. Conveying preforms automatically with conveyor.

C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.

D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.

E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.

F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.

G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

H. Strong clamping force with high pressure and double crank contact to lock the mold.

I. Two ways of operating: automatic and manual.

J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.

K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.

L. Contamination is avoided for the bottle body.

M. Ideal effect of the chilling with the chilling system.

N. Easy installation and starting

O. Low rejection rate: less than 0.3percent.



     What is the parts of our gallon blow molding machine?



machine parts name Brand Original place
Pneumatic components PARKER AND FESTO USA AND GERMANY
turning cylinder FESTO Germany
high pressure air blowing valve FESTO Germany
low pressure work valve PARKER USA
PLC controller MITSUBISHI JAPAN
full computer screen WINWIEW506L TAIWAN
high pressure muffler HENGLI CHINA
Photoelectric switch OMRON JAPAN
Switching power OMRON AND ZHENGTAI JAPAN and CHINA
circuit breaker ZHENTAI CHINA
Air switch OMRON JAPAN
relay OMRON JAPAN
finger cylinder JINGQI TAIWAN

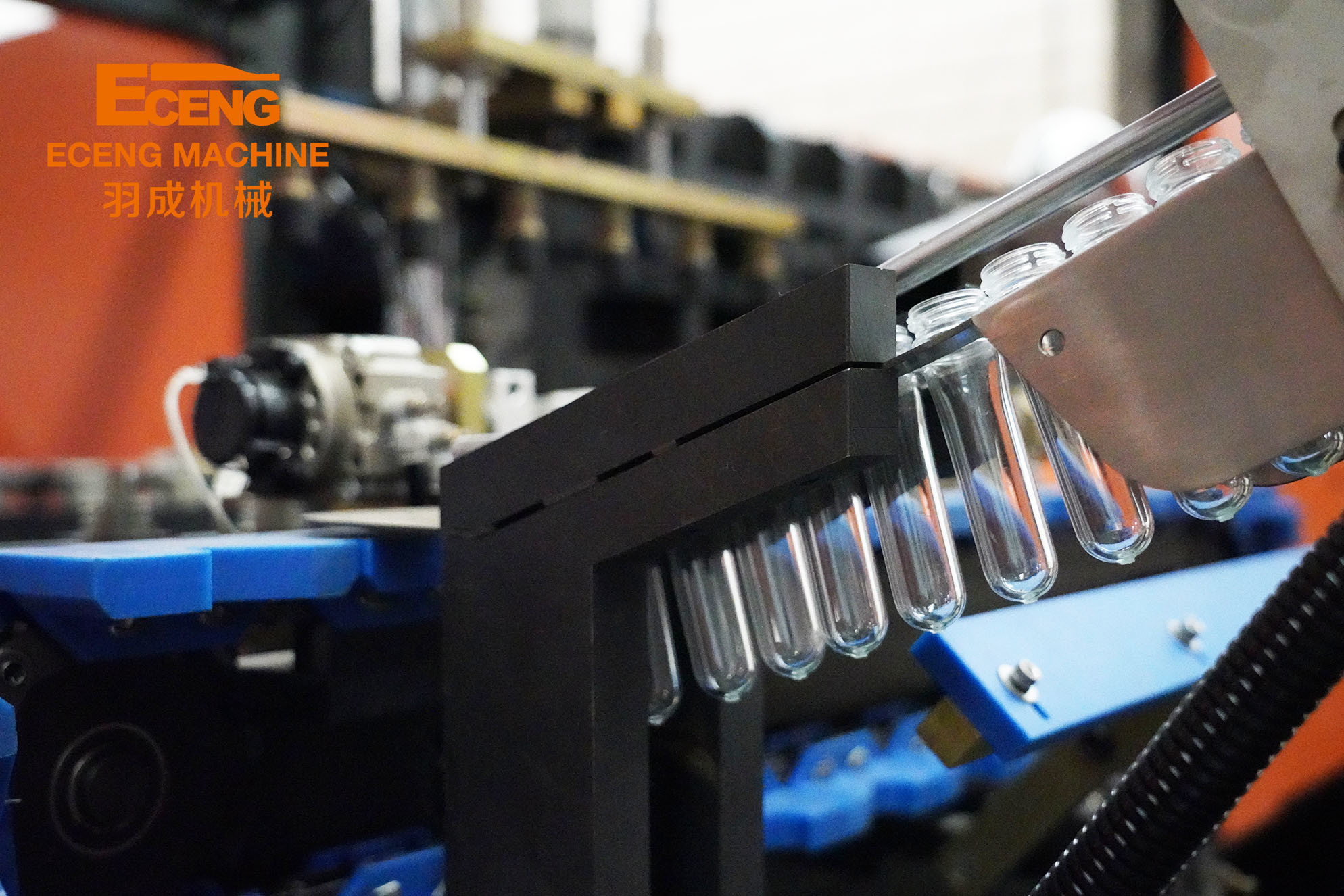

Q9000 Water Bottle Blowing Machine 6 Cavity 8000-9000 PCS/HR Output 2000ML 1

Poduct photos

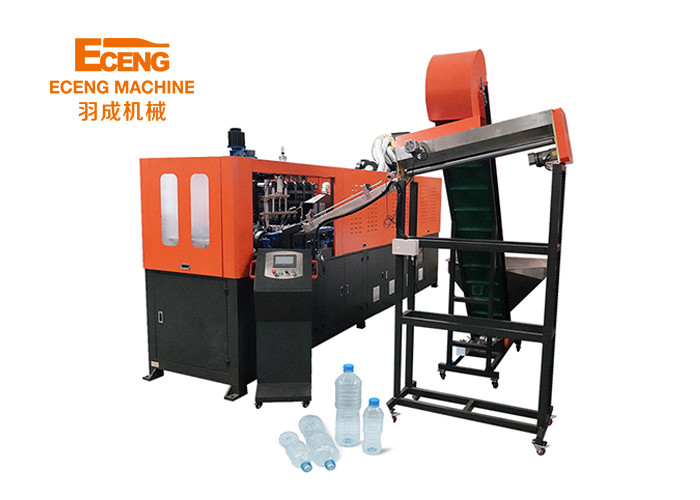

Q9000 Water Bottle Blowing Machine 6 Cavity 8000-9000 PCS/HR Output 2000ML 2

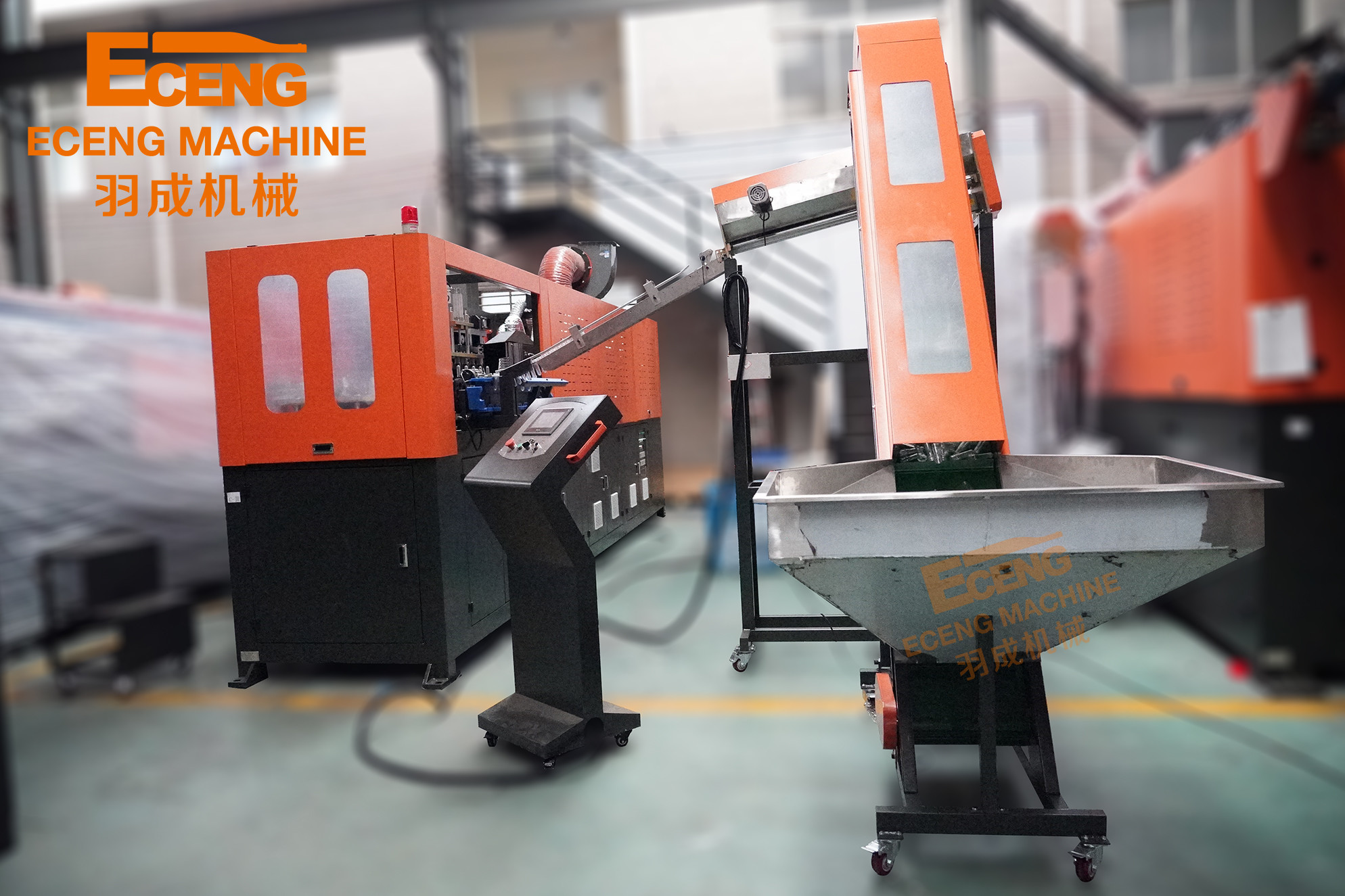

Q9000 Water Bottle Blowing Machine 6 Cavity 8000-9000 PCS/HR Output 2000ML 3

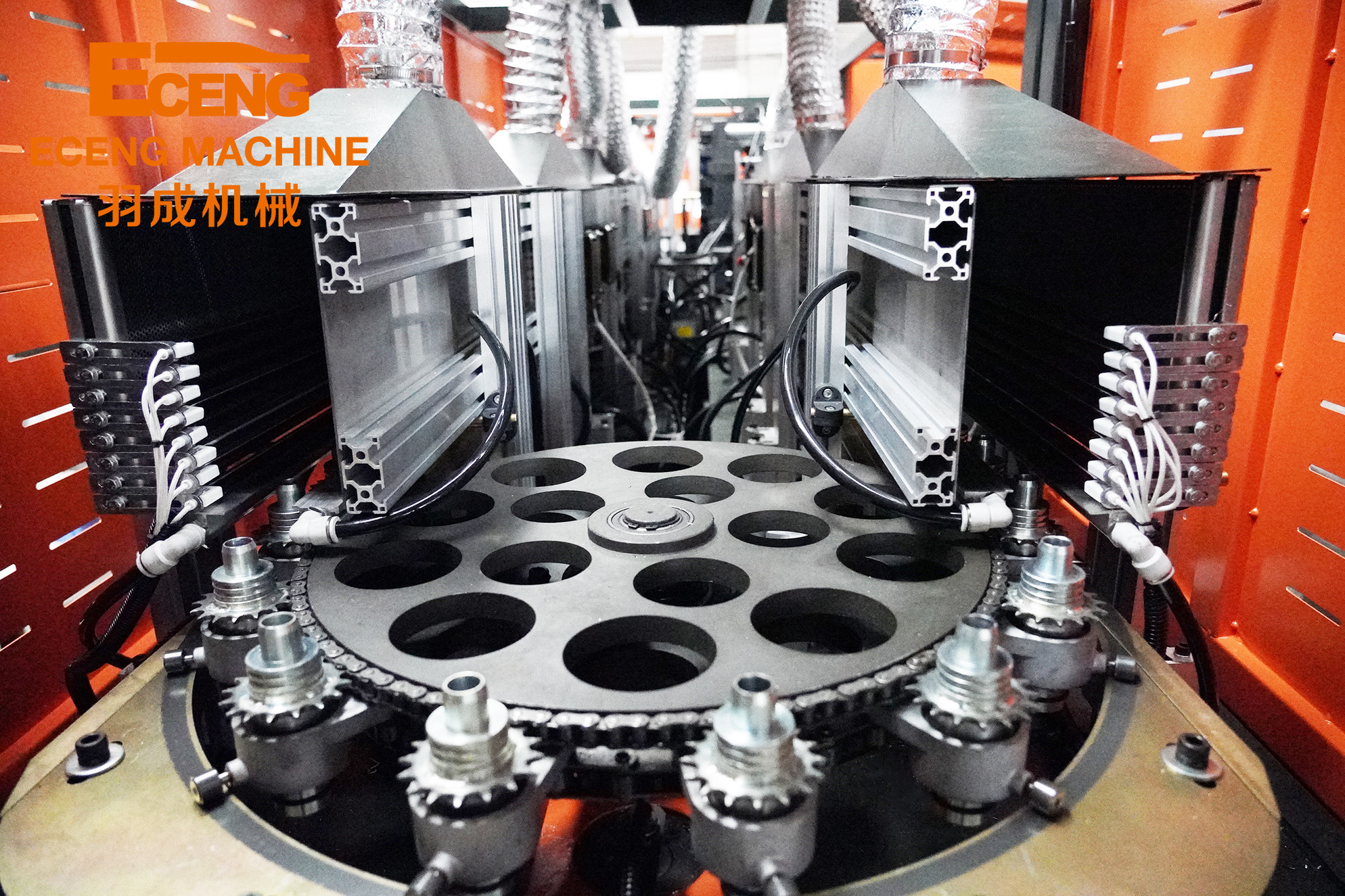

Q9000 Water Bottle Blowing Machine 6 Cavity 8000-9000 PCS/HR Output 2000ML 4
