Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE |
| Model Number: | Q-5L-1 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | packing with wooden pallet or film package suits for high quality 1L-5L automatic blowing molding machine made in zhangjiagang |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 Set/Sets per Month 10 |
| Plastic Processed: | PET | Blow Moulding Type: | Stretch Blow Moulding |
|---|---|---|---|
| Hollow Part Volume: | 5L | Automation: | Automatic |
| Warranty: | 1 Year | Applicable Industries: | Manufacturing Plant |
| Model Type: | Bottle Blow Molding Machine | Cavity: | 1 |
| Highlight: | Q5L1 Stretch Blowing Machine,Stretch Blowing Machine for Oil Bottles,900 BPH Stretch Bottle Blowing Machine |
||

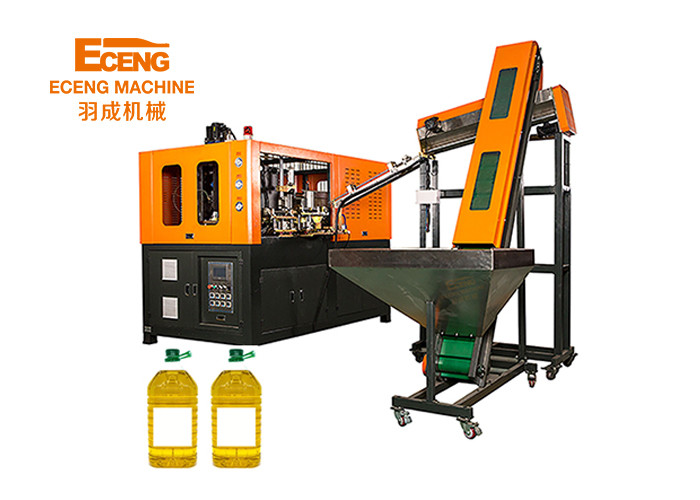

Q5L1 Stretch Blowing Machine for 5L edible oil Bottles, 1 Cavity & 900 BPH
Product Parameters
|
Item |
Q-5L-1 |
|
|
Bottle type specification |
Cavity |
1 |
|
Theory output |
700-900 |
|
|
Max.volume |
5L |
|
|
Bottle mouth maximum overall DIdiameter |
150mm |
|
|
Bottle biggest diameter |
180mm |
|
|
Bottle maximum height |
400mm |
|
|
Power specifications |
Light tube quantity |
32pcs |
|
Light tube power |
1.5KW |
|
|
Maximum heating power |
48KW |
|
|
All electric machine installation |
51KW |
|
|
Actual consumption |
35.7KW |
|
|
Air pressure specification |
Work pressure |
7-9kg/cm2 |
|
Low-pressure gas consumption |
1600L/min |
|
|
Blow bottle pressure |
25-35kg/cm2 |
|
|
Higher -pressure gas consumption |
3400Ltr/min |
|
|
Forzen water specification |
Work pressure |
5-6 kg/cm2 |
|
Temperature range |
10℃ |
|
|
Consumption |
6000kcal/hr |
|
|
Forzen water flow |
50L/min |
|
|
Machine specification |
Size of the machine |
2.5x1.6x1.7 |
|
Weight of the machine |
2.5ton |
|
If you are looking for a reliable and efficient stretch blowing machine that can produce 5L bottles for edible oil, then look no further than the Q5L1 stretch blowing machine. This machine is built to offer high-quality performance, exceptional durability, and consistent output rates, all while maintaining low energy consumption.
Featuring a single cavity and a production rate of 900 bottles per hour, the Q5L1 is ideal for small to medium-sized businesses seeking to improve their production line's efficiency and productivity. This machine is engineered to provide consistent stretching and blowing of PET preforms to produce high-quality bottles that are strong, lightweight, and transparent.
What makes the Q5L1 stand out from other stretch blowing machines on the market is its advanced technology and features. The machine is equipped with an advanced touch screen control system that is easy to operate, allowing for fast and simple settings adjustment. Additionally, the Q5L1 incorporates a unique infrared heating system that ensures even heating of the preforms, providing consistent stretching and blowing while reducing the risk of overheating or underheating.
Another great feature of the Q5L1 stretch blowing machine is its high degree of automation. The machine's automated processes, including preform feeding, heating, stretching, and blowing, eliminate the need for constant monitoring by an operator, maximizing production efficiency and reducing the risk of errors and wasted materials.
Main Features
1. This stretch blow molding machine, the Q5L1, is the perfect solution for automating the production of 5-liter edible oil bottles.
2. With a production capacity of 700-800 bottles per hour, it's perfect for medium to high-volume production lines.
3. The Q5L1 is an automatic machine that eliminates the need for manual labor and reduces production costs.
4. It allows for precision and consistency in bottle production, ensuring that each bottle meets the same high-quality standards.
5. Choose the Q5L1 for a reliable and efficient solution to your 5-liter edible oil bottle production needs.

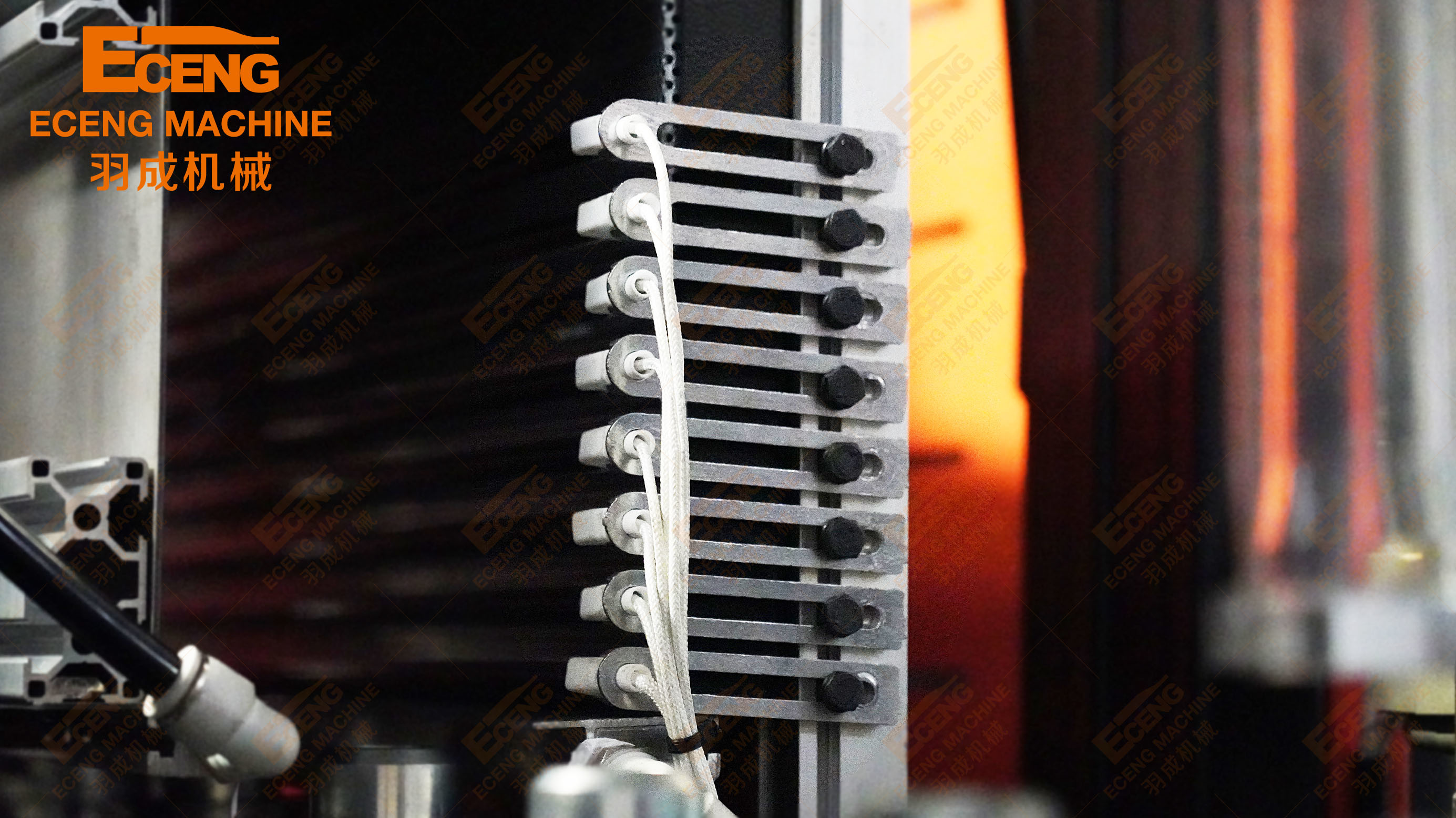

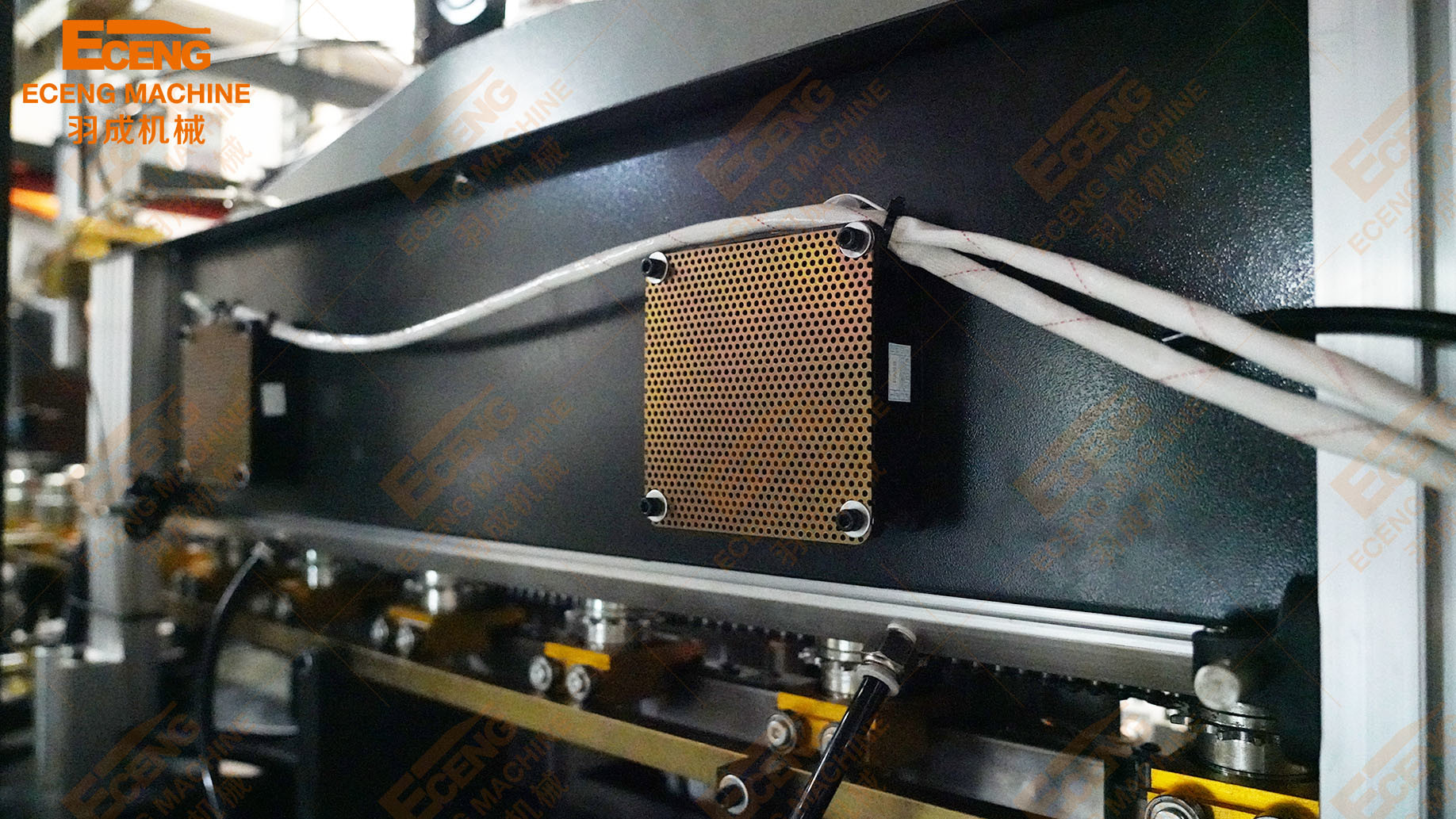

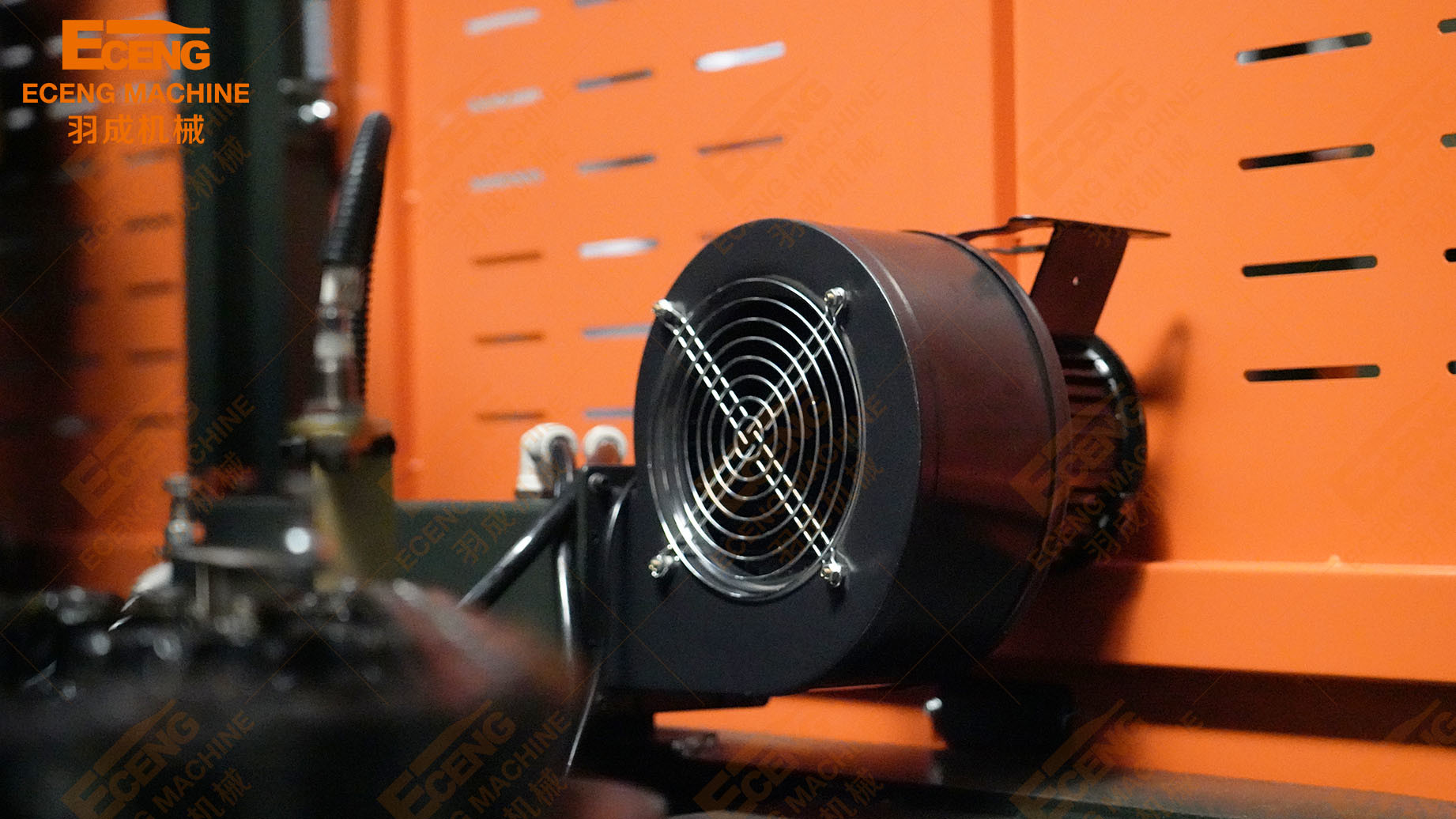

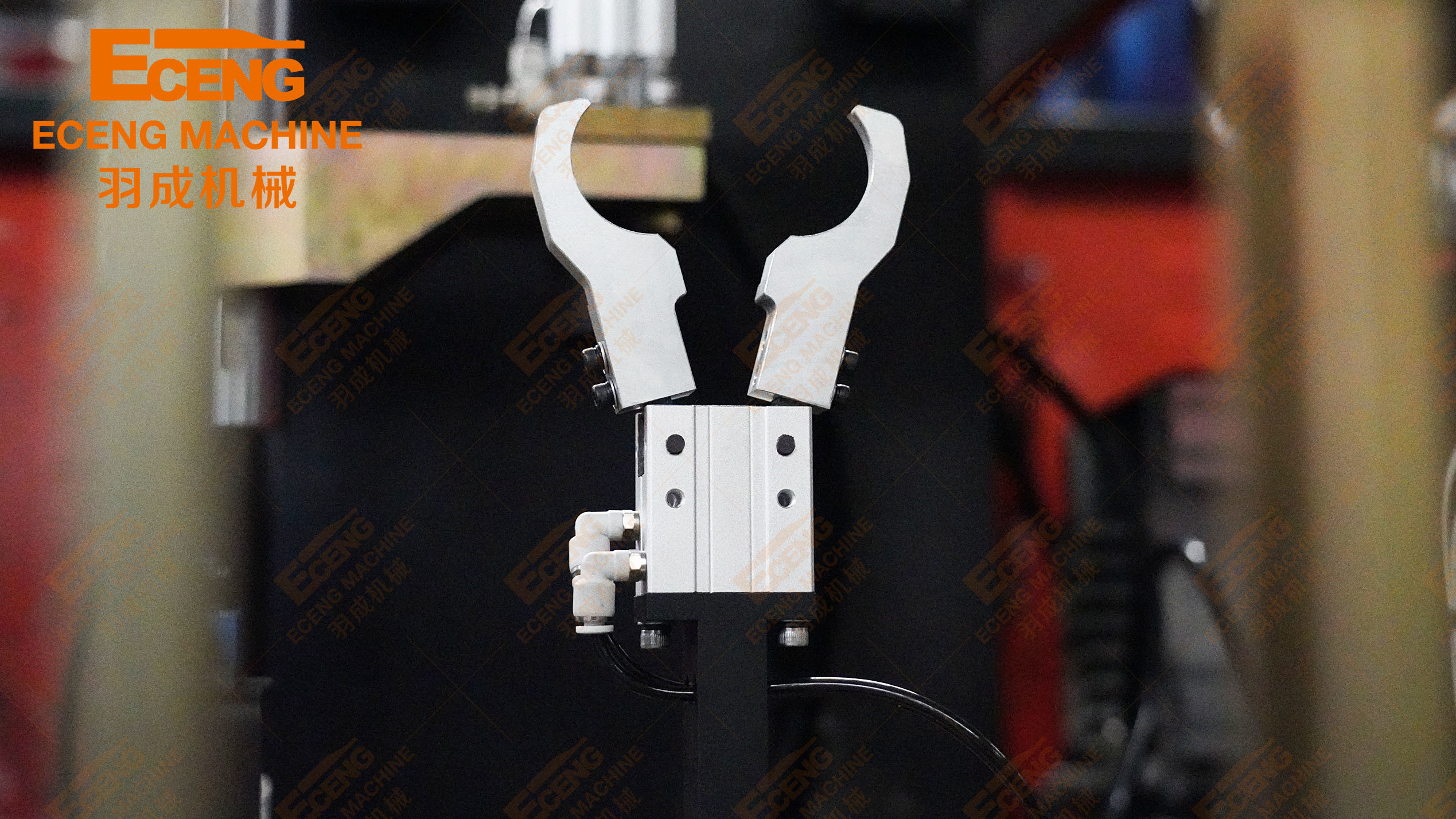

Product Photo
