| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE SGS ISO |
| Model Number: | J2 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $26,800.00/Sets 1-1 Sets |
| Packaging Details: | standard export wooden case or according to your requirements |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Set/Sets per Year |
| Plastic Processed: | PET | Blow Moulding Type: | Stretch Blow Moulding |
|---|---|---|---|
| Automation: | Automatic | Showroom Location: | Egypt, Philippines, Peru, Saudi Arabia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Ta |
| Applicable Industries: | Manufacturing Plant | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel |
| Automatic: | Yes | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | Wide Mouth Plastic Stretch Blowing Machines,3000BPH Plastic Blowing Machines,J2 Stretch Blow Moulding Machine |
||

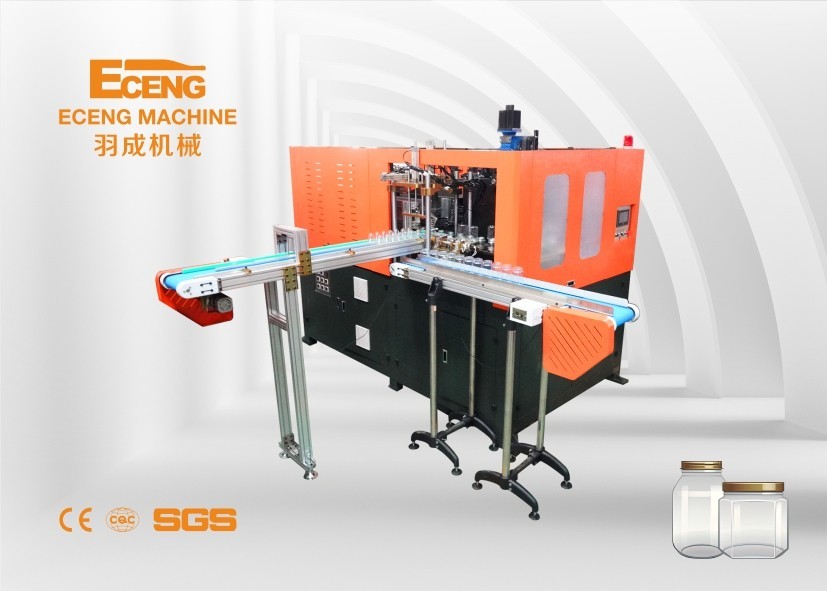

J2 3000BPH Wide Mouth Plastic Blowing Machines Fully Automatic Stretch Blow Moulding Machine
|
Item
|
|
J2
|
|
|
Bottle type specification
|
Cavity
|
2
|
|
|
|
Theory output
|
3000
|
|
|
|
Max.volume
|
2L
|
|
|
|
Bottle mouth maximum overall diameter
|
80mm
|
|
|
|
Bottle biggest diameter
|
100mm
|
|
|
|
Bottle maximum height
|
330mm
|
|
|
Power specification
|
Light tube quantity
|
32pcs
|
|
|
|
Light tube power
|
0.75KW
|
|
|
|
Maximum heating power
|
24KW
|
|
|
|
All electric machine installation
|
27KW
|
|
|
|
Actual consumption
|
19KW
|
|
|
Air pressure specification
|
Work pressure
|
7-9kg/cm2
|
|
|
|
Low-pressure gas consumption
|
1000L/min
|
|
|
|
Blow bottle pressure
|
25-35kg/cm2
|
|
|
|
Higher -pressure gas consumption
|
1500Ltr/min
|
|
|
Air pressure specification
|
Work pressure
|
5-6 kg/cm2
|
|
|
|
Temperature range
|
10℃
|
|
|
|
Consumption
|
5000kcal/hr
|
|
|
|
Frozen water flow
|
30L/min
|
|
|
Machine specification
|
Machine size
|
2.25x1.6x1.7
|
|
|
|
Machine weight
|
2.5ton
|
|
J2 3000BPH Wide Mouth Plastic Blowing Machines: Fully Automatic Stretch Blow Moulding Machine
The J2 3000BPH Wide Mouth Plastic Blowing Machines is a fully automatic stretch blow moulding machine that is designed to produce high-quality bottles with a wide mouth. This machine is specially made for industries that require fast and efficient production of plastic bottles without compromising on quality.
With the J2 3000BPH, you can produce up to 3000 bottles per hour, making it one of the fastest machines in the market. This means that you can meet your production needs quickly and efficiently, ensuring that you can keep up with the demand for your products.
One of the unique features of the J2 3000BPH is its wide mouth capability. This means that you can produce bottles with wider necks, making them suitable for products such as peanut butter, honey, sauces, and other viscous liquids that require a wider opening. The quality of the bottle is also maintained, so you don't have to worry about compromising on the safety or durability of your products.
The J2 3000BPH is also easy to operate. It features a user-friendly interface that makes it easy for operators to control and monitor the production process. The machine can be set up quickly, and the production process can be started within minutes.
In addition, the machine is also fully automated, which makes it easier to manage and operate. The machine can be programmed to carry out different tasks, such as preform loading, heating, stretching, and blowing, making it a versatile and valuable asset for your production line.
In conclusion, the J2 3000BPH Wide Mouth Plastic Blowing Machines is a reliable and efficient machine for producing high-quality plastic bottles with a wide mouth. It is designed to meet the demands of industries that require a fast and efficient production process without compromising on quality. Investing in this machine will help you to increase your production output and meet the growing demand for your products.
