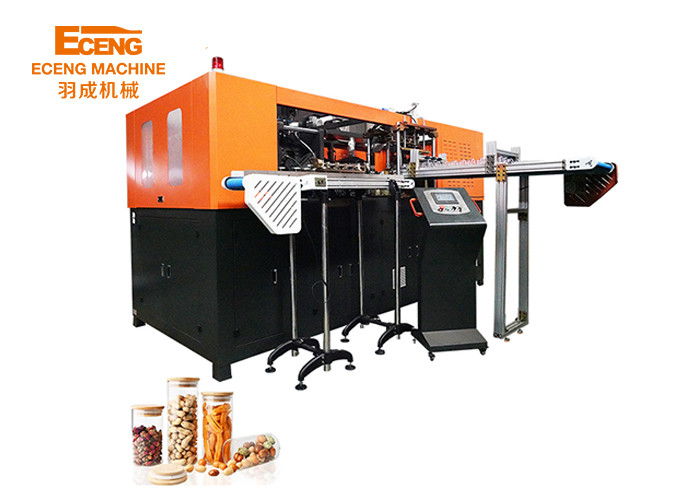

Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH

Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH

Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH
Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH
Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH
Product Details:
Place of Origin: CHINA
Brand Name: ECENG
Certification: CE SGS ISO
Model Number: jar blowing machine
Payment & Shipping Terms:
Minimum Order Quantity: One
Packaging Details: film/wooden
Delivery Time: 45days
Payment Terms: TT LC western Union
Supply Ability: 10sets Per month
Contact Now
Detailed Product Description
Model Number: J Series Weight: 2.5ton
Capacity: High Color: Customized
Control System: PLC Material: Plastic
Molding Method: Blow Molding
High Light:

Candy jar bowing machine

,

2400BPH pet jar blowing machine

,

4 cavity Jar Blow Molding Machine

J4 4cavity Stretch Blow Molding Machine for Food Jars.                                                      Specification


Model

J4

Bottle type specification

Cavity

4

Theory output bph

2200-2400

Max.volum

2L

Bottle mouth maximum overall diameter

80mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm

Power specification

Light tube quantity

32pcs

Light tube power

1KW

Maximum heating power

32KW

All electric machine installation

42KW

Actual consumption

30%--60%

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

3000Ltr/min

Frozen water specification

Work pressure

7-9 kg/cm2

Temperature range

10℃

Consumption

8000kcal/hr

Forzen water flow

138L/min

Machine specification

Machine size

4.1x1.6x1.9

Machine weight

3.9ton

Eceng J4 Jar Mold Blowing Machine Wide Mouth Bottle Blowing Machine - The Perfect Solution for Small Business Owners
Are you planning to start a small business venture in the packaging industry? Are you looking for efficient and affordable machinery to help you in production? Look no further! Eceng J4 Jar Mold Blowing Machine meet all your production needs.
The Jar Mold Blowing Machine is designed to produce high-quality plastic jars at a capacity of 2200-2300 pieces per hour. With its state-of-the-art technology, this machine can produce jars of various sizes and shapes, as per your requirement. The machine is also user-friendly and requires minimal maintenance, making it a cost-effective solution for your small business.
The Wide Mouth Bottle Blowing Machine is another excellent pick for small business owners. This machine is specialized in producing bottles with wide mouths, making it ideal for packaging food, beverages, and cosmetics. It is highly efficient and can produce up to 2200-2300 bottles per hour, ensuring that you meet your production needs without any delays.
So, if you're planning to invest in machinery for your small business, Eceng J4 Jar Mold Blowing Machine is excellent options to consider. Invest in these machines and watch your production speed and efficiency soar.

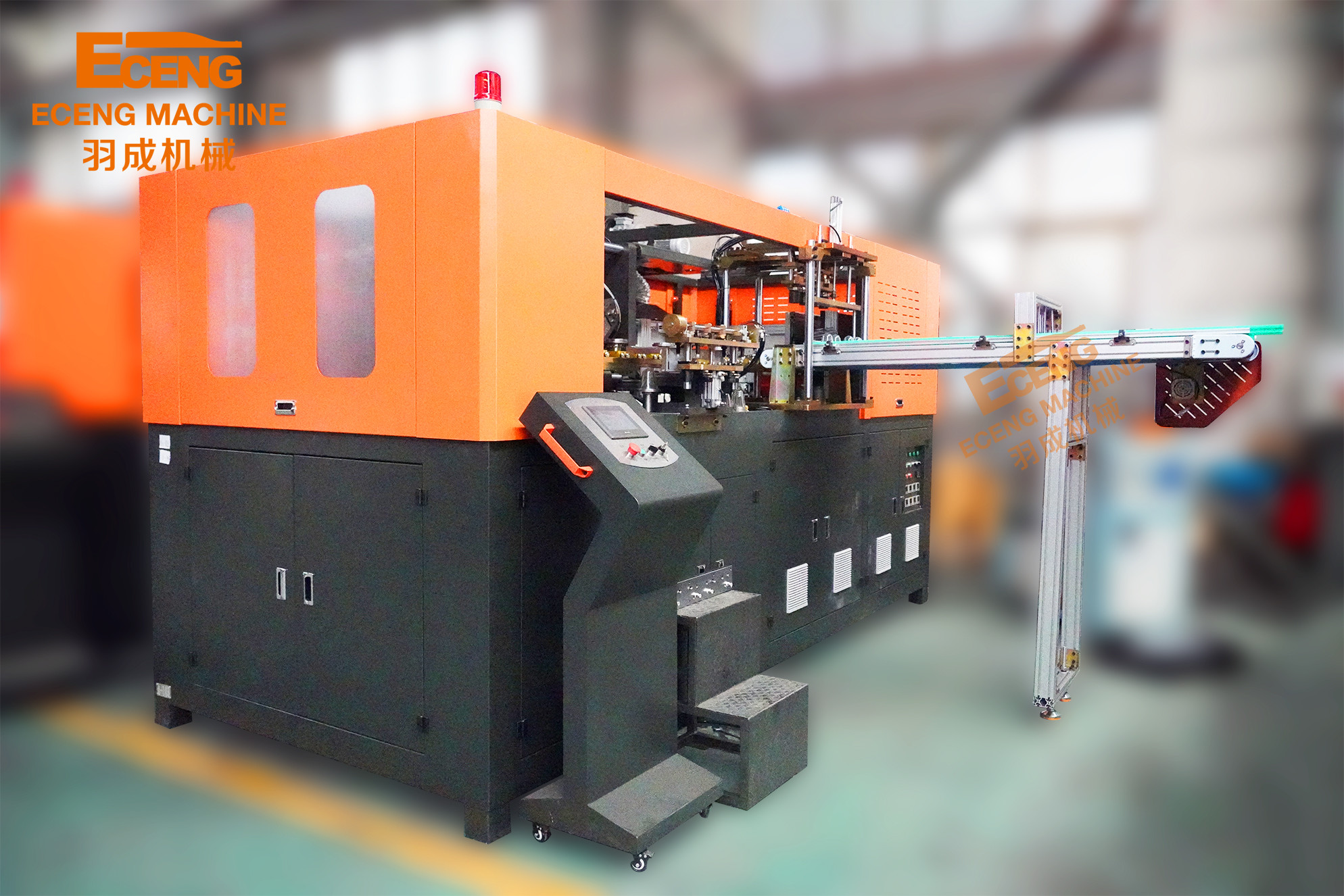

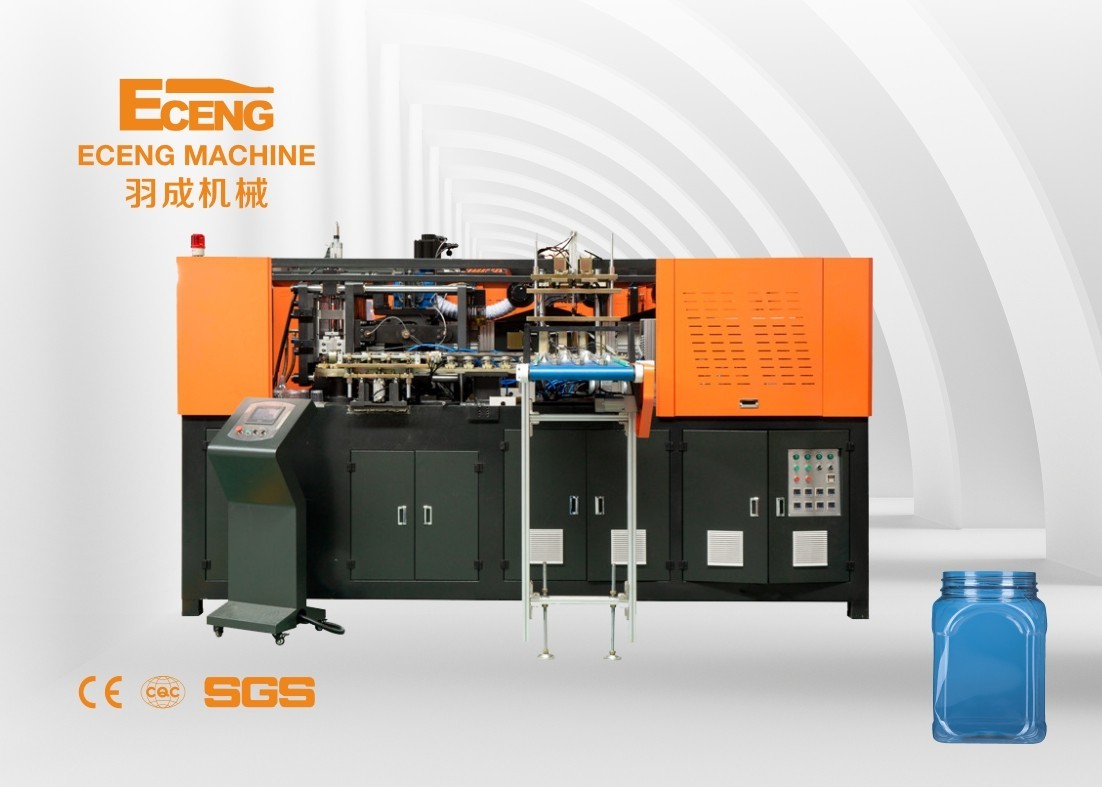

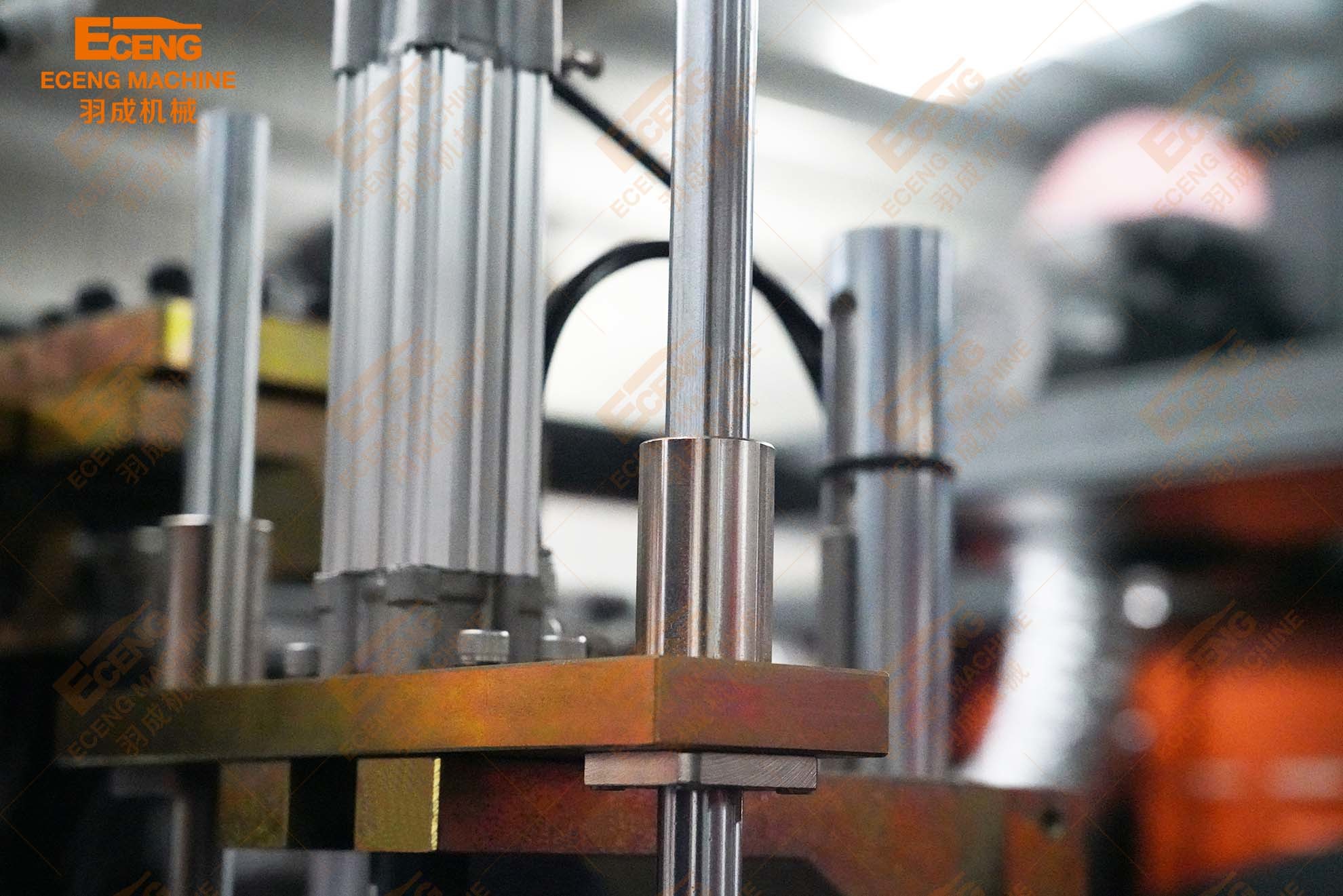

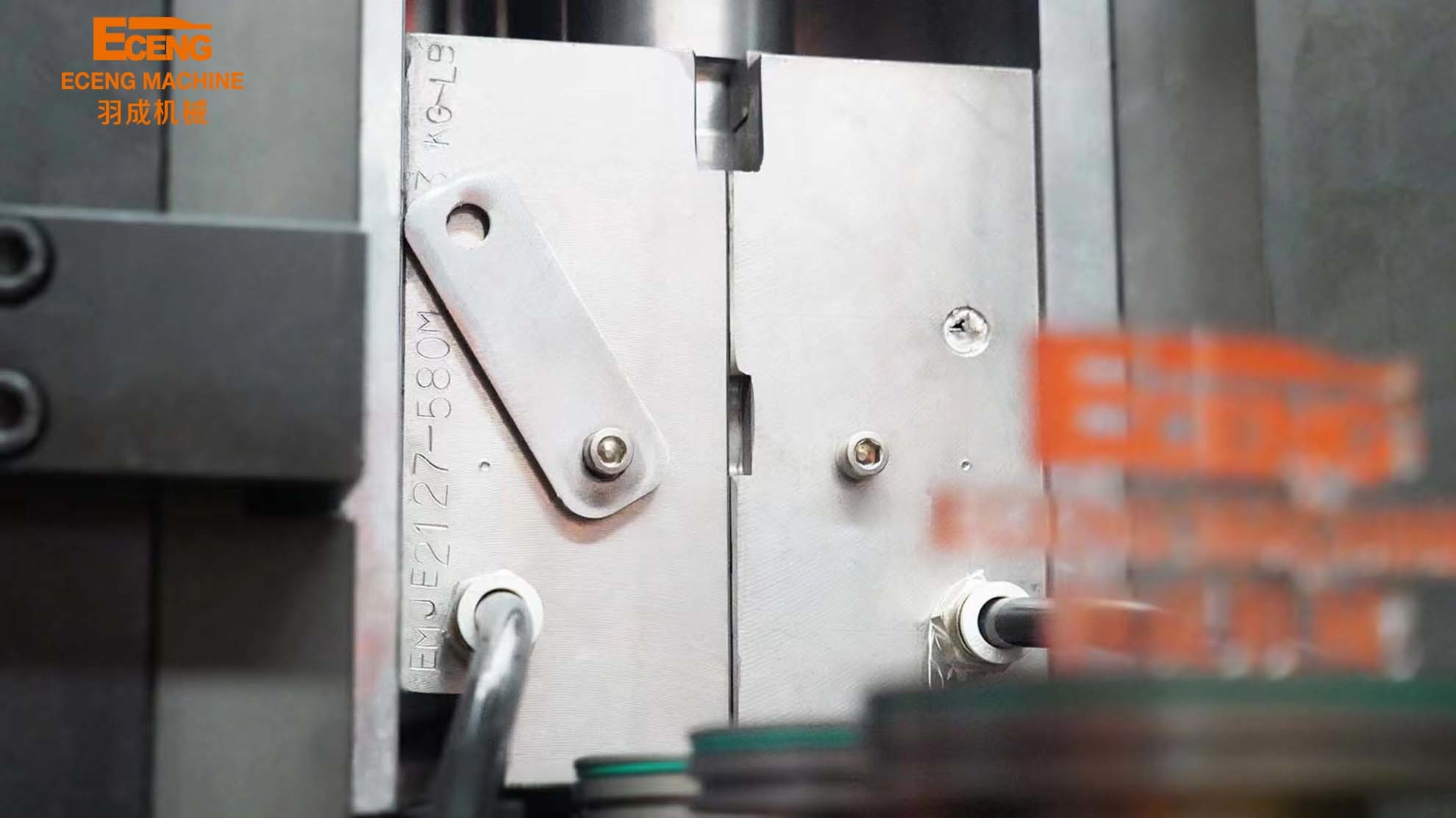

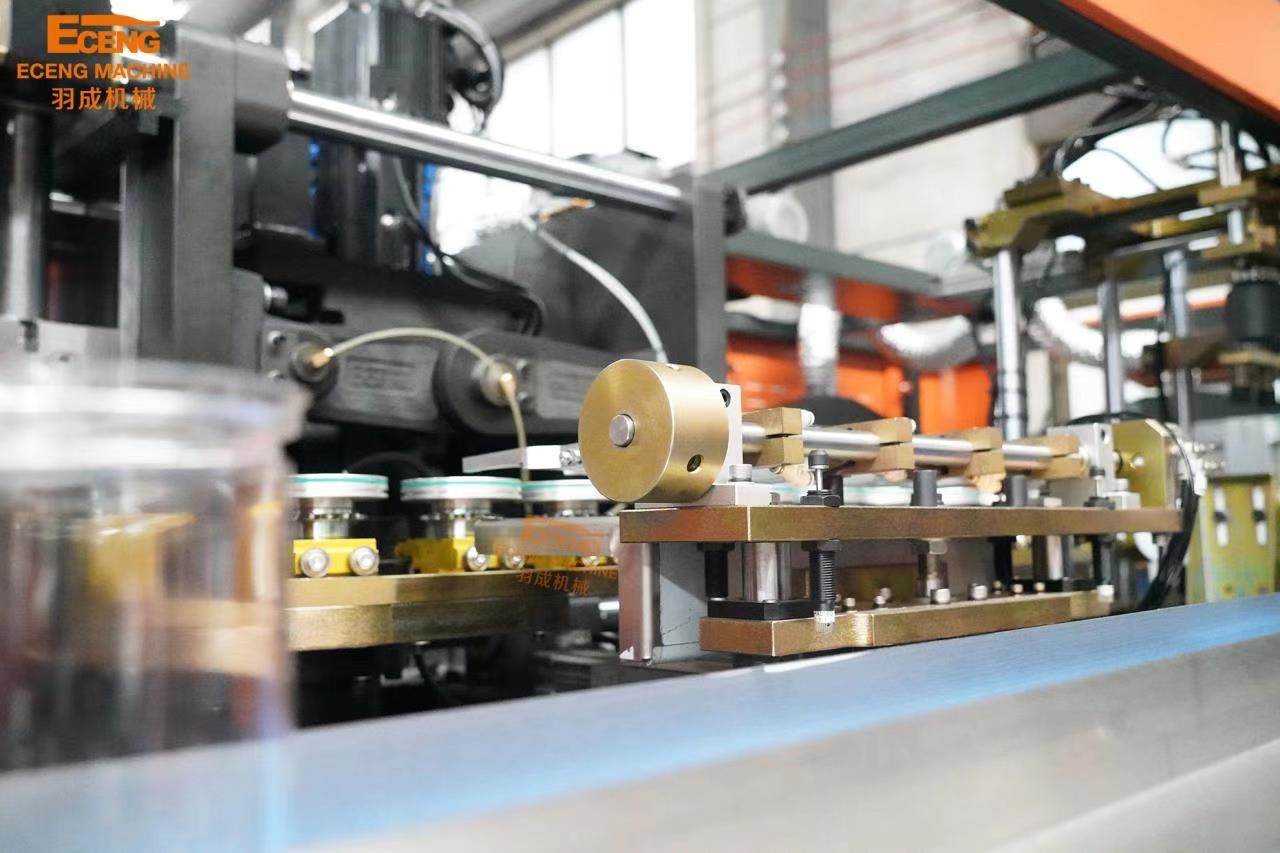

Product Photo

Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 0


Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 1

Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 2


Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 3

Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 4

Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 5

Working Process:


Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 6

Sketch Map:


Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 7


Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 8

Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 9

Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 10


Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 11

Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 12

Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 13


Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 14

Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 15

Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 16
Exhibition


Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 17

About Us


Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 18

Product packaging


Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 19
Packing
Conventional packaging: inside is wrapped with PE film outside is wooden box

Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 20
Delivery Conventional packaging: inside is wrapped with PE film outside is wooden box

After sale service

1.Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line. 2.Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures. 3.the sample service ⅠWe can send you the video of the running machine. ⅡYou are welcome to come to visit our factory,and see the machine running. 4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years. 5. Well-trained & experienced staff are to answer all your inquiries in English and Chinese 6. 12 Months guarantee and life-long technical support. 7. Your business relationship with us will be confidential to any third party. 8. Good after-sale service offered, please get back to us if you got any questions.


Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 21

Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 22
Candy Pet Jar Bowing Machine Automatic 4 Cavity 2000-2400BPH 23
