Blow your bottle, Shape your dream
 |
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE ISO |
| Model Number: | K4 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | standard export wooden case or according to your requirements |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Set/Sets per Year |
| Blow Moulding Type: | Stretch Blow Moulding | Voltage: | 380V,50HZ |
|---|---|---|---|
| Dimension(L*W*H): | 3.3*1.6*1.9m | Hollow Part Volume: | 2L |
| PLC Brand: | DELTA | Weight (KG): | 3400 KG |
| Applicable Industries: | Manufacturing Plant | Size Of The Machine: | 3.3*1.6*1.9 |
| High Light: | Automatic K4 Bottle Blowing Machine,Electric Servo PET Bottle Blowing Machine,10000BPH PET Bottle Blowing Machine |
||

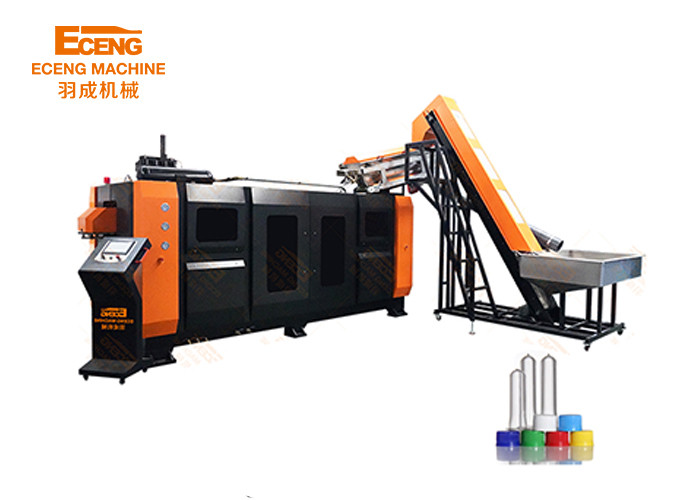

Automatic Electric Servo 10000BPH PET Water Bottle Blowing Machine K4
| Model Eceng K4 | ||
|
Bottle type specification
|
Cavity | 4 |
| Max.volume | 200ml-2000ml | |
| Bottle mouth maximum overall diameter | 25-29mm NECK | |
| Bottle biggest diameter | 100mm | |
| Bottle maximum height | 330mm | |
|
Capacity specification
|
Theory output | 8000-10000BPH |
| Bottle type volume | 600ML | |
| Bottle type weight | 13.5g | |
| Bottle type | Round | |
| Power specification | Light tube quantity | 16pcs |
| Light tube power | 1.25KW | |
| Maximum heating power | 20KW | |
| All electric machine installation | 29KW | |
| Actual consumption | 30%--60% | |
|
Air pressure specification
|
Work pressure | 5-6kg/cm2 |
| Blow bottle pressure | 25-45kg/cm2 | |
| Higher -pressure gas consumption | 6000Ltr/min | |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10℃ | |
| Consumption | 8000kcal/hr | |
| Forzen water flow | 120L/min | |
| Machine specification | Machine size | 3.6*1.6*1.9 |
| Machine weight | 4.3ton |
|
Looking for a dependable way to produce drinking water bottles efficiently? Eceng Automatic PET Blowing Machine Electric Servo 10000BPH K4 is the answer. With 4 cavities and advanced servo technology, it can produce up to 10,000 bottles per hour, meeting your business's demand.
Produce high-quality drinking water bottles effortlessly with our Automatic PET Blowing Machine Electric Servo 10000BPH K4. Its state-of-the-art servo system and 4 cavity design offer unmatched speed, precision, and efficiency for your bottle production requirements.
