Place of Origin: | Jiangsu, China |
Brand Name: | eceng |
Certification: | CE/ISO |
Model Number: | k8 |
Minimum Order Quantity: | 1set |
---|---|
Packaging Details: | packed by wooden pallet or as customer request |
Delivery Time: | 60days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 15 Set/Sets per Month |
Plastic Processed: | PET | Condition: | New |
---|---|---|---|
Power (kW): | 65 | Warranty: | 1 Year |
Warranty Of Core Components: | 1 Year | Automatic: | YES |
Service: | Full Technical Training | Port: | Shanghai/Ningbo |
Highlight: | 65kW pet bottle blowing machine,water Bottle Blowing Machine 8 Cavity,High efficiency pet bottle blowing machine |
K8 0.5-2L Fast Water Bottle Blowing Machine 65kW High Efficiency With 8 Cavity
Model Eceng K8 | ||
Bottle type specification
|
Cavity | 8 |
Max.volume | 200ml-2000ml | |
Bottle mouth maximum overall diameter | 25-29mm NECK | |
Bottle biggest diameter | 100mm | |
Bottle maximum height | 330mm | |
Capacity specification
|
Theory output | 14000-18000BPH |
Bottle type volume | 600ML | |
Bottle type weight | 13.5g | |
Bottle type | Round | |
Power specification | Light tube quantity | 32pcs |
Light tube power | 1.5-2KW | |
Maximum heating power | 52KW | |
All electric machine installation | 72KW | |
Actual consumption | 30%--60% | |
Air pressure specification
|
Work pressure | 5-6kg/cm2 |
Blow bottle pressure | 25-45kg/cm2 | |
Higher -pressure gas consumption | 12000Ltr/min | |
Forzen water specification | Work pressure | 5-6 kg/cm2 |
Temperature range | 10℃ | |
Consumption | 12000kcal/hr | |
Forzen water flow | 150L/min | |
Machine specification | Machine size | 7.0x2.0x2.3 |
Machine weight | 7.45ton |

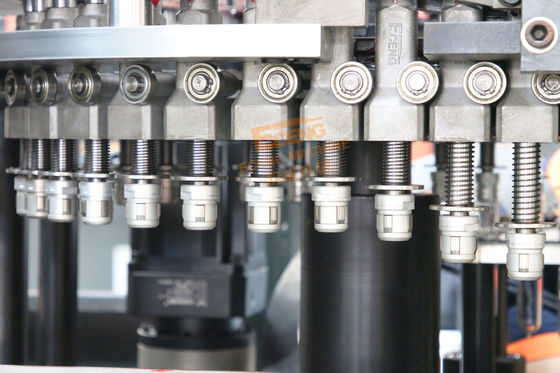

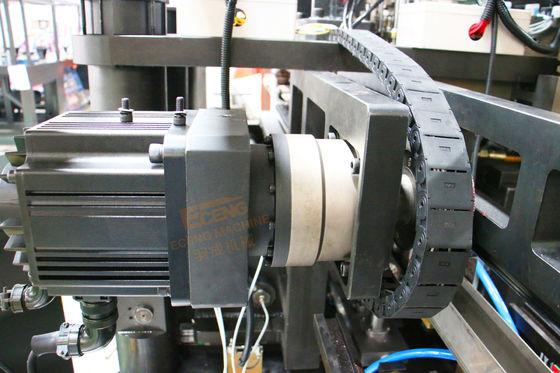

k series linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.Eceng Machinery's Q series linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
