Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE ISO |
| Model Number: | K12 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | standard export wooden case or according to your requirements |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Set/Sets per Year |
| Plastic Processed: | PET | Application: | Bottle |
|---|---|---|---|
| Blow Moulding Type: | Stretch Blow Moulding | Automation: | Automatic |
| Key Selling Points: | Automatic Blow Molding Machine | Warranty Of Core Components: | 1 Year |
| Applicable Industries: | Manufacturing Plant | Model Number: | K12 |
| Highlight: | Automatic PET bottle Stretch blowing machine,12 cavitys bottle Stretch blowing machine,24000BPH bottle blowing machine |
||

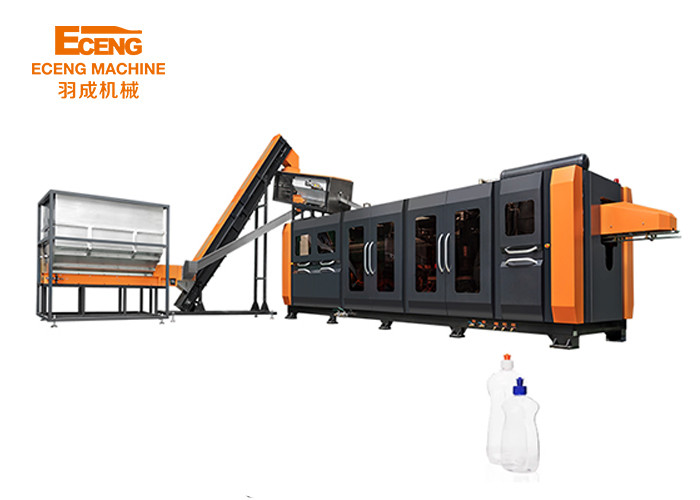

12 Cavitys PET Bottle Blowing Machine 22000-26000BPH Eceng K12
| Model Eceng K12 | ||
|
Bottle type specification
|
Cavity | 12 |
| Max.volume | 200ml-750ml | |
| Bottle mouth maximum overall diameter | 25-30mm NECK | |
| Bottle biggest diameter | 75mm | |
| Bottle maximum height | 180mm | |
|
Capacity specification
|
Theory output | 22000~26000BPH |
| Bottle type volume | 600ML | |
| Bottle type weight | 13.5g | |
| Bottle type | Round | |
| Power specification | Light tube quantity | 32pcs |
| Light tube power | 1.75KW | |
| Maximum heating power | 56KW | |
| All electric machine installation | 71KW | |
| Actual consumption | 30%--60% | |
|
Air pressure specification
|
Work pressure | 5-6kg/cm2 |
| Blow bottle pressure | 25-45kg/cm2 | |
| Higher -pressure gas consumption | 24000Ltr/min | |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10℃ | |
| Consumption | 12000kcal/hr | |
| Temperature range | 10℃ | |
| Forzen water flow | 180L/min | |
| Machine specification | Machine size | 9.0x2.0x2.3 |
| Machine weight | 10.0ton | |
High Efficiency: The 18000-24000BPH 12 cavitys PET bottle blowing machine is designed to provide high efficiency in production. With its advanced technology and efficient operations, this machine can produce a high volume of PET bottles with ease.
Superior Quality: This bottle blowing machine is built to produce PET bottles of superior quality. It is equipped with advanced features that ensure the bottles are well-formed, durable, and free from defects.
Easy to Operate: The PET bottle blowing machine is user-friendly and easy to operate. It is designed with a simple interface and requires minimal training to use, making it an ideal choice for businesses of all sizes.
Durability: Made from high-quality materials, this PET bottle blowing machine is built to last. It is engineered to withstand harsh conditions and heavy usage, ensuring that it can produce high-quality PET bottles for years to come.
Customizable: The 18000-24000BPH 12 cavitys PET bottle blowing machine is customizable to meet the unique needs of your business. Whether you require a different bottle shape or size, the machine can be adjusted to produce the desired results, making it a versatile investment for your business.
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.
1.Installation,debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2.Training
Eceng offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, thetechnician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.Quality guarantee
We promise that our goods quality, specification and function all meet the demand of contract. One year warranty,during warranty period,All parts and components exceptthose damaged by non-human factors are quaranteed free of charge (vulnerable parts are not included). In addition, the seller provides free spare parts and accessories for shipment with the machine.
During warranty period ,the equipment is damaged due to incorrect operation by thebuyer,we provide maintenance solutions,the buyer will cover the loss and cost.during warranty period we provide technical service,which is usually solved by telephone,etc.if not,provide door-to-door service.
