Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE ISO |
| Model Number: | K6 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | standard export wooden case or according to your requirements |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Set/Sets per Year |
| Bottle Volume(ml): | 2000 Ml | Application: | Bottle |
|---|---|---|---|
| Blow Moulding Type: | Stretch Blow Moulding | PLC Brand: | DELTA |
| Applicable Industries: | Manufacturing Plant | Output: | 10000 |
| Power(W): | 50KW | Port: | Shanghai |
| Highlight: | High Efficiency Water Bottle Blowing Machine,6 Cavity Water Bottle Blowing Machine,2000 ml Bottle Blow Moulding Machine |
||

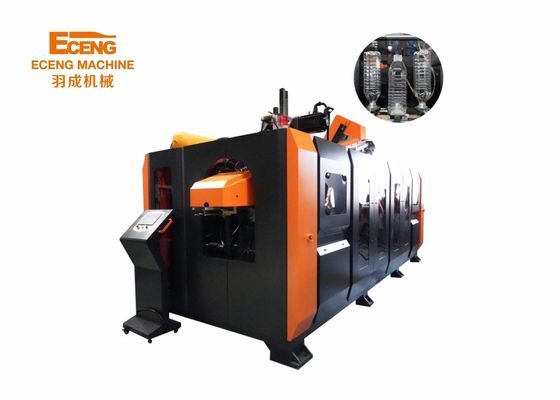

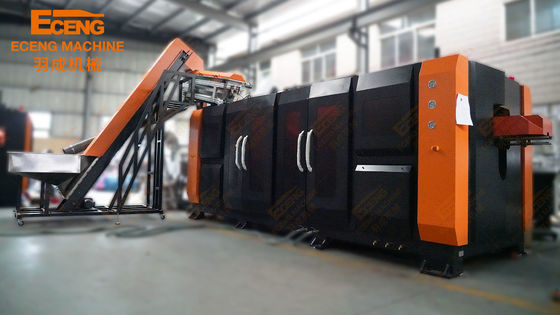

High Efficiency Water Bottle Blowing Machine With 6 Cavity Fast Production Speed K6
| Model Eceng K6 | ||
|
Bottle type specification
|
Cavity | 6 |
| Max.volume | 200ml-2000ml | |
| Bottle mouth maximum overall diameter | 25-29mm NECK | |
| Bottle biggest diameter | 100mm | |
| Bottle maximum height | 330mm | |
|
Capacity specification
|
Theory output | 12000-14000BPH |
| Bottle type volume | 600ML | |
| Bottle type weight | 13.5g | |
| Bottle type | Round | |
| Power specification | Light tube quantity | 32pcs |
| Light tube power | 1.25KW | |
| Maximum heating power | 40KW | |
| All electric machine installation | 49KW | |
| Actual consumption | 30%--60% | |
|
Air pressure specification
|
Work pressure | 5-6kg/cm2 |
| Blow bottle pressure | 25-45kg/cm2 | |
| Higher -pressure gas consumption | 8000Ltr/min | |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10℃ | |
| Consumption | 8000kcal/hr | |
| Forzen water flow | 120L/min | |
| Machine specification | Machine size | 5.5x1.8x1.9 |
| Machine weight | 6.1ton | |
This state-of-the-art machine is meticulously designed to streamline the production process, offering remarkable efficiency and precision.
Equipped with advanced technology, the K6 12000BPH machine boasts a 6-cavity design, ensuring rapid and continuous production at an impressive rate of 12000 bottles per hour. Its high efficiency is matched only by its consistent quality, making it the ideal choice for companies seeking to meet escalating demand without compromising on excellence.
This innovative machine is engineered to deliver exceptional performance, offering seamless bottle blowing capabilities that cater to a diverse range of production requirements.
suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.
