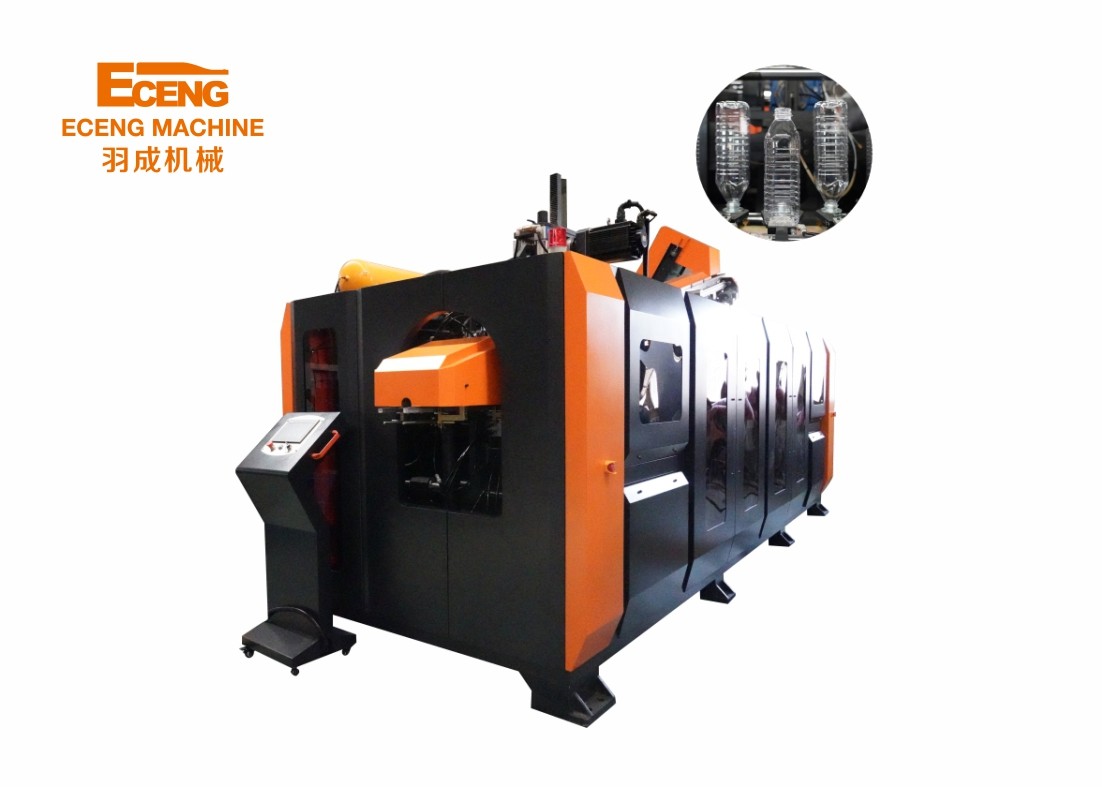

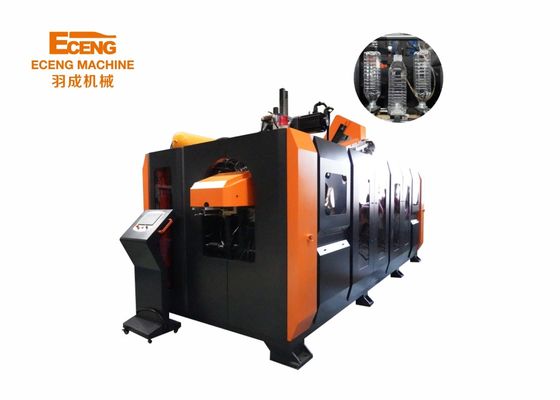

K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V

K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V

  • K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V
  • K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V
  • K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V
  • K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V
  • K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V
K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: K4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $35,800.00/Sets 1-1 Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Blow Moulding Type: Stretch Blow Moulding Voltage: 380V,50HZ
Dimension(L*W*H): 3.3*1.6*1.9m Hollow Part Volume: 2L
PLC Brand: DELTA Weight (KG): 3400 KG
Applicable Industries: Manufacturing Plant Size Of The Machine: 3.3*1.6*1.9
High Light:

K4 Water Bottle Blowing Machine

,

Pure Water Bottle Plastic Blowing Machine

,

10000BPH Bottle Blowing Machine

K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V

K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V 0

K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V 1



Model Eceng K4

Bottle type specification



Cavity 4
Max.volume 200ml-2000ml
Bottle mouth maximum overall diameter 25-29mm NECK
Bottle biggest diameter 100mm
Bottle maximum height 330mm

Capacity specification



Theory output 8000-10000BPH
Bottle type volume 600ML
Bottle type weight 13.5g
Bottle type Round
Power specification Light tube quantity 16pcs
Light tube power 1.25KW
Maximum heating power 20KW
All electric machine installation 29KW
Actual consumption 30%--60%

Air pressure specification



Work pressure 5-6kg/cm2
Blow bottle pressure 25-45kg/cm2
Higher -pressure gas consumption 6000Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 8000kcal/hr
Forzen water flow 120L/min
Machine specification Machine size 3.6*1.6*1.9
Machine weight 4.3ton

Eceng 4-cavity K4 Pure Water Bottle Plastic Blowing Machine, a state-of-the-art solution tailored to meet the demands of the modern beverage industry. With a capacity of 10000 bottles per hour and operating at 380V, this machine represents the pinnacle of precision and efficiency, serving as a cornerstone for high-quality and rapid production processes.

Featuring 4 cavities, this machine ensures continuous production, making it an ideal choice for companies seeking to optimize their manufacturing processes. Its advanced technology and meticulous engineering guarantee not only a high production capacity but also consistent and superior quality output, meeting the rigorous standards of the contemporary market.

The 4-cavity K4 Pure Water Bottle Plastic Blowing Machine is designed to deliver exceptional performance, catering to a wide range of production requirements. Whether for small or large-scale operations, its adaptability and reliability make it an indispensable asset in any production environment.

Its high production capacity is complemented by a user-friendly interface, ensuring seamless operation and minimizing downtime. Its robust construction and precise engineering ensure durability and longevity, making it a sound and enduring investment for your production facility.

K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V 2

K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V 3

K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V 4

K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V 5

K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V 6

K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V 7

Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V 8

K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V 9

K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V 10
K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V 11

K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V 12

Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.

K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V 13



K4 Pure Water Bottle Plastic Blowing Machine 10000BPH 380V 14

FAQ

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
