Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE SGS ISO |
| Model Number: | J5L2 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | standard export wooden case or according to your requirements |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Set/Sets per Year |
| Plastic Processed: | PET | Bottle Volume(ml): | 5000 Ml |
|---|---|---|---|
| Condition: | New | Blow Moulding Type: | Stretch Blow Moulding |
| Dimension(L*W*H): | 2.25*1.6*1.7m | Automation: | Automatic |
| Warranty: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel |
| Highlight: | 1300BPH pet bottle blowing machine,2 Cavity pet bottle blowing machine,Wide Neck Jar pet blowing machine |
||

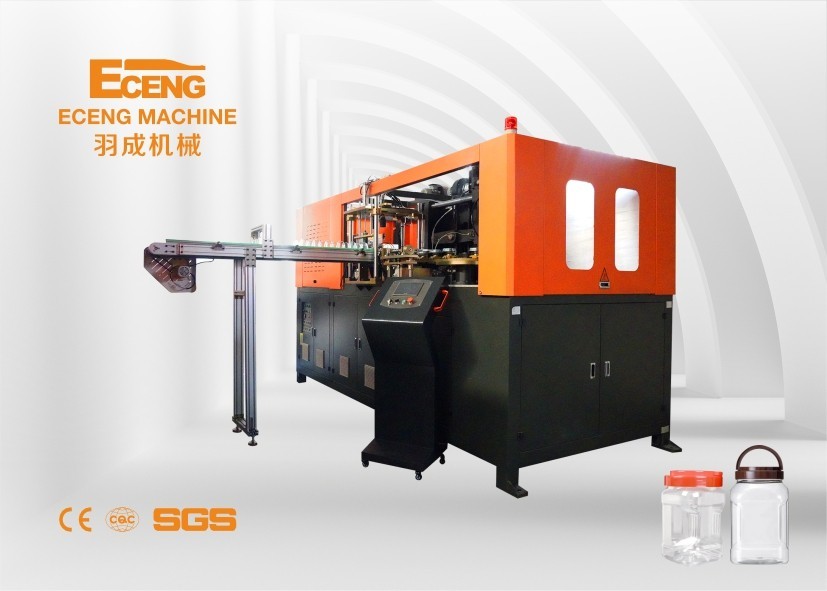

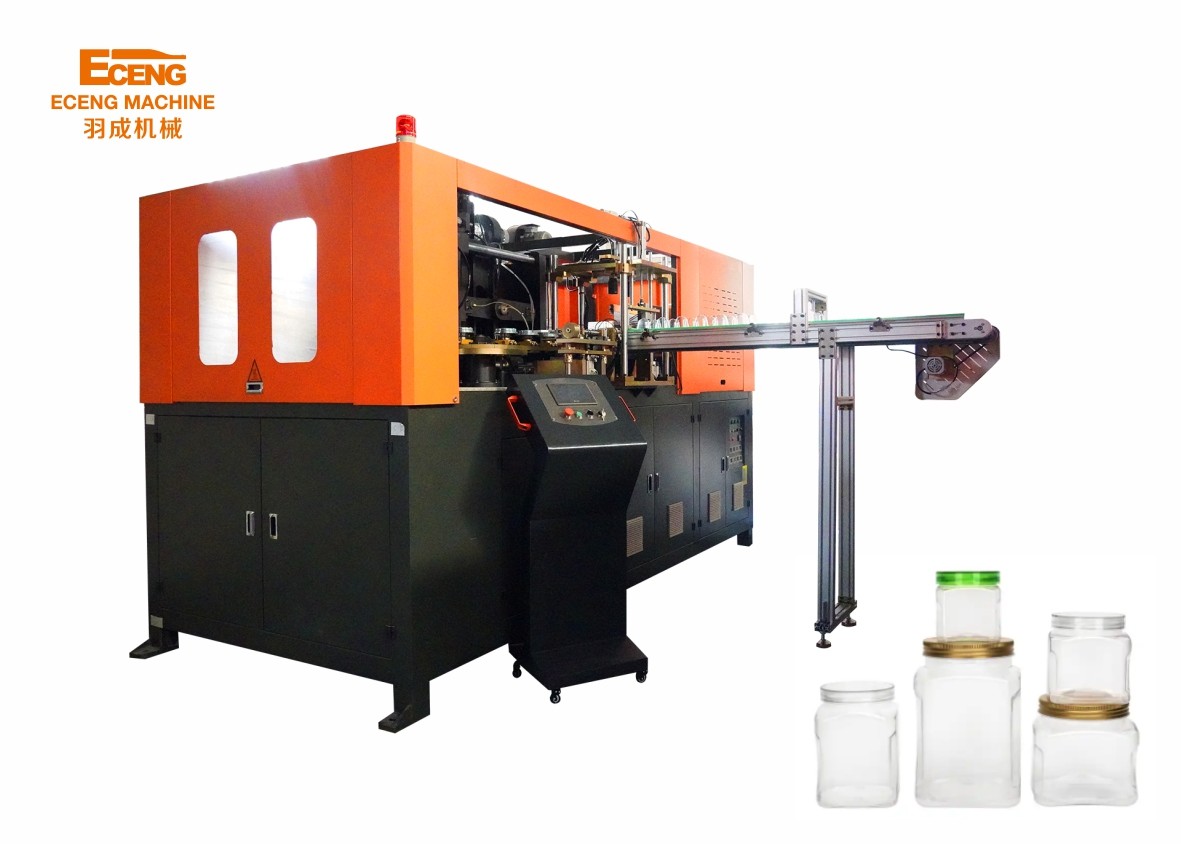

Wide Neck Jar Automatic 2 Cavity 5L PET Bottle Blow Molding Machine 1300BPH
Eceng Wide Neck Jar Automatic 2 Cavity 5L PET Bottle Blow Molding Machine J5L2 With a capacity of 1300 bottles per hour (BPH), this machine is designed to meet the demands of wide neck jar manufacturing.
Equipped with automatic features, this machine streamlines the production process, reducing manual intervention and increasing efficiency. Its user-friendly interface and intuitive controls make setup and operation a breeze.Eceng J5L2 incorporates state-of-the-art blow molding technology to achieve uniform wall thickness, exceptional clarity, and superior strength for your wide neck jars. Whether you're in the food, beverages, or household products industry, this machine is perfect for meeting your packaging needs.
| Item | J5L2 | |
| Bottle type specification | Cavity | 2 |
| Theory output | 1200-1300 | |
| Max.volume | 5L | |
| Bottle mouth maximum overall DIdiameter | 150mm | |
| Bottle biggest diameter | 180mm | |
| Bottle maximum height | 400mm | |
| Power specifications | Light tube quantity | 32pcs |
| Light tube power | 1.5KW | |
| Maximum heating power | 48KW | |
| All electric machine installation | 51KW | |
| Actual consumption | 35.7KW | |
| Air pressure specification | Work pressure | 7-9kg/cm2 |
| Low-pressure gas consumption | 1600L/min | |
| Blow bottle pressure | 25-35kg/cm2 | |
| Higher -pressure gas consumption | 3400Ltr/min | |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10℃ | |
| Consumption | 6000kcal/hr | |
| Forzen water flow | 50L/min | |
| Machine specification | Size of the machine | 4.7x1.6x1.9 |
| Weight of the machine | 3ton | |
Automatic China PET jar blowing machine J5L2 is specialized euipment designed for wide neck PET jars.It is high automatically,wide versatility and easy operation.It is especially suitable for the production of neck 50-180mm.J series bottle making machine is precisely positioned and adopts advanced microcomputer PLC control system,which is more stable.
J linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
J series linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle.
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.
our advantage:1. Resonable price;2. Good after service;3. experienced skilled workers and professional engineers;4. Good quality ,excellent service ,long life mould;5. on time delivery time;6.our engineers can be online for 24 hours to serve you.
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
