Large Volume 5L Water Bottle Injection Molding Machine K5L4 Automatic

Large Volume 5L Water Bottle Injection Molding Machine K5L4 Automatic

Large Volume 5L Water Bottle Injection Molding Machine K5L4 Automatic
Large Volume 5L Water Bottle Injection Molding Machine K5L4 Automatic
Large Volume 5L Water Bottle Injection Molding Machine K5L4 Automatic
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: K5L4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Bottle Volume(ml): 2000ml Condition: New
Application: Bottle Blow Moulding Type: Stretch Blow Moulding
Voltage: 380V,50HZ Dimension(L*W*H): 7.8*1.95*2.54m
Hollow Part Volume: 5L Applicable Industries: Manufacturing Plant
High Light:

5L water bottle injection molding machine

,

2000ml water bottle injection molding machine

Large volume 5L K5L4 automatic water oil bottles making blowing machine
Large Volume 5L Water Bottle Injection Molding Machine K5L4 Automatic 0
 Large Volume 5L Water Bottle Injection Molding Machine K5L4 Automatic 1

Model Eceng K5L4

Bottle type specification



Cavity 4
Max.volume 3L-5L
Bottle mouth maximum overall diameter 38-63mm
Bottle biggest diameter 185mm
Bottle maximum height 360mm

Capacity specification



Theory output 3500-4000BPH
Bottle type volume 5000ML
Bottle type weight 60g
Bottle type Round
Power specification Light tube quantity 32pcs
Light tube power 2KW
Maximum heating power 64KW
All electric machine installation 75KW
Actual consumption 30%--60%

Air pressure specification



Work pressure 5-6kg/cm2
Blow bottle pressure 25-45kg/cm2
Higher -pressure gas consumption 8000Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 18000kcal/hr
Forzen water flow 120L/min
Machine specification Machine size 7.8*1.95*1.9
Machine weight 10.6ton

The grain and oil industry is a cornerstone of the national economy and an essential part of people's diets, both in urban and rural areas. Edible oil, including popular variants like peanut oil, palm oil, blended oil, and olive oil, caters to the diverse needs of consumers. As a result, the demand for high-quality edible oil bottles is soaring in the market.

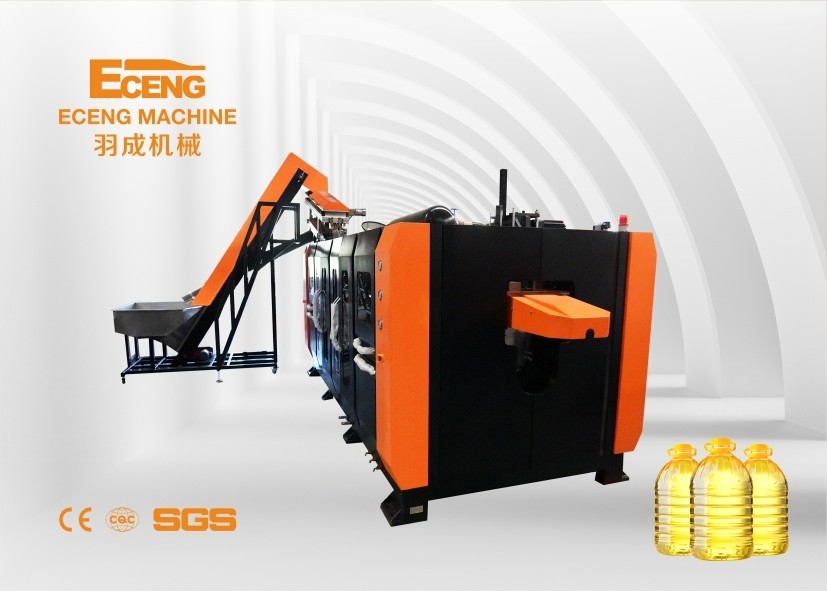

Introducing the Eceng K5L4, a cutting-edge four-cavity 5L bottle blowing machine meticulously crafted to cater to the requirements of the edible oil bottle market. Its versatility extends beyond oil bottles; it is also capable of producing disposable water buckets. With impeccable quality and an exceptional production capacity, the Eceng K5L4 is your ultimate tool for capitalizing on the opportunities in the edible oil bottle market.
We understand that meeting customer demands for top-notch product quality and production efficiency is paramount. The Eceng K5L4 incorporates advanced technology and expert craftsmanship to ensure consistent and stable bottle quality. Moreover, its high production capacity and swift production speed will significantly boost your productivity, giving you a competitive edge in the market.
Choose the Eceng K5L4 with confidence to tap into the edible oil bottle market. Benefit from its outstanding performance and unwavering reliability, distinguishing yourself from the competition. Invest in the Eceng K5L4 now to seize market opportunities and embark on a journey towards unparalleled success!

Large Volume 5L Water Bottle Injection Molding Machine K5L4 Automatic 2

Large Volume 5L Water Bottle Injection Molding Machine K5L4 Automatic 3

Large Volume 5L Water Bottle Injection Molding Machine K5L4 Automatic 4

Large Volume 5L Water Bottle Injection Molding Machine K5L4 Automatic 5
Large Volume 5L Water Bottle Injection Molding Machine K5L4 Automatic 6







Large Volume 5L Water Bottle Injection Molding Machine K5L4 Automatic 7

Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.


Large Volume 5L Water Bottle Injection Molding Machine K5L4 Automatic 8
Large Volume 5L Water Bottle Injection Molding Machine K5L4 Automatic 9

Large Volume 5L Water Bottle Injection Molding Machine K5L4 Automatic 10
Large Volume 5L Water Bottle Injection Molding Machine K5L4 Automatic 11

Large Volume 5L Water Bottle Injection Molding Machine K5L4 Automatic 12

FAQ

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
