Place of Origin: | Jiangsu, China |
Brand Name: | Eceng |
Certification: | CE ISO |
Model Number: | K12 |
Minimum Order Quantity: | 1set |
---|---|
Packaging Details: | standard export wooden case or according to your requirements |
Delivery Time: | 60days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 500 Set/Sets per Year |
Plastic Processed: | PET | Application: | Bottle |
---|---|---|---|
Blow Moulding Type: | Stretch Blow Moulding | Automation: | Automatic |
Key Selling Points: | Automatic Blow Molding Machine | Warranty Of Core Components: | 1 Year |
Applicable Industries: | Manufacturing Plant | Model Number: | K12 |
High Light: | 12 Cavities stretch blow moulding machine,Fully Automatic stretch blow moulding machine,26000 BPH stretch blow molding machine |

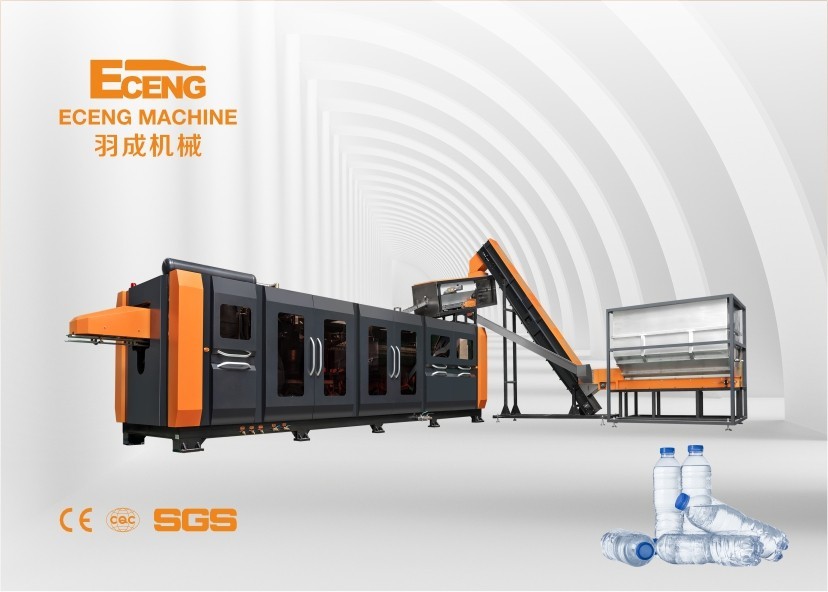

12 Cavitys Fully Automatic Stretch Blow Moulding Making Machine 26000BPH
Model Eceng K12 | ||
Bottle type specification
|
Cavity | 12 |
Max.volume | 200ml-750ml | |
Bottle mouth maximum overall diameter | 25-30mm NECK | |
Bottle biggest diameter | 75mm | |
Bottle maximum height | 180mm | |
Capacity specification
|
Theory output | 22000~26000BPH |
Bottle type volume | 600ML | |
Bottle type weight | 13.5g | |
Bottle type | Round | |
Power specification | Light tube quantity | 32pcs |
Light tube power | 1.75KW | |
Maximum heating power | 56KW | |
All electric machine installation | 71KW | |
Actual consumption | 30%--60% | |
Air pressure specification
|
Work pressure | 5-6kg/cm2 |
Blow bottle pressure | 25-45kg/cm2 | |
Higher -pressure gas consumption | 24000Ltr/min | |
Forzen water specification | Work pressure | 5-6 kg/cm2 |
Temperature range | 10℃ | |
Consumption | 12000kcal/hr | |
Temperature range | 10℃ | |
Forzen water flow | 180L/min | |
Machine specification | Machine size | 9.0x2.0x2.3 |
Machine weight | 10.0ton |
The 12-Cavity Fully Automatic Stretch Blow Moulding Making Machine is a game-changer in the industry, designed to take your production capabilities to new heights. With an incredible production capacity of 26,000 bottles per hour, this machine will transform your operations and boost your efficiency.
One of the standout features of this machine is its ability to be seamlessly integrated into a Blowing-Filling-Capping Combiblock system. By eliminating the need for a separate washing step, you can streamline your production process and significantly reduce downtime. This innovative design ensures a more efficient, cost-effective, and environmentally friendly operation.
Equipped with advanced technology and precision engineering, this machine guarantees exceptional bottle quality and consistency. Each bottle produced is flawless, meeting the highest industry standards.
Versatility is another key advantage of the 12-Cavity Fully Automatic Stretch Blow Moulding Making Machine. It can handle a wide range of bottle sizes, shapes, and materials, allowing you to diversify your product offerings and meet various market demands. Whether it's beverages, personal care products, or household items, this machine has you covered.
Choose Eceng 12 Cavitys Fully Automatic Stretch Blow Moulding Making Machine and take your business to new heights of efficiency, versatility, and profitability!
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
