Plastic 2L Food Jar Pet Bottle Blow Molding Machine Automatic PLC

Plastic 2L Food Jar Pet Bottle Blow Molding Machine Automatic PLC

Plastic 2L Food Jar Pet Bottle Blow Molding Machine Automatic PLC
Plastic 2L Food Jar Pet Bottle Blow Molding Machine Automatic PLC
Plastic 2L Food Jar Pet Bottle Blow Molding Machine Automatic PLC
Product Details:
Place of Origin: CHINA
Brand Name: ECENG
Certification: CE SGS ISO
Model Number: jar blowing machine
Payment & Shipping Terms:
Minimum Order Quantity: One
Packaging Details: film/wooden
Delivery Time: 45days
Payment Terms: TT LC western Union
Supply Ability: 10sets Per month
Contact Now
Detailed Product Description
Model Number: J Series Weight: 2.5ton
Capacity: High Color: Customized
Control System: PLC Material: Plastic
Molding Method: Blow Molding
High Light:

2L pet bottle blow molding machine

,

PLC pet bottle blow molding machine

,

2L pet blowing machine

Low Price Plastic 2L Food Jar Automatic PET Bottle Blow Molding Machine

Plastic 2L Food Jar Pet Bottle Blow Molding Machine Automatic PLC 0

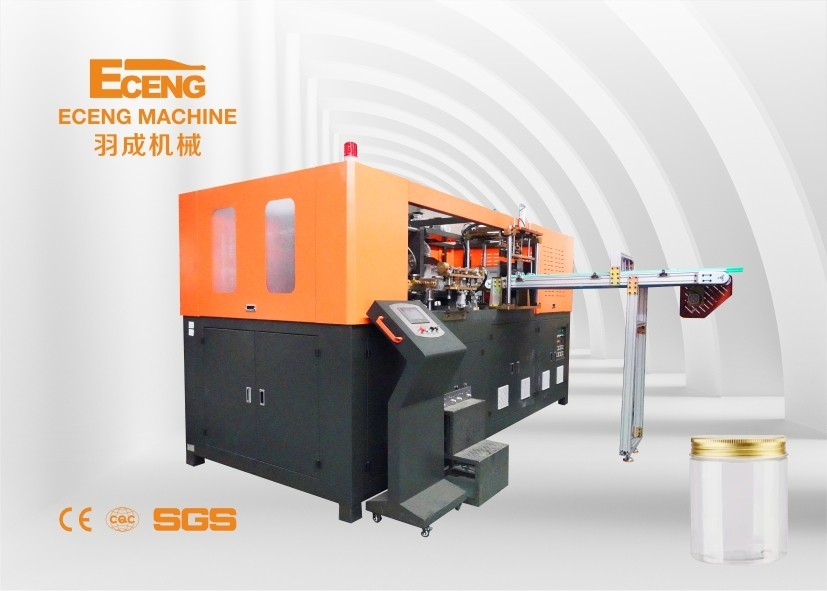

This advanced blow molding machine is specifically designed for the production of 2L food jars made from PET plastic material. With its four-cavity configuration, it enables high-volume production while maintaining excellent efficiency and precision.
Eceng J4 utilizes state-of-the-art technology to ensure consistent and reliable performance. Its automatic operation ensures seamless production, reducing manual labor and increasing productivity. The machine features a user-friendly interface, allowing for easy control and adjustment of various parameters to meet specific production requirements.
Equipped with a robust heating system, the Eceng J4 ensures optimal heating distribution, resulting in uniform wall thickness and consistent bottle quality.
Additionally, this machine boasts a low price point, making it an excellent investment for businesses of all sizes. Its cost-effectiveness, combined with its high production capacity, makes the Eceng J4 an ideal choice for manufacturers in the food industry looking to enhance their production capabilities.
In summary, the Eceng J4 Four Cavity Low Price Plastic 2L Food Jar Automatic PET Bottle Blow Molding Machine delivers superior performance, efficiency, and affordability. Invest in this machine to elevate your production capabilities and meet the demands of the competitive market.

Plastic 2L Food Jar Pet Bottle Blow Molding Machine Automatic PLC 1

Model

J4

Bottle type specification

Cavity

4

Theory output bph

2200-2400

Max.volum

2L

Bottle mouth maximum overall diameter

80mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm

Power specification

Light tube quantity

32pcs

Light tube power

1KW

Maximum heating power

32KW

All electric machine installation

42KW

Actual consumption

30%--60%

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

3000Ltr/min

Frozen water specification

Work pressure

7-9 kg/cm2

Temperature range

10℃

Consumption

8000kcal/hr

Forzen water flow

138L/min

Machine specification

Machine size

4.1x1.6x1.9

Machine weight

3.9ton

Plastic 2L Food Jar Pet Bottle Blow Molding Machine Automatic PLC 2

J linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.

J series linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.

6. less than 0.2% scrap rate for finished bottle.

Plastic 2L Food Jar Pet Bottle Blow Molding Machine Automatic PLC 3

Plastic 2L Food Jar Pet Bottle Blow Molding Machine Automatic PLC 4

Plastic 2L Food Jar Pet Bottle Blow Molding Machine Automatic PLC 5

Plastic 2L Food Jar Pet Bottle Blow Molding Machine Automatic PLC 6

Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.

Plastic 2L Food Jar Pet Bottle Blow Molding Machine Automatic PLC 7
Plastic 2L Food Jar Pet Bottle Blow Molding Machine Automatic PLC 8

our advantage:1. Resonable price;2. Good after service;3. experienced skilled workers and professional engineers;4. Good quality ,excellent service ,long life mould;5. on time delivery time;6.our engineers can be online for 24 hours to serve you.



Plastic 2L Food Jar Pet Bottle Blow Molding Machine Automatic PLC 9

Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.

Plastic 2L Food Jar Pet Bottle Blow Molding Machine Automatic PLC 10

Plastic 2L Food Jar Pet Bottle Blow Molding Machine Automatic PLC 11



Plastic 2L Food Jar Pet Bottle Blow Molding Machine Automatic PLC 12

FAQ

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
