5 Gallon PET Plastic Water Bottle Blow Moulding Machine For 19 Liter Barrel

5 Gallon PET Plastic Water Bottle Blow Moulding Machine For 19 Liter Barrel

  • 5 Gallon PET Plastic Water Bottle Blow Moulding Machine For 19 Liter Barrel
  • 5 Gallon PET Plastic Water Bottle Blow Moulding Machine For 19 Liter Barrel
  • 5 Gallon PET Plastic Water Bottle Blow Moulding Machine For 19 Liter Barrel
  • 5 Gallon PET Plastic Water Bottle Blow Moulding Machine For 19 Liter Barrel
  • 5 Gallon PET Plastic Water Bottle Blow Moulding Machine For 19 Liter Barrel
5 Gallon PET Plastic Water Bottle Blow Moulding Machine For 19 Liter Barrel
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: EC
Model Number: YCQ-20L-1E
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $39,800.00/Sets 1-1 Sets
Packaging Details: 5 gallon bottle blowing machine is packed with wooden case or as customers' request.
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set/Sets per Month 5 gallon bottle blowing machine
Contact Now
Detailed Product Description
Blow Moulding Type: Stretch Blow Moulding Voltage: 380V,50-60HZ
Dimension(L*W*H): 5.2*2.0*2.0 Power (kW): 79
Weight (KG): 6100 KG Applicable Industries: Manufacturing Plant
Automatic: Yes Product: 5 Gallon Bottle Blowing Machine
Bottle Volume: 10L-20L Port: Shanghai / Ningbo
High Light:

5Gallon water bottle blow moulding machine

,

PET water bottle blow moulding machine

,

19Liter water bottle blow molding machine

5 Gallon PET plastic water bottle blow moulding machine for 19liter barrel

5 Gallon PET Plastic Water Bottle Blow Moulding Machine For 19 Liter Barrel 0

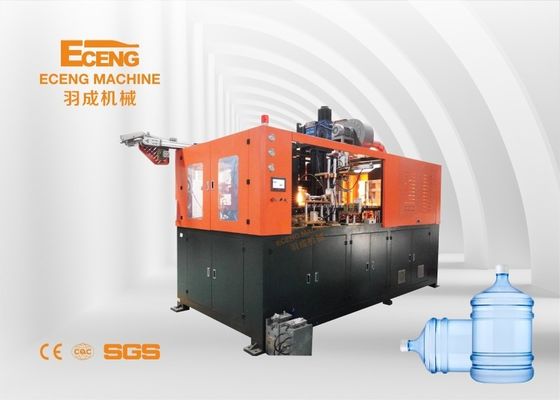

YCQ series is a stable two-step blow-down stretch automatic blowing machine. max volume 20L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.



5 Gallon PET Plastic Water Bottle Blow Moulding Machine For 19 Liter Barrel 1



Item
YCQ-20L-1





Bottle type specification
Cavity
1
Theory output
350
Max.volume
20L
Bottle mouth maximum overall diameter
150mm
Bottle biggest diameter
350mm
Bottle maximum height
550mm



Power specifications
Light tube quantity
48pcs
Light tube power
1.5KW
Maximum heating power
72KW
All electric machine installation
75KW
Actual consumption
52.5KW



Air pressure specification
Work pressure
7-9kg/c㎡
Low-pressure gas consumption
1600L/min
Blow bottle pressure
25-35kg/c㎡
Higher -pressure gas consumption
2000-3000Ltr/min


Forzen water specification
Work pressure
5-6 kg/c㎡
Temperature range
10℃
Consumption
12000kcal/hr
Forzen water flow
88L/min

Machine specification
Size of the machine
5.2x2.0x2.0
Weight of the machine
6to

5 Gallon PET Plastic Water Bottle Blow Moulding Machine For 19 Liter Barrel 2

5 Gallon PET Plastic Water Bottle Blow Moulding Machine For 19 Liter Barrel 3

拉伸PET瓶5超大型吹塑机3期380V7

our advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you

After Sales Service
1. Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. the sample service
1' We can send you the video of the running machine.
2' You are welcome to come to visit our factory,and see the machine running.
4. We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 17 years.
5. well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 . 12 Months guarantee and life-long technical support.
7. Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any question
