Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | eceng |
| Certification: | CE/ISO |
| Model Number: | k8 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | packed by wooden pallet or as customer request |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 15 Set/Sets per Month |
| Plastic Processed: | PET | Application: | Bottle |
|---|---|---|---|
| Blow Moulding Type: | Stretch Blow Moulding | Hollow Part Volume: | 2L |
| Automation: | Automatic | Warranty: | 1 Year |
| Warranty Of Core Components: | 1 Year | Production Capacity (BPH): | 16000 |

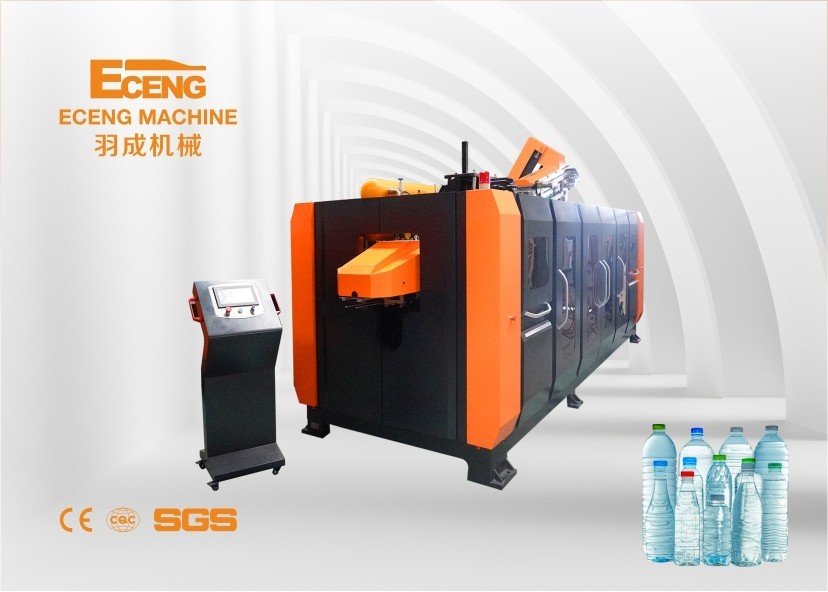

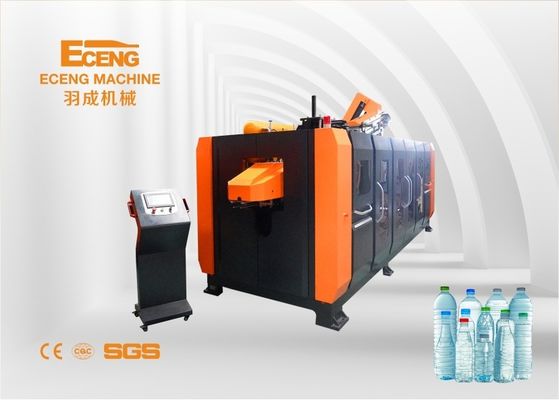

k8 8 Cavity fully automatic plastic bottle making machine price
Eceng K Series Fully-Electric Blow Molding Machine,a groundbreaking innovation in bottle manufacturing,Single cavity capacity can reach 3200bph.Streamlined 5-action process,Boasting 27 patents,Seamlessly integrates into Blowing-Filling-Capping Combiblock,eliminating the washing step,Remote control operation for added convenience.Can be operated by Remote Control,Experience unparalleled efficiency and precision in bottle production with the Eceng K Series.
| Item | K4 | K6 | K8 |
| Cavity | 4 | 6 | 8 |
| Theory output | 6000-8500BPH | 9000-12000 | 12000-16000 |
| Max.volume | 2L | 2L | 2L |
| Bottle mouth maximum overall diameter | 28-38mm | 28-38mm | 28-38mm |
| Bottle biggest diameter | 100mm | 100mm | 100mm |
| Bottle maximum height | 330mm | 330mm | 330mm |
| Light tube quantity | 16pcs | 32pcs | 32pcs |
| Light tube power | 1.25KW | 1.25KW | 1.5KW |
| Maximum heating power | 20KW | 40KW | 48KW |
| All electric machine installation | 29KW | 49KW | 65KW |
| Actual consumption | 30%-60% | 30%-60% | 30%-60% |
| Work pressure | 5-6kg/c | 5-6kg/c | 5-6kg/c |
| Blow bottle pressure | 25-45kg/c | 25-45kg/c | 25-45kg/c |
| Higher -pressure gas consumption | 6000Ltr/min | 8000Ltr/min | 12000Ltr/min |
| Work pressure | 5-6 kg/c | 5-6 kg/c | 5-6 kg/c |
| Temperature range | 10ºC | 10ºC | 10ºC |
| Consumption | 8000kcal/hr | 8000kcal/hr | 12000kcal/hr |
| Forzen water flow | 30L/min | 88L/min | 88L/min |
| Size of the machine | 3.6*1.6*1.9(m) | 4.8x1.6x1.9 | 5.78x1.6x1.9 |
| Weight of the machine | 4.3ton | 6.1ton | 7.45ton |
k series linear bottle blowing machine adopt servo control system,with stable and reliable structure,high speed,stable, simple maintenance,flexible and convenient mold matching etc,which can meet needs of continuous production.Use microcomputer touch screen controls and adjusts temperature, make temperature adjustment of blow molding different bottle type simple.Servo transmission system,high positioning accuracy,fast speed,good stability and reliability, no need air source,energy saving,low maintenance cost.

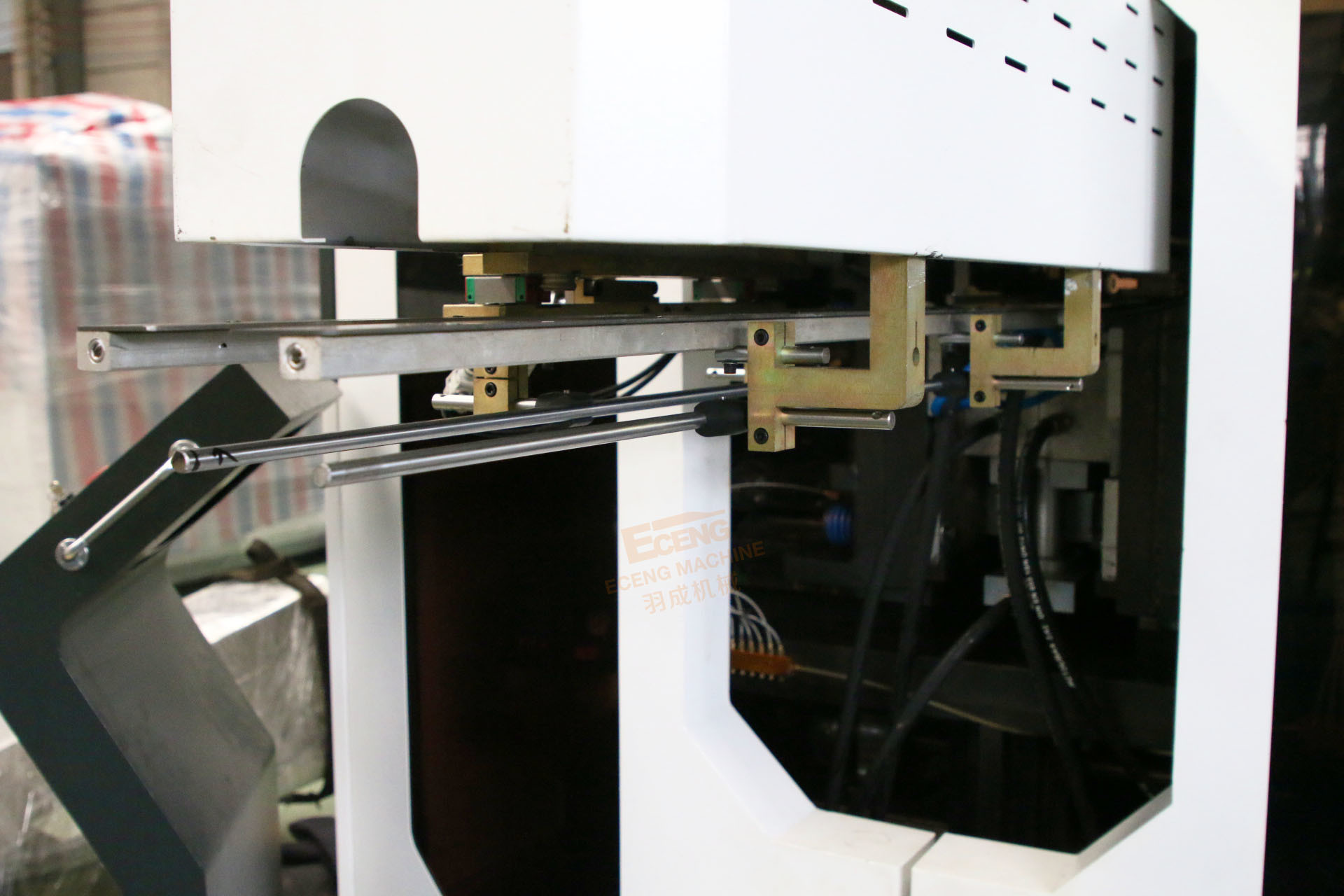

Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

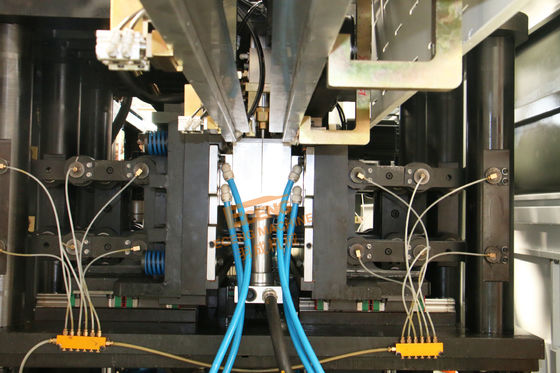

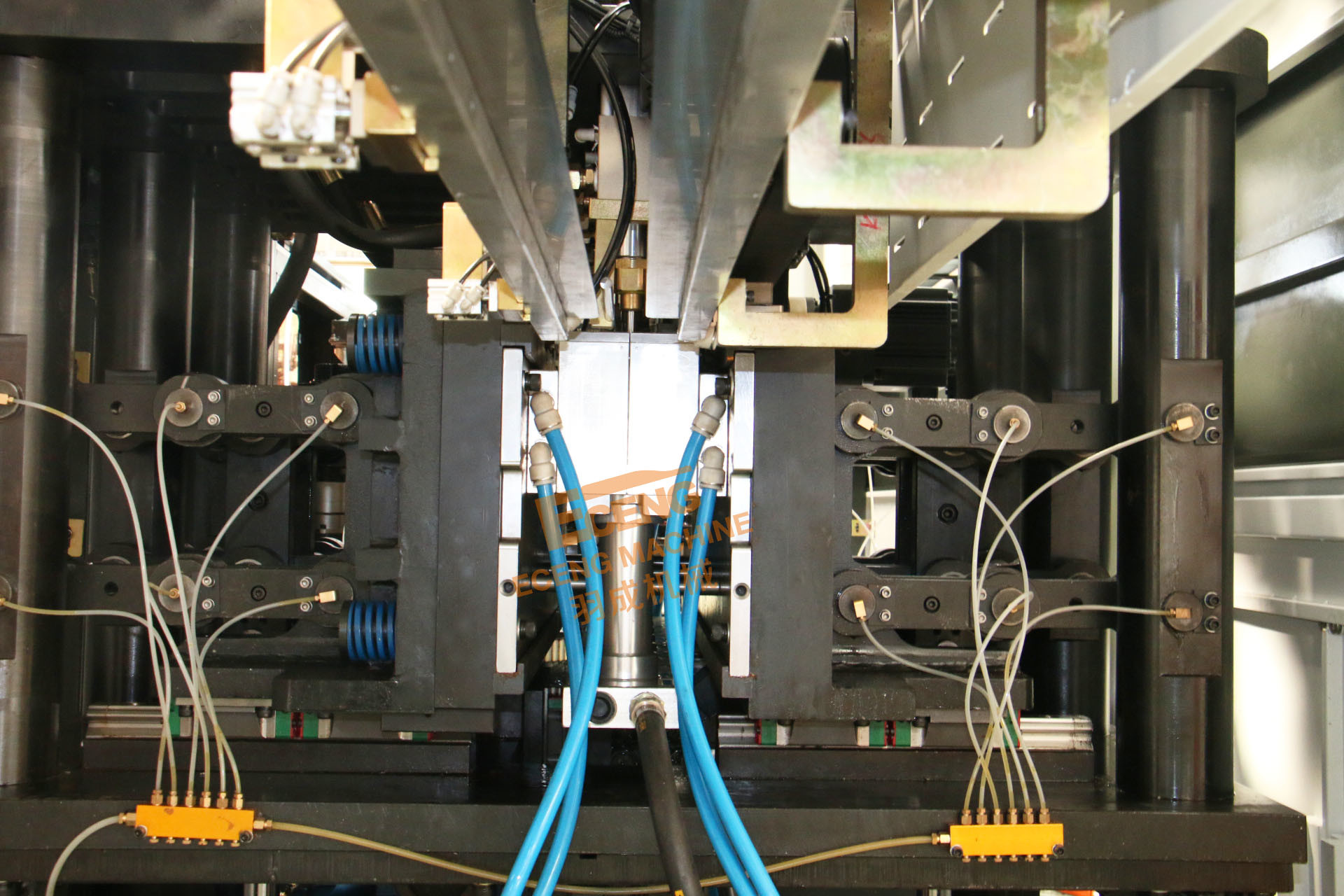

New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

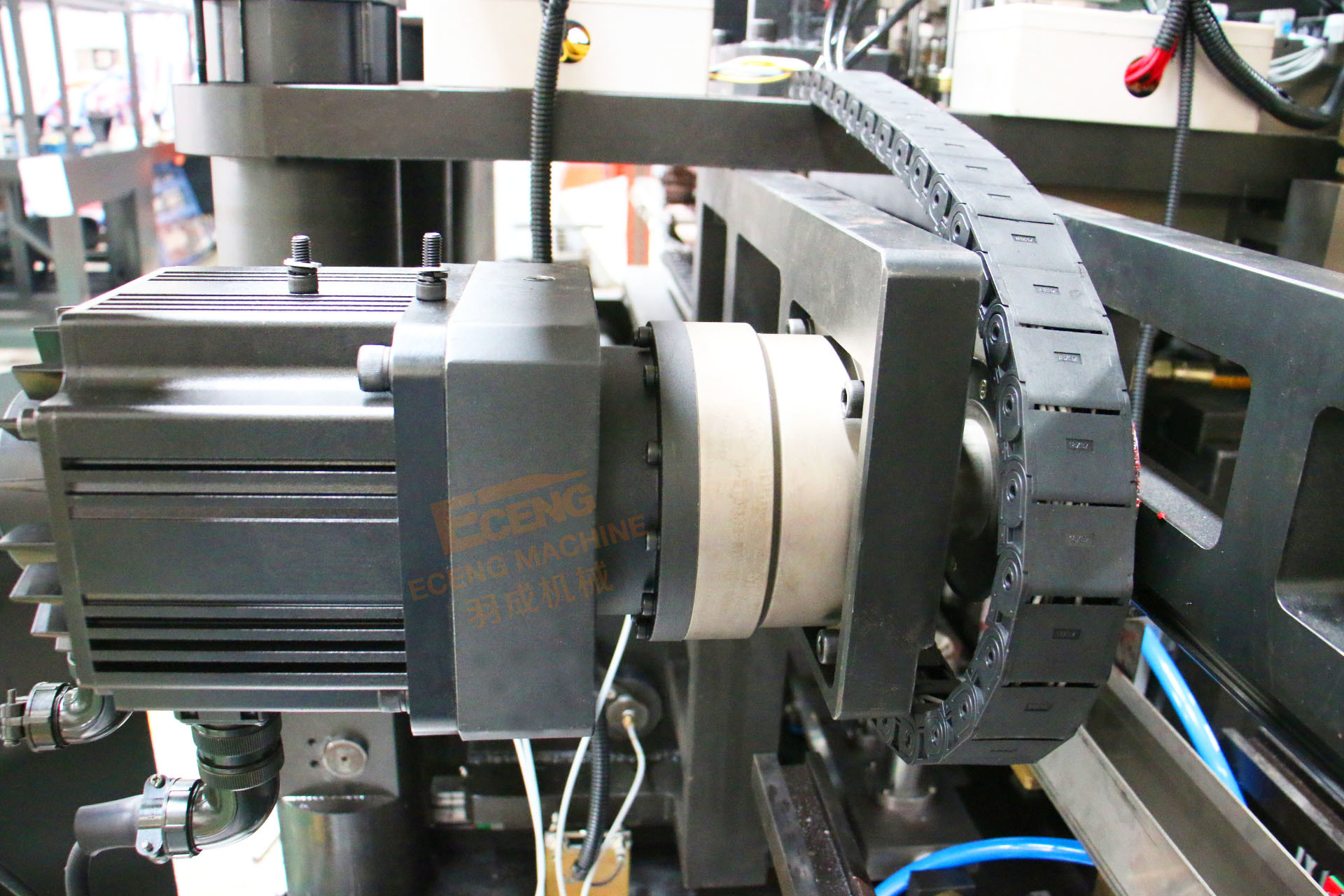

k series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
