710ml 4 Cavity PET Blowing Machine 6000BPH Water Bottle Moulding

Minimum Order Quantity : 1set Price : $5,500.00 - $35,000.00/Sets
Packaging Details : Wooden package Delivery Time : 30days
Payment Terms : L/C, T/T, Western Union Supply Ability : 10 Set/Sets per Month
Place of Origin: Jiangsu, China Brand Name: Eceng
Certification: CE SGS ISO Model Number: Q6000

Detail Information

Plastic Processed: PET Max.Bottle Height(mm): 330 Mm
Neck Diameter(mm): 28 Mm Max.Bottle Diameter(mm): 100 Mm
Bottle Volume(ml): 2000 Ml Condition: New
Application: Bottle, Plastic PET Bottle Blow Moulding Type: Stretch Blow Moulding
Voltage: 380V/50HZ, 3phase 380V/220V/415V 50HZ Dimension(L*W*H): 4.5*1.6*1.9(m)
Hollow Part Volume: 2L Rotary Cylinder Brand: SMC
PLC Brand: XINJE Weight (KG): 4500 KG
Automation: Automatic Warranty: 1 Year, One Year
Key Selling Points: Easy To Operate Applicable Industries: Food & Beverage Factory
Marketing Type: Hot Product 2019 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Automatic: Yes Location: Zhangjiagang City
Capacity: 6000BPH Weight: 3.55Ton
Power: 51KW Port: Shanghai
High Light:

710ml 4 Cavity PET Blowing Machine

,

6000BPH water bottle moulding machine

,

710ml water bottle moulding machine

Product Description

6000BPH water bottle blowing machine factory from jiangsu water tank blow moulding machine 710ml710ml 4 Cavity PET Blowing Machine 6000BPH Water Bottle Moulding 0

710ml 4 Cavity PET Blowing Machine 6000BPH Water Bottle Moulding 2

710ml 4 Cavity PET Blowing Machine 6000BPH Water Bottle Moulding 4

YCQ series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 6 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

Feature:

A. Advanced PLC control system, stable and excellent performance.

B. Conveyor belt automatically feeds preforms.

C.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously inthe  infrared pre-heater.

D. High adaptability,preform absorbs heat by adjusting the distance between lamp and reflector.With automatic constant temperature device,temperature is kept within a certain range.

E. Safety locks are provided during each mechanical action to protect operator's safety.

F. Use cylinder instead of hydraulic cylinder, low pollution, low noise.

G. Use different air pressure for blowing and machine operation,energy saving and environmental protection.

H. Equipped with high pressure and double-crank linkage clamping, providing high clamping force.

I. Two ways of operating: automatic and manual.

J. Safe, reliable, unique valve position design makes blowing process easier to control.

K. Low-cost, high-efficiency, easy-to-operate, easy-to-maintain, advanced automatic process flow.

L. Avoid bottle contamination.

M. Protection of low temperature cooling system.

N. Easy to install and start.

O. Low scrap rate.

710ml 4 Cavity PET Blowing Machine 6000BPH Water Bottle Moulding 6

Item

Q6000

Bottle type specification

Cavity

4

Theory output

5500-6000

Max.volume

2L

Bottle mouth maximum overall diameter

28-38mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm

Power specifications

Light tube quantity

32pcs

Maximum heating power

40kw

All electric machine installation

43kw

Actual consumption

21.5kw

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600Ltr/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

3000 Ltr/min

Forzen water specification

Work pressure

5-6 kg/cm2

Temperature range

10°C

Consumption

8000kcal/hr

Forzen water flow

88L/min

Machine specification

Size of the machine

4.5x1.6x1.9

Weight of the machine

3.5ton

710ml 4 Cavity PET Blowing Machine 6000BPH Water Bottle Moulding 8



Fully automatic,low investment,high efficiency,easy operation, simple maintenance and safety.

 710ml 4 Cavity PET Blowing Machine 6000BPH Water Bottle Moulding 10

Servo transmission system,high positioning accuracy, fast speed and stability, good reliability.Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement;Adopt high pressure and double crank arm link locking,strong clamping force.

 710ml 4 Cavity PET Blowing Machine 6000BPH Water Bottle Moulding 12

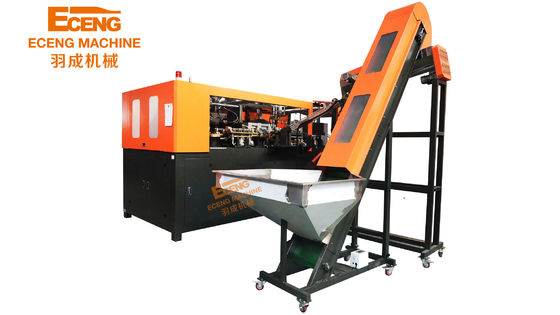

Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

710ml 4 Cavity PET Blowing Machine 6000BPH Water Bottle Moulding 14



Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

 710ml 4 Cavity PET Blowing Machine 6000BPH Water Bottle Moulding 16

YCQ linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.

710ml 4 Cavity PET Blowing Machine 6000BPH Water Bottle Moulding 18



710ml 4 Cavity PET Blowing Machine 6000BPH Water Bottle Moulding 20710ml 4 Cavity PET Blowing Machine 6000BPH Water Bottle Moulding 22

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
