2 Cavity PET Bottle Blowing Machine

2 Cavity PET Bottle Blowing Machine

  • High Light

    2 cavity PET Bottle Blowing Machine

    ,

    2000BPH plastic bottle manufacturing machine

    ,

    2000BPH plastic bottle manufacturer machine

  • Model Number
    YCQ-2L-2
  • Color
    Orange
  • Output
    2000bph
  • Weight
    2.5ton
  • Place of Origin
    CHINA
  • Brand Name
    ECENG
  • Certification
    CE SGS ISO
  • Model Number
    YCQ-2L-2
  • Minimum Order Quantity
    One
  • Price
    Negotiable
  • Packaging Details
    film/wooden
  • Delivery Time
    45days
  • Payment Terms
    TT LC western Union
  • Supply Ability
    10sets Per month

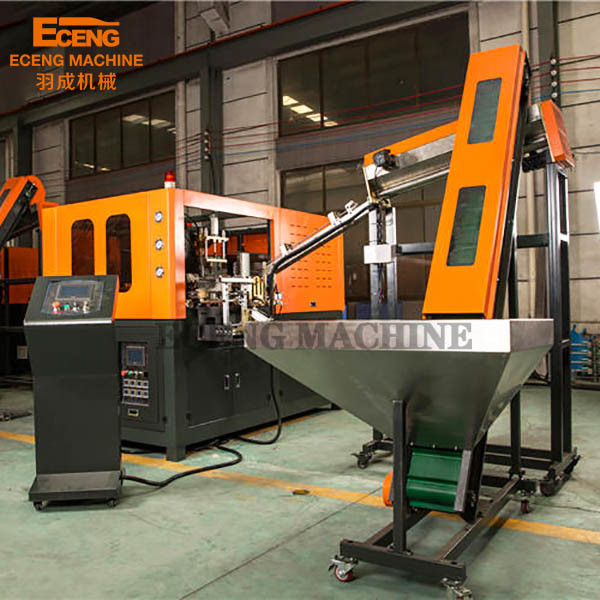

2 Cavity PET Bottle Blowing Machine

YCQ -2L-2 2cavity 2000BPH mineral water bottle high speed pet bottle blow molding machine

2 Cavity PET Bottle Blowing Machine 0

2 Cavity PET Bottle Blowing Machine 1

2 Cavity PET Bottle Blowing Machine 2

model YCQ-2L-2
Bottle type specification Cavity 2
Theory output 2400-2700
Max.volume 2L
Bottle mouth maximum overall diameter 80mm
Bottle biggest diameter 100mm
Bottle maximum height 330mm
Power specifications Light tube quantity 32pcs
Maximum heating power 24KW
All electric machine installation 27KW
Actual consumption 8.1KW
Air pressure specification Work pressure 7-9kg/cm2
Low-pressure gas consumption 1000L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 1500Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10°C
Consumption 5000kcal/hr
Forzen water flow 30L/min
Machine specification Size of the machine 2.25x1.6x1.7
Weight of the machine 2.5ton



YCQ -2L-2 2cavity 2000BPH high speed pet bottle blow molding PET 600ml mineral water bottle

Fully automatic,low investment,high efficiency,easy operation, simple maintenance and safety.

Servo transmission system,high positioning accuracy, fast speed and stability, good reliability.Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement;Adopt high pressure and double crank arm link locking,strong clamping force.
