Blow your bottle, Shape your dream
 |
| Place of Origin: | CHINA |
| Brand Name: | ECENG |
| Certification: | CE SGS ISO |
| Model Number: | Q3000 |
| Minimum Order Quantity: | One |
|---|---|
| Price: | Negotiable |
| Packaging Details: | film/wooden |
| Delivery Time: | 45days |
| Payment Terms: | TT LC western Union |
| Supply Ability: | 10sets Per month |
| Model Number: | Q3000 | Color: | Orange |
|---|---|---|---|
| Output: | 3000bph | Weight: | 2.5ton |
| High Light: | 3000BPH PET Stretch Blowing Machine,3000BPH 2 cavity pet blowing machine,100ml bottle 2 cavity pet blowing machine |
||

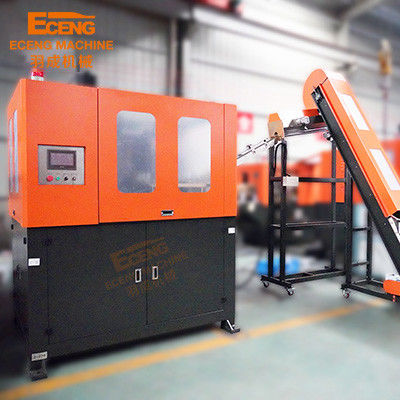

Q3000 2cavity 3000BPH Automatic liner pet blow molding machine PET 100ml Juice drink bottle
| model | Q3000 | |
| Bottle type specification | Cavity | 2 |
| Theory output | 3000 | |
| Max.volume | 2L | |
| Bottle mouth maximum overall diameter | 28-80mm | |
| Bottle biggest diameter | 100mm | |
| Bottle maximum height | 330mm | |
| Power specifications | Light tube quantity | 32pcs |
| Maximum heating power | 24KW | |
| All electric machine installation | 27KW | |
| Actual consumption | 19KW | |
| Air pressure specification | Work pressure | 7-9kg/cm2 |
| Low-pressure gas consumption | 1000L/min | |
| Blow bottle pressure | 25-35kg/cm2 | |
| Higher -pressure gas consumption | 1500Ltr/min | |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10°C | |
| Consumption | 5000kcal/hr | |
| Forzen water flow | 30L/min | |
| Machine specification | Size of the machine | 2.25x1.6x1.7 |
| Weight of the machine | 2.5ton | |
stretch blow moulding machine 330ml bottle
Q series fully automatic PET stretch blowing machine is developed by advanced bottle blowing technology.It has advantage of high-level fully automatic,stable working performance,simple structure but high working efficiency.
The Q3000 bottle blowing equipment is importing the preform, and through the high-precision handle pick-and-place device, it can be servo-positioned, quickly and accurately put the handle in the mold, and then blow the bottle, so that the bottle body and the handle are fully integrated, and the bottle is fully handled. Automatic production.

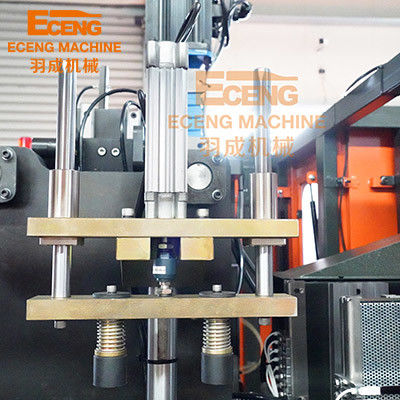

New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.
Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.
